World-Class Mounting Systems

Size Guide

Ball Sizes
Arm Sizes
X
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

GDS® Uni-Conn™ Aina PTT Voice Responder Bundle for Samsung Tab Active5

SKU Copied
SKU: RAM-GDS-U1-SAM90-KIT7
UPC Copied
UPC: 793442029844

GDS® Uni-Conn™ Aina PTT Voice Responder Bundle for Samsung Tab Active5
Copy SKU
SKU: RAM-GDS-U1-SAM90-KIT7
Copy UPC
| UPC: 793442029844

C SIZE
MEDIUM ARM
Size Guide

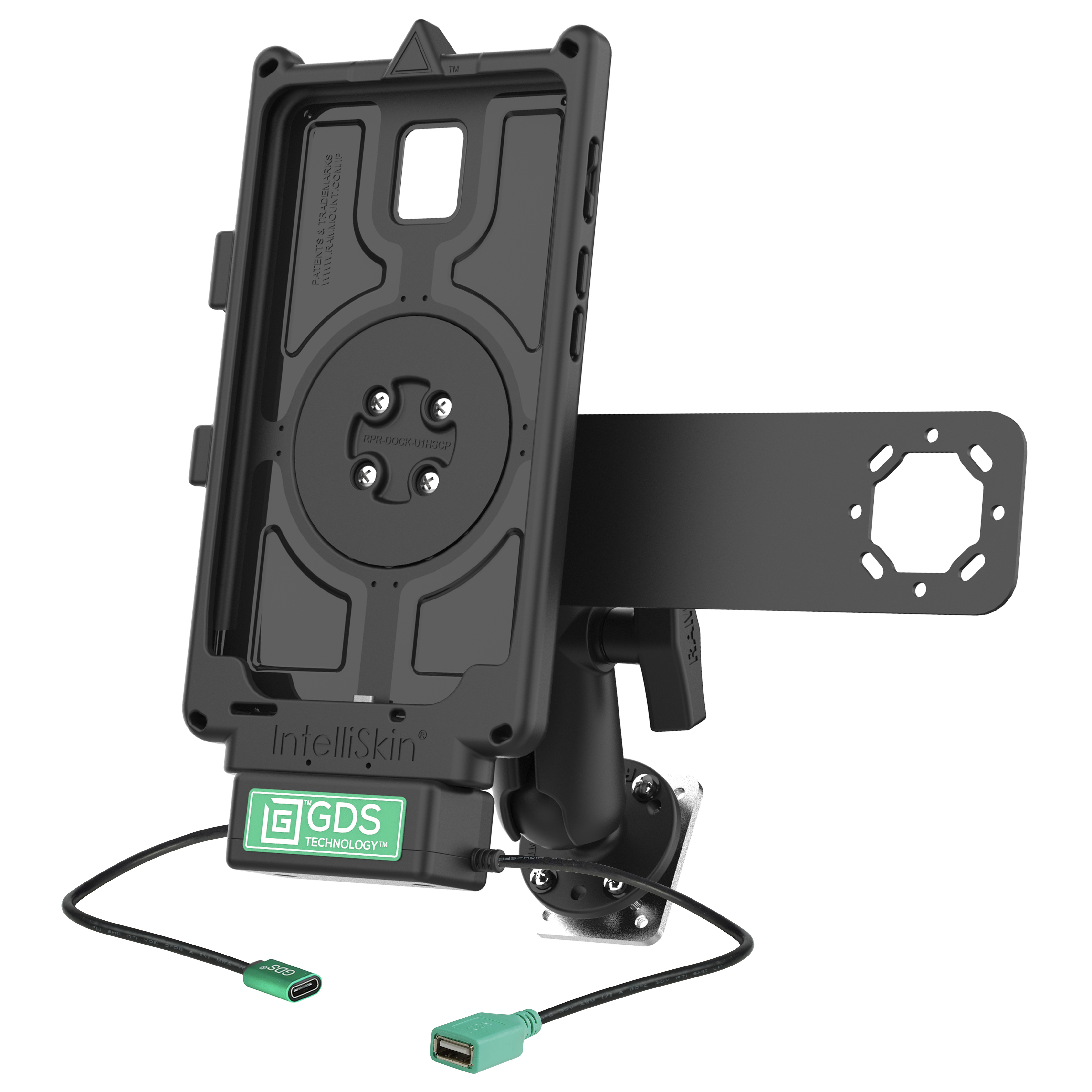

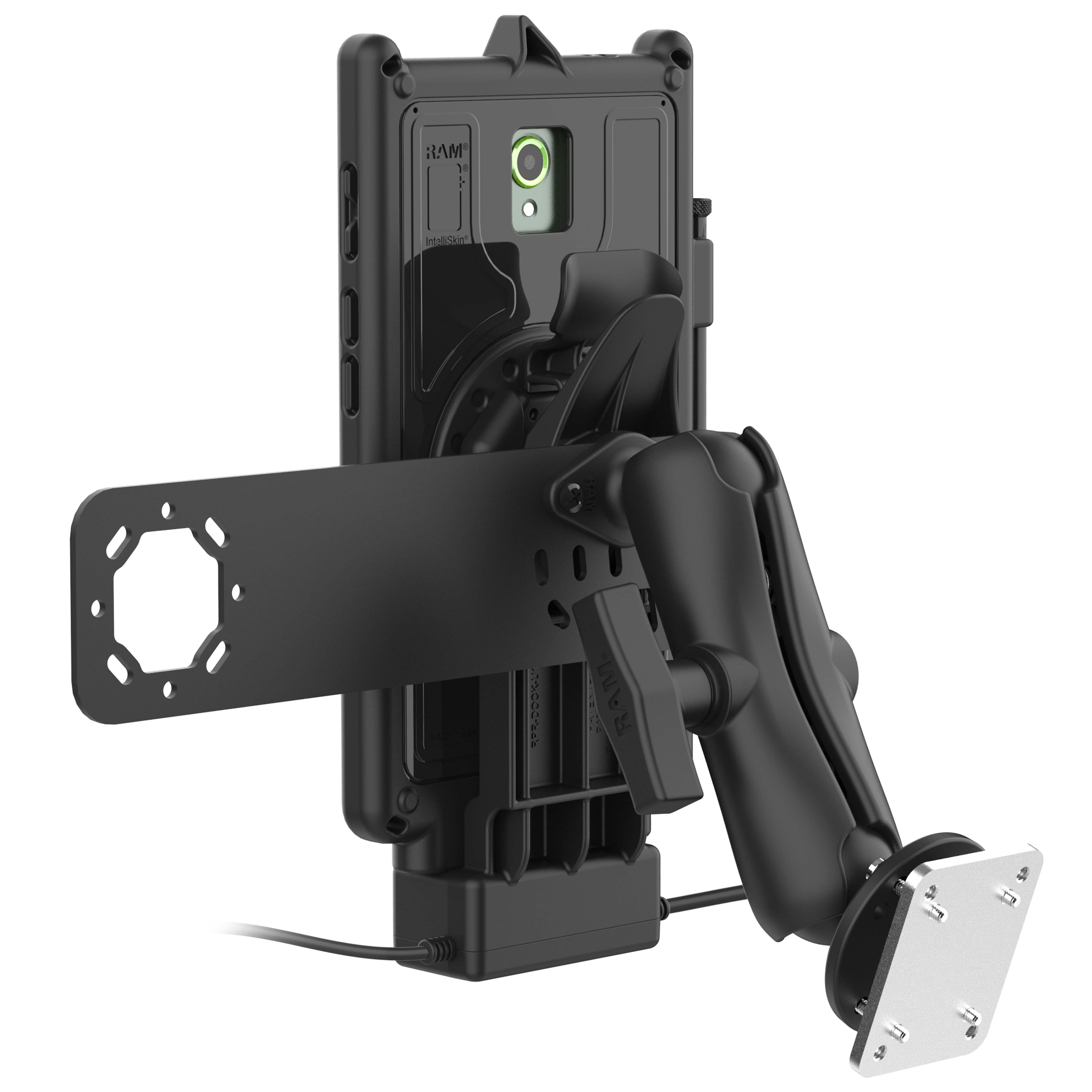

The GDS Uni-Conn Aina PTT Voice Responder Bundle for Samsung Tab Active5 (RAM-GDS-U1-SAM90-KIT7) is a rugged, all-in-one Push-To-Talk (PTT) mounting solution designed to seamlessly integrate the Tab Active5 into mission-critical workflows. Ideal for field operations, public safety, and fleet management, this bundle includes a GDS Uni-Conn dock, Uni-Conn adapter, IntelliSkin for the Samsung Tab Active5, a microphone bracket, hardwire charger, and a double ball mount with backing plate for secure in-vehicle installation. The dock features a USB Type-C female power connector for direct connection to the hardwire charger, while the AINA Vehicle Charging Cradle connects via the USB-A peripheral pigtail to supply power. Bluetooth-enabled Push-To-Talk communication is supported exclusively through AINA's Voice Responder Remote Speaker Microphone (RSM), offering reliable wireless connectivity in demanding environments. Integrated pogo pins on the dock provide consistent power to the IntelliSkin-protected Tab Active5, ensuring optimal uptime and device readiness. This PTT bundle is optimized for use with ESChat and Zello, making it a powerful communication hub for modern mobile teams. The GDS Uni-conn dock is backed by a 3-year warranty. Warranty is void if lever stop is not installed. Always Protected. Always Connected. One Dock to Connect Them All.

Features

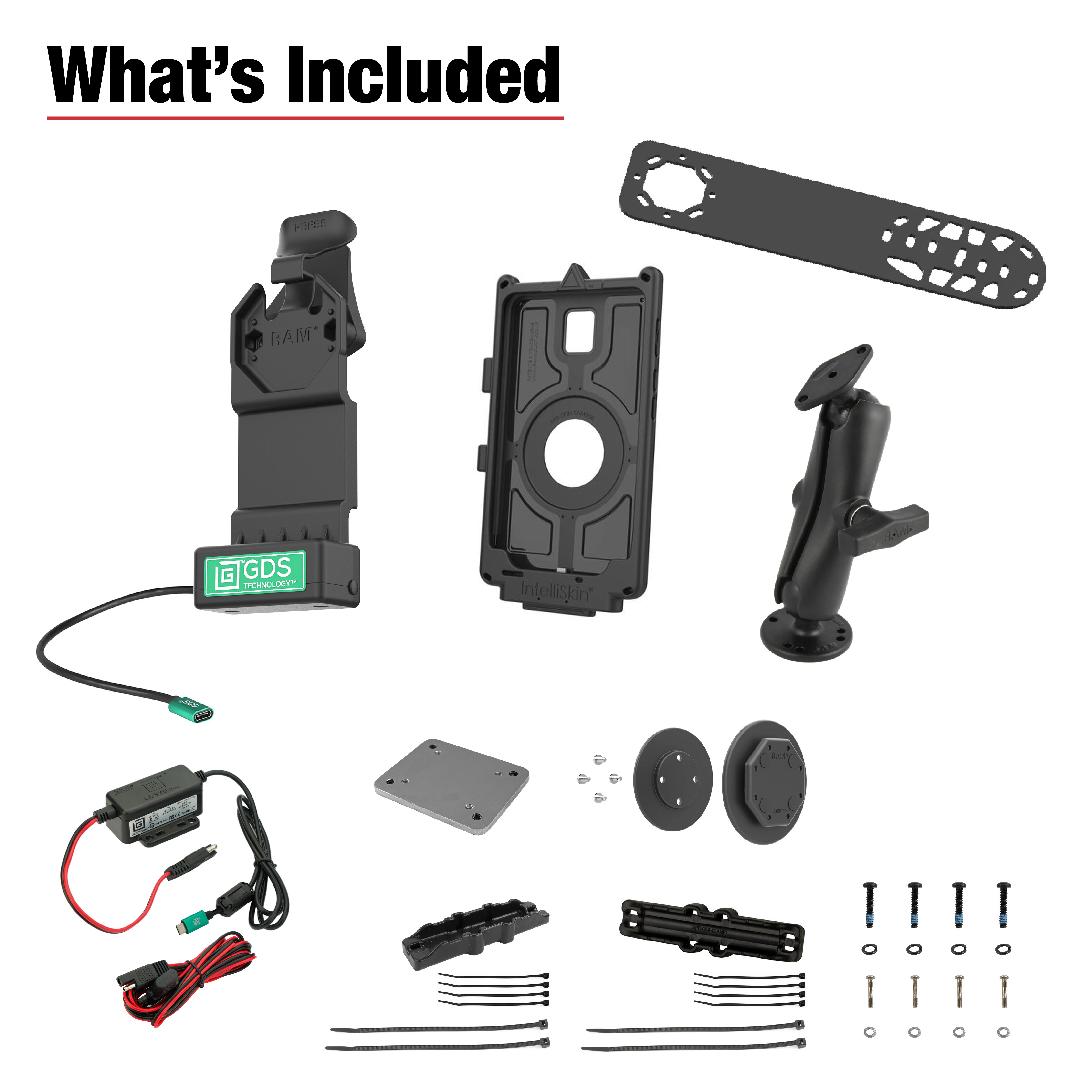

  • Bundle includes GDS® Uni-Conn™ dock, Uni-Conn™ adapter, IntelliSkin® for the Samsung Tab Active5, a microphone bracket, hardwire charger, and a double ball mount with backing plate
  • Dock features GDS® Technology™ for charging capabilities; power delivered via USB-C connector; connect AINA's charging vehicle cradle via USB-A connector
  • AINA's Voice Responder RSM and Vehicle Cradle recommended for bluetooth PTT
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a 3-year warranty

Information

Resources

Compatible Devices

Information

Hardware Included
Assembly HardwareMicrophone BracketHardwire Charger(2) USB Cable ClampsDashboard Backing Plate with Hardware
Socket To Socket Length
11.84cm (4.66")
Hole Pattern
4-Hole AMPS: 3.00 cm (1.181") X 3.80 cm (1.496")
Ball Size
C Size ( 3.81cm (1.5") )
Materials
SteelMarine-grade aluminumHigh strength composite
Packaging Type
Box
Output Voltage
5V - 12V @ 3A
Power Output
15W
Input Connector
USB Type-CUSB Type A for 1 Peripheral
Input Cable Length
215mm
Output Cable Length
215mm
Peripheral Output
500mAh

Resources

INSTRUCTIONS

Compatible Devices

Add to Enquiry

Components

RAM Mounts
Copy SKU
RAM-101-MIC2U
RAM® Standard Bracket Adapter for Speakers & Microphones
RAM Mounts
Copy SKU
RAM-GDS-CHARGE-V7CU
GDS® Modular 10-30V Hardwire Charger with Male USB Type-C
RAM Mounts
Copy SKU
RAM-GDS-CAB-CLAMP1U
GDS® Cable Clamp for mUSB & USB Type-C Cables
RAM Mounts
Copy SKU
RAM-GDS-CAB-CLAMP2U
GDS® Cable Clamp for USB Type-A Cables
RAM Mounts
Copy SKU
RAM-GDS-SKIN-SAM90-NG
IntelliSkin® Next Gen for Samsung Tab Active5
RAM Mounts
Copy SKU
RAM-GDS-U1U
GDS® Uni-Conn™ Adapter for IntelliSkin®
RAM Mounts
Copy SKU

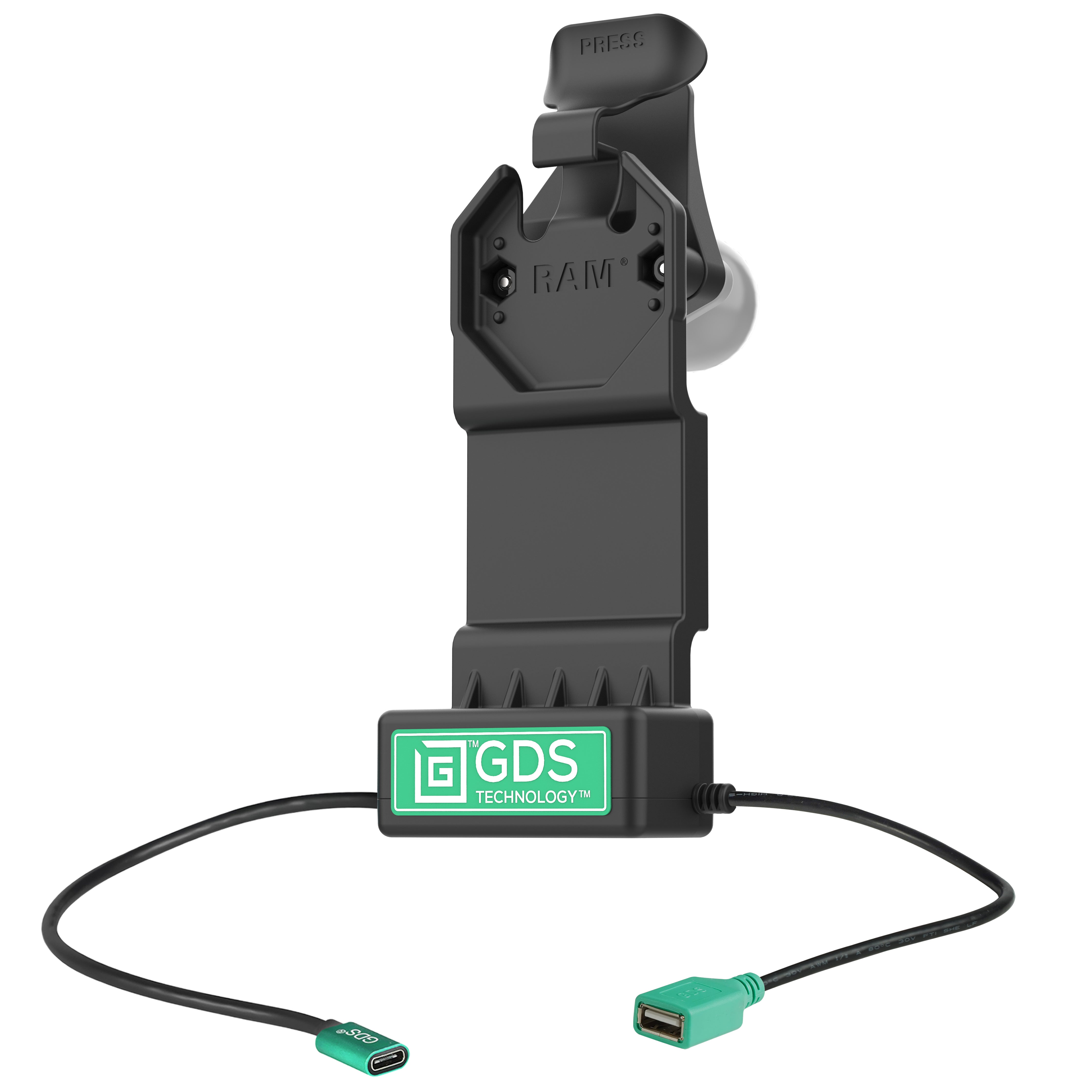

RAM-GDS-DOCK-U1CDU
GDS® Uni-Conn™ Power + Single USB-A Dock
RAM Mounts
Copy SKU
RAM-138-225B2U
RAM® Dashboard Mount with Backing Plate & Diamond Plate - C Size Medium
