World-Class Mounting Systems

Size Guide

Ball Sizes

Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

B Size

Holds 2 lbs / 0.91 KG

1" Ball

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs / 1.81 KG

1.5" Ball

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs / 2.72 KG

2.25" Ball

Monitors, Large Fishfinders

E Size

Holds 15 lbs / 6.8 KG

3.38" Ball

Heavy Monitors

Ball Sizes		Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42" / 6.1468cm	3.73" / 9.47cm	6.00" / 15.24cm
B Size	Socket-to-Socket Length	1.75" / 4.45cm	3.00" / 7.62cm	5.31" / 13.49cm
C Size	Overall Length	3.56" / 9.04cm	5.69" / 14.45cm	9.13" / 23.19cm
C Size	Socket-to-Socket Length	2.50" / 6.35cm	4.66" / 11.84cm	8.00" / 20.32cm
D Size	Overall Length	5.10" / 12.95cm	8.44" / 21.44	12.98" / 32.97
D Size	Socket-to-Socket Length	3.60" / 9.14cm	6.88" / 17.48cm	11.41" / 28.98cm
E Size	Overall Length	7.31" / 18.57cm	12.63" / 32.08cm	N/A
E Size	Socket-to-Socket Length	4.98" / 12.65cm	9.88" / 25.10cm	N/A

 / Overview /

GDS® Uni-Conn™ Vehicle Bundle + Single USB-C for Samsung Tab A7 Lite 8.7

SKU Copied

SKU: RAM-GDS-101B2-SAM80C-C-V7CU

UPC Copied

UPC: 793442019098

Ram Semi Truck Backing Plate Mounting Instructions







GDS® Uni-Conn™ Vehicle Bundle + Single USB-C for Samsung Tab A7 Lite 8.7

Copy SKU
RAM-GDS-101B2-SAM80C-C-V7CU SKU: RAM-GDS-101B2-SAM80C-C-V7CU

Copy UPC
793442019098 | UPC: 793442019098

C SIZE

SHORT ARM

Size Guide

The GDS Tough-Dock USB-C Vehicle Bundle for Tab A7 Lite 22.10cm (8.7") (RAM-GDS-101B2-SAM80C-C-V7CU) is the world's first vehicle dock capable of facilitating push-to-talk communications via a USB Type-C connection. It is designed to support the Samsung Tab A7 Lite 22.10cm (8.7") in an IntelliSkin Next Gen protective sleeve, allowing users to take advantage of the entire GDS Ecosystem. The GDS Tough-Dock uses a USB Type-C power connector to support high speed charging capabilities for the A7 Lite. This solution includes the GDS Tough-Dock, IntelliSkin Next Gen for Samsung Tab A7 Lite 22.10cm (8.7") , GDS Modular 10-30V Hardwire Charger, C Size double ball mount with short arm, backing plate adapter, and cable clamp. This Push-to-Talk Bundle is only compatible with ESChat and Zello. The GDS Tough-Dock is backed by a 3-year warranty. Always Protected. Always Connected.

Features

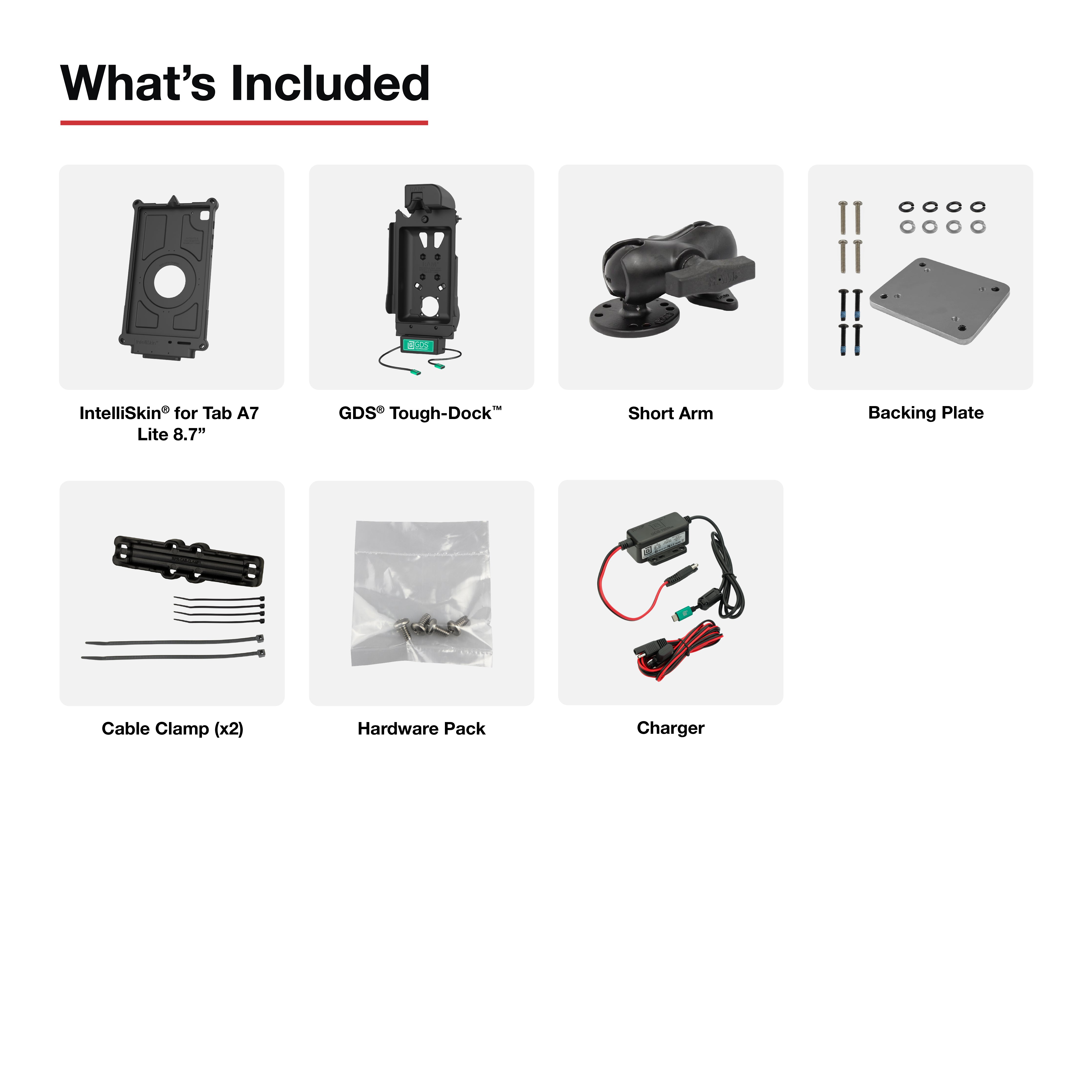

Bundle includes the GDS® Tough-Dock™, IntelliSkin® Next Gen for Samsung Tab A7 Lite 22.10cm (8.7") , GDS® Modular 10-30V Hardwire Charger, C Size double ball mount with short arm, backing plate adapter, and cable clamp

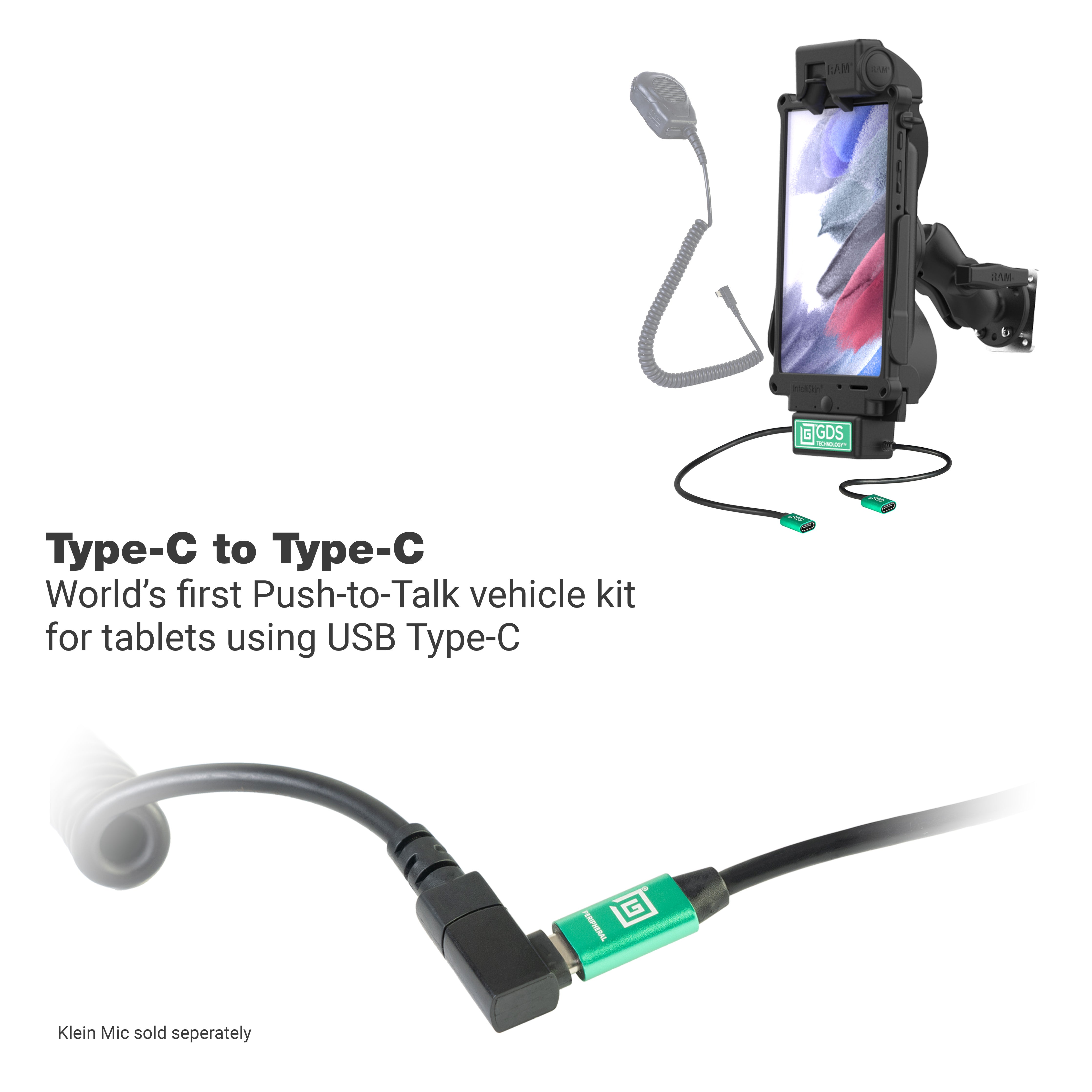

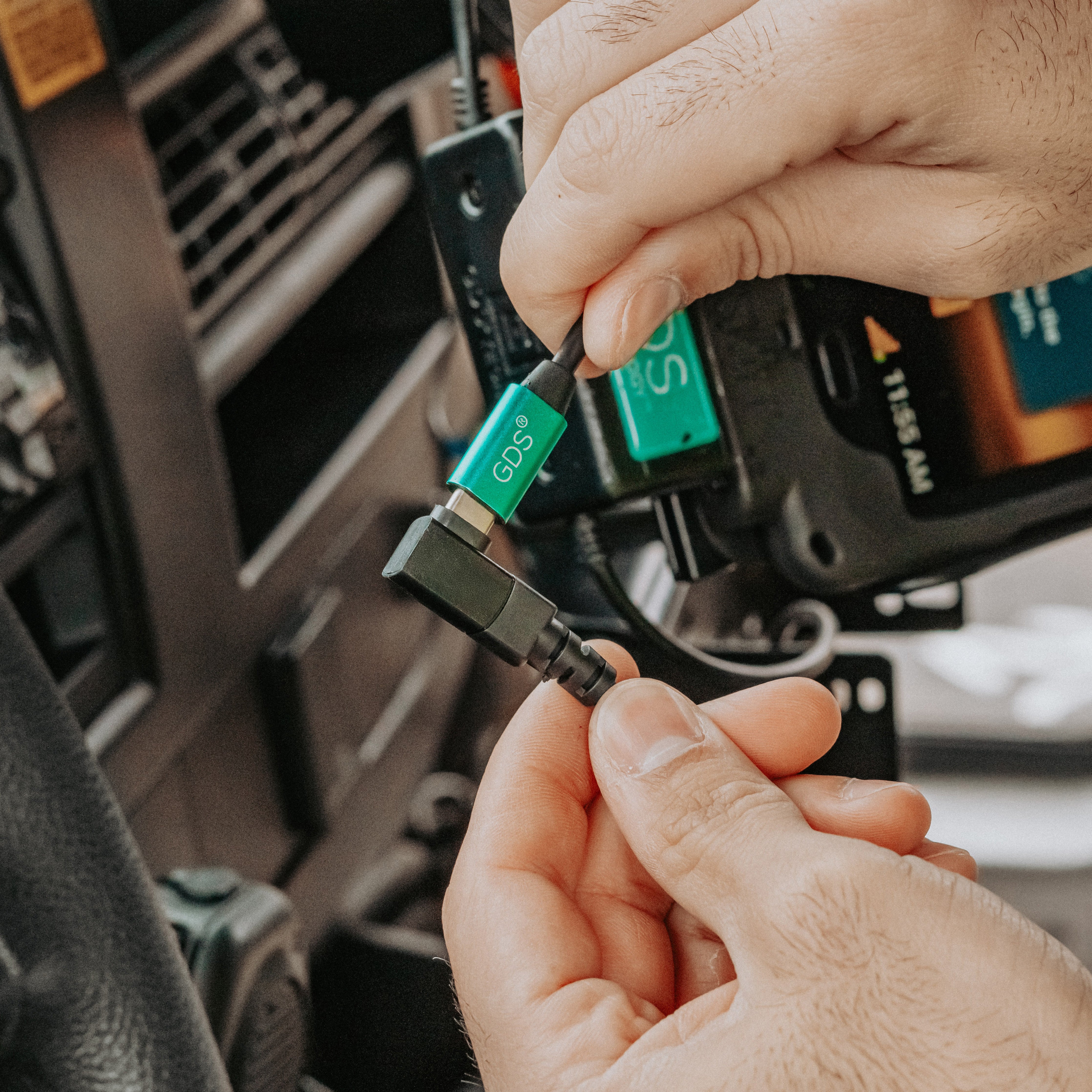

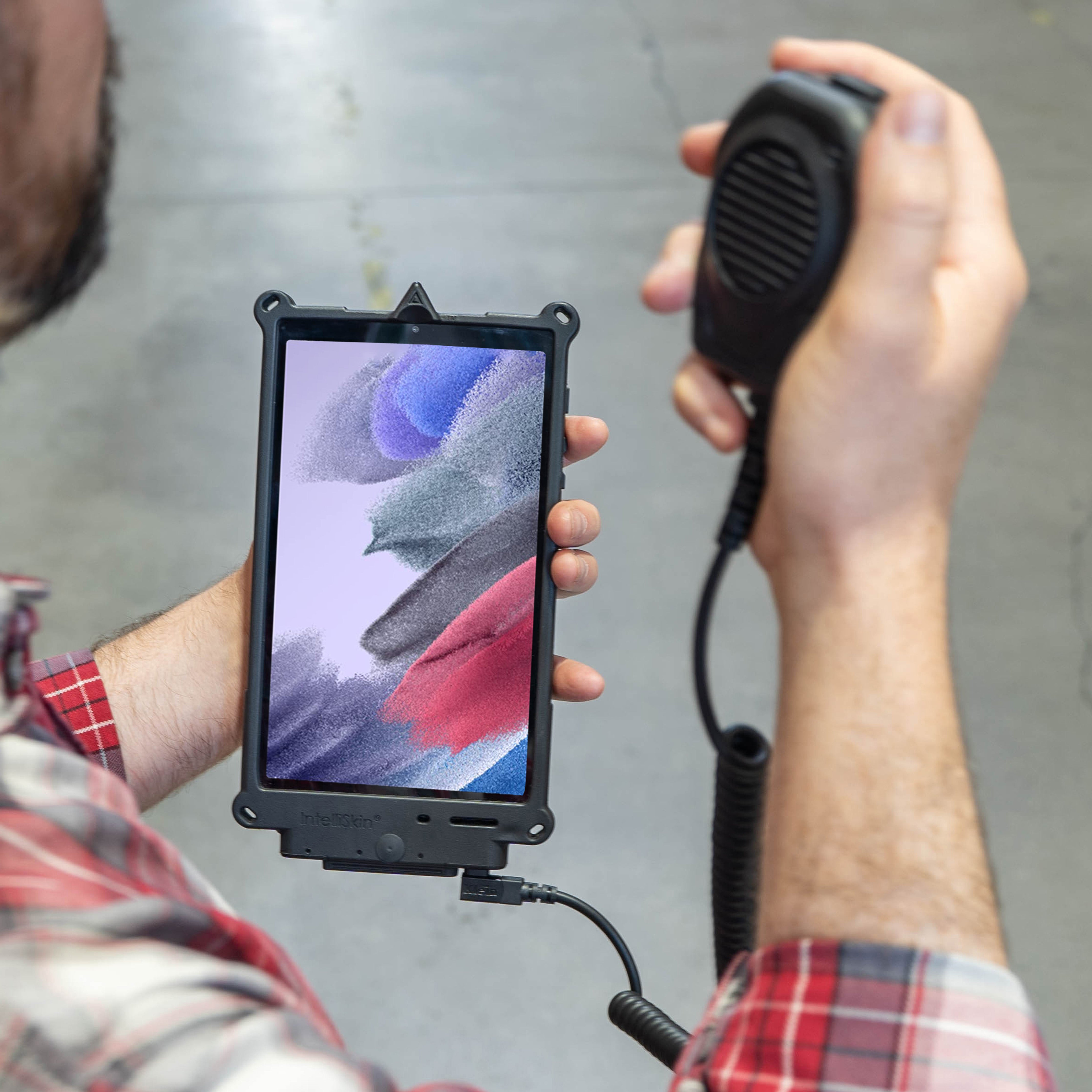

Capable of Push-To-Talk via USB Type-C connection
Dock features GDS® Technology™ for charging capabilities; uses USB-C port to connect to power
RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
Backed by a 3-year warranty

Information

Resources

Compatible Devices

Information

Product Weight

1.70 kg (3.74 lbs)

Hardware Included

Assembly Hardware(1) 5.33 cm (2.10") X 6.60 cm (2.60") Steel Backing Plate(4) #8-32 x 2.54cm (1") Screws(4) #8 Split Lock Washers(4) #8 Flat Washers(1) Cable Clamp(1) Vehicle Hardwire Charger

Socket To Socket Length

6.35cm (2.5")

Hole Pattern

4-Hole AMPS: 3.00 cm (1.181") X 3.80 cm (1.496") 3-Hole 120-Degree: 4.60cm (1.812") Diameter

Ball Size

C Size ( 3.81cm (1.5") )

Materials

SteelMarine-grade aluminumHigh strength composite

Packaging Type

Box

Output Voltage

Type-C Tablets: 5V - 12V @ 3A maxmUSB Tablets: 5V @ 1.5A max
