World-Class Mounting Systems

Size Guide

Ball Sizes
Arm Sizes
X
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® 14" Pedestal Mount with Dual 75mm VESA Adapters - Gray

SKU Copied
SKU: RAP-D11H2-14-V75-GRY
UPC Copied
UPC: 793442032585

RAM® 14" Pedestal Mount with Dual 75mm VESA Adapters - Gray
Copy SKU
SKU: RAP-D11H2-14-V75-GRY
Copy UPC
| UPC: 793442032585

The RAM 35.56cm (14") Pedestal Mount with Dual 75mm VESA Adapters - Gray (RAP-D11H2-14-V75-GRY) provides a sturdy and streamlined way to mount two displays or devices back-to-back on a single pedestal. Each head includes a 75mm VESA plate with integrated cable management cutouts, allowing power and data cables to route neatly through the pedestal and out the base for a clean, professional workspace. With 180 tilt adjustment on each head, users can easily achieve optimal viewing angleswhether the setup is for shared workstations, control panels, or fleet monitoring environments. The drill-down base delivers a secure, fixed installation ideal for high-traffic or semi-permanent setups. Durable, adaptable, and built for precision alignment, this dual-mount solution brings both functionality and visual organization to any business space. Made in a light gray color, the mount blends seamlessly into clean, modern, and aesthetic environments where subtlety and professional appearance matter.

Features
  • Mount two devices or monitors opposite each other with dual 75mm VESA Heads

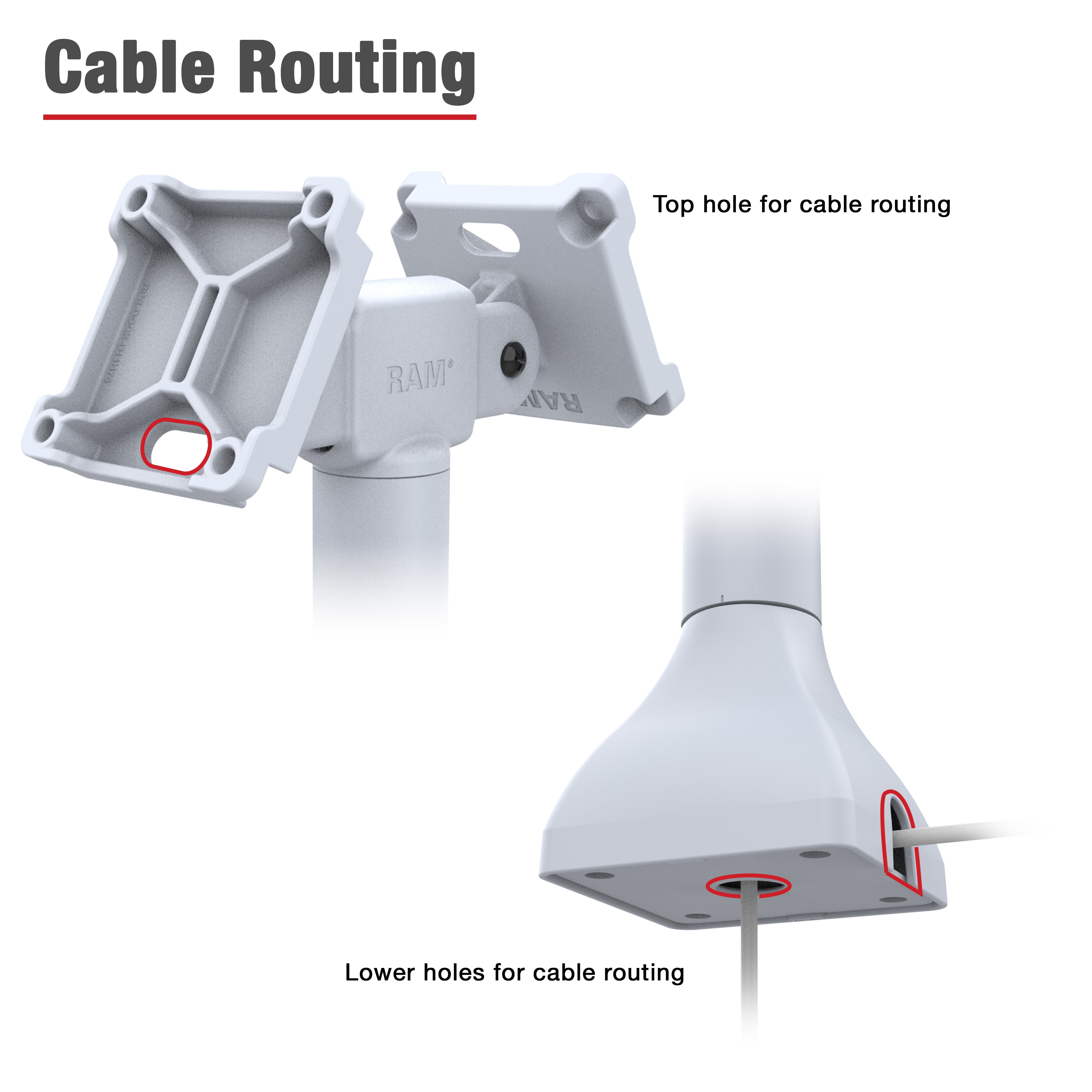

  • Route cables through the pedestal for a clean and organized look

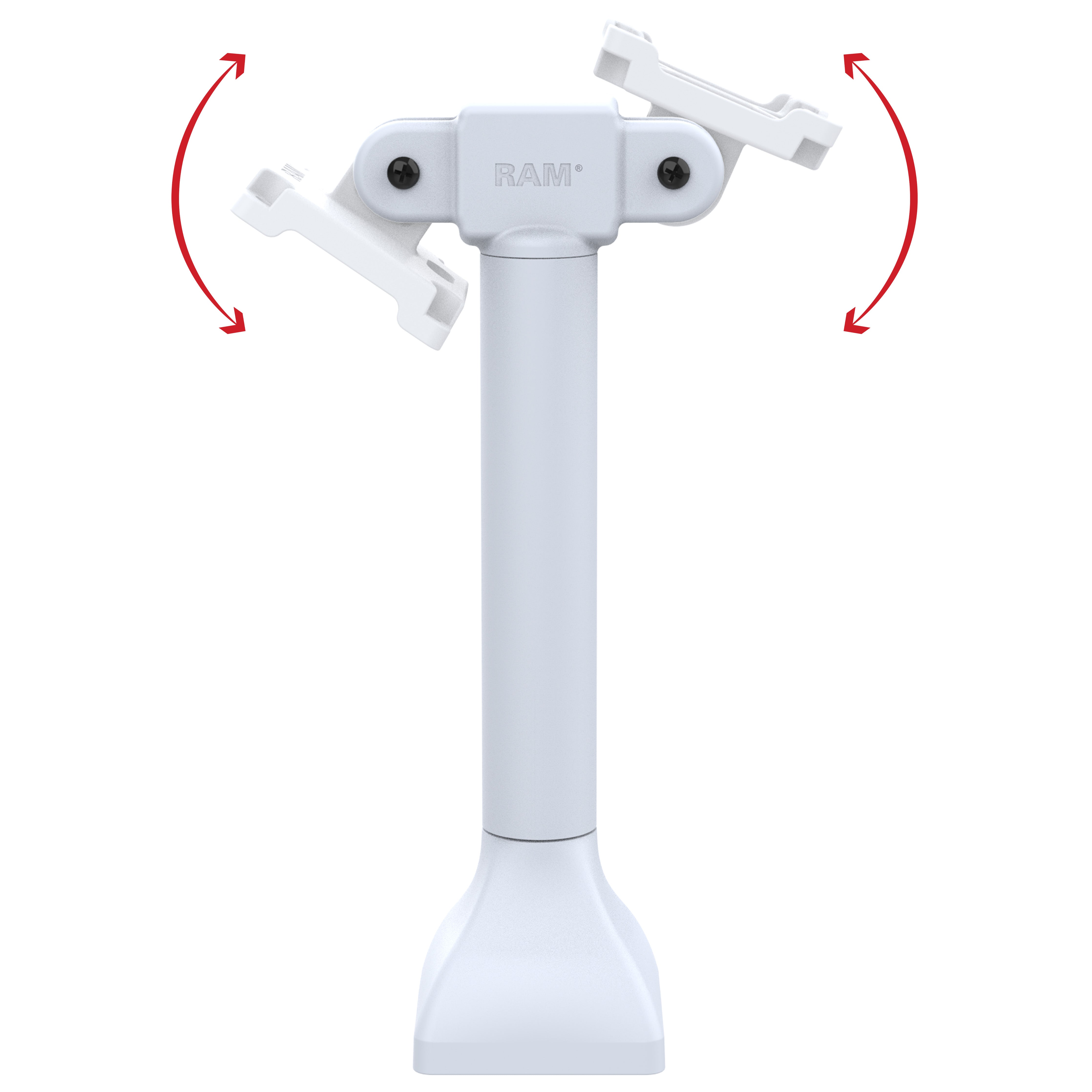

  • 180° tilt range, adjust each head for ideal viewing or operational positioning
  • 14-inch pedestal provides a sturdy structure for industrial and commercial use
  • Backed by a lifetime warranty

Information

Information

Hardware Included
Assesmbly Hardware
Product Dimensions

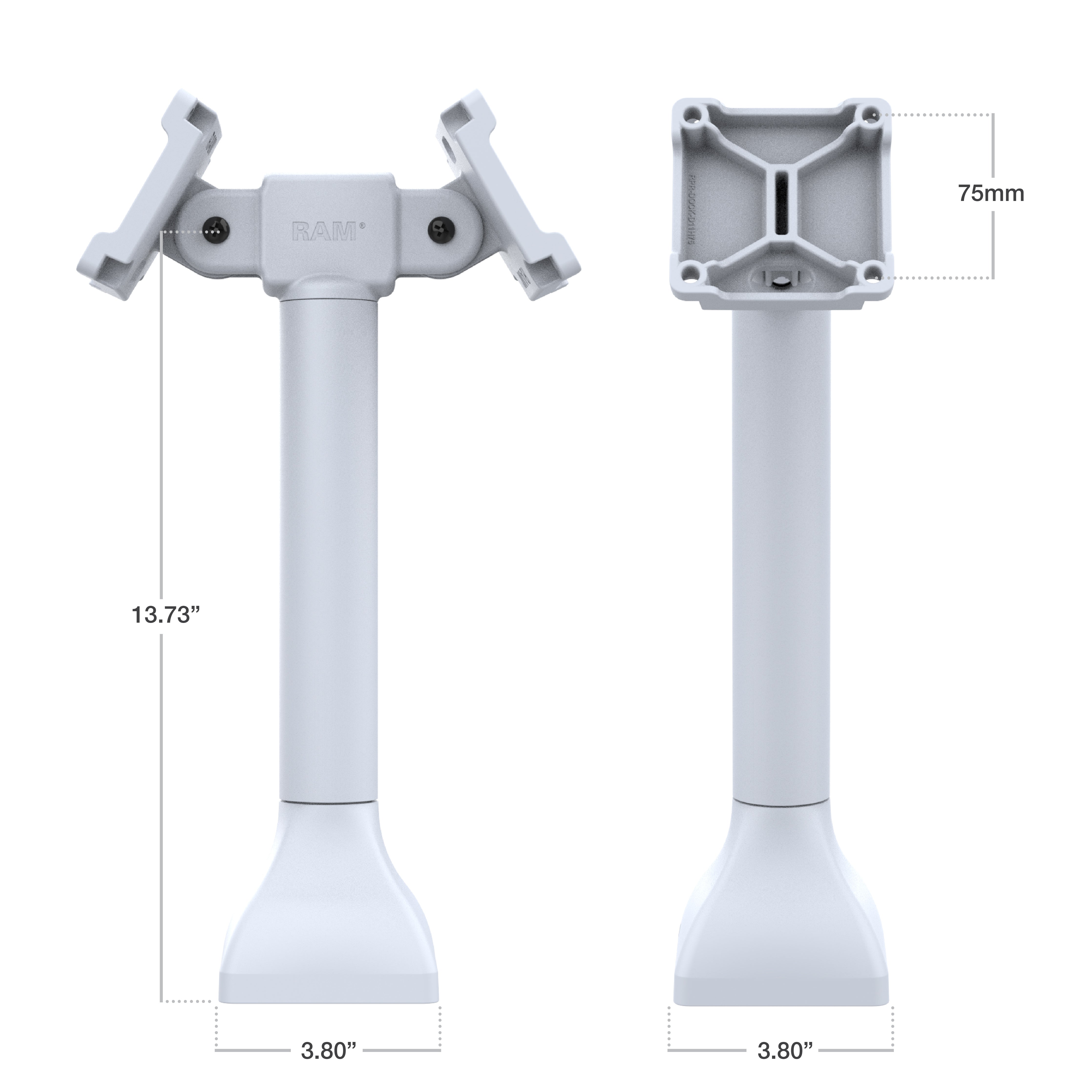

Height from Base to Tilt Bolt: 34.87cm (13.73") Base Width: 9.65cm (3.8") Base Depth: 9.65cm (3.8")
Hole Pattern
75 x 75mm VESA
Materials
High strength composite
Packaging Type
Box
