World-Class Mounting Systems

Size Guide

Ball Sizes
Arm Sizes
X
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Dashboard Mount for Motive AI Dashcam Plus

SKU Copied
SKU: RAM-B-347-379-252050-K5-MTV3U
UPC Copied
UPC: 793442037313

RAM® Dashboard Mount for Motive AI Dashcam Plus
Copy SKU
SKU: RAM-B-347-379-252050-K5-MTV3U
Copy UPC
| UPC: 793442037313

B SIZE
MEDIUM ARM
Size Guide

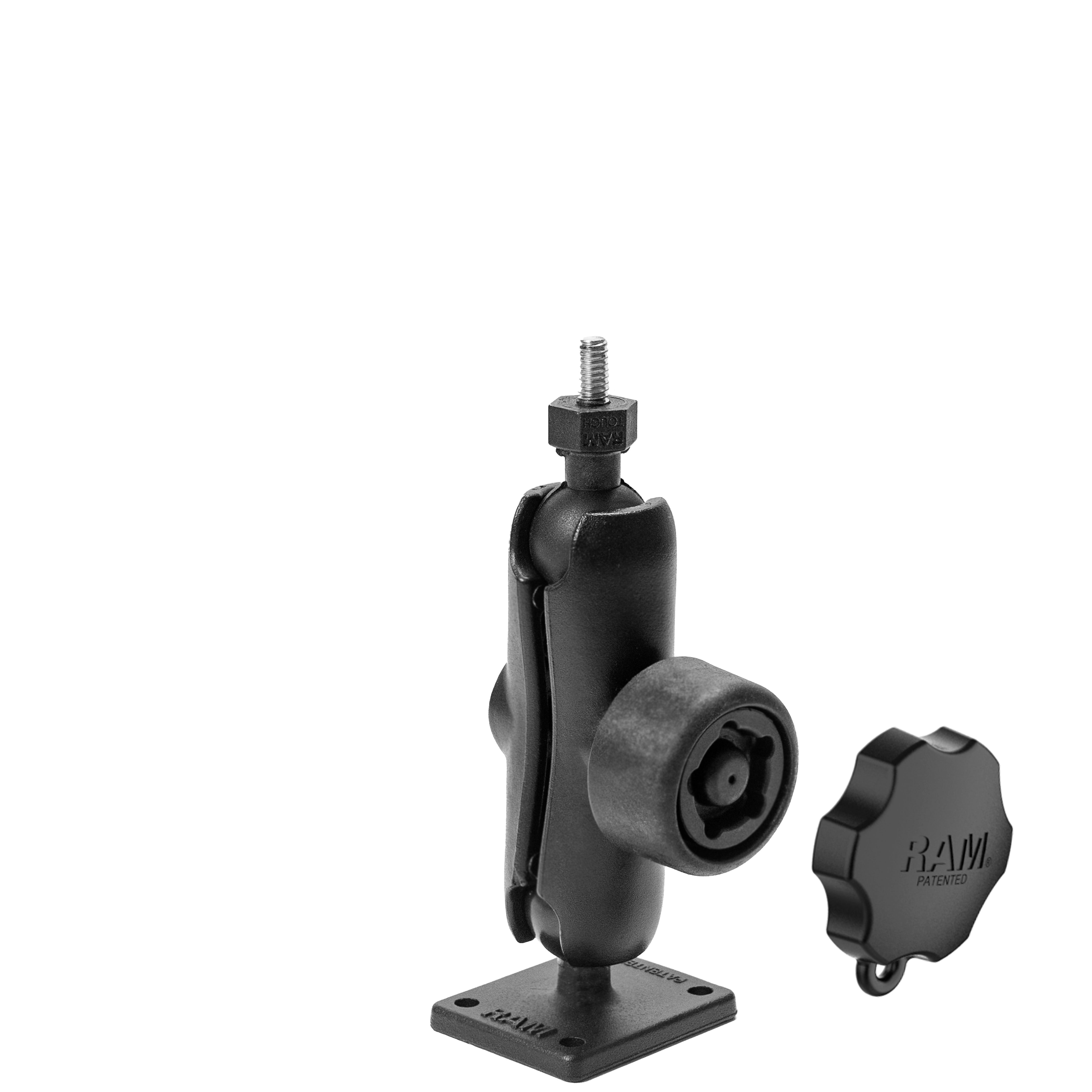

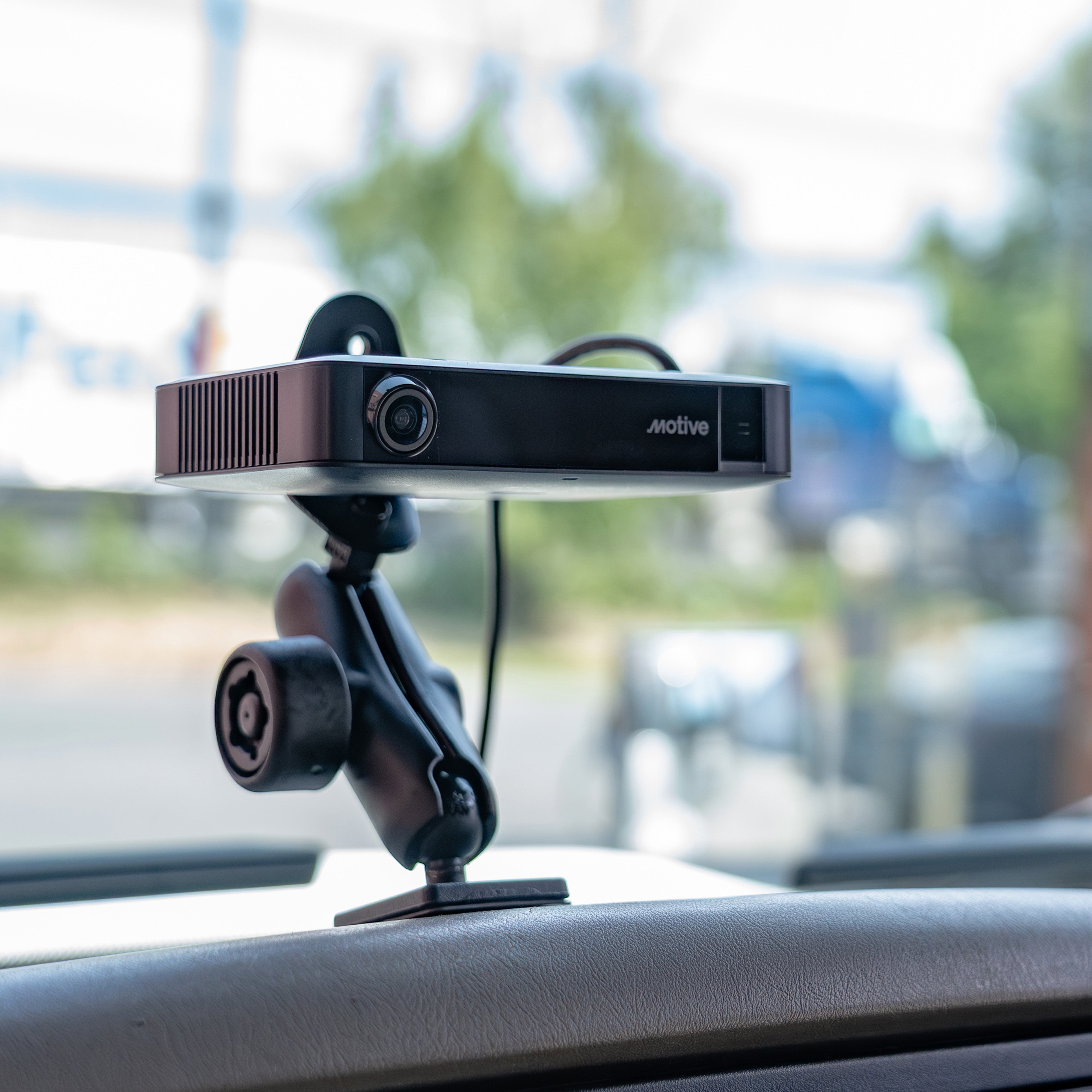

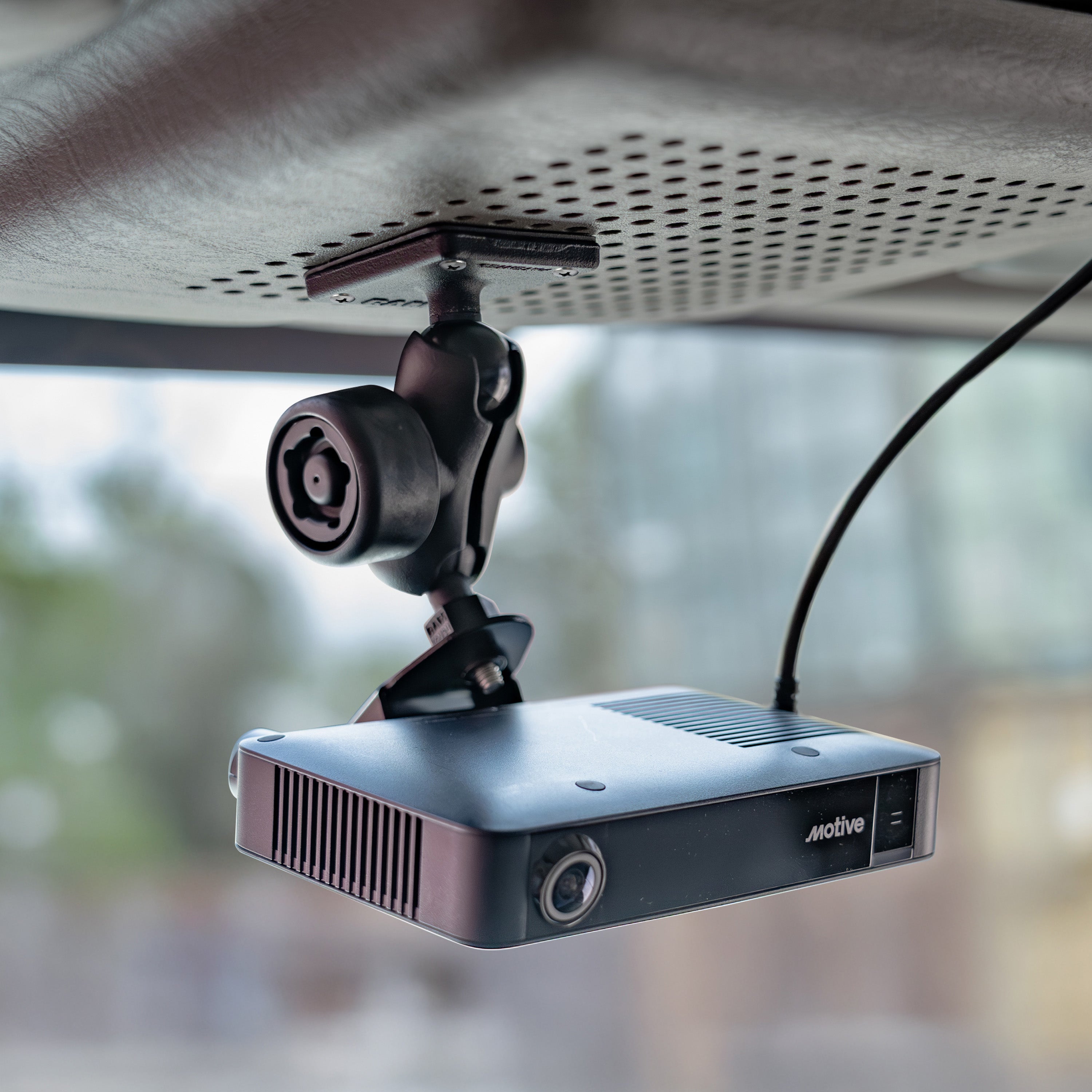

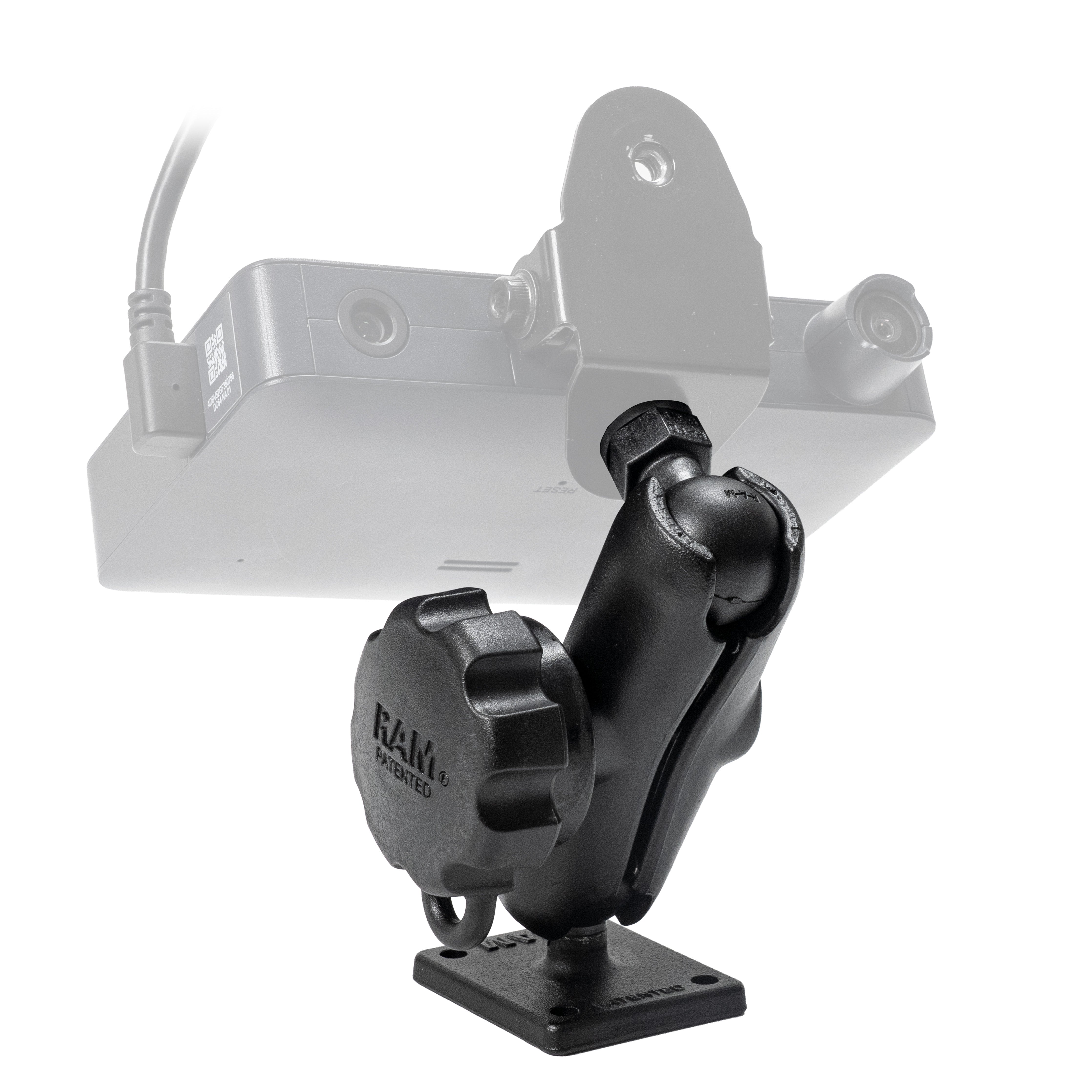

The RAM Dashboard Mount for Motive AI Dashcam Plus (RAM-B-347-379-252050-K5-MTV3U) is a complete mounting solution for securing the Motive AIDC+ Dashcam to a dashboard. This kit includes a B-size RAM Tough-Ball with 0.64cm (0.25") threaded stud, RAM Pin-Lock B-size medium double socket arm, backing plate adapter, and adhesive mounting pad. Choose between the backing plate adapter for a permanent drill-down installation or the included adhesive pad for a no-drill mounting option. For added security, the RAM Pin-Lock Security Knob helps deter theft and tampering while keeping the camera secure. Built on the RAM Mounts ball-and-socket system, this mount provides near-infinite adjustability for optimal camera positioning, while keeping both the front and rear cameras on the AIDC+ usable. Please note, this kit requires a Mount Adapter (ACC-DC6X-MNT-ADPTR1) from Motive (not included).

Features

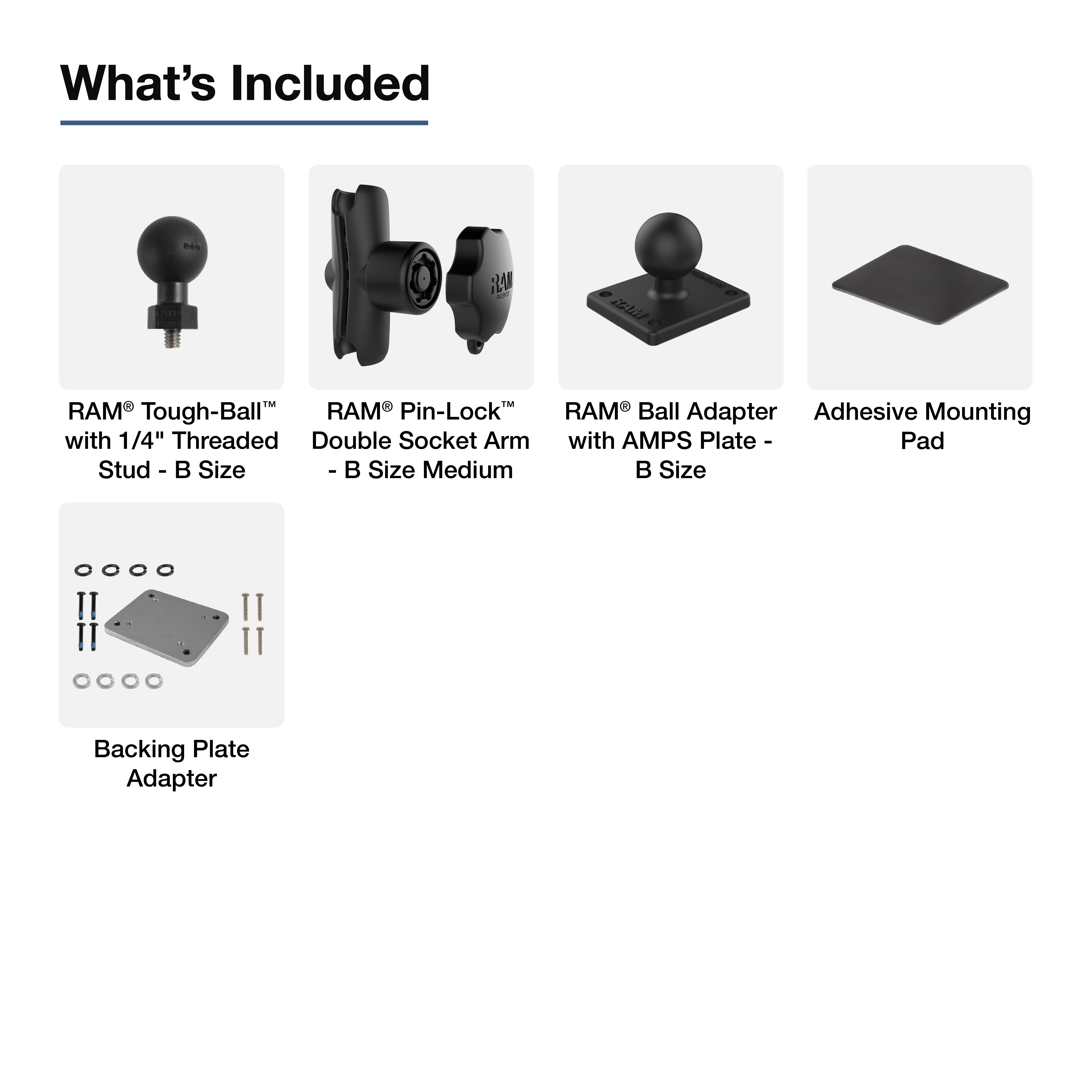

  • Bundle includes B Size RAM® Tough-Ball™ with 0.64cm (0.25") Threaded Stud, RAM® Pin-Lock™ B Size Medium Double Socket Arm, Backing Plate Adapter, and Adhesive Mounting Pad
  • Included Adhesive Mounting Pad provides no-drill installation option
  • Allows for the use of both front and rear cameras on Motive AIDC+ Dashcam
  • Locking knob on arm provides additional theft deterrence
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments

Information

Resources

Information

Product Weight
0.43 kg (0.95 lbs)
Hardware Included
(1) Knob Key(1) Dash Adhesive Pad(1) Dash Backing Plate(4) #10-24 x 2.54cm (1") Machine Screws(4) #10 Lock Washers(4) #8-32 x 2.54cm (1") Machine Screws(4) #8 Lock Washers
Socket To Socket Length
7.62cm (3")
Hole Pattern
4-Hole AMPS: 3.00 cm (1.181") X 3.80 cm (1.496")
Thread Pitch
1/4" -20
Ball Size
B Size (1")
Weight Capacity
Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)
Materials
Marine-grade aluminumHigh strength composite
Packaging Type
Poly Bag

Resources

INSTRUCTIONS
Add to Enquiry

Components

RAM Mounts
Copy SKU
RAM-347PSAU
RAM® Double Adhesive Pad
RAM Mounts
Copy SKU
RAM-202-225B-2U
RAM® Backing Plate Adapter
RAM Mounts
Copy SKU
RAP-B-379U-252050
RAM® Tough-Ball™ with 1/4"-20 x .50" Threaded Stud - B Size
