Size Guide

Ball Sizes

Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

B Size

Holds 2 lbs / 0.91 KG

1" Ball

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs / 1.81 KG

1.5" Ball

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs / 2.72 KG

2.25" Ball

Monitors, Large Fishfinders

E Size

Holds 15 lbs / 6.8 KG

3.38" Ball

Heavy Monitors

Ball Sizes		Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42" / 6.1468cm	3.73" / 9.47cm	6.00" / 15.24cm
B Size	Socket-to-Socket Length	1.75" / 4.45cm	3.00" / 7.62cm	5.31" / 13.49cm
C Size	Overall Length	3.56" / 9.04cm	5.69" / 14.45cm	9.13" / 23.19cm
C Size	Socket-to-Socket Length	2.50" / 6.35cm	4.66" / 11.84cm	8.00" / 20.32cm
D Size	Overall Length	5.10" / 12.95cm	8.44" / 21.44	12.98" / 32.97
D Size	Socket-to-Socket Length	3.60" / 9.14cm	6.88" / 17.48cm	11.41" / 28.98cm
E Size	Overall Length	7.31" / 18.57cm	12.63" / 32.08cm	N/A
E Size	Socket-to-Socket Length	4.98" / 12.65cm	9.88" / 25.10cm	N/A

 / Overview /

RAM® Dashboard Mount with Backing Plate & Diamond Plate - C Size Medium

SKU Copied

SKU: RAM-138-225B2U

UPC Copied

UPC: 793442029509







RAM® Dashboard Mount with Backing Plate & Diamond Plate - C Size Medium

Copy SKU
RAM-138-225B2U SKU: RAM-138-225B2U

Copy UPC
793442029509 | UPC: 793442029509

C SIZE

MEDIUM ARM

Size Guide

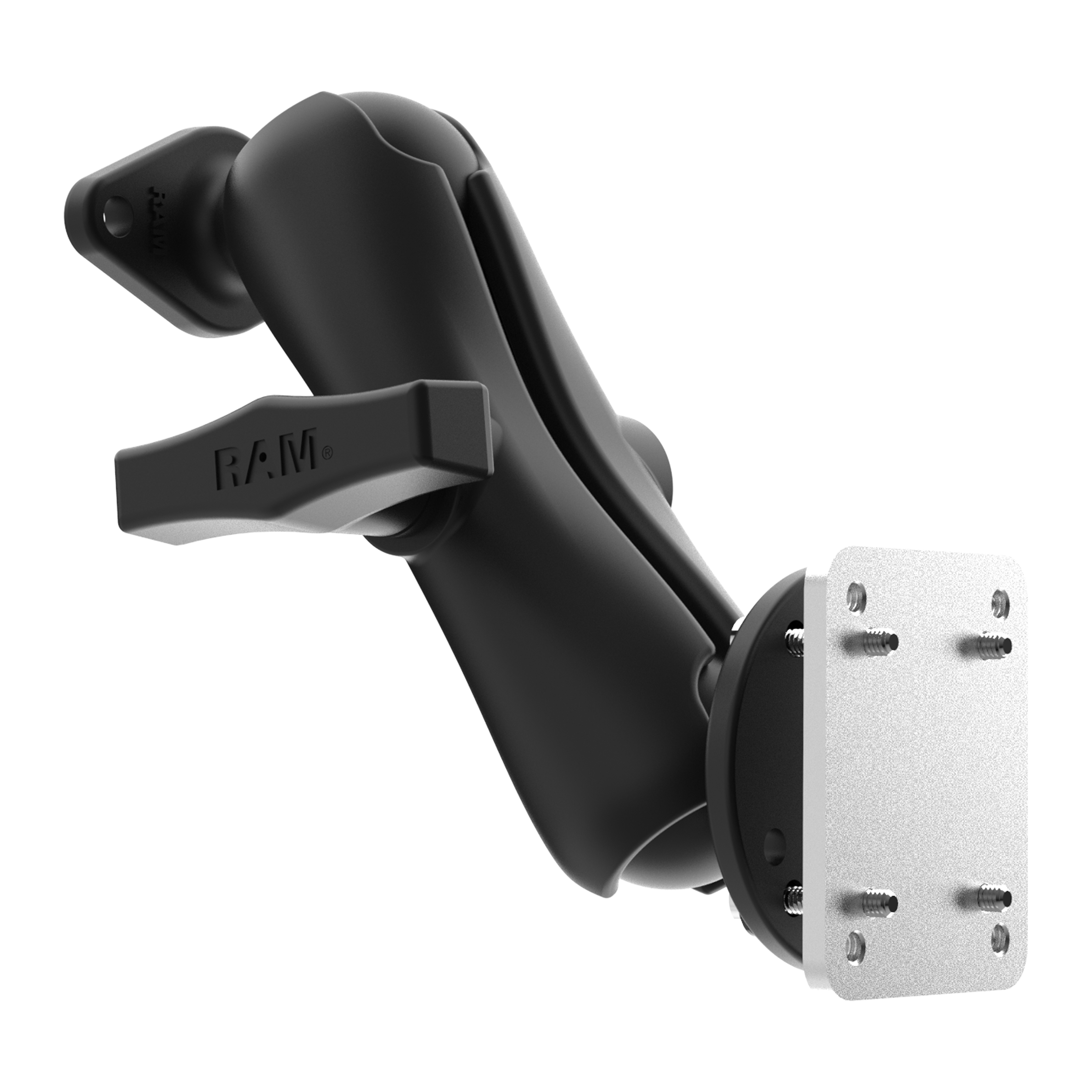

The RAM Dashboard Mount with Backing Plate & Diamond Plate - C Size Medium (RAM-138-225B2U) consists of a double socket arm, one 6.35cm (2.5") diameter round base, one 6.17 cm (2.43") X 3.33 cm (1.31") diamond base, one 5.33 cm (2.10") X 6.60 cm (2.60") backing plate, and mounting hardware. Each base features the universal AMPS hole pattern, making them compatible with all RAM device holders. The mount is designed with a 2.54cm (1") diameter rubber ball and socket system that features adjustment points at both ends of the double socket arm, allowing for near-infinite adjustability for ideal viewing angles.

Features

6.17 cm (2.43") X 3.33 cm (1.31") diamond base with C size 3.81cm (1.5") RAM® rubber ball connects to RAM® device holders containing the universal AMPS hole pattern; includes C size medium length double socket arm
5.33 cm (2.10") X 6.60 cm (2.60") steel backing plate provide support for mount when drilling in and securing to thin surfaces, like dashboards
Ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty
