World-Class Mounting Systems

Size Guide

Ball Sizes
Arm Sizes
X
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Drill-Down Mount with LED Spotlight

SKU Copied
SKU: RAM-B-152
UPC Copied
UPC: 793442101526

RAM® Drill-Down Mount with LED Spotlight
Copy SKU
SKU: RAM-B-152
Copy UPC
| UPC: 793442101526

B SIZE
MEDIUM ARM
Size Guide

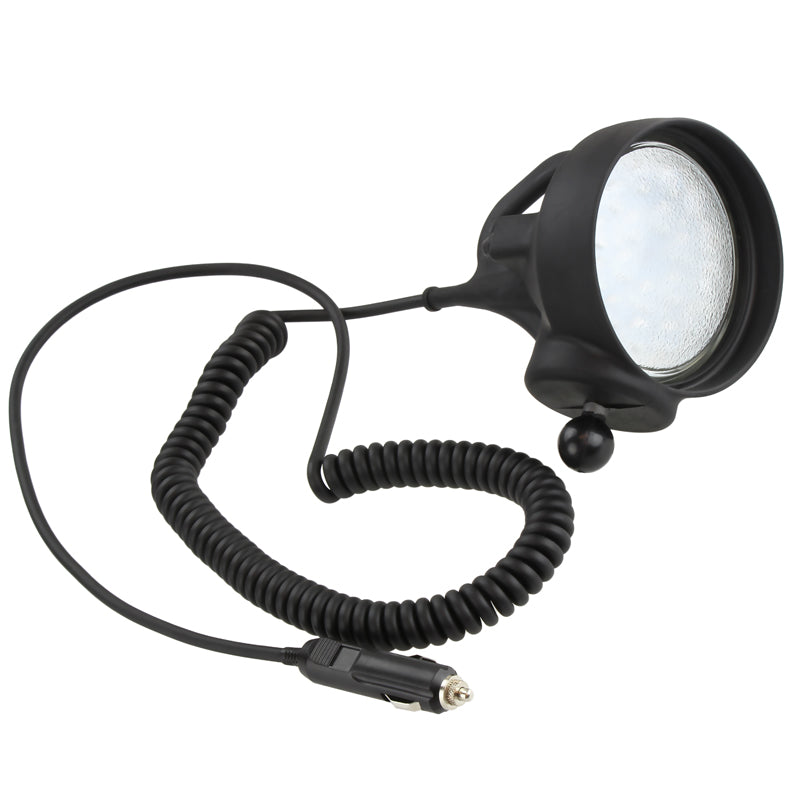

The new RAM Mounts LED Spotlight has been completely redesigned. We have integrated a new LED bulb that yields a brighter and more efficient light that enables you to add safety and lower power draw to your ATV, boat or vehicle. The weather-resistant body shields the 30-degree spot light LED bulb, which yields a wider and brighter range of light, from the elements. The long cord with standard 12v plugin means you can mount the light from nearly any location. The RAM-B-152 consists of a double socket arm, one round 6.35cm (2.5") diameter base with the universal AMPS hole pattern and the rubber coated RAM LED spotlight. The patented rubber ball and socket technology dampens shock and vibration, as well as allows for almost infinite adjustment to set your light in the ideal position.

Information

Resources

Information

Product Weight
0.94 kg (2.07 lbs)
Bulb Specifications
PAR3612 Volts DC9 Watts1900 LumensSealed Beam30-Degree Spot LightFrosted Lens4500K Color Temp
Socket To Socket Length
7.62cm (3")
Hole Pattern
4-Hole AMPS: 3.00 cm (1.181") X 3.80 cm (1.496") 3-Hole 120-Degree: 4.60cm (1.812") Diameter
Ball Size
B Size (1")
Weight Capacity
Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)
Materials
Marine-grade aluminumRubber
Packaging Type
Retail Bag

Resources
