World-Class Mounting Systems

Size Guide

Ball Sizes
Arm Sizes
X

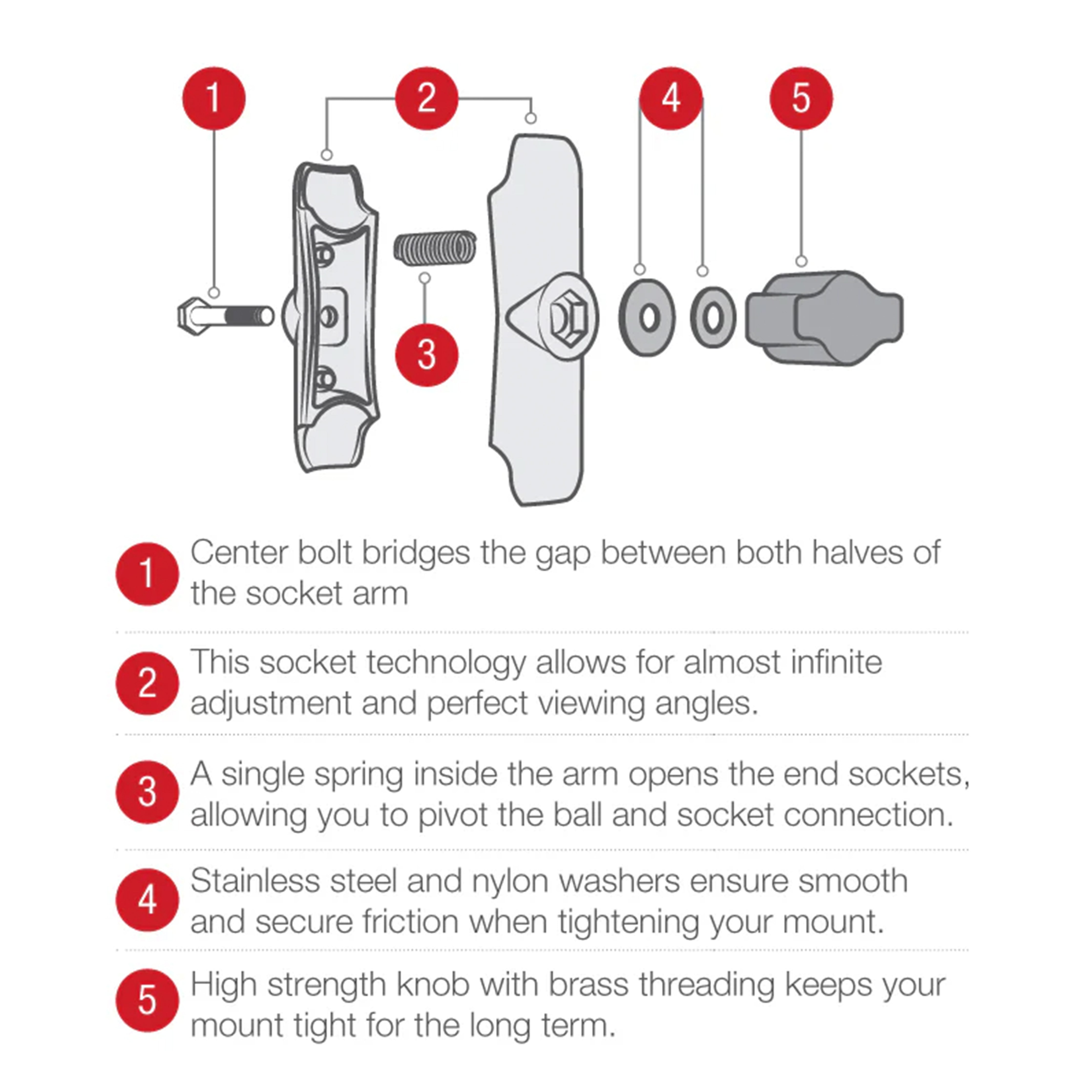

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Multi-Pad™ Mount with Medium Torque™ Base

SKU Copied
SKU: RAM-B-408-75-1-MP1U
UPC Copied
UPC: 793442034237

RAM® Multi-Pad™ Mount with Medium Torque™ Base
Copy SKU
SKU: RAM-B-408-75-1-MP1U
Copy UPC
| UPC: 793442034237

B SIZE
MEDIUM ARM
Size Guide

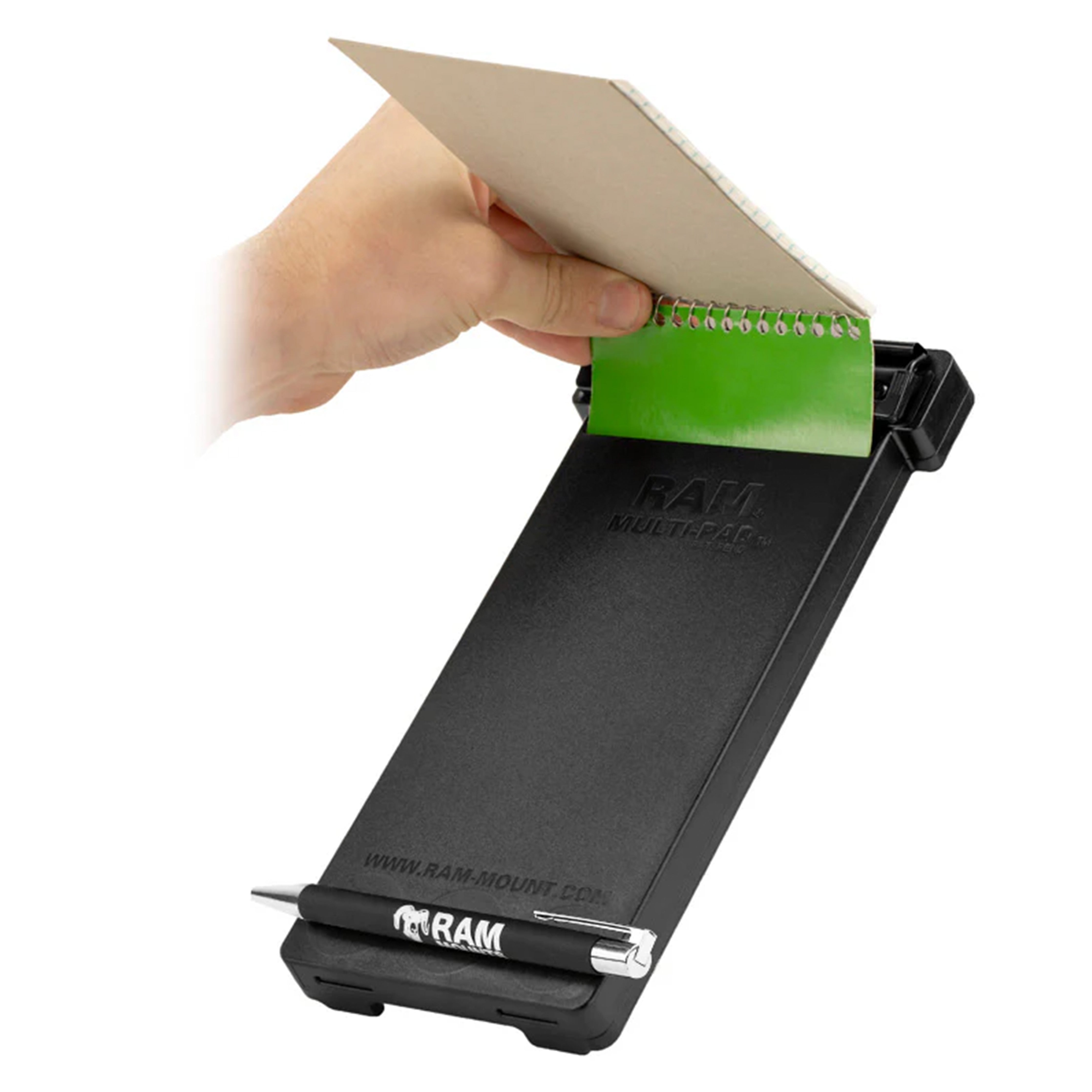

The RAM Multi-Pad Mount with Medium Torque Base (RAM-B-408-75-1-MP1U) is a rugged mounting solution designed to keep notes organized and within reach. The RAM Multi-Pad features a durable 10.80 cm (4.25") X 19.99 cm (7.87") writing surface with an integrated spring clip to hold small notepads, plus a dedicated slot that securely inserts a 10.16 cm (4") X 16.51 cm (6.5") notepad for added stability during use. Two built-in magnets on the base provide a convenient place to store the included pen, ensuring everything stays in one place. The RAM Torque handlebar mounting base is compatible with rails 3/4 to 1 in diameter, with sizing inserts included to provide a tight fit while also protecting the mounting surface. The RAM Torque mounting base also includes nylon-insert lock nuts to prevent loosening in high vibration environments. The RAM ball and socket system allows for articulation at both ends of the double socket arm, creating almost infinite adjustment and perfect viewing angles.

Features
  • Notepad holder helps keep notes, checklists, paperwork and more organized and within easy reach on the job or on the go.
  • Integrated magnets in base of Multi-Pad™ keeps included pen in reach
  • Handlebar mounting base with B size 2.54cm (1") rubber ball accommodates rails 7.62 cm (3")/10.16 cm (4") to 2.54cm (1") in diameter
  • Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Information

Resources

Information

Product Weight
0.66 kg (1.45 lbs)
Hardware Included
Assembly Hardware(1) RAM® Pen(2) #10-24 x 2.54cm (1") Socket Head Cap Screws(2) #10-24 Nylock Nuts(2) 1.91cm (0.75") Composite Bushings(2) 2.29cm (0.9") Composite Bushings(1) 88.9mm Rubber Strip(1) 12.70 cm (5")/81.28 cm (32") Hex Key Wrench
Clamp Range
1.91cm (0.75") - 2.54cm (1") diameter
Socket To Socket Length
7.62cm (3")
Ball Size
B Size (1")
Weight Capacity
Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)
Materials
Marine-grade aluminumHigh strength compositeStainless steel
Packaging Type
Poly Bag

Resources

INSTRUCTIONS
Add to Enquiry

Components

RAM Mounts
Copy SKU
RAM-B-103U
RAM® Double Socket Arm with Round Plate - B Size Medium
RAM Mounts
Copy SKU
RAM-B-408-75-1U
RAM® Torque™ Medium Rail Base - B Size
RAM Mounts
Copy SKU
RAM-HOL-MP1U
RAM® Multi-Pad™ Universal Notepad Holder
