World-Class Mounting Systems

Size Guide

Ball Sizes
Arm Sizes
X
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Pin-Lock Security Knob for Swing Arm Gimbal Plates

SKU Copied
SKU: RAP-S-KNOB7U
UPC Copied
UPC: 793442946110
01 29 232213rap S Knob7u1jpg

RAM® Pin-Lock Security Knob for Swing Arm Gimbal Plates
Copy SKU
SKU: RAP-S-KNOB7U
Copy UPC
| UPC: 793442946110

Overview
The RAP-S-KNOB7U consists of a 12.70 cm (5")/40.64 cm (16") -18 female threaded security knob, nut and key knob. The RAP-S-KNOB7U replaces all knobs on 5.72cm (2.25") / 8.59cm (3.38") diameter D/E size arms and mounts. The RAP-S-KNOB7U offers the ideal amount of leverage to properly tighten your mount to prevent slippage in heavy chop or in extreme vibration environments. With an emphasis on aesthetics and function, the RAP-S-KNOB7U is low in profile and only adds a small amount of additional bulk to your system when compared to the standard knob included. At a fraction of the cost of currently available keyed locking knobs, the additional peace of mind and tamper resistance comes at a very affordable price. The RAP-S-KNOB7U is the perfect accessory for keeping your mounted electronic device safe from theft and tampering.

Information

Resources

Information

Hardware Included

(1) RAM Pin-Lock Security Key

Packaging Type

Poly Bag

Weight

0.11 kg (0.24 lbs)

Resources

Instructions
Add to Enquiry

Components

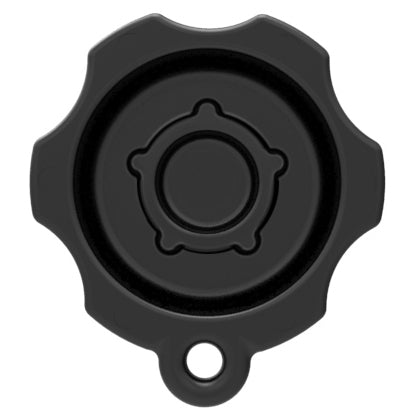

01 29 232209rap S Key5 5u1jpg
RAM Mounts
Copy SKU
RAP-S-KEY5-5U
RAM® Pin-Lock Replacement 5-Pin Key for C Size and Swing Arms

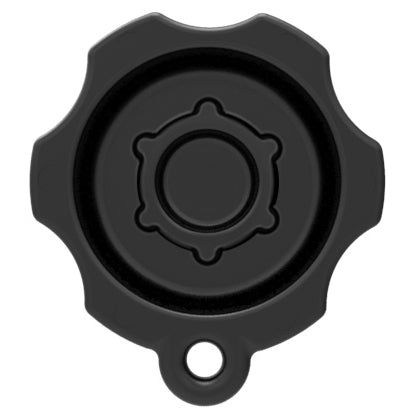

01 29 232206rap S Key5 6u1jpg
RAM Mounts
Copy SKU
RAP-S-KEY5-6U
RAM® Pin-Lock™ Replacement 6-Pin Key for C Size and Swing Arms

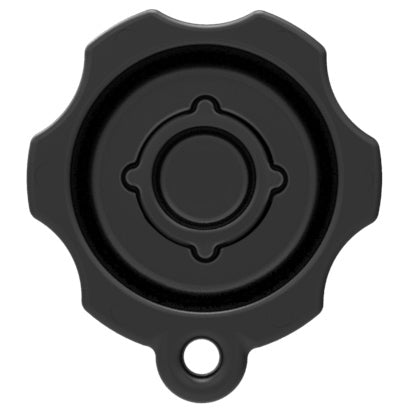

01 29 232209rap S Key5 4u1jpg
RAM Mounts
Copy SKU
RAP-S-KEY5-4U
RAM® Pin-Lock™ Replacement 4-Pin Key for C Size and Swing Arms

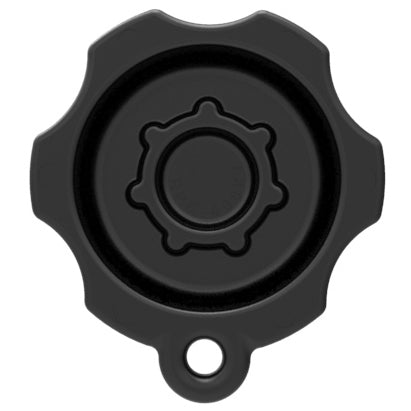

01 29 232206rap S Key5 7u1jpg
RAM Mounts
Copy SKU
RAP-S-KEY5-7U
RAM® Pin-Lock™ Replacement 7-Pin Key for C Size and Swing Arms
