RAM® Powered Dock for Panasonic Toughbook FZ-N1 & FZ-F1

SKU Copied

SKU: RAM-HOL-PAN11PU

UPC Copied

UPC: 793442008429







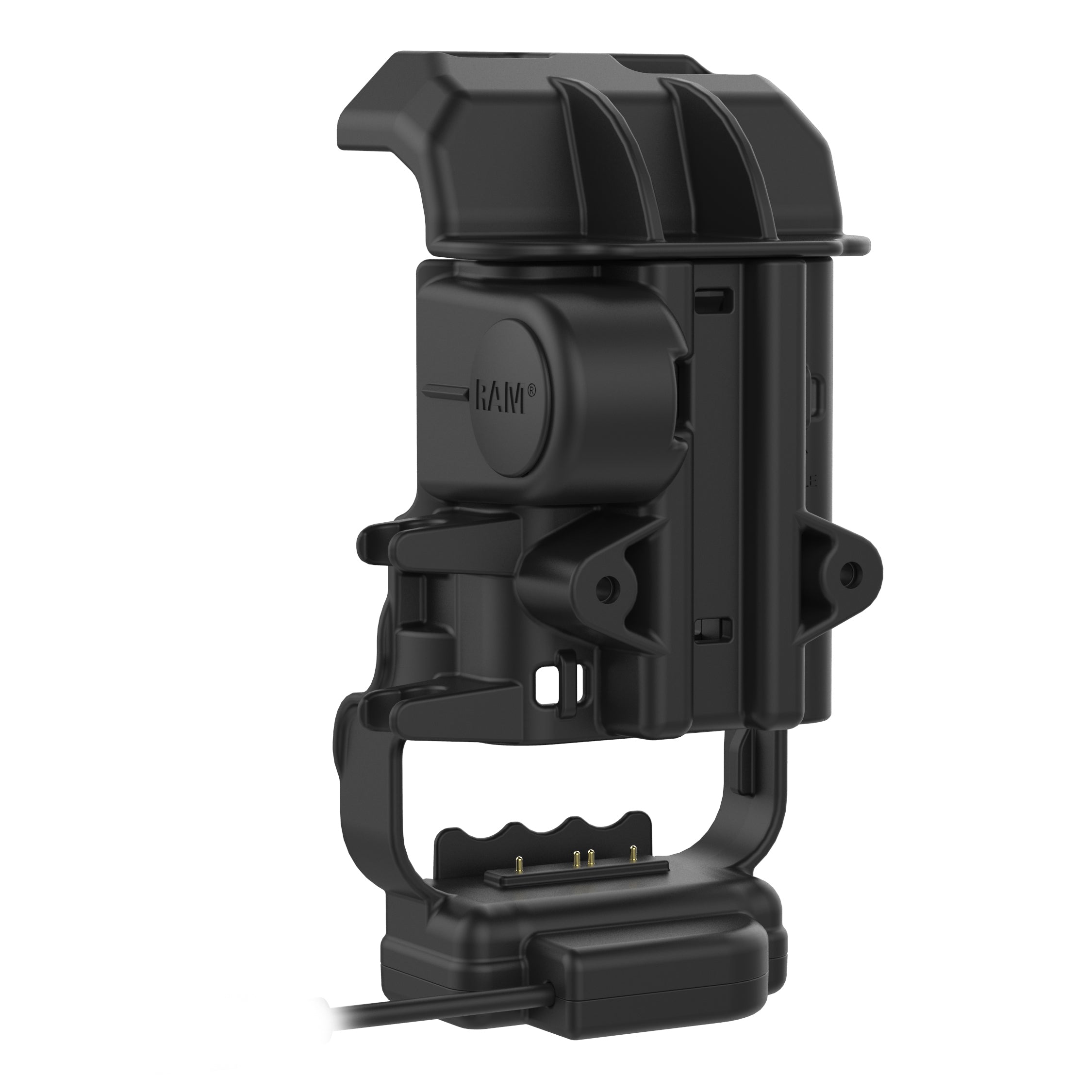

RAM® Powered Dock for Panasonic Toughbook FZ-N1 & FZ-F1

Copy SKU
RAM-HOL-PAN11PU SKU: RAM-HOL-PAN11PU

Copy UPC
793442008429 | UPC: 793442008429

Secure and charge the Panasonic Toughbook FZ-N1, or FZ-F1, with this RAM powered cradle featuring an integrated stylus holder. This powered cradle allows for one-handed docking and removal of device and works with Panasonic hand straps, regular and extended batteries, and leaves all buttons, microphones, speakers, and the headphone jack exposed. For attaching to a wide range of RAM arms and mounting accessories, the cradle is RAM Mounts Compatible with RAM B and C size diamond ball bases. For faster charging requirements use a Panasonic factory charger.

Features

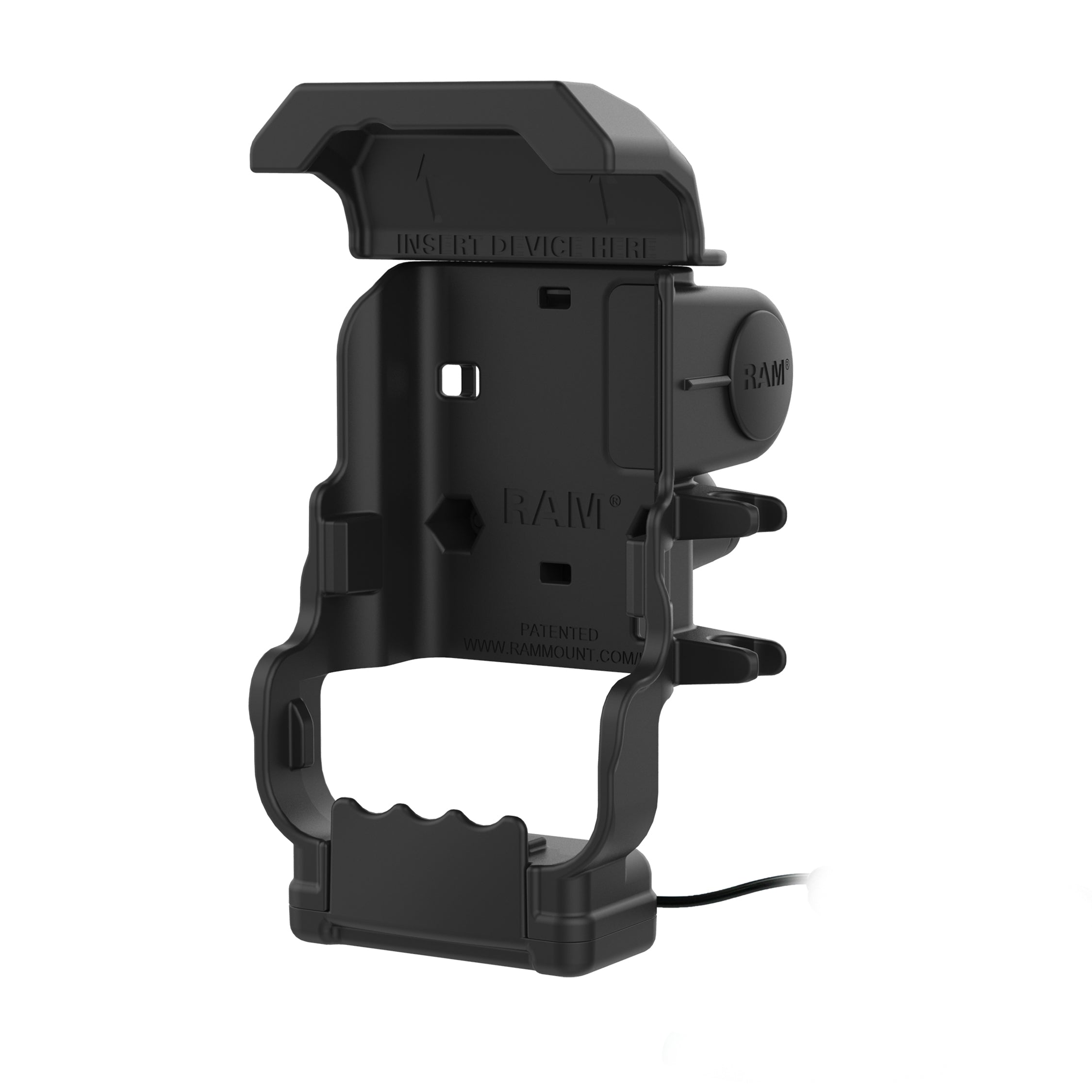

Form-fit cradle designed specifically for the Panasonic Toughpad FZ-N1 and FZ-F1 with one-handed docking and removal capabilities
Compatible with Panasonic handstrap, Passive Stylus, Active Stylus and extended battery pack

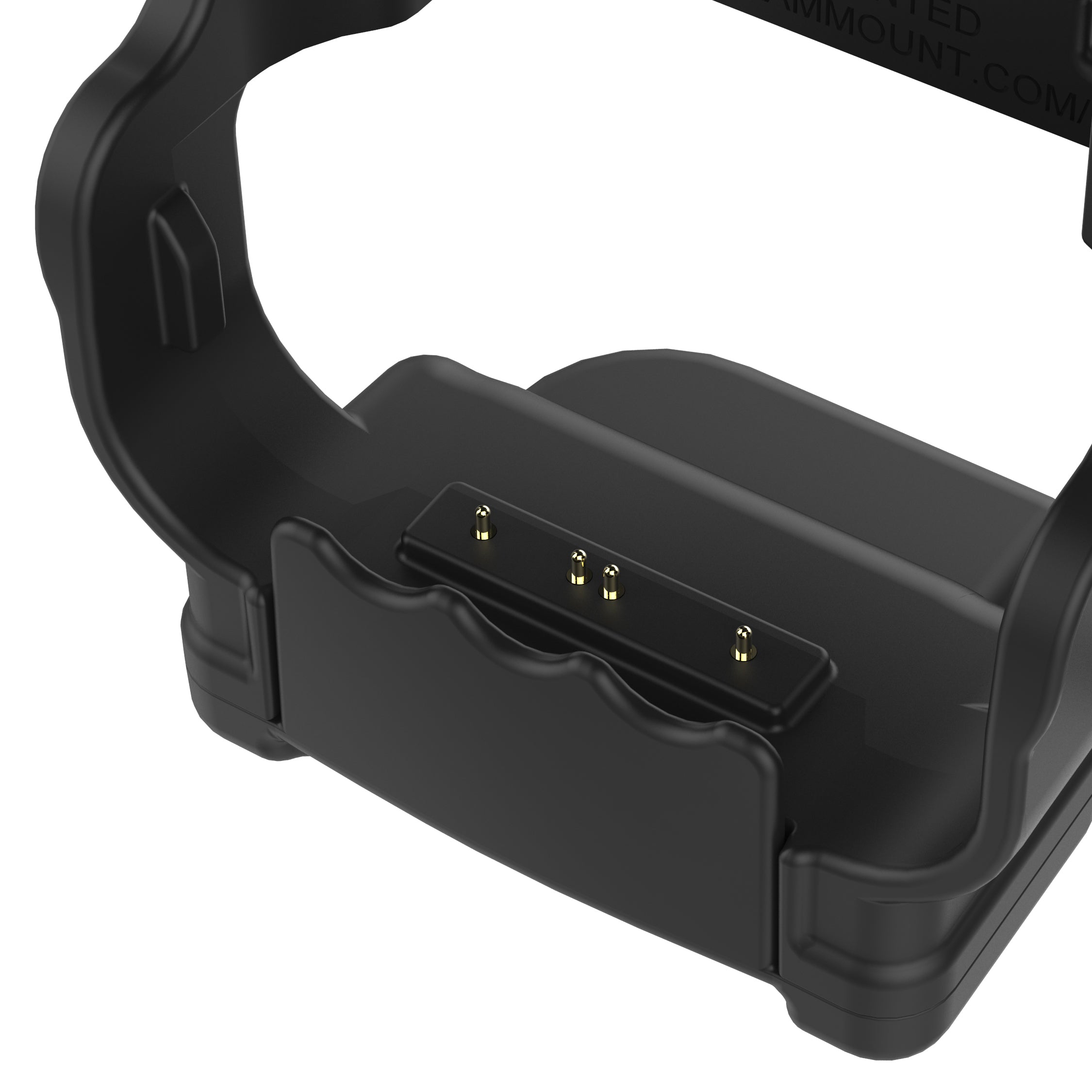

Integrated pogo pin contacts provide charging power to the device; DC power cable for power
Compatible with B and C size RAM® diamond bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
Backed by a 3-year warranty

Tags: AMPS 2-Hole, Custom Form-Fit, FZ-F1, FZ-N1, Handheld PC, Holders, material-handling, Panasonic, Powered, RAM-HOL-PAN11PU

Information

Resources

Compatible Devices

Information

Product Weight

0.25 kg (0.56 lbs)

Hardware Included

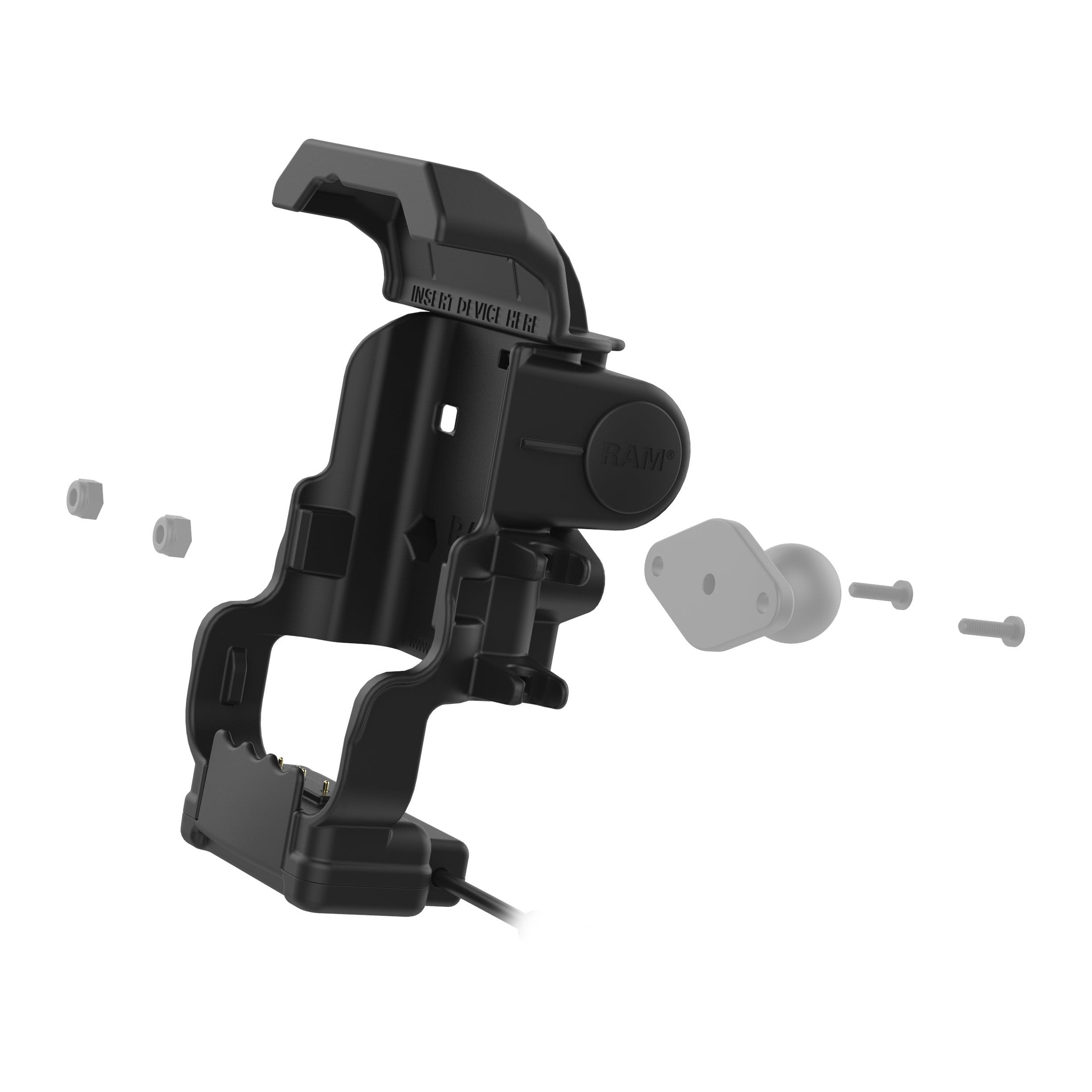

(2) #8-32 x 12.70 cm (5")/20.32 cm (8") Machine Screws(2) #8-32 Nylock NutsGenuine USB Type-A to DC Cable

Hole Pattern

2-Hole AMPS: 4.86cm (1.912")

Materials

High strength composite

Packaging Type

Poly Bag

Input Connector

DC power jack

Input Cable Length

1 Meter

Resources

INSTRUCTIONS

Instructions for Panasonic FZ-N1 & FZ-F1 Powered Dock

DOCUMENTS

Sell Sheet

On Road Catalog

Compatible Devices

Panasonic

Toughpad FZ-N1

Toughpad FZ-F1

Add to Enquiry 
