The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Safe-T-Charge™ Battery Protection System

SKU Copied
SKU: RAM-234-VCP1U
UPC Copied
UPC: 793442928802

RAM® Safe-T-Charge™ Battery Protection System
Copy SKU
SKU: RAM-234-VCP1U
Copy UPC
| UPC: 793442928802

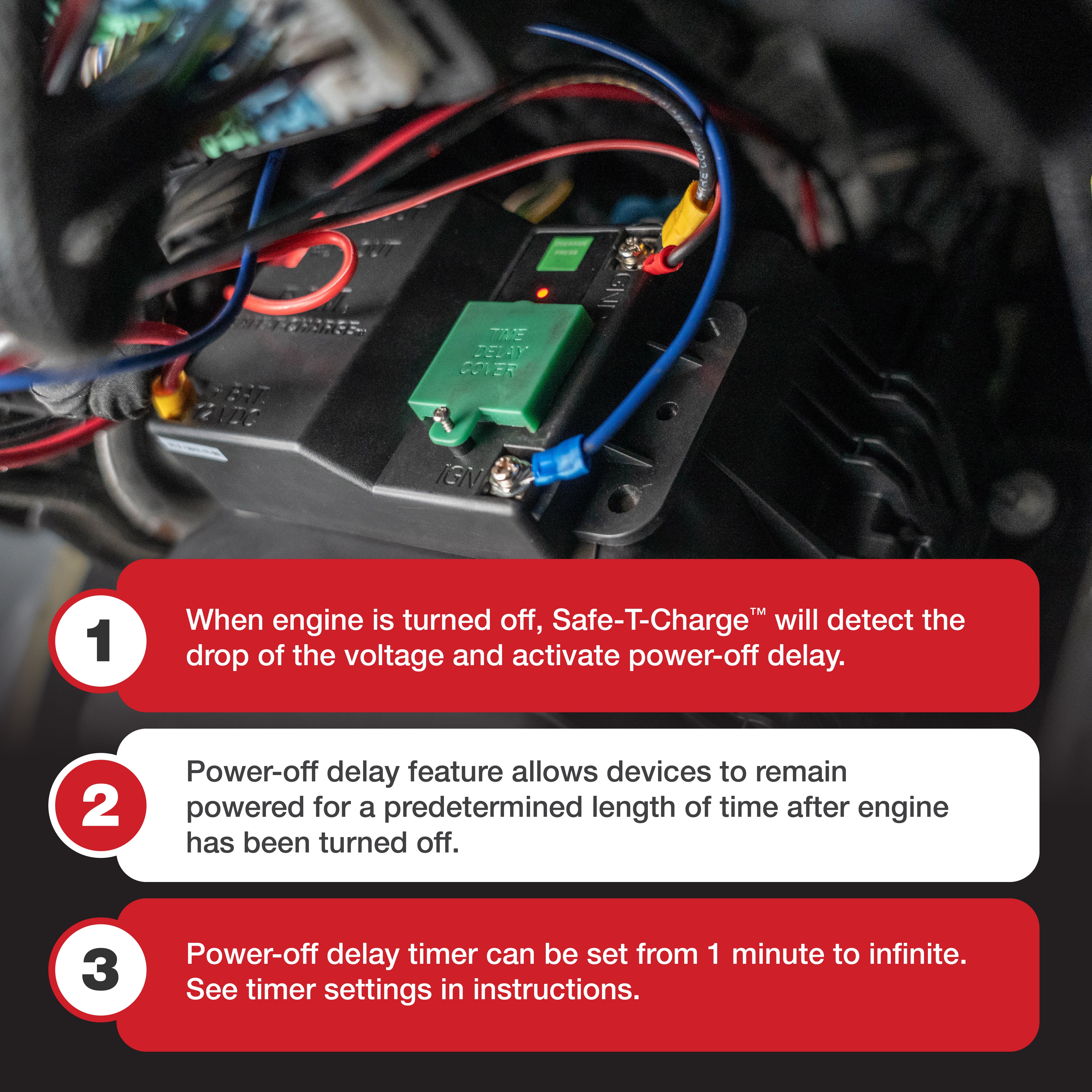

The RAM SafeTCharge Battery Protection System is a smart, configurable voltage monitoring solution designed to protect vehicle and equipment batteries from excessive drain. Ideal for commercial fleets, material handling equipment, and even off-grid consumer setups, it automatically cuts power to connected devices based on ignition status or voltage thresholdsensuring essential electronics like tablets, routers, GPS units, and other small electronics remain powered as needed without compromising engine start capability. With customizable delay intervals, audible alerts, override options, and a rugged waterproof design, this compact unit enables safer and more reliable accessory power management in both enterprise and adventure environments.

Features
  • Automatic battery protection cuts accessory power based on ignition state or battery voltage to prevent battery depletion
  • Keeps telematics and tablets powered after vehicles are off, enabling after-hours remote access or maintenance
  • Set timeouts from instant up to 8 hours post-ignition—ideal for IT updates, remote access, or continued power needs
  • Simple override button allows manual power continuity in special circumstances, adding flexibility for drivers or technicians
  • Surge, reverse polarity & jump start protection ensures safe connection and uninterrupted operation in tough electrical environments

Information

Resources

Information

Product Weight
0.20 kg (0.44 lbs)
Materials
High strength composite
Packaging Type
Poly Bag
Ports

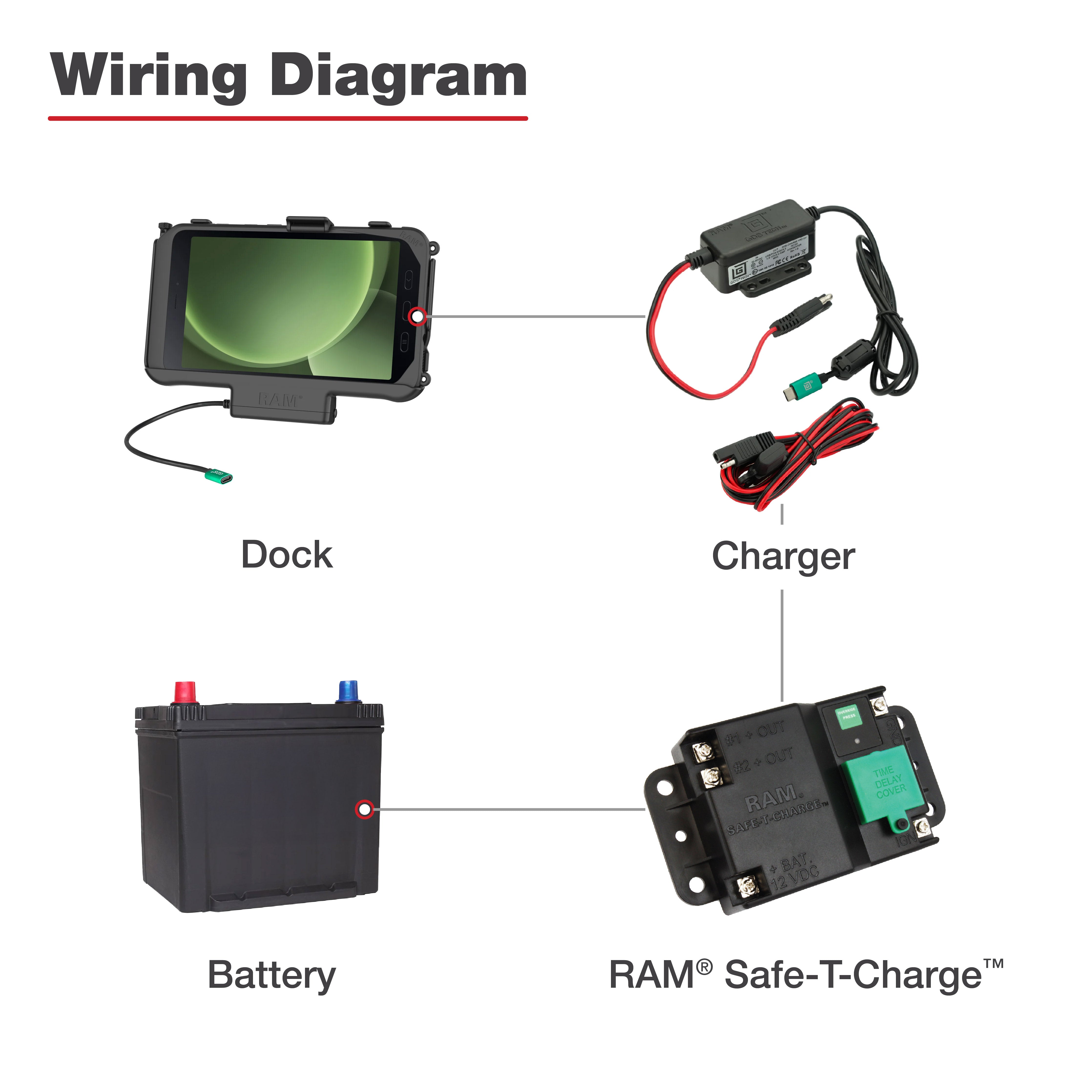

Battery + 12V Input TerminalOutput TerminalGround TerminalIGN TerminalOverride Switch
Certifications
30AMP Rating24V Jump Start Protection

Resources

INSTRUCTIONS
