World-Class Mounting Systems

Size Guide

Ball Sizes
Arm Sizes
X
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Torque™ Medium Mount with with Action Camera Adapter

SKU Copied
SKU: RAM-B-408-75-1-GOP1U
UPC Copied
UPC: 793442034220

RAM® Torque™ Medium Mount with with Action Camera Adapter
Copy SKU
SKU: RAM-B-408-75-1-GOP1U
Copy UPC
| UPC: 793442034220

B SIZE
MEDIUM ARM
Size Guide

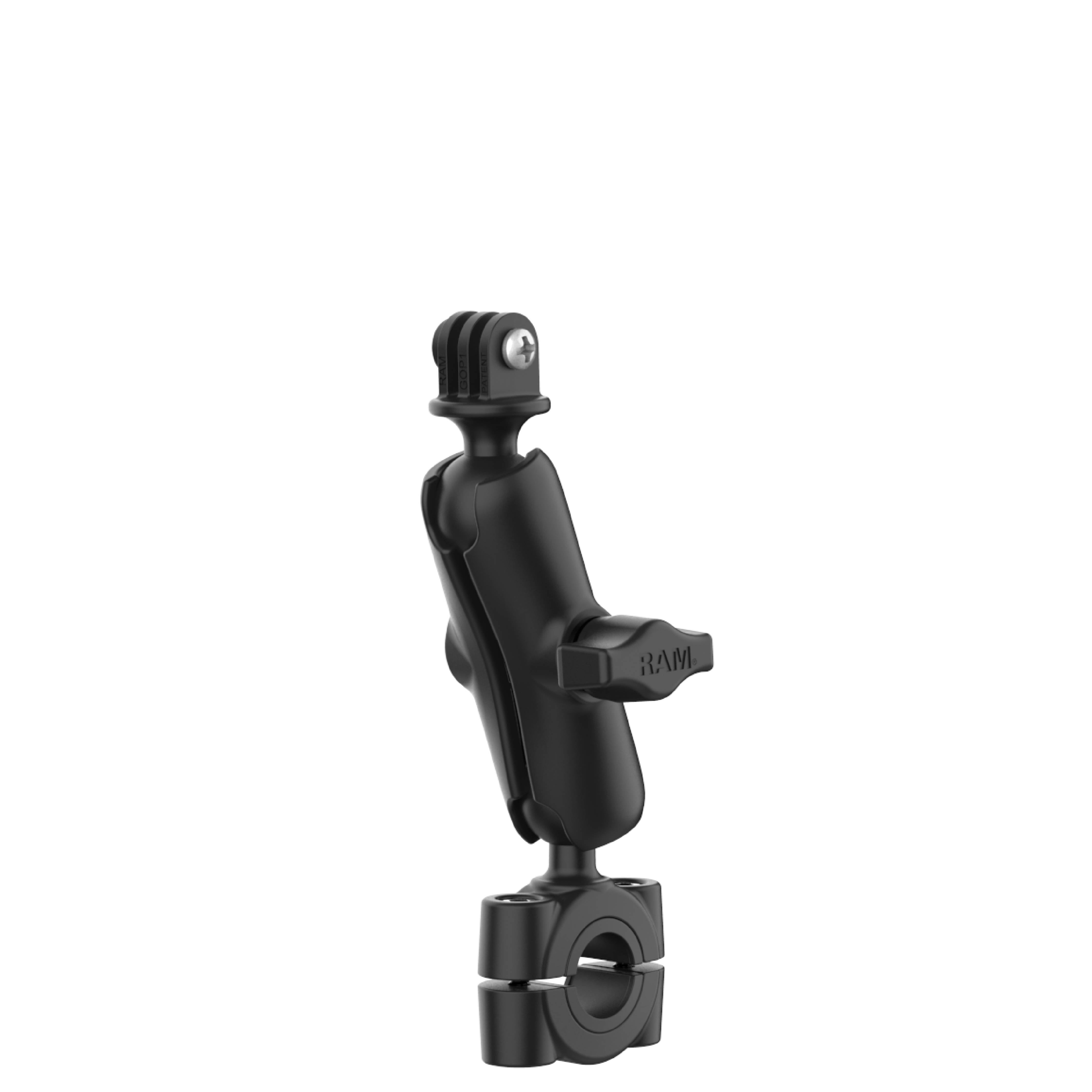

The RAM Torque Medium Mount with Action Camera Adapter (RAM-B-408-75-1-GOP1U) is a rugged, quick-install kit designed to secure action cameras to rails. The action camera ball adapter secures to the device using the interlocking teeth and the provided hardware. The RAM Torque mounting base is compatible with rails 3/4 to 1 in diameter. Sizing inserts are included to provide a tight fit while also protecting the mounting surface. The RAM Torque mounting base also includes nylon-insert lock nuts to prevent loosening in high vibration environments. The RAM ball and socket system allows for articulation at both ends of the double socket arm creating almost infinite adjustment and perfect viewing angles.

Features
  • Holder secures action cameras with the teeth-locking connection, standard on GoPro® and other action camera brands
  • Includes medium Torque™ base that accommodates rails 3/10.16cm (4") to 2.54cm (1") in diameter and a medium length B size RAM® double socket arm
  • Double ball and socket technology allows for near-infinite adjustability of your RAM® mounting system
  • Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Information

Resources

Compatible Devices

Information

Product Weight
0.41 kg (0.90 lbs)
Hardware Included
Assembly Hardware(2) #10-24 x 2.54cm (1") Socket Head Cap Screws(2) #10-24 Nylock Nuts(2) 1.91cm (0.75") Composite Bushings(2) 2.29cm (0.9") Composite Bushings(1) 88.9mm Rubber Strip(1) 12.70 cm (5")/81.28 cm (32") Hex Key Wrench
Clamp Range
1.91cm (0.75") - 2.54cm (1") diameter
Socket To Socket Length
7.62cm (3")
Ball Size
B Size (1")
Weight Capacity
Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)
Materials
Marine-grade aluminumHigh strength composite
Packaging Type
Poly Bag

Resources

INSTRUCTIONS

Compatible Devices

Add to Enquiry

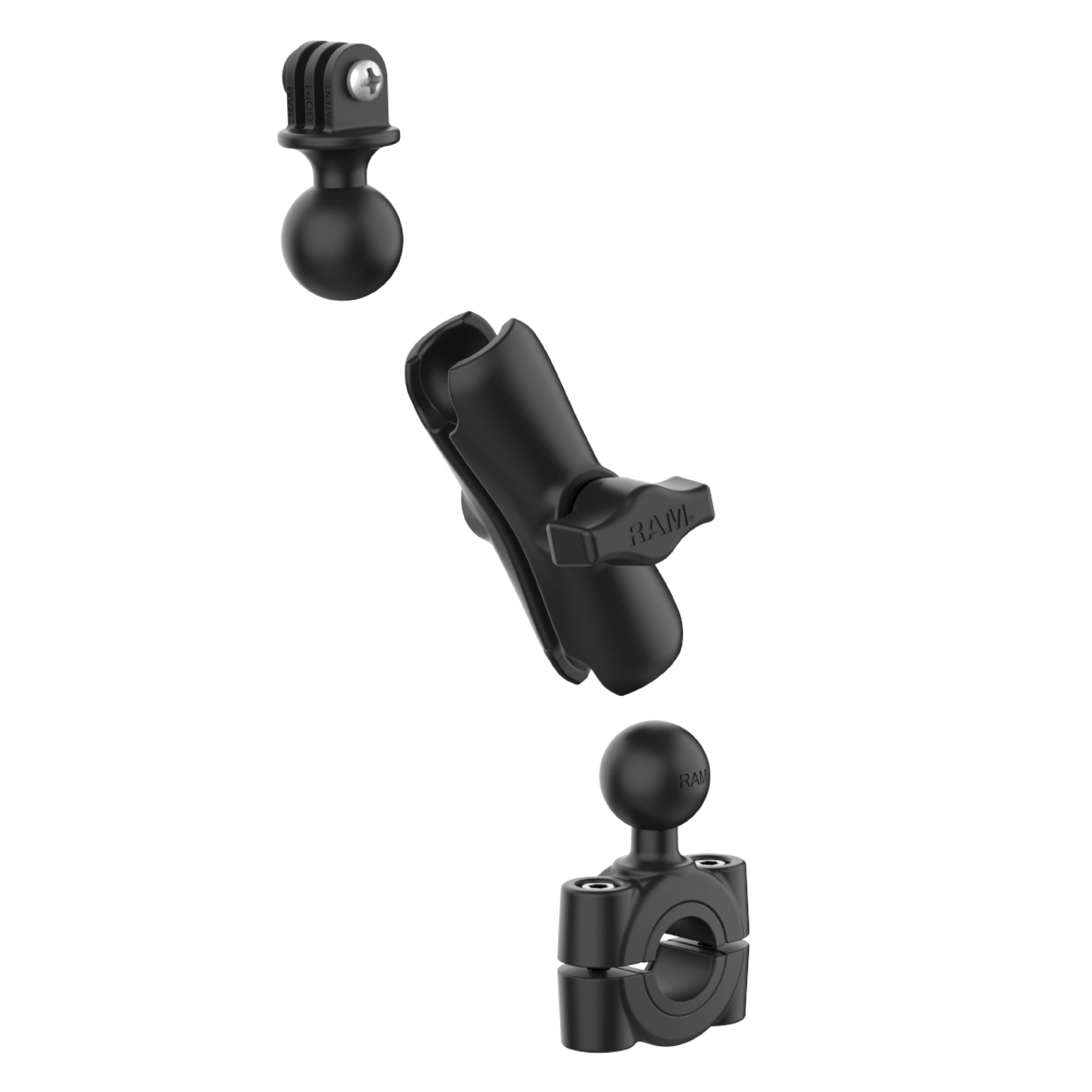

Components

RAM Mounts
Copy SKU
RAM-B-201U
RAM® Double Socket Arm - B Size Medium
RAM Mounts
Copy SKU
RAM-B-408-75-1U
RAM® Torque™ Medium Rail Base - B Size
RAM Mounts
Copy SKU
RAP-B-202U-GOP1
RAM® Action Camera Universal Ball Adapter
