World-Class Mounting Systems

Size Guide

Ball Sizes
Arm Sizes
X

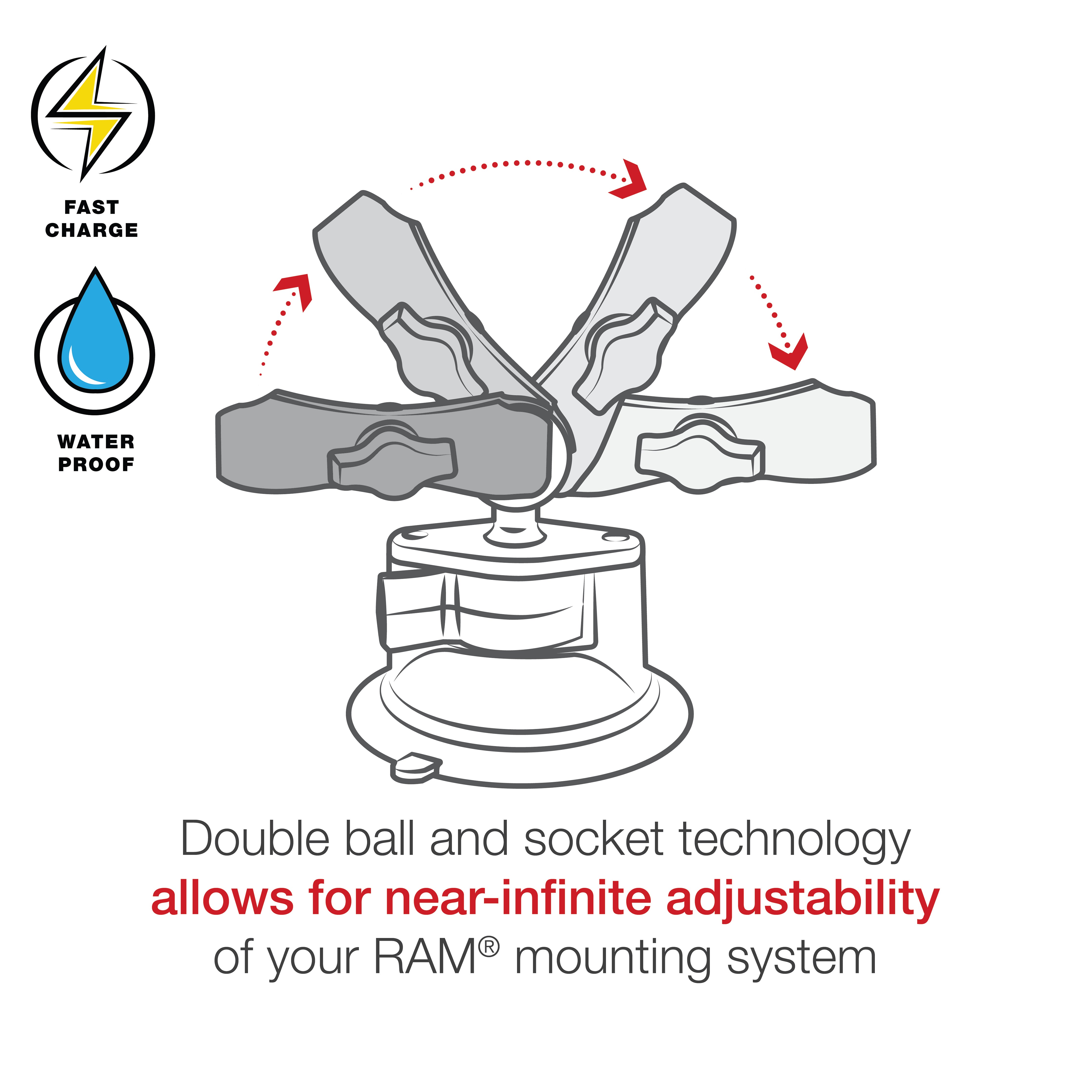

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Tough-Charge™ 15W Wireless Charging Suction Cup Mount

SKU Copied
SKU: RAM-B-166-UN12W-1
UPC Copied
UPC: 793442902307

RAM® Tough-Charge™ 15W Wireless Charging Suction Cup Mount
Copy SKU
SKU: RAM-B-166-UN12W-1
Copy UPC
| UPC: 793442902307

B SIZE
MEDIUM ARM
Size Guide

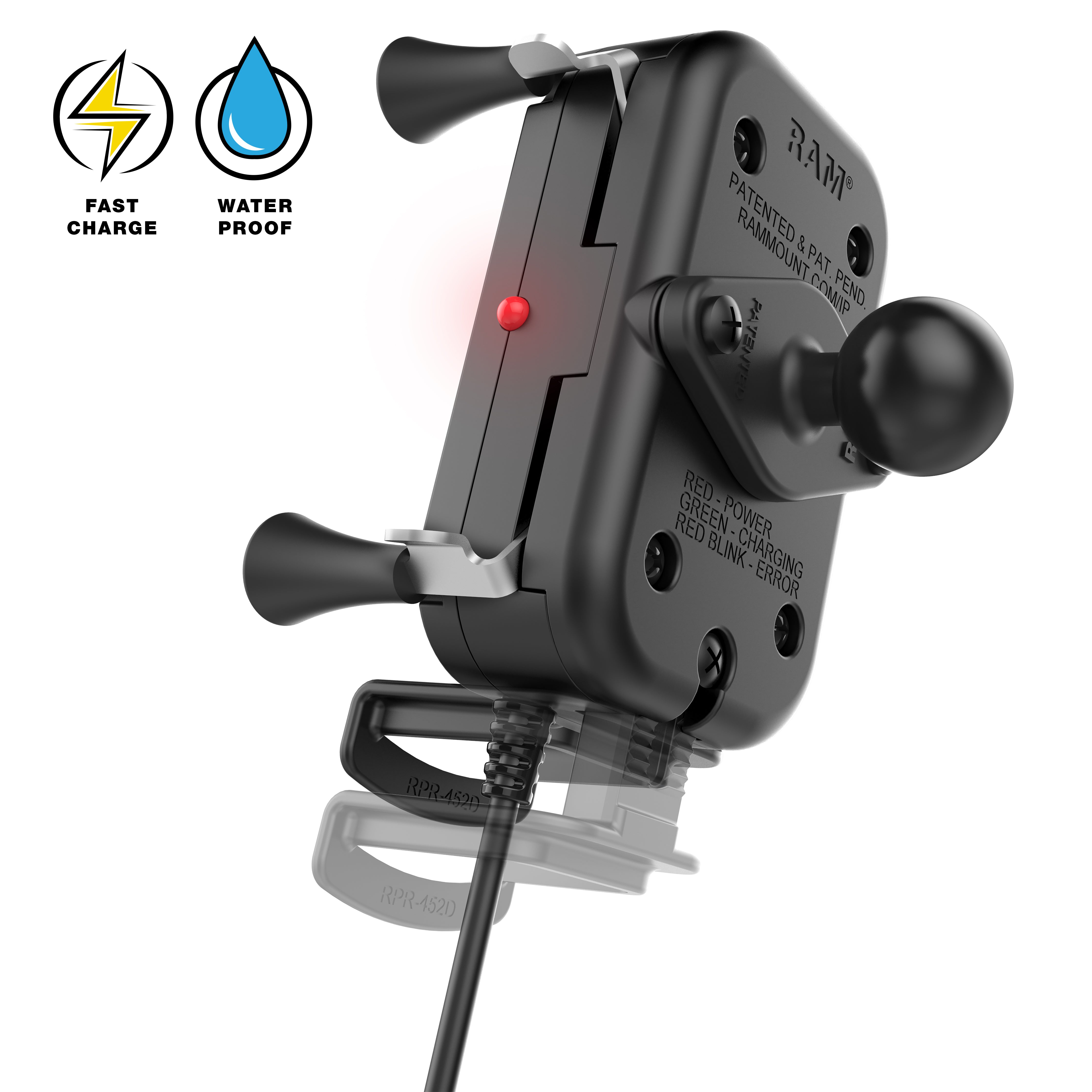

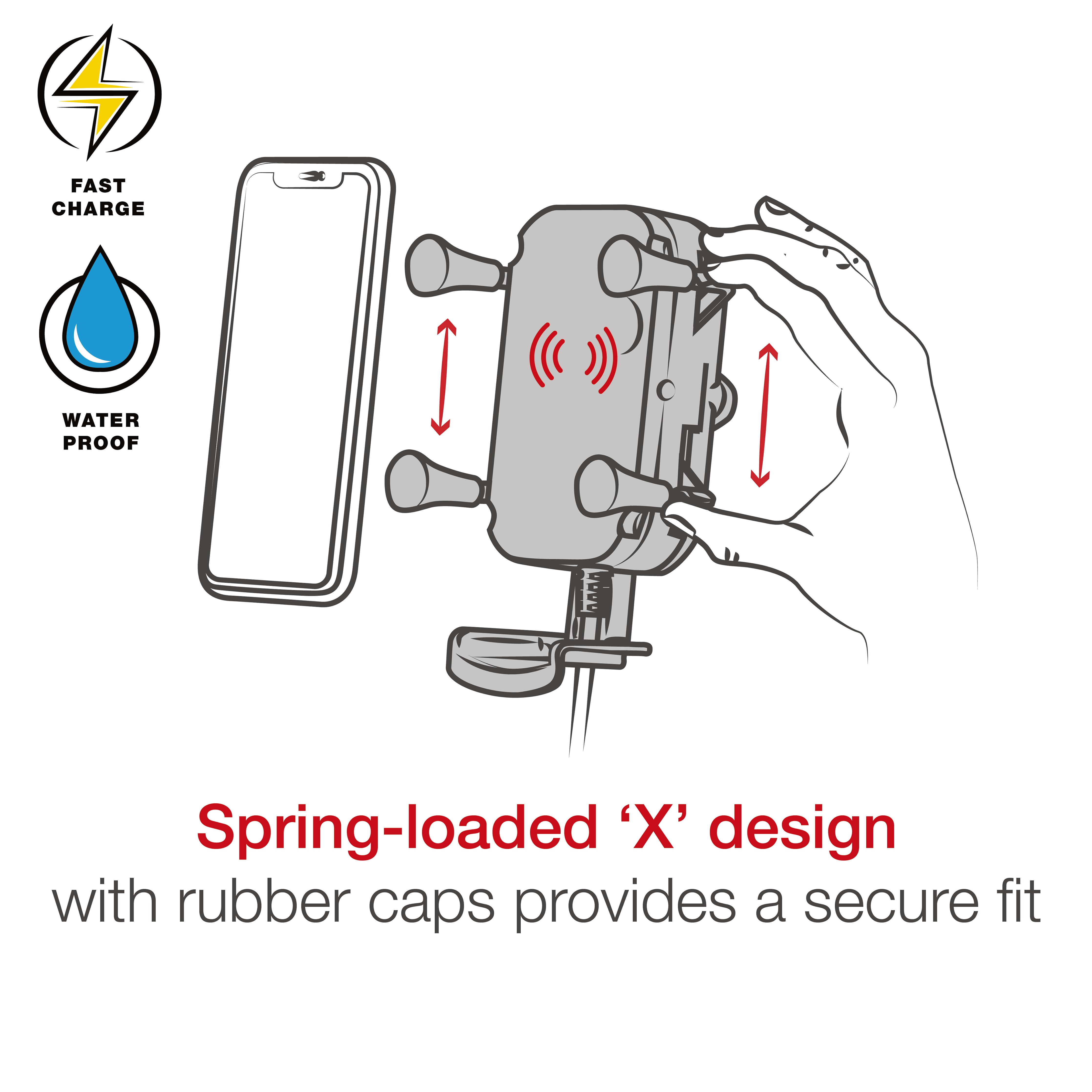

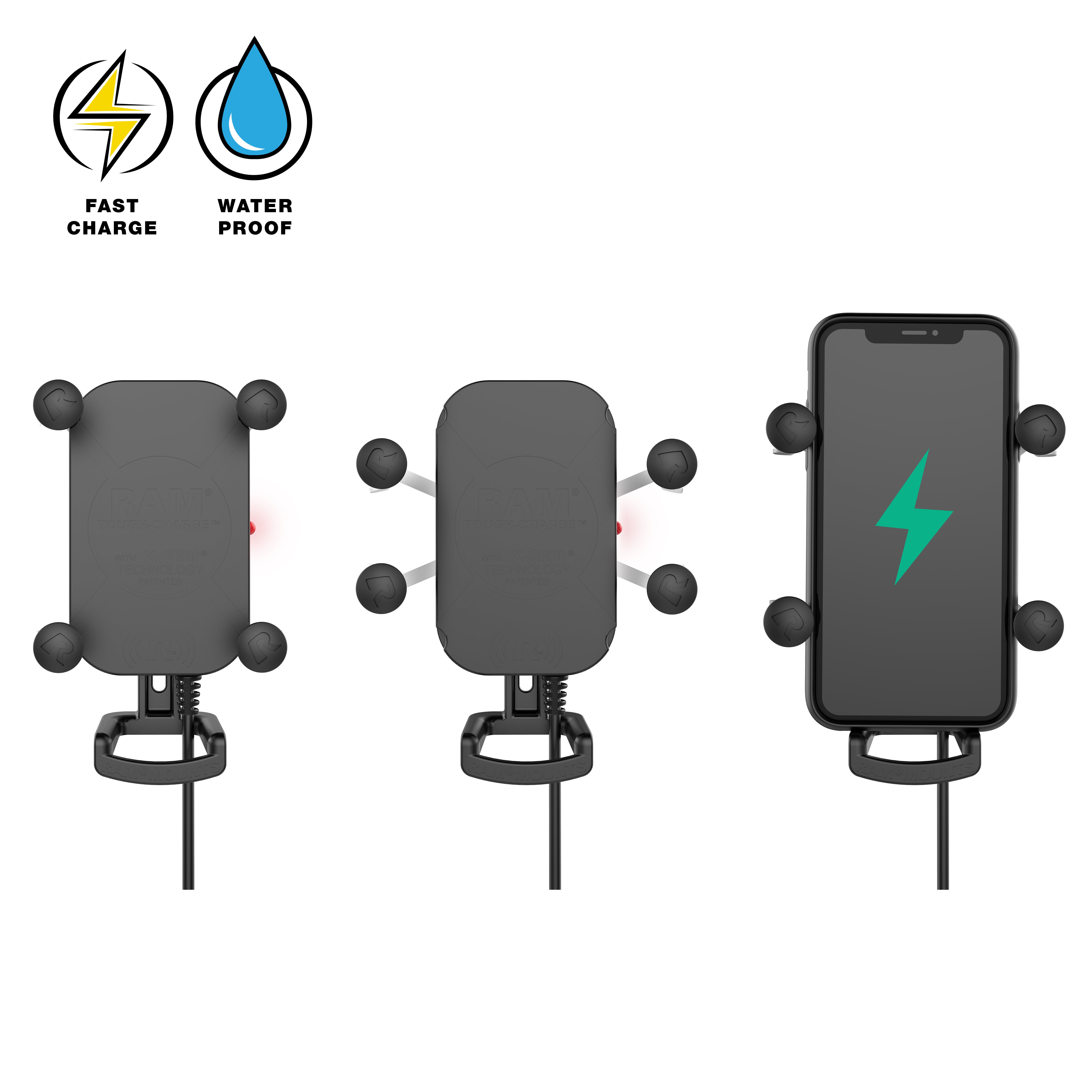

The RAM Tough-Charge with X-Grip Technology is the world's first patented, universal waterproof wireless charging cradle for phones. Designed with spring-loaded RAM X-Grip Technology, this cradle features an 'X' design that expands and contracts to secure nearly any phone while taking advantage of Qi compatible wireless phone charging. All four arms feature rubber-coated caps that hold your phone firmly in place, and the open design keeps buttons and switches accessible on the sides of phones. To insert your device, simply squeeze the arms on one side of the cradle and place your phone inside before releasing the arms. This Qi wireless charging cradle ensures your compatible phone charges no matter what position its placed at. For added security and peace of mind, a device tether is included thats recommended for outdoor applications. In addition, a support leg can be adjusted to the ideal position or removed altogether. This RAM Tough-Charge with X-Grip Technology wireless charging suction cup kit includes a B size diamond base featuring a 1 rubber ball, medium length double socket arm, and RAM Twist-Lock suction cup. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable.

Features
  • Waterproof Qi compatible wireless phone charging cradle features spring-loaded RAM® X-Grip® technology and 15W maximum output

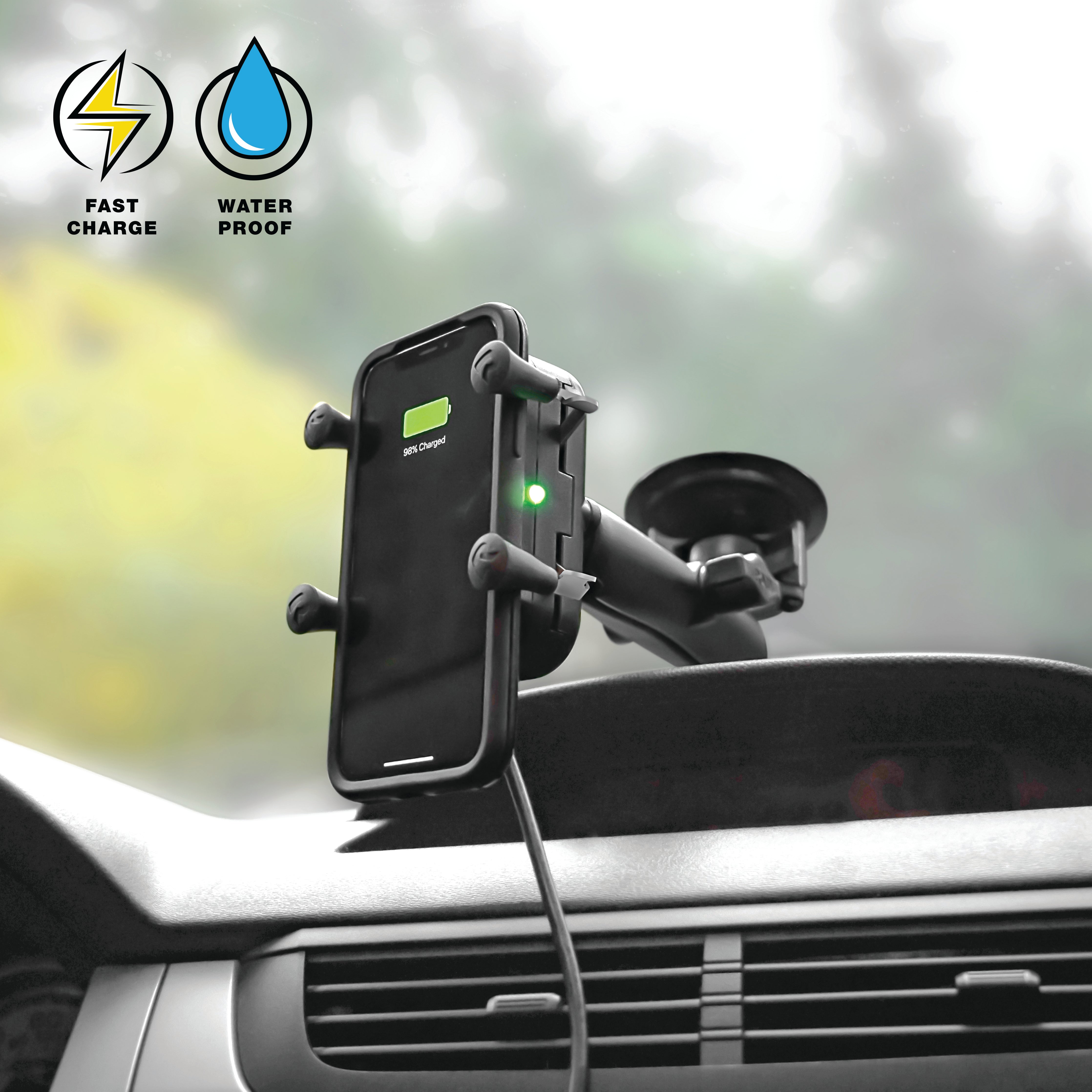

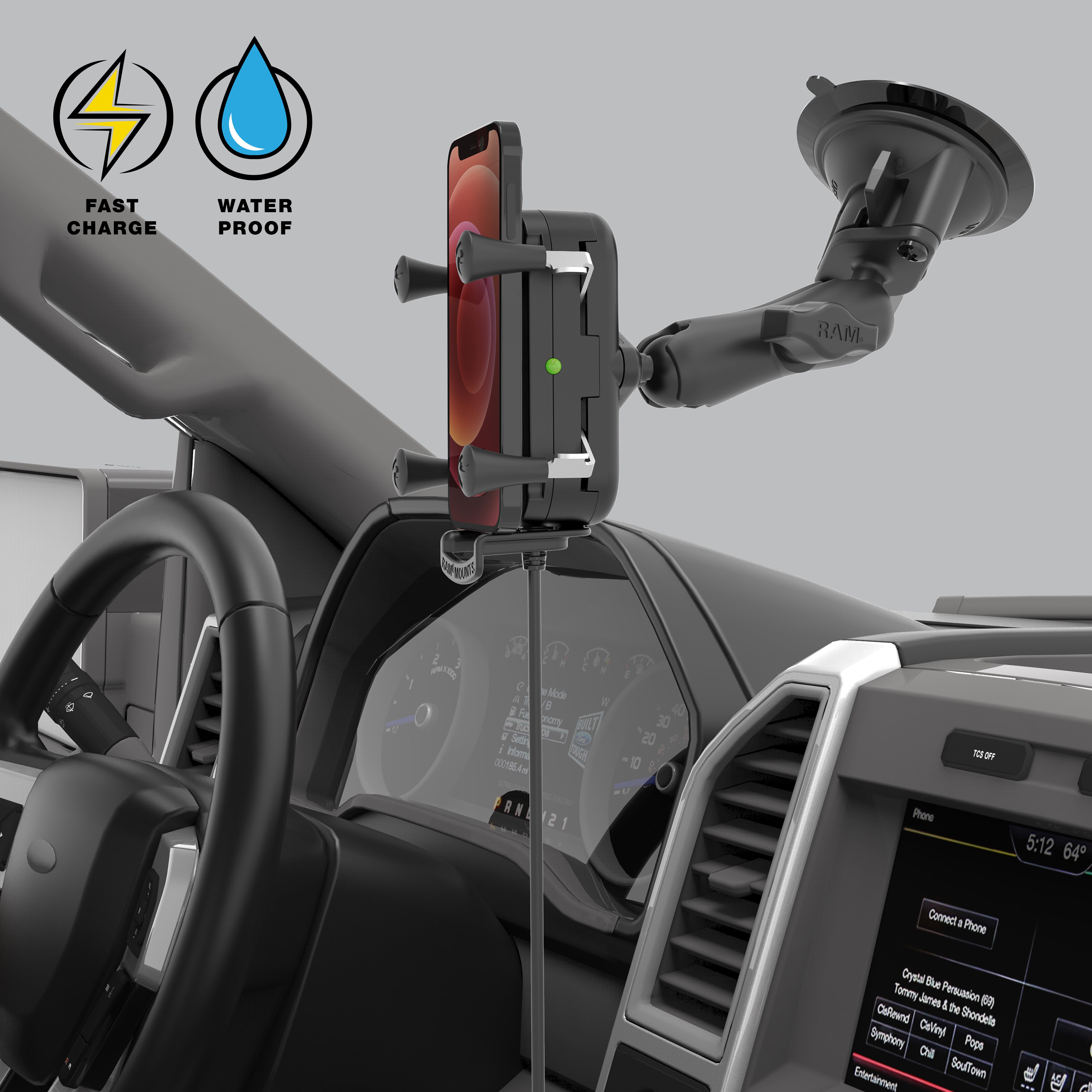

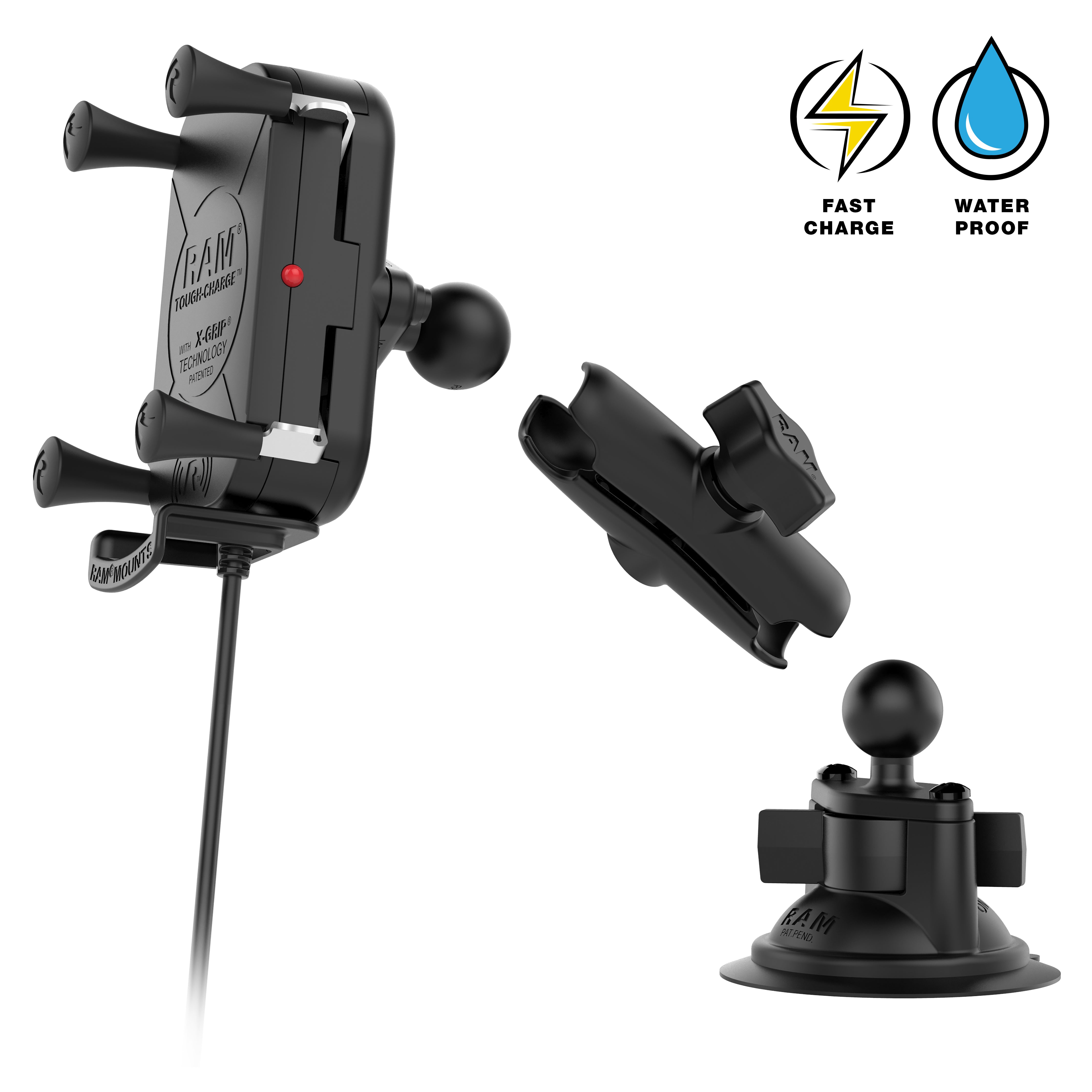

  • Kit for vehicles includes wireless cradle, B size diamond ball base, medium double socket arm, and RAM® Twist-Lock™ suction cup
  • Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
  • RAM® Mounts backed by lifetime warranty*, RAM® electronics backed by 1-year warranty with proof of purchase required
Tags: 8 Sirocco, 9 PureView, Aircraft, Aircraft - Windshield, Apple, ATV & Side By Side, ATV & Side By Side - Windshield, Axon 10 Pro, Axon 9 Pro, B Size 1" (Holds 2 lbs), Blackberry, Blackview, Boat, Boat - Windshield, BV9900, BV9900 Pro, Car & Truck, Car & Truck - Windshield, car-truck, Complete kits, defaultship, DuraSport 5G, Eluga X1 Pro, Evolve X, G6 Plus, G7 ThinQ, G8 ThinQ, G8S ThinQ, Galaxy Note 10, Galaxy Note 10 Plus, Galaxy Note 20, Galaxy Note 20 Ultra, Galaxy Note 8, Galaxy Note 9, Galaxy S10, Galaxy S10 5G, Galaxy S10 Plus, Galaxy S10e, Galaxy S20 5G, Galaxy S20 FE 5G, Galaxy S20 Plus 5G, Galaxy S20 Ultra 5G, Galaxy S21 5G, Galaxy S21 Plus 5G, Galaxy S21 Ultra 5G, Galaxy S22 Plus 5G, Galaxy S22 Ultra 5G, Galaxy S23 Plus, Galaxy S23 Ultra, Galaxy S24 Plus, Galaxy S24 Ultra, Galaxy S25 Plus, Galaxy S25 Ultra, Galaxy S26, Galaxy S26 Plus, Galaxy S26 Ultra, Galaxy S8, Galaxy S8 Plus, Galaxy S9, Galaxy S9 Plus, Google, Huawei, iPhone 11, iPhone 11 Pro, iPhone 11 Pro Max, iPhone 8, iPhone 8 Plus, iPhone SE, iPhone X, iPhone Xr, iPhone Xs, iPhone Xs Max, Kyocera, Mate 20 Pro, Medium Arm, Mi 9, Mi 9 Explorer, Mi Mix 2S, Mi Mix 3, Nokia, P30 Pro, Panasonic, Phone, Phone 2, Pixel 3, Pixel 3 XL, Pixel 4, Pixel 4 XL, Pixel 5, Pixel 6, Pixel 6 Pro, Pixel 7, Pixel 7 Pro, Pixel 8, Pixel 8 Pro, RAM-B-166-UN12W-1, RAM® X-Grip®, Razer, rpr-271s, Samsung, Single Suction, Sony, Suction Cup, Supports Device With Case, Tough-Charge™ Wireless, Twist-Lock™, V30, V35 ThinQ, V40 ThinQ, V50 ThinQ, Windshield, Wireless Charging, Xiaomi, Xperia XZ2, Xperia XZ3, ZTE

Information

Resources

Compatible Devices

Information

Product Weight
0.72 kg (1.58 lbs)
Hardware Included
(1) Safety Tether(1) Glue Tube for Rubber Caps(1) Cradle Leg(1) Cradle Leg Cover(1) Silicon sleeve for USB waterproof connection(1) 1.2 Meter USB Extension Cable(4) Small zip ties(2) Large zip ties
Holder Dimensions
Width Range: 6.03cm (2.375") - 8.26cm (3.25") Depth Range: 2.22cm (0.875") max
Suction Size
8.38cm (3.3") Diameter
Socket To Socket Length
7.62cm (3")
Ball Size
B Size (1")
Weight Capacity
Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)
Materials
Marine-grade aluminumHigh strength compositeStainless steel
Packaging Type
Retail Box
Power Specifications
Input Power:5V-2A; 9V-1.67AOutput: 15WConversion Efficiency: 85% MaxMaximum Case Thickness: 6mmWorking Frequency: 110-205KHZProduct Standard: WPC v.1.2.4Qi CompatibleCompatible with QC2.0/QC3.0 power supplies
Input Connector
USB Type-A Male
Input Cable Length
50.80cm (20") with optional 1.2M extension cable
Operating Temperature
0°C to +37.7°C
Regulatory
Over current protection, short circuit protection and over temperature protection
Certifications
FCC, IC, KC, CE, E-Mark, WEEE, RCM, and RoHS Compliant

Resources

INSTRUCTIONS
DOCUMENTS

Compatible Devices
