The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Tough-Mag™ 48MM 3-Point Pivoting Magnetic Mounting Base

SKU Copied
SKU: RAM-MAG48-3-PIV1U
UPC Copied
UPC: 793442031960

RAM® Tough-Mag™ 48MM 3-Point Pivoting Magnetic Mounting Base
Copy SKU
SKU: RAM-MAG48-3-PIV1U
Copy UPC
| UPC: 793442031960

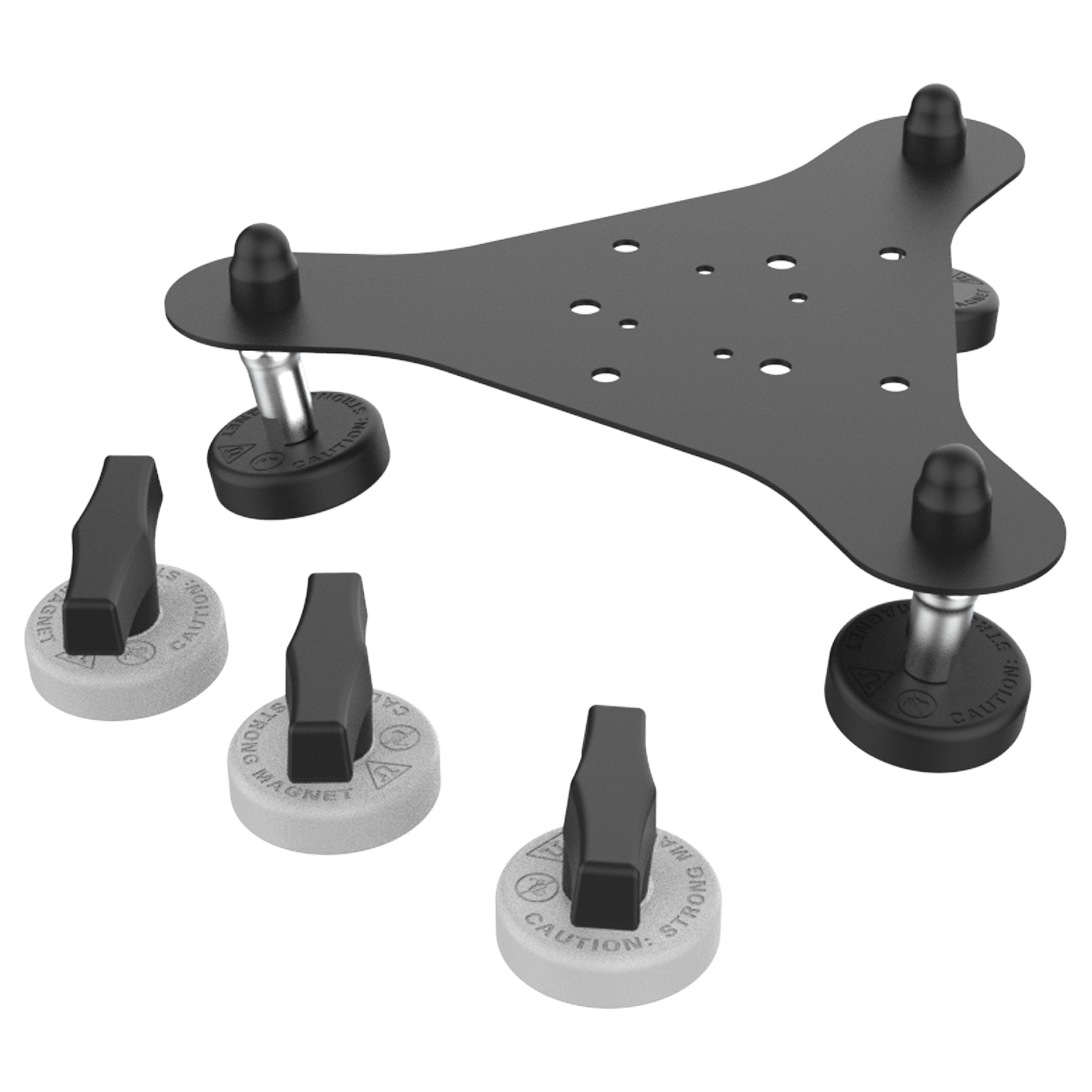

The RAM Tough-Mag 48MM 3-Point Magnetic Mounting Base (RAM-MAG48-3U) offers a flexible, high-strength solution for securing devices to flat glass or metal surfaces, including vehicle windows and windshields. Constructed with a durable aluminum plate, this base features three pivoting 48mm external magnets that adjust independently to ensure a secure hold on slightly curved or uneven surfaces. The plate includes a pre-drilled 4-hole AMPS pattern, ideal for attaching a C size drill-down ball base. Each magnet is rubber-coated to protect mounting surfaces, minimize harsh magnetic pull, and comes with an integrated handle for fast installation and removal. With its fully pivoting magnetic attachment points, this base provides unmatched versatility and secure mounting for any sturdy surface up to 6mm thick.

Features
  • Three-point aluminum plate with 2 sets of 3 rubber coated external magnets for attaching to windows up to 6mm in thickness

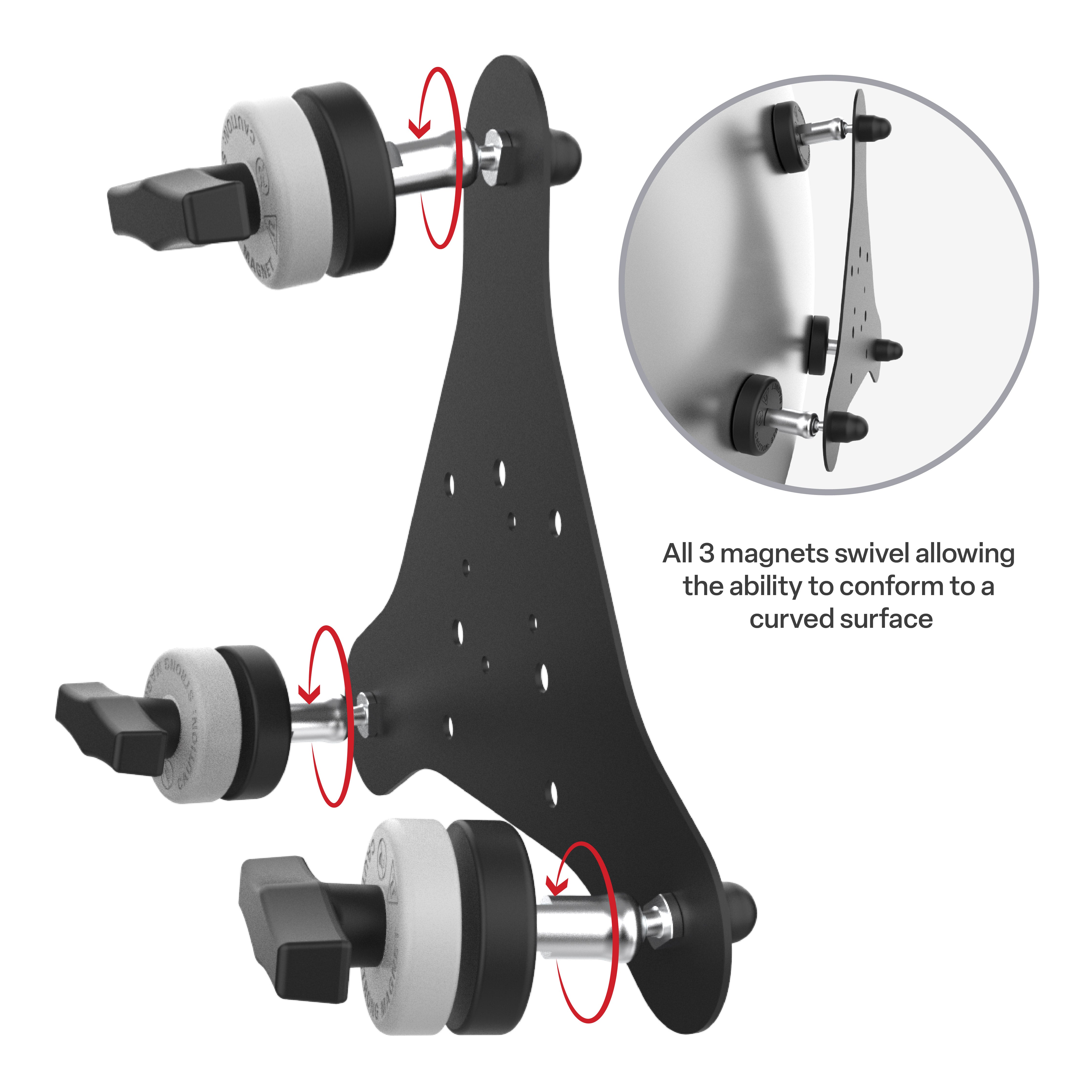

  • All 3 attachment points feature pivoting hardware that allows the base to confirm to a curved surface

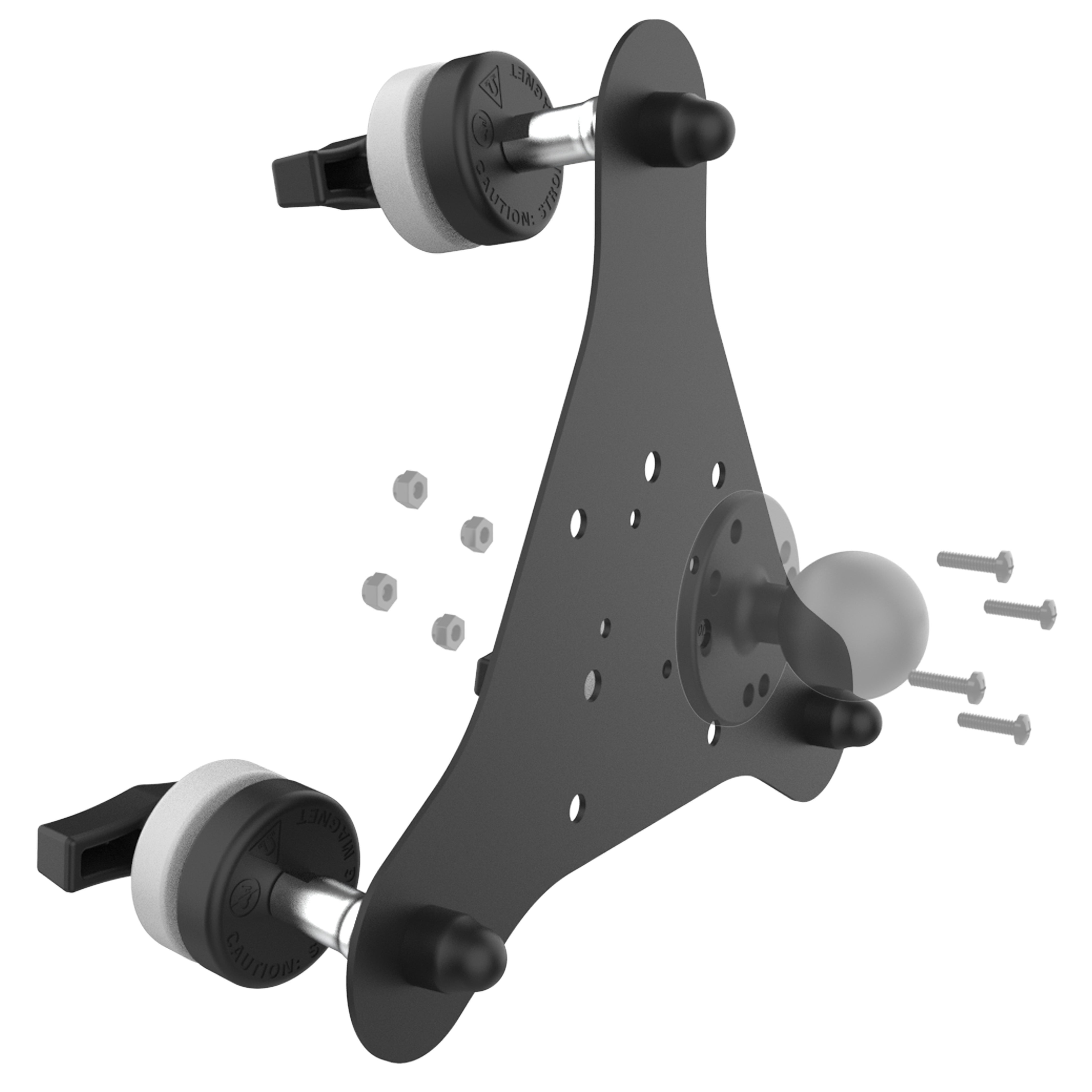

  • 4-hole AMPS patterns for attaching C RAM® drill-down ball bases
  • External magnets include handles for ease of install
  • Backed by a lifetime warranty

Information

Resources

Information

Hole Pattern
4-Hole AMPS: 3.00 cm (1.181") X 3.80 cm (1.496") 75 x 75mm VESA
Packaging Type
Poly Bag

Resources

INSTRUCTIONS
Add to Enquiry

Components

RAM Mounts
Copy SKU
RAP-MAG48-PIV1U
RAM® Tough-Mag™ 48mm Pivoting Magnets for 3 & 4-Point Mounting Base
