World-Class Mounting Systems

Size Guide

Ball Sizes

Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

B Size

Holds 2 lbs / 0.91 KG

1" Ball

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs / 1.81 KG

1.5" Ball

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs / 2.72 KG

2.25" Ball

Monitors, Large Fishfinders

E Size

Holds 15 lbs / 6.8 KG

3.38" Ball

Heavy Monitors

Ball Sizes		Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42" / 6.1468cm	3.73" / 9.47cm	6.00" / 15.24cm
B Size	Socket-to-Socket Length	1.75" / 4.45cm	3.00" / 7.62cm	5.31" / 13.49cm
C Size	Overall Length	3.56" / 9.04cm	5.69" / 14.45cm	9.13" / 23.19cm
C Size	Socket-to-Socket Length	2.50" / 6.35cm	4.66" / 11.84cm	8.00" / 20.32cm
D Size	Overall Length	5.10" / 12.95cm	8.44" / 21.44	12.98" / 32.97
D Size	Socket-to-Socket Length	3.60" / 9.14cm	6.88" / 17.48cm	11.41" / 28.98cm
E Size	Overall Length	7.31" / 18.57cm	12.63" / 32.08cm	N/A
E Size	Socket-to-Socket Length	4.98" / 12.65cm	9.88" / 25.10cm	N/A

 / Overview /

RAM^® Tough-Strap^™ Handlebar Ball Base

SKU Copied

SKU: RAP-B-460U

UPC Copied

UPC: 793442924705







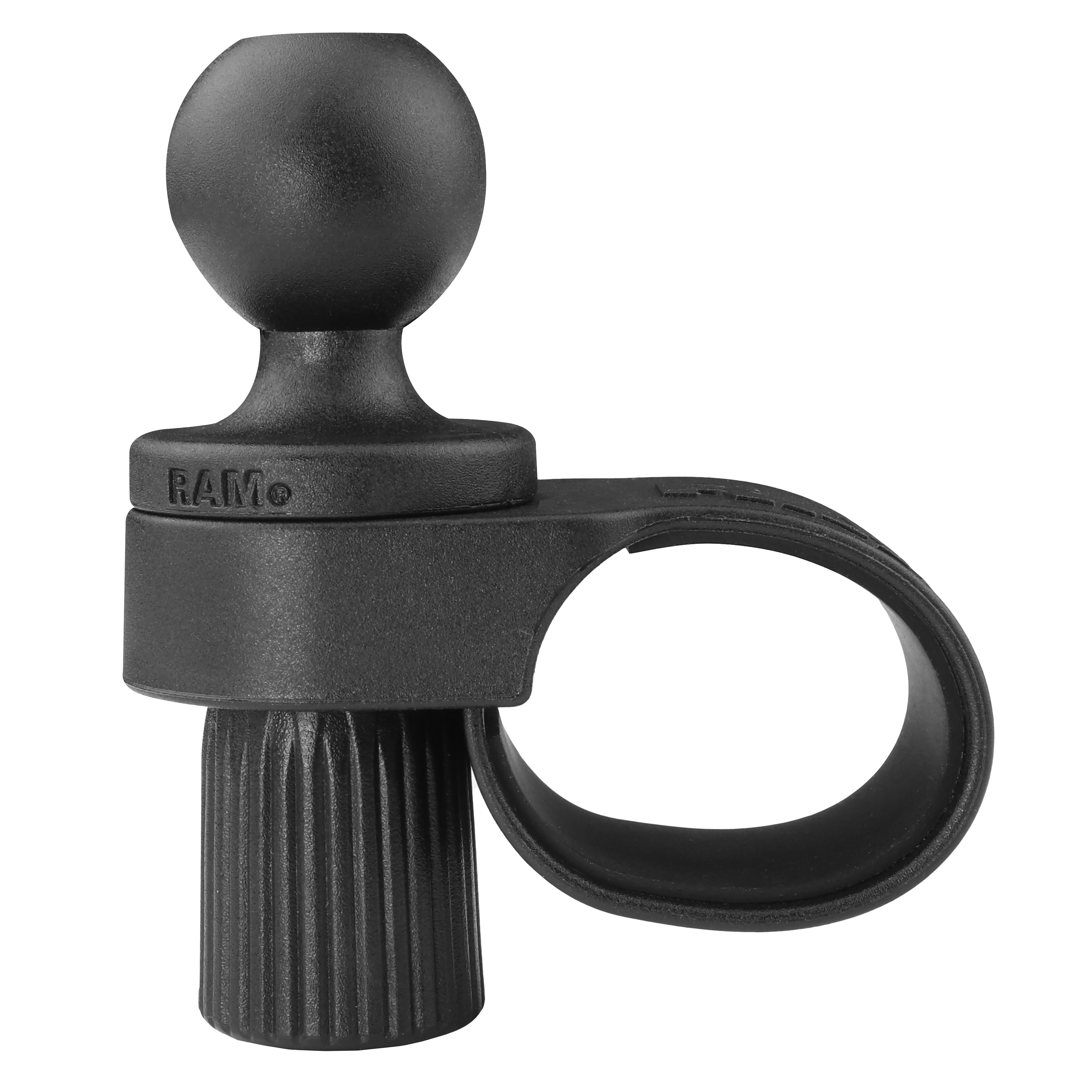

RAM^® Tough-Strap^™ Handlebar Ball Base

Copy SKU
RAP-B-460U SKU: RAP-B-460U

Copy UPC
793442924705 | UPC: 793442924705

Overview

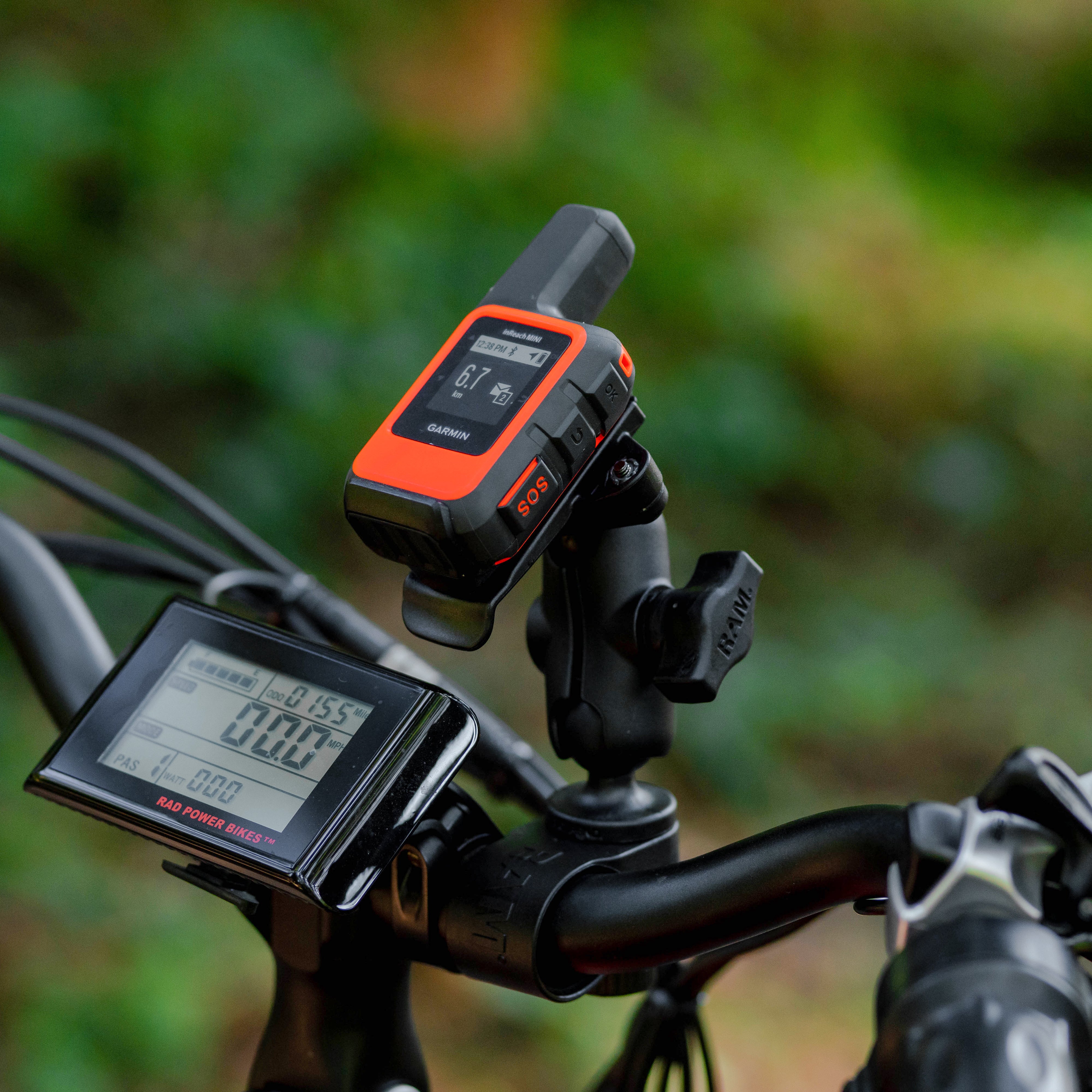

The RAM^® Tough-Strap^™ is lowest profile rugged mounting solution for any bike or motorcycle handlebars. With two different size straps, easily install the RAM^® Tough-Strap^™ on any mountain bike, road bike or e-bike with a simple twist of a knob. This RAM^® Tough-Strap^™ Handlebar Mount includes a B size ball base so you can attach any RAM^® B size socket arm and your desired device holder to complete your solution. The long strap is used for bar diameters ranging from 3.18cm (1.25") - 3.51cm (1.38") while the short strap is used for diameters ranging from 2.22cm (0.875") -2.54cm (1") . Utilize the extra rubber strip to cut down to the diameter range of 2.54cm (1") - 2.86cm (1.125") for a more custom fit. Take the RAM^® Tough-Strap^™ on your next adventure on and off the road.

Features

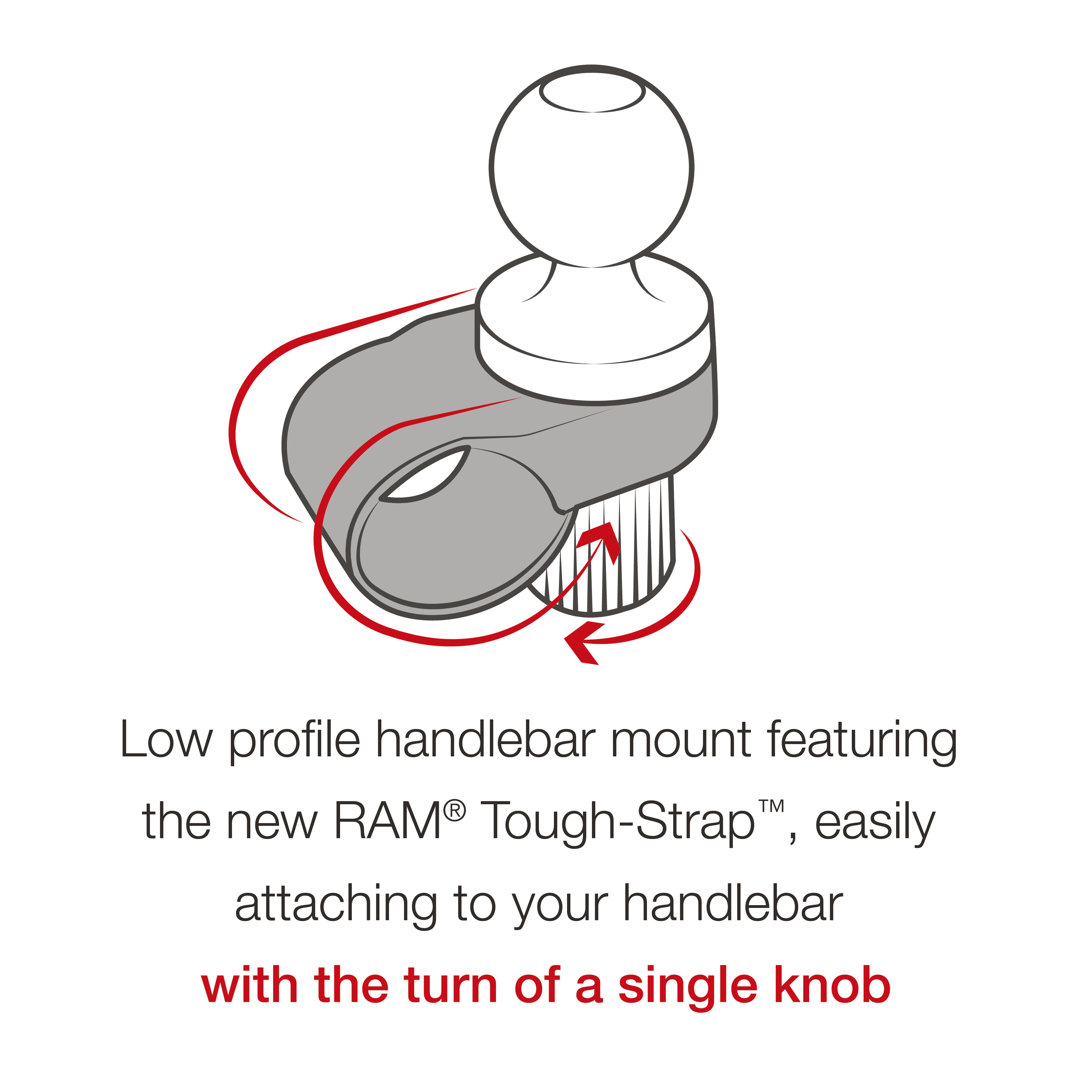

Low profile handlebar mount featuring the new RAM^® Tough-Strap^™, easily attaching to your handlebar with the turn of a single knob

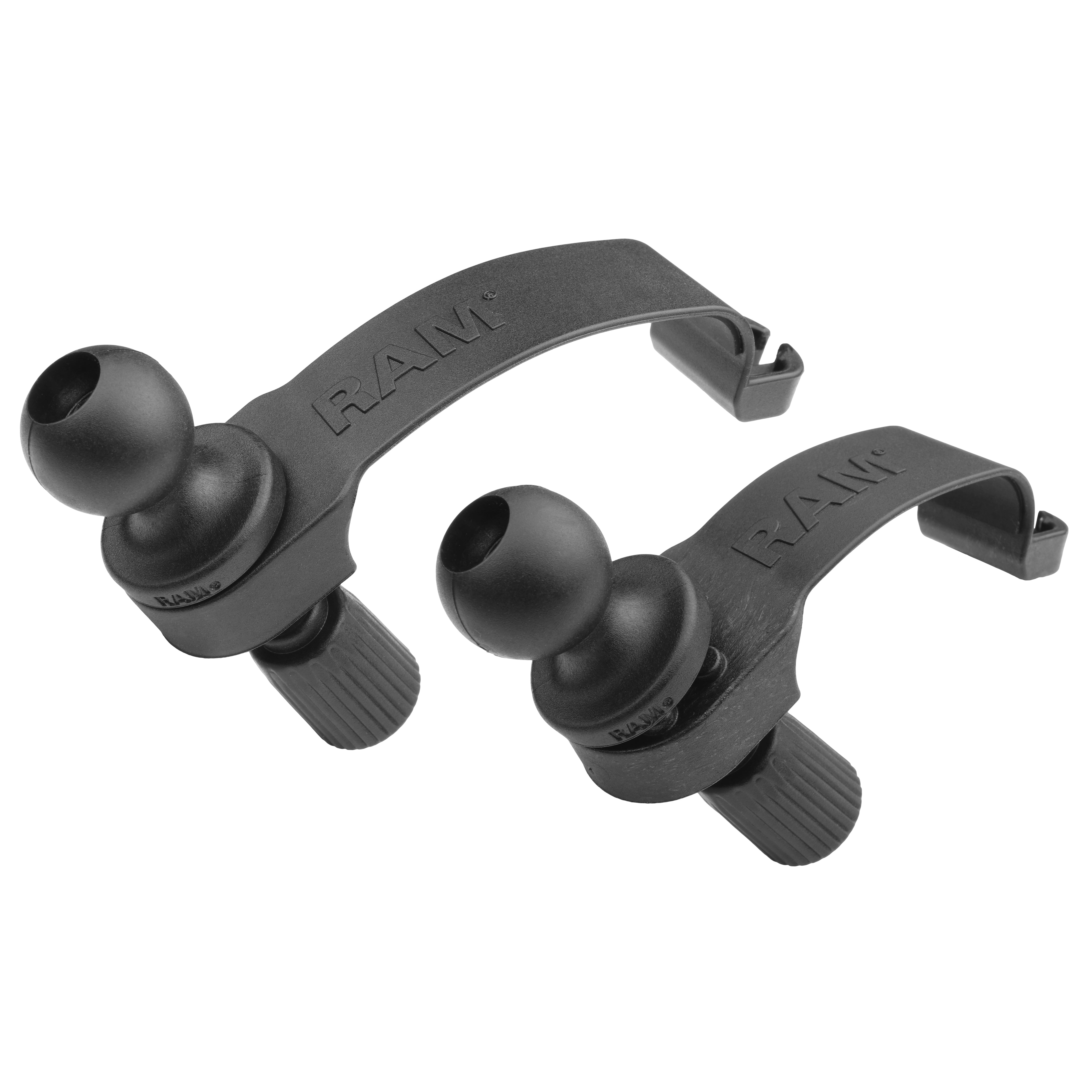

Includes two different strap sizes for handlebars; Long strap ranges from 3.18cm (1.25") - 3.51cm (1.38") diameter and small strap ranges from 2.22cm (0.875") -2.54cm (1") diameter, with an extra rubber strap for a more custom fit ranging from 2.54cm (1") - 3.18cm (1.25")

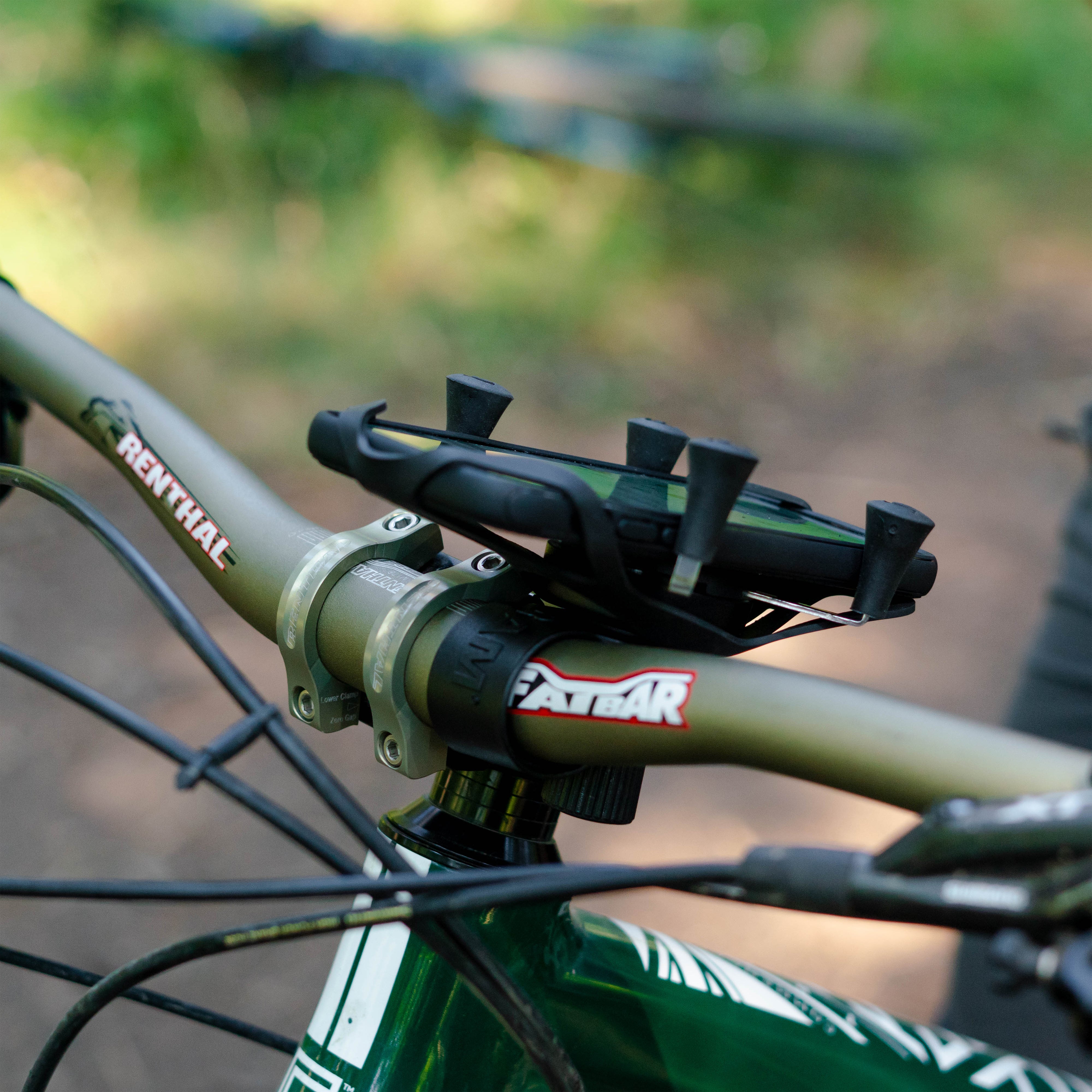

Attach any RAM^® B size socket arm and desired device holder for an ideal handlebar mount for all bike types, including mountain bikes, road bikes and e-bikes
Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments
Backed by a lifetime warranty
