The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Tough-Tray™ III Spring Loaded Laptop Tray

SKU Copied
SKU: RAM-234-7
UPC Copied
UPC: 793442033247

RAM® Tough-Tray™ III Spring Loaded Laptop Tray
Copy SKU
SKU: RAM-234-7
Copy UPC
| UPC: 793442033247

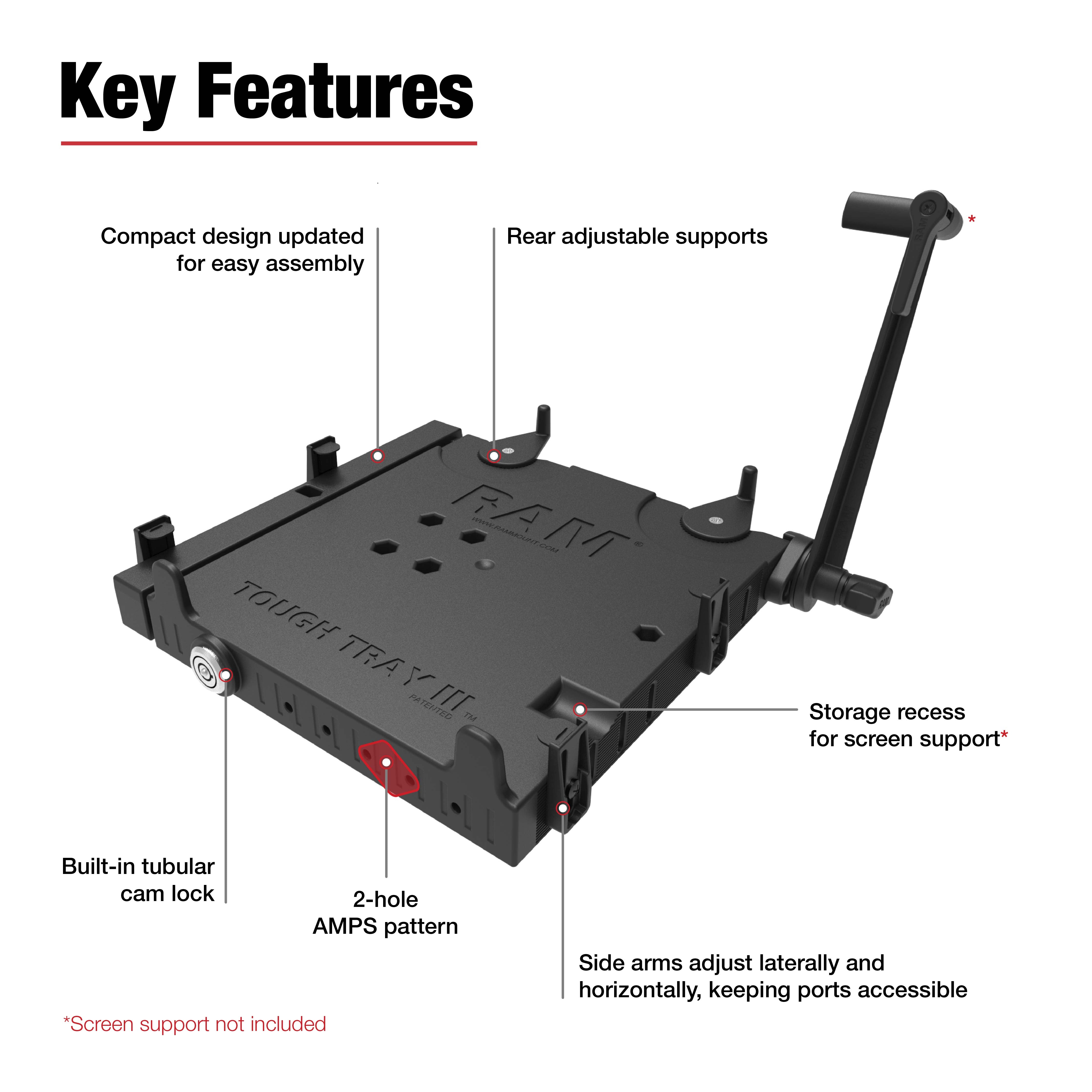

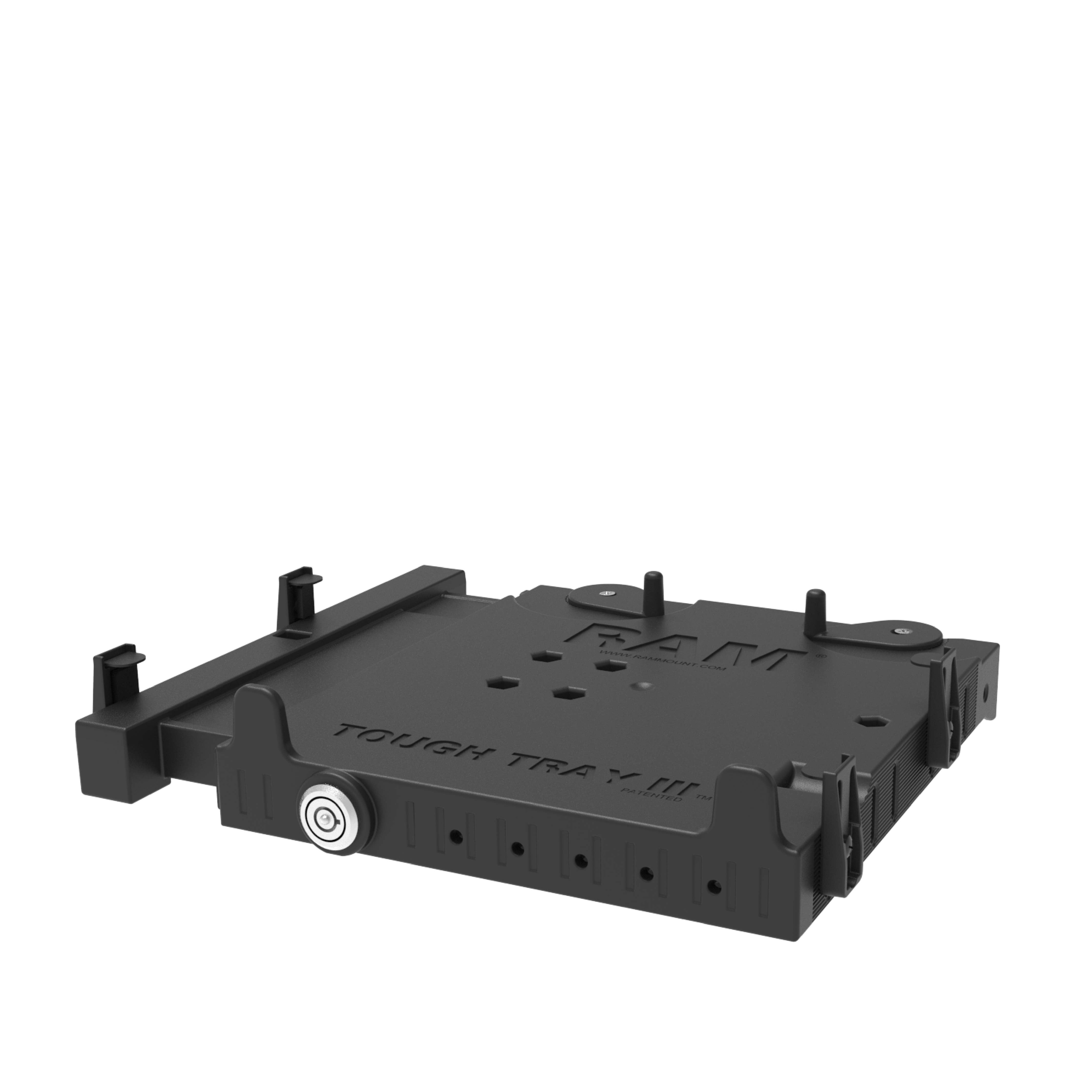

The RAM Tough-Tray III Spring Loaded Laptop Tray (RAM-234-7) is a rugged, highly adjustable vehicle and marine laptop mounting solution designed for secure use in mobile workstations, fleets, boats, and off-road environments. This third-generation Tough-Tray improves on earlier designs with a reduced footprint, enhanced adjustability, and simplified assembly. The spring-loaded cradle expands from 25.40cm (10") to 38.10cm (15") wide, securely accommodating laptops up to 17 inches (measured diagonally). Adjustable side supports fit laptops ranging from 0.00cm (0") to 4.76cm (1.875") thick and include two interchangeable support lengthslong supports for rugged laptops, and shorter supports for slim devices. Side supports adjust horizontally to avoid blocking ports and feature foam padding to protect devices from vibration and scuffs. Swiveling rear supports accommodate laptop depths from 19.37cm (7.625") to 26.99cm (10.625") , ensuring a secure and customized fit. An integrated tubular cam lock provides added security by locking the laptop in place, making this tray ideal for professional and commercial applications. The Tough-Tray III also features a built-in recess for the RAM Adjustable Laptop Screen Support, allowing it to nest cleanly when not in use, and is compatible with the RAM Power Caddy for convenient power management. Integrated 2-hole AMPS mounting locations around the tray perimeter allow for easy attachment of accessories such as printers, handheld devices, or scanners.

Features
  • Spring-loaded universal laptop tray accommodates most 25.40cm (10") to 43.18cm (17") laptops (measured diagonally)
  • Adjustable supports keep laptop secure and leave ports accessible
  • Compatible with RAM® Power Caddy™ and Adjustable Screen Support
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Information

Resources

Information

Hardware Included
(2) Keys(4) #10-24 x 7.62 cm (3")/10.16 cm (4") Machine Screws(4) #10-24 Nylock Nuts

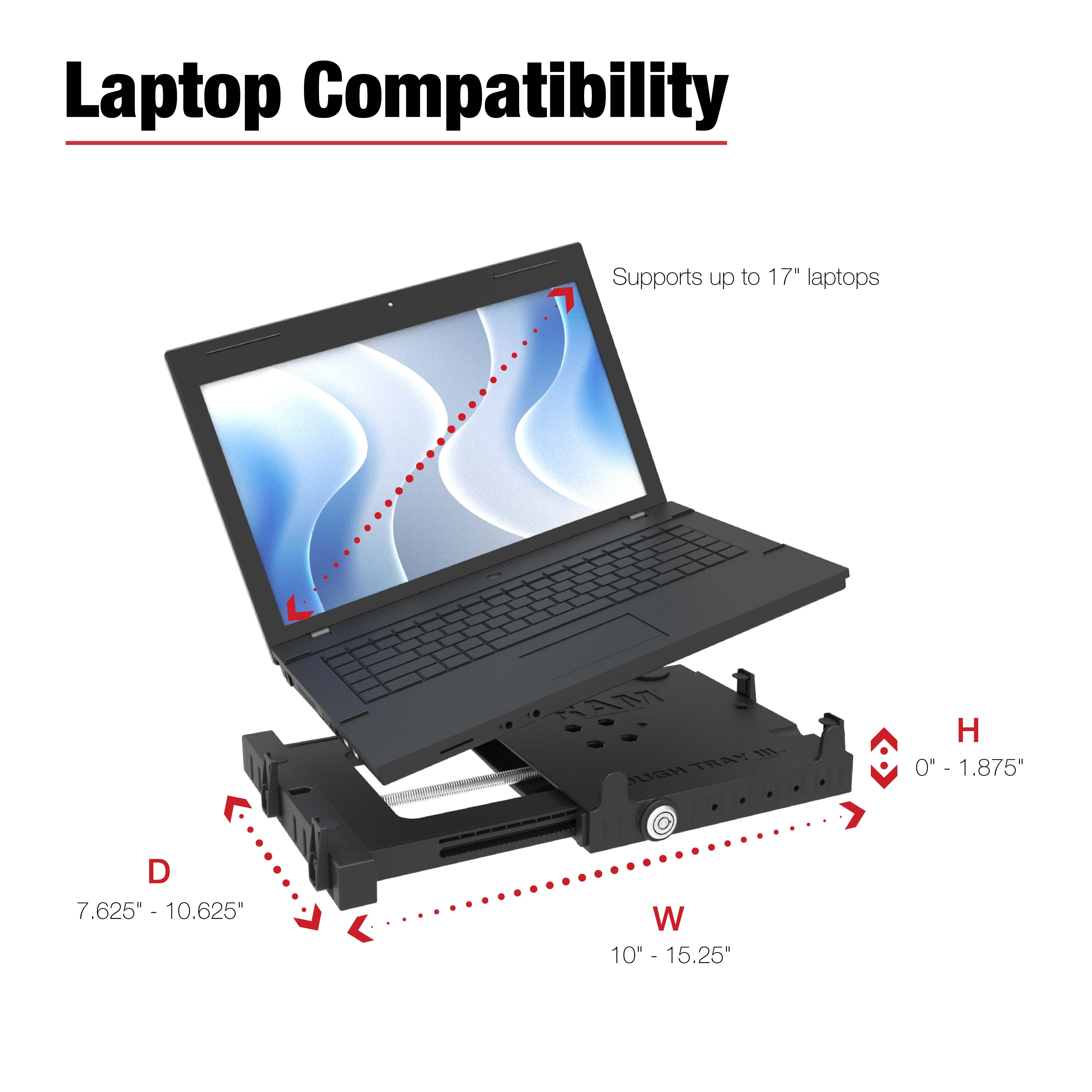

Tray Dimensions
Width Range: 25.40cm (10") - 38.74cm (15.25") Side Arm Clamp Height: 0.00cm (0") - 4.76cm (1.875") Depth Range: 199.71cm (78.625") - 26.99cm (10.625") Tray Thickness: 3.20cm (1.26")
Hole Pattern
4-Hole AMPS: 3.00 cm (1.181") X 3.80 cm (1.496")
Materials
High strength composite
Packaging Type
Poly Bag

Resources

INSTRUCTIONS
