The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Track-Node Base with RAM® Adapt-A-Post

SKU Copied
SKU: RAP-411-AAPU
UPC Copied
UPC: 793442010897
01 29 232021rap 411 Aapu1jpg
01 29 232021rap 411 Aapu2jpg

RAM® Track-Node Base with RAM® Adapt-A-Post
Copy SKU
SKU: RAP-411-AAPU
Copy UPC
| UPC: 793442010897

Overview

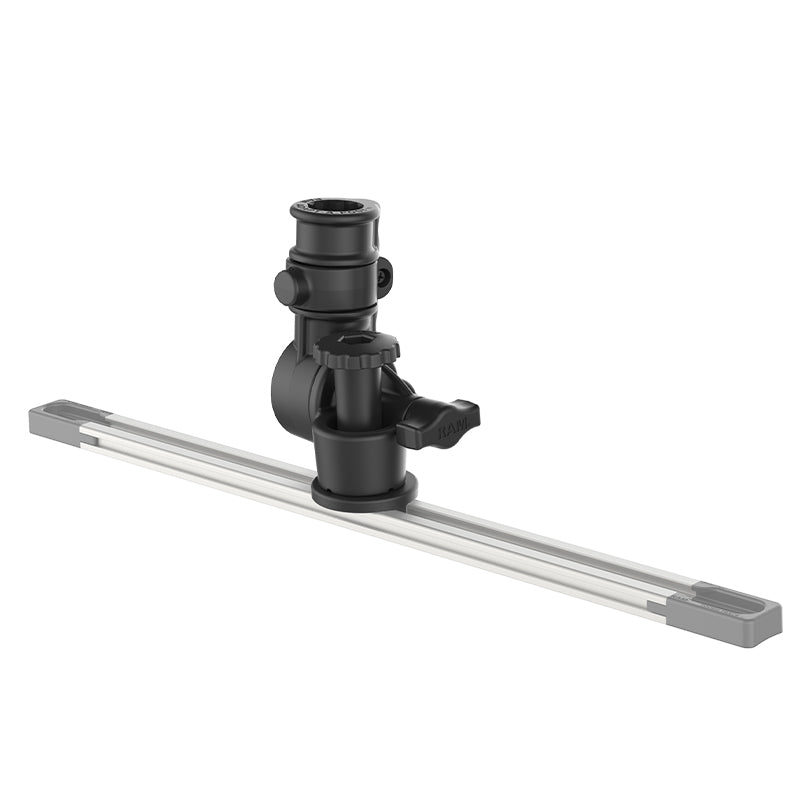

The RAM® Track-Node is a ratcheting, highly adjustable track base designed to accommodate both fishing rod holders and the RAM® Tough-Pole action camera mount. This version includes the RAM® Adapt-A-Post that offers a unique locking mechanism, allowing the user to insert a post from any direction. Simply drop in your post – no alignment necessary – and you're ready. To remove, simply press and hold the side button. With the RAM® Track-Node, a quick twist of the knob allows you to easily swing your rod holder, action camera, or other device in and out of your vessel. To install, slide the RAM® Track-Node base into your track mount system thanks to the connected T-bolt and turn the circular knob to tighten in place. To achieve 360-degree rotation, just loosen the circular knob.

Features
  • RAM® Track-Node base easily installs to most track systems via connected T-bolt; allows for 360-degree rotation
  • RAM® Adapt-A-Post allows posts to be inserted from any direction; can be tilted to achieve ideal angle
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Information

Resources

Information

Hardware Included

Assembly Hardware
(1) Friction Track Washer
(1) Pin-Lock Track Washer

Product Dimensions

Overall Width: 9.65cm (3.8")
Overall Height: 11.94cm (4.7")

T Bolt Dimensions

1.22 cm (0.48") X 2.41 cm (0.95")

Plate Size

4.70cm (1.85")

Materials

High strength composite

Packaging Type

Poly Bag

Weight

0.25 kg (0.55 lbs)

Resources

Instructions
Documents
Add to Enquiry

Components

01 29 232020rap 4111jpg
RAM Mounts
Copy SKU
RAP-411
RAM® Track-Node Adjustable Track & Ratchet Base
