The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Universal Drill-Down Vehicle Laptop Mount (Legacy)

SKU Copied
SKU: RAM-VBD-122-SW1
UPC Copied
UPC: 793442902000
How To Tough Tray Assembly Instructions

RAM® Universal Drill-Down Vehicle Laptop Mount (Legacy)
Copy SKU
SKU: RAM-VBD-122-SW1
Copy UPC
| UPC: 793442902000

C SIZE
Size Guide
The RAM Universal Drill-Down Vehicle Laptop Mount (Legacy) (RAM-VBD-122-SW1) installs into most vehicles using self-tapping screws, or alternatively, by drilling and then bolting down the mount base to the vehicle*. This laptop mounting kit is telescoping, allowing users to adjust the height range from 12 to 18. Dual swing arms provide articulation and 12 of reach for passenger and driver access to the mounted device. RAM rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation. This bundle features the legacy RAM Tough-Tray laptop holder that accommodates 25.40cm (10") to 43.18cm (17") laptops (measured diagonally). The tray features four adjustable retaining arms with rubber grips that can be moved both vertically and horizontally. These arms allow for a custom fit for laptops of varying thickness while not blocking drives or ports. Upgrade your mounting kit with compatible accessories that are not included, such as the RAM Adjustable Screen Support and RAM Power Caddy. Integrated 2-hole AMPS mounting locations around the tray perimeter allow for easy attachment of accessories such as printers, handheld devices, or scanners. Verify full range of vehicle compatibility on tab above.

Features
  • Custom laptop vehicle mount; drilling required
  • Dual articulating swing arm provides a high-level of adjustability
  • Universal, legacy laptop tray accommodates most laptops
  • Made of powder-coated steel and marine-grade aluminum
  • Backed by a lifetime warranty

Information

Resources

Information

Product Weight
7.26 kg (16.00 lbs)
Hardware Included
Assembly Hardware
Product Dimensions
Minimum Height: 63.63cm (25.05") Maxium Height: 81.41cm (32.05")
Tray Dimensions
Width Range: 25.40cm (10") - 40.64cm (16") Side Arm Clamp Height: 1.27cm (0.5") - 4.45cm (1.75") Tray Depth: 25.40cm (10") Tray Thickness: 5.40cm (2.125")
Hole Pattern
Base: See Drawing
Plate Size
20.32cm (8") x 20.32cm (8")
Ball Size
C Size ( 3.81cm (1.5") )
Materials
Powder coated steelMarine grade-aluminumHigh strength composite
Packaging Type
Box

Resources

INSTRUCTIONS
Add to Enquiry

Components

RAM Mounts
Copy SKU
RAM-234-3
RAM® Tough-Tray™ Spring Loaded Laptop Tray
RAM Mounts
Copy SKU
RAM-VP-SW1-8
RAM® 8" Upper Pole with Double Swing Arms & Round Plate
RAM Mounts
Copy SKU
RAM-VBD-122

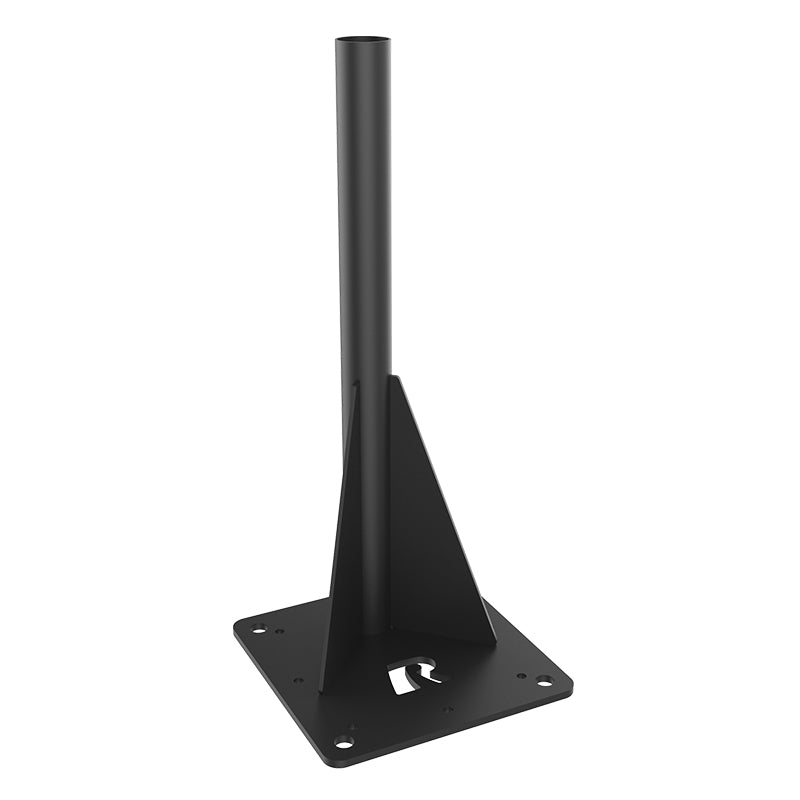

RAM® Universal Drill-Down Vehicle Base with Lower Pole
