Ball Sizes	Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42" / 6.1468cm	3.73" / 9.47cm	6.00" / 15.24cm
Socket-to-Socket Length	1.75" / 4.45cm	3.00" / 7.62cm	5.31" / 13.49cm
C Size	Overall Length	3.56" / 9.04cm	5.69" / 14.45cm	9.13" / 23.19cm
Socket-to-Socket Length	2.50" / 6.35cm	4.66" / 11.84cm	8.00" / 20.32cm
D Size	Overall Length	5.10" / 12.95cm	8.44" / 21.44	12.98" / 32.97
Socket-to-Socket Length	3.60" / 9.14cm	6.88" / 17.48cm	11.41" / 28.98cm
E Size	Overall Length	7.31" / 18.57cm	12.63" / 32.08cm	N/A
Socket-to-Socket Length	4.98" / 12.65cm	9.88" / 25.10cm	N/A

 / Overview /

RAM^® Vibe-Safe^™ with NPT Adapter for 2-Hole Holders

SKU Copied

SKU: RAP-462NPT

UPC Copied

UPC: 793442018244







RAM^® Vibe-Safe^™ with NPT Adapter for 2-Hole Holders

Copy SKU
RAP-462NPT SKU: RAP-462NPT

Copy UPC
793442018244 | UPC: 793442018244

Overview

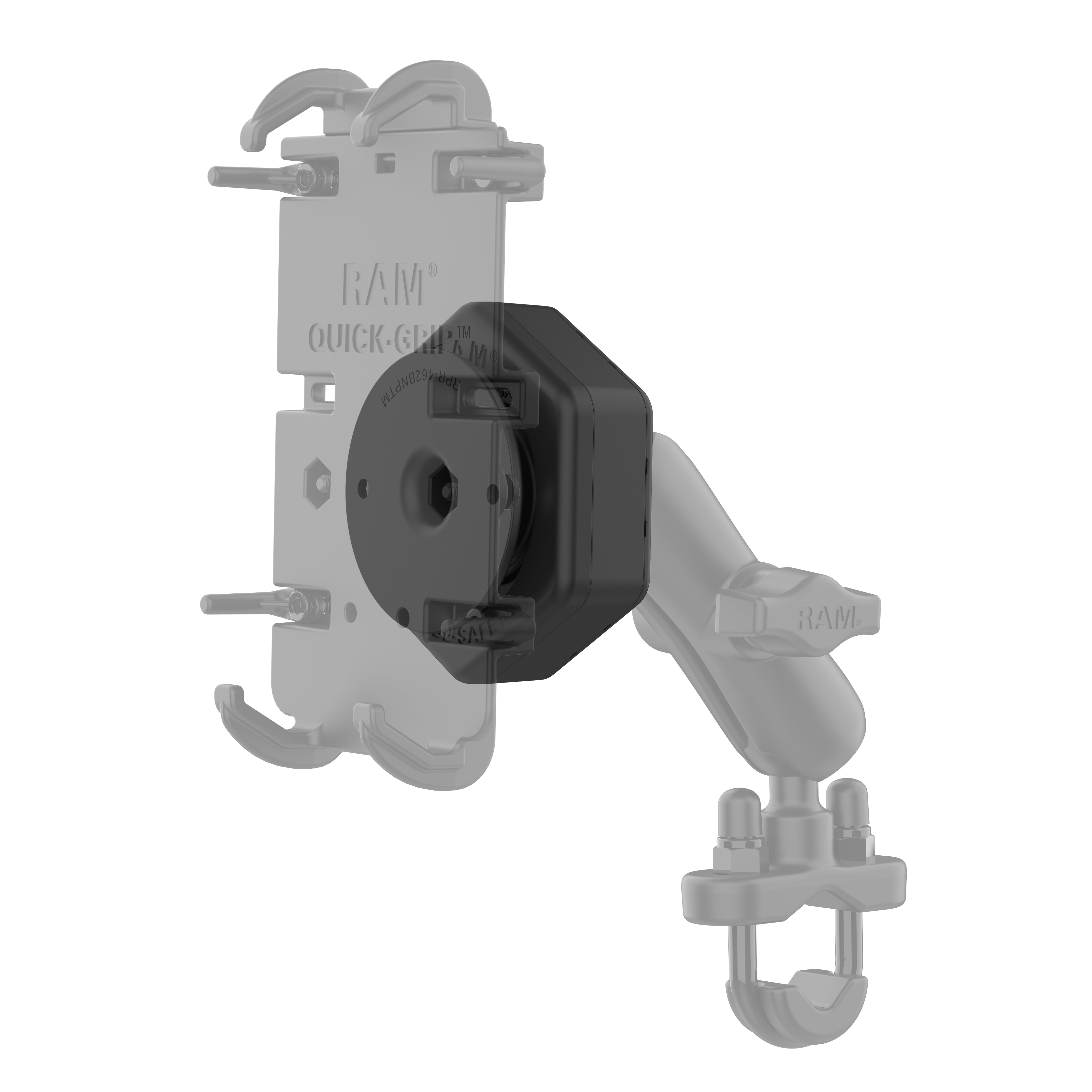

The RAM^® Vibe-Safe^™ Adapter for 2-Hole Holders (RAP-462NPT) is a vibration damping accessory designed to protect electronic devices from a wide range of vibration frequencies. The RAM^® Vibe-Safe^™ is based on an NPT connection point and boasts the versatility to rotate between portrait and landscape while keeping your device secure in rugged environments. This adapter is compatible with most 2-Hole RAM^® Holders, including the RAM^® Quick-Grip^™, RAM^® Tough-Charge^™, RAM^® Quick-Charge^™ & RAM^® Form-Fit Holders. The RAM^® Vibe-Safe^™ is only compatible with the metal diamond ball adapter (RAM-B-238U).

Features

RAM^® Vibe-Safe^™ dampens a wide range of vibration frequencies

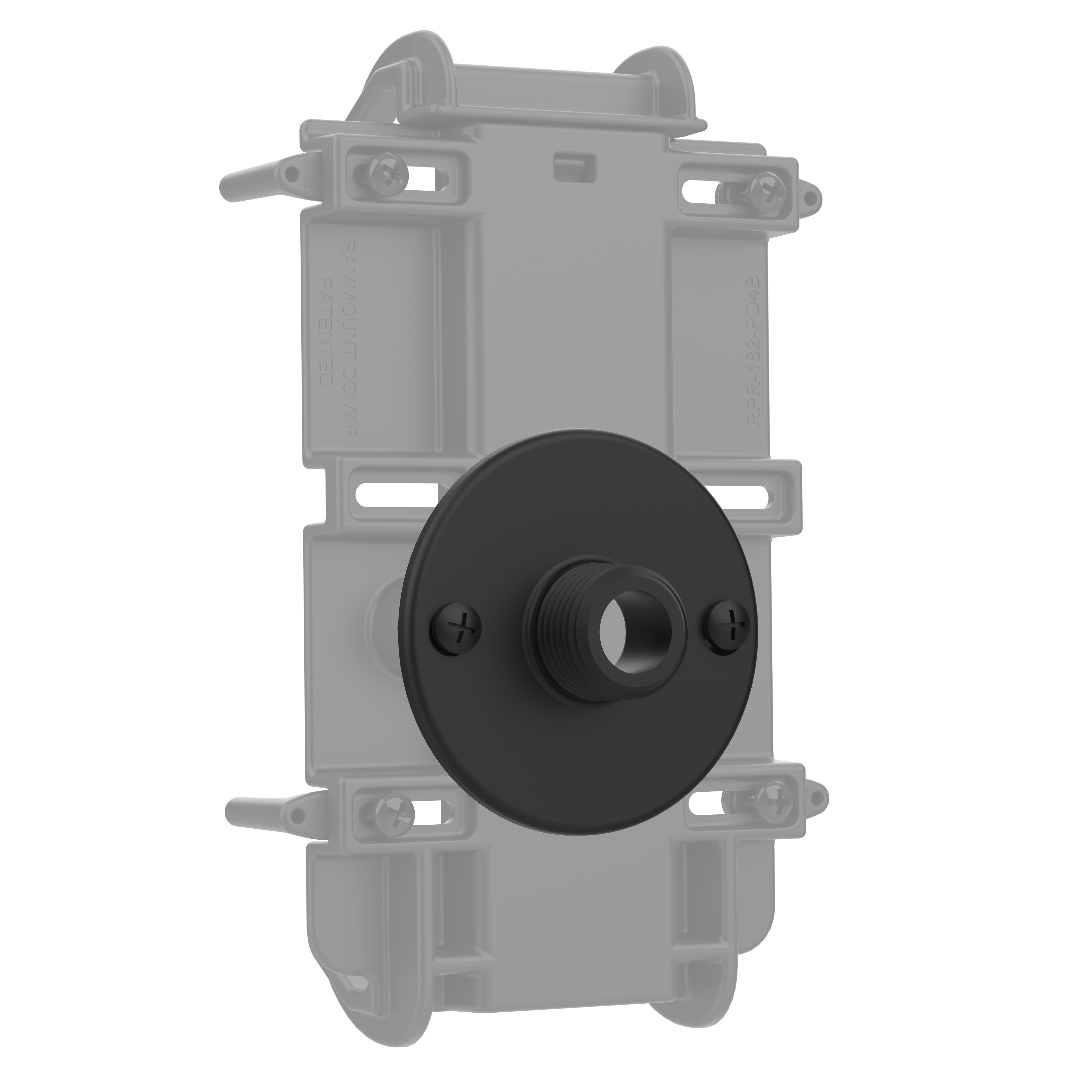

NPT thread connection allows for rotation between portrait and landscape while remaining secure

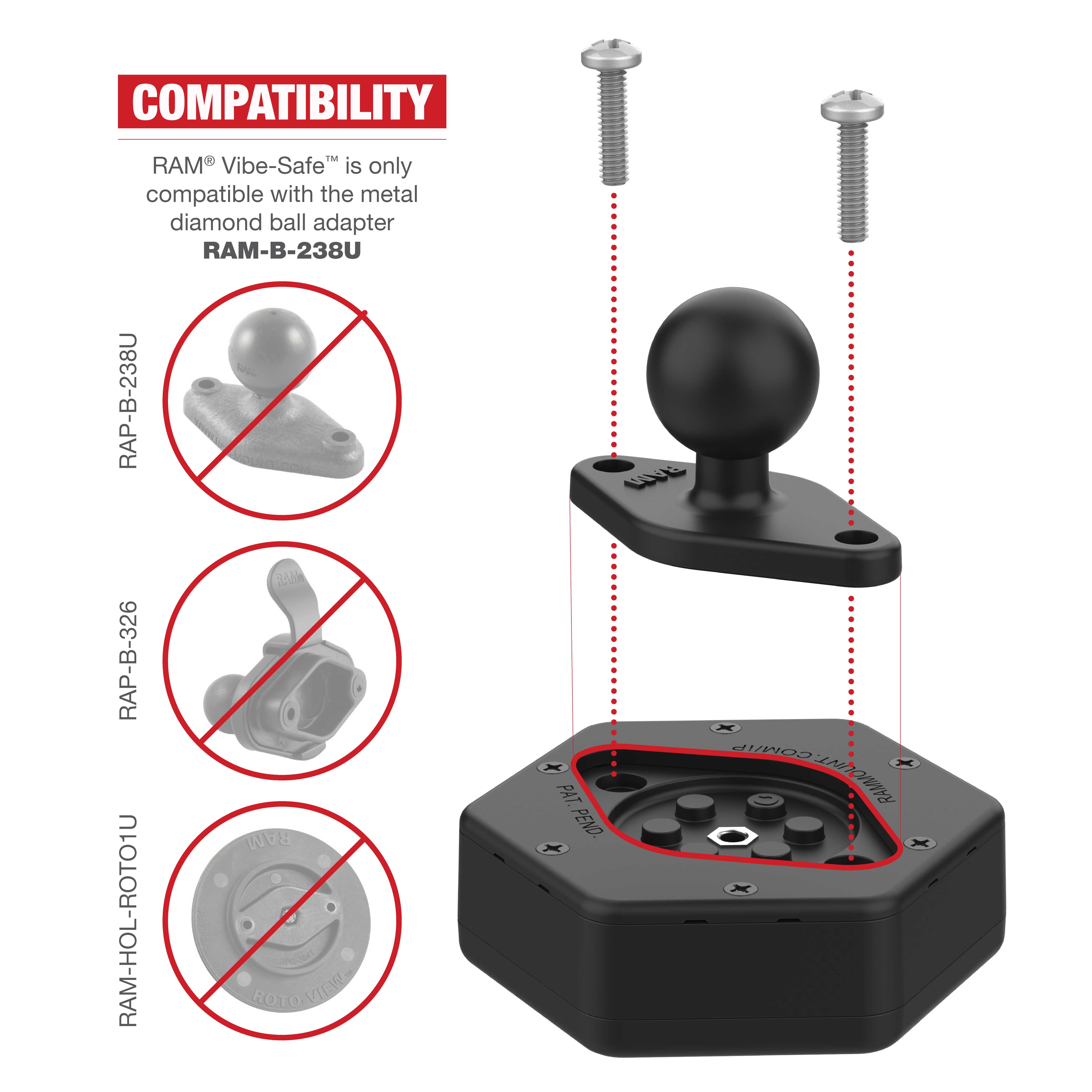

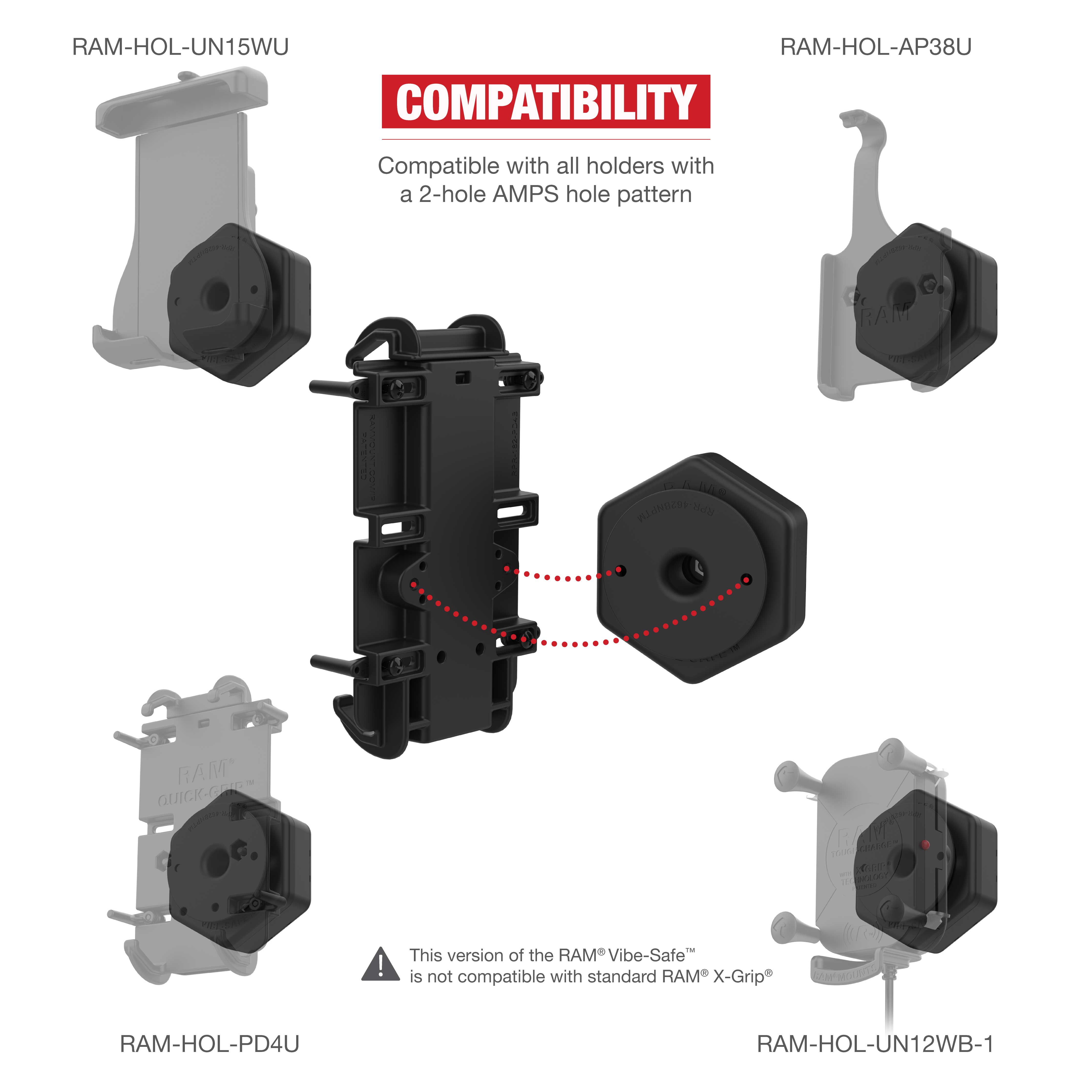

Compatible with RAM^® holders with 2-Hole AMPS hole pattern, and the metal diamond ball adapter (RAM-B-238U) for any B size ball and socket mount
Unique structure and thoughtfully designed with all industries in mind
Backed by a lifetime warranty

Tags: Accessories, AMPS 2-Hole, Components, Damper, Enhanced Vibration Damping, RAP-462, Stabilizer, Vibe, Vibe-Safe, Vibration Dampener

Information

Resources

Information

Hardware Included

(2) #10-32 x 17,78 cm (7")/40,64 cm (16") Machine Screws
(2) #8-32 x 2,54 cm (1")/5,08 cm (2") Machine Screws
(2) #8-32 Nylock Nuts

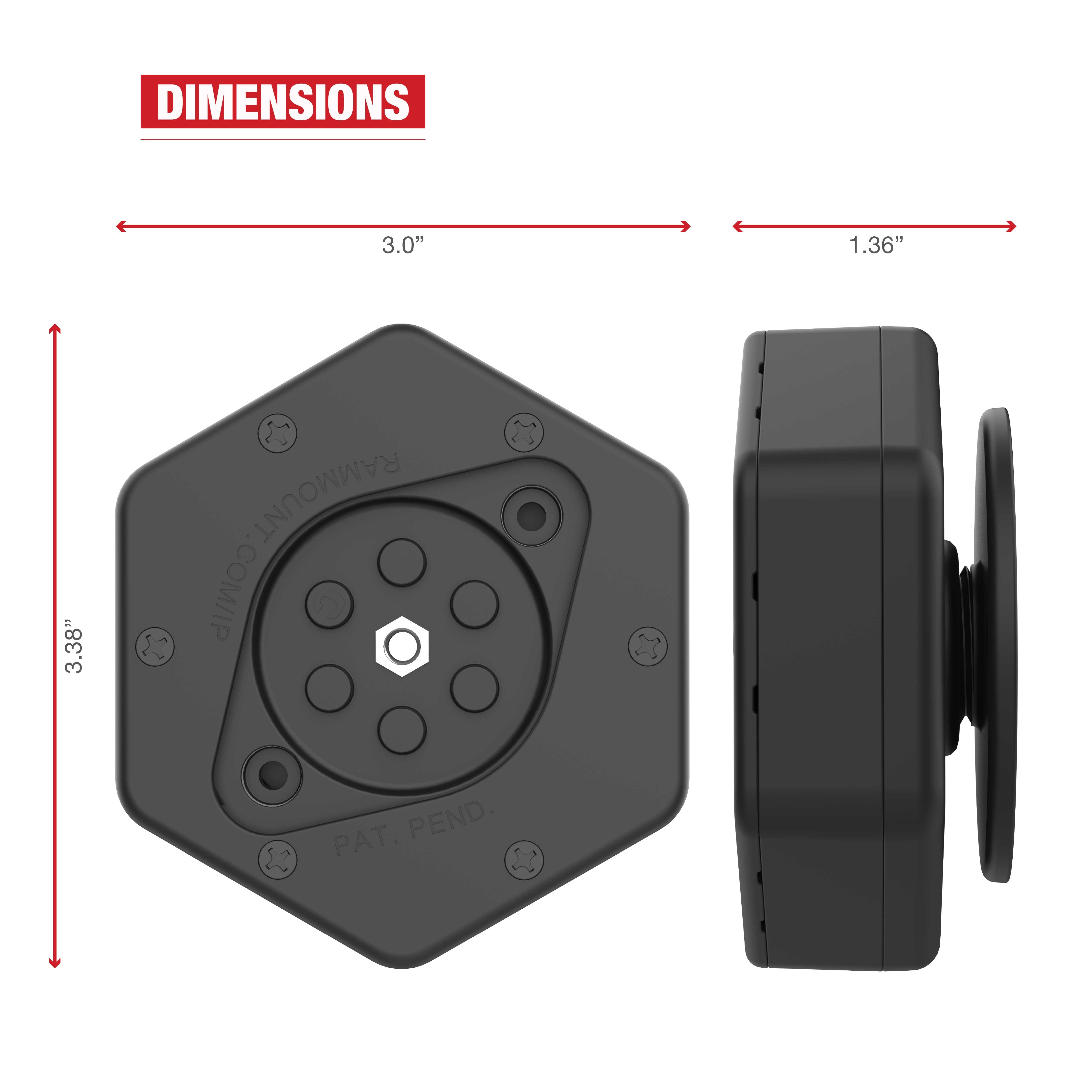

Product Dimensions

Overall Length: 8.59cm (3.38")
Overall Width: 7.62cm (3")
Overall Thickness: 3.45cm (1.36")

Hole Pattern

2-Hole AMPS: 4.86cm (1.912")

Materials

High strength composite

Packaging Type

Retail Bag

Weight

0.14 kg (0.3 lbs)

Additional Information

A reduction in vibration does not guarantee full protection of device. External immeasurable factors may cause damage to phones, cameras, and other devices while mounted in the RAM^® Vibe-Safe^™. National Products, Inc does not assume responsibility or liability for any such personal injury, death or property damage. RAM^® mounts lifetime warranty is limited to RAM^® mounts and components. The warranty does not include any device mounted or attached to a RAM^® mount, such as a phone, GPS, camera, computer or other device.
