The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® X-Grip® with Tough-Claw Mount for 7"-8" Tablets - C Size Short

SKU Copied
SKU: RAM-400-B-UN8U
UPC Copied
UPC: 793442202087
01 28 232330ram 400 B Un8u1jpg
01 28 232330ram 400 B Un8u2jpg
01 28 232330ram 400 B Un8u3jpg
01 28 232330ram 400 B Un8u4jpg
01 28 232330ram 400 B Un8u5jpg
01 28 232330ram 400 B Un8u6jpg

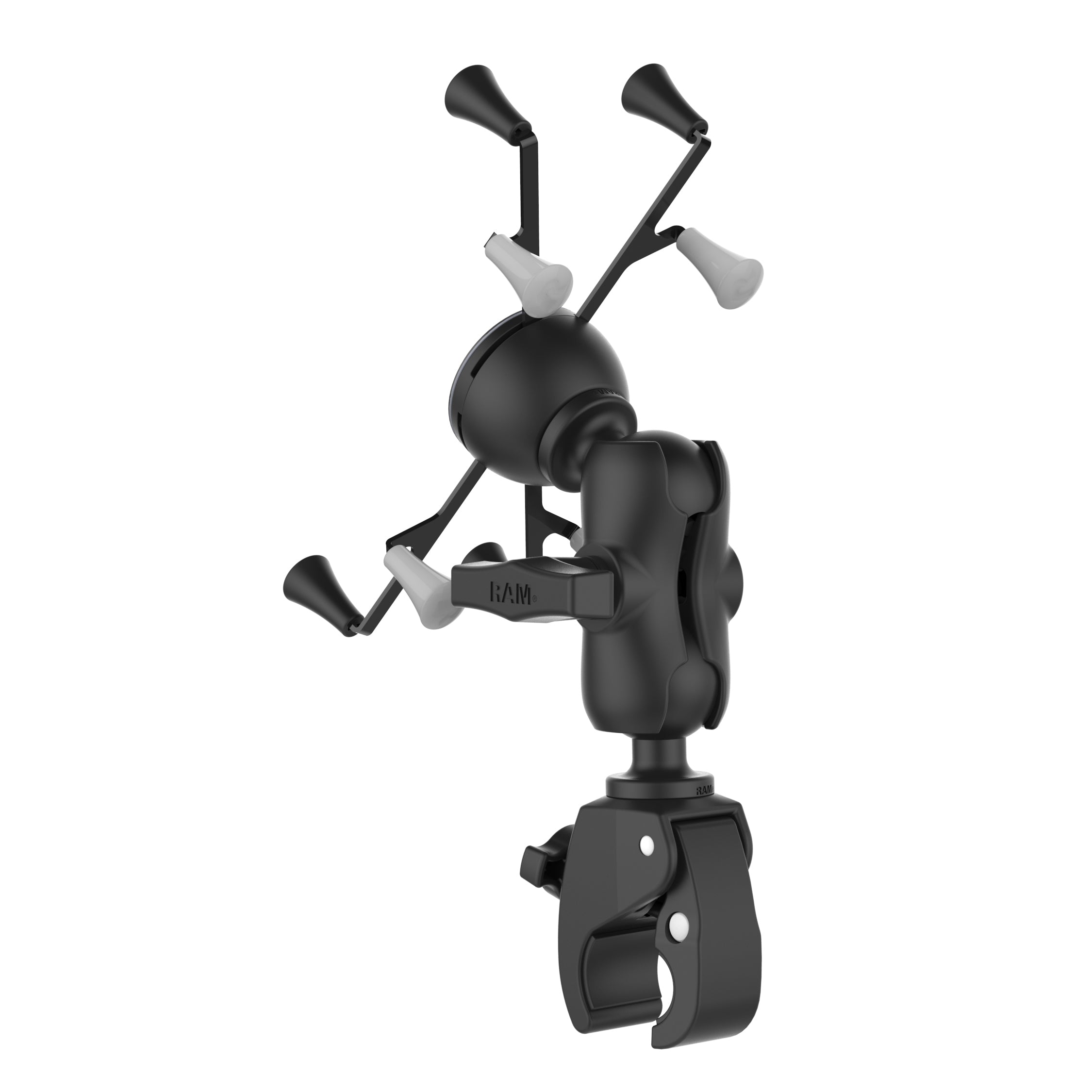

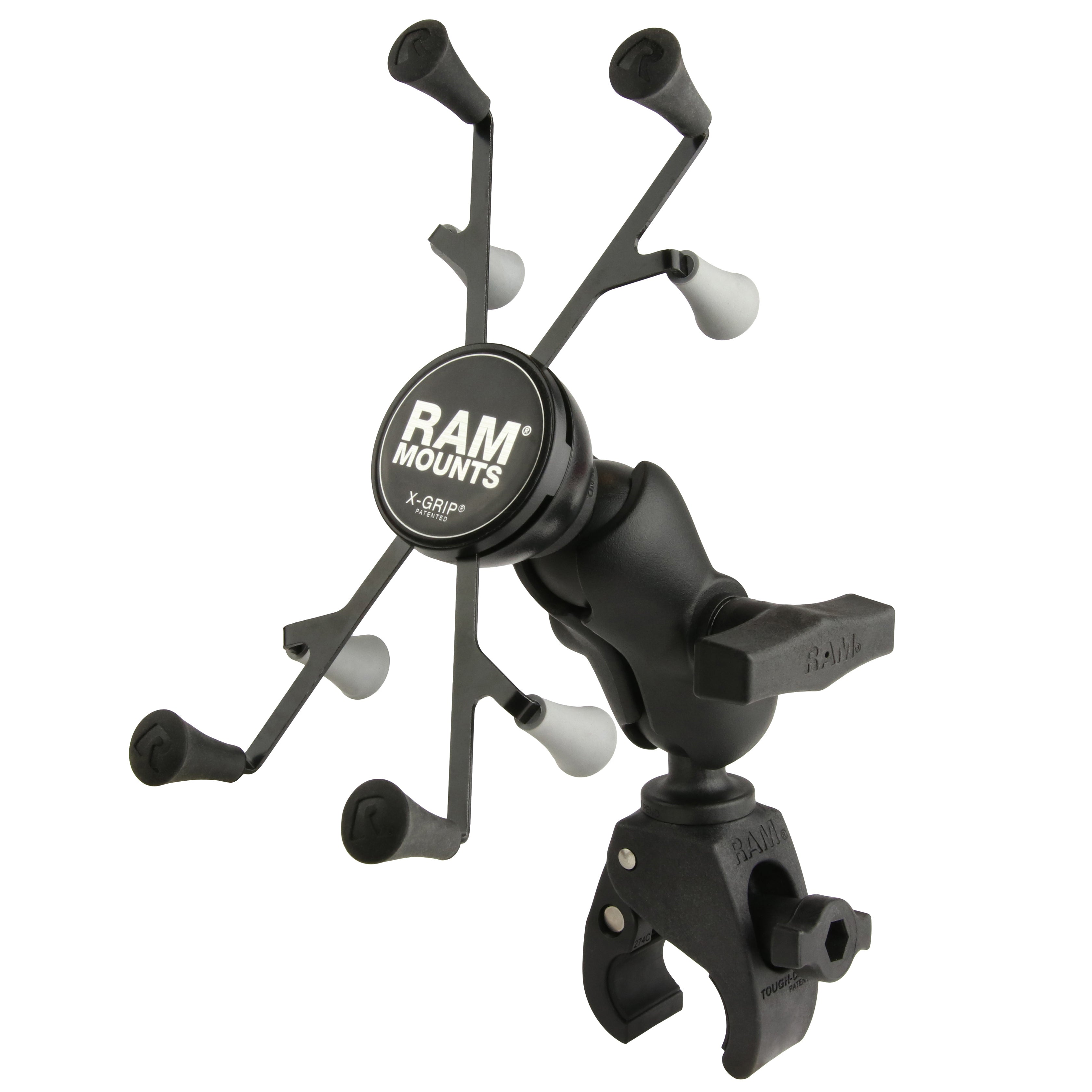

RAM® X-Grip® with Tough-Claw Mount for 7"-8" Tablets - C Size Short
Copy SKU
SKU: RAM-400-B-UN8U
Copy UPC
| UPC: 793442202087

Overview

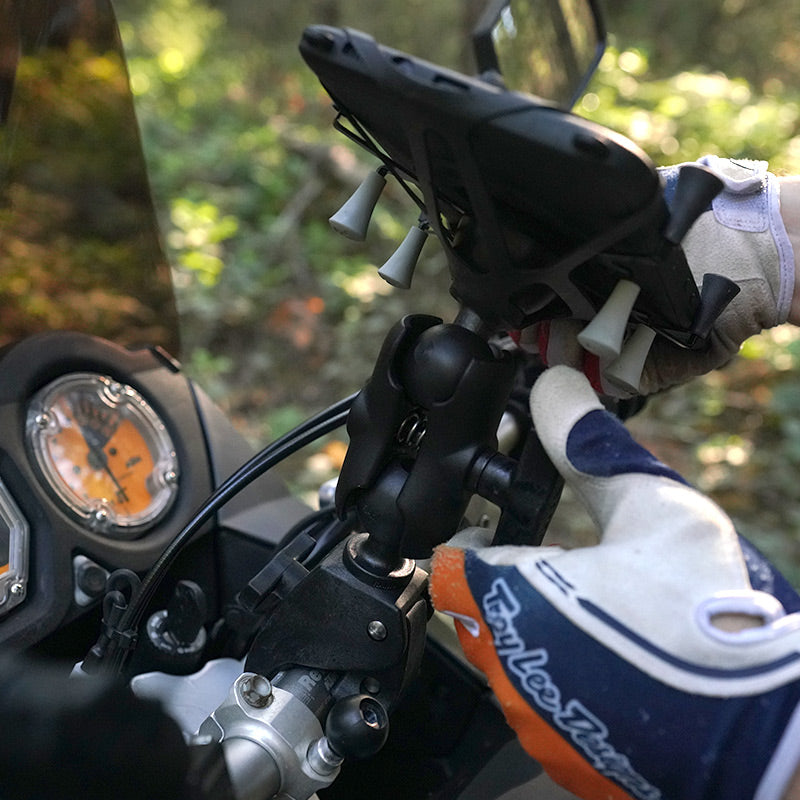

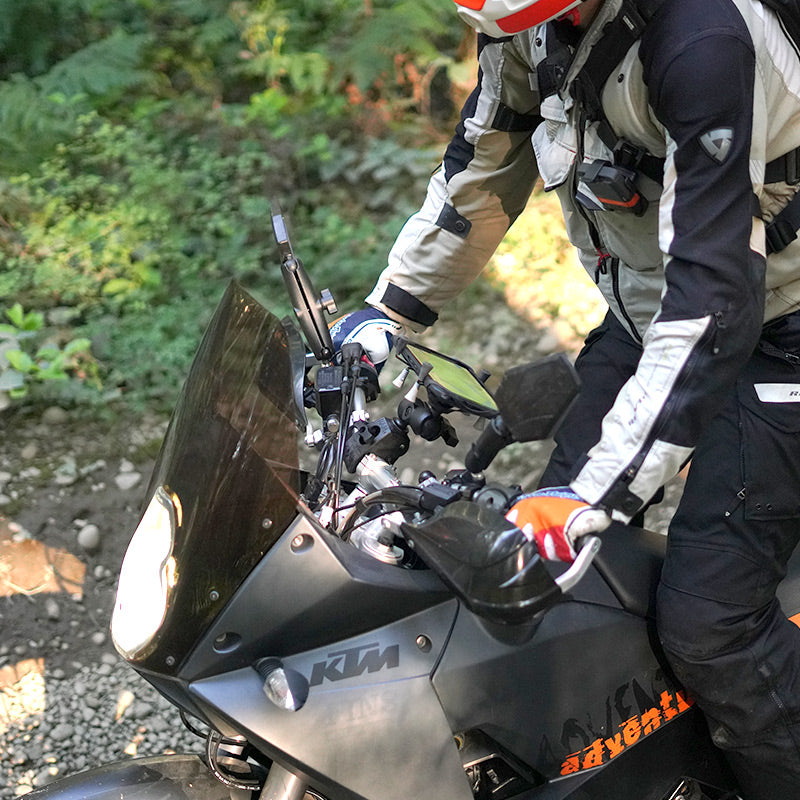

The RAM® X-Grip® with RAM® Tough-Claw Mount for 17.78cm (7") -20.32cm (8") Tablets consists of a short C size double socket arm, C size small RAM® Tough-Claw base for 1.59cm (00.625") to 2.90cm (1.14") diameter rails and a universal X-Grip® clamping cradle for 17.78cm (7") -20.32cm (8") tablets. The mount is designed with a C size RAM® 3.81cm (1.5") diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your 17.78cm (7") -20.32cm (8") tablet. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® includes a device tether recommended for open-cockpit vehicles such as a motorcycle or ATV/UTV. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Features
  • Spring-loaded 'X' design features rubber caps and sports great holding power without hiding your tablet; fits most 17.78cm (7") -20.32cm (8") tablets (check list of compatible tablets below)
  • Includes C size small RAM® Tough-Claw base, designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from 1.59cm (00.625") to 2.90cm (1.14") in outer diameter; rubber pads provide stable gripping and protection of mounting surface
  • Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Information

Resources

Compatible Devices

Information

Hardware Included

(1) Optional Tether
(1) Glue Tube for Rubber Caps

Holder Dimensions

Width Range: 6.35cm (2.5") - 14.61cm (5.75")
Depth Range: 2.22cm (0.875") max

Clamp Range

1.59cm (0.625") - 2.90cm (1.14") diameter

Socket To Socket Length

6.35cm (2.5")

Ball Size

C Size ( 3.81cm (1.5") )

Weight Capacity

Standard Use: 1.81 kg (4 lbs)
Heavy-Duty Use: 1.36 kg (3 lbs)

Materials

Marine-grade aluminum
High strength composite

Packaging Type

Poly Bag

Weight

0.59 kg (1.31 lbs)

Resources

Documents

Compatible Devices

Add to Enquiry

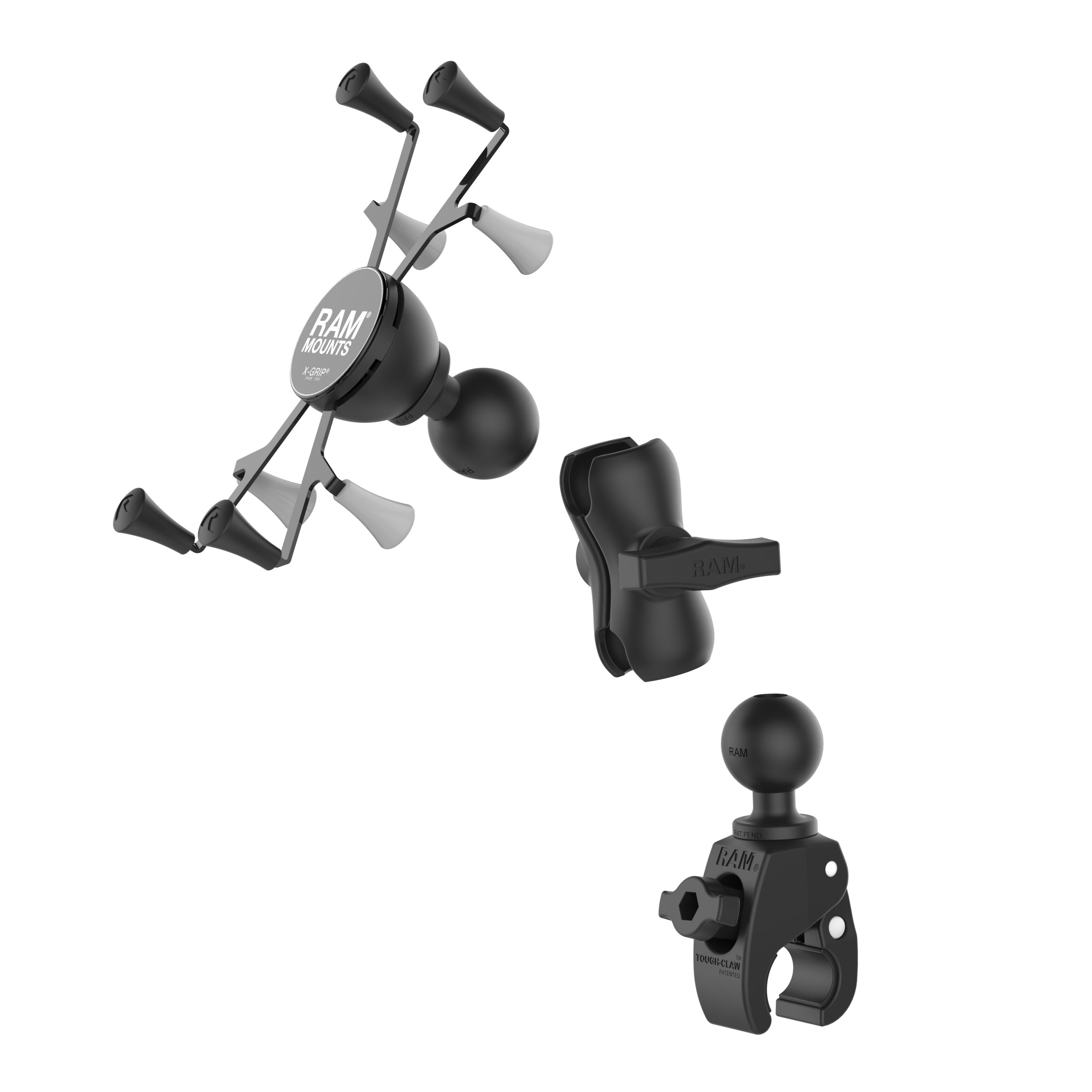

Components

06 09 231056ram 201u B1jpg
RAM Mounts
Copy SKU
RAM-201U-B
RAM® Double Socket Arm - C Size Short
02 10 231432ram Hol Un8bcu1jpg
RAM Mounts
Copy SKU
RAM-HOL-UN8BCU
RAM® X-Grip® Universal Holder for 7"-8" Tablets with Ball - C Size
06 27 230802rap 400u1jpg
RAM Mounts
Copy SKU
RAP-400U
RAM® Tough-Claw Small Clamp Ball Base
