World-Class Mounting Systems

Size Guide

Ball Sizes

Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

B Size

Holds 2 lbs / 0.91 KG

1" Ball

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs / 1.81 KG

1.5" Ball

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs / 2.72 KG

2.25" Ball

Monitors, Large Fishfinders

E Size

Holds 15 lbs / 6.8 KG

3.38" Ball

Heavy Monitors

Ball Sizes		Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42" / 6.1468cm	3.73" / 9.47cm	6.00" / 15.24cm
B Size	Socket-to-Socket Length	1.75" / 4.45cm	3.00" / 7.62cm	5.31" / 13.49cm
C Size	Overall Length	3.56" / 9.04cm	5.69" / 14.45cm	9.13" / 23.19cm
C Size	Socket-to-Socket Length	2.50" / 6.35cm	4.66" / 11.84cm	8.00" / 20.32cm
D Size	Overall Length	5.10" / 12.95cm	8.44" / 21.44	12.98" / 32.97
D Size	Socket-to-Socket Length	3.60" / 9.14cm	6.88" / 17.48cm	11.41" / 28.98cm
E Size	Overall Length	7.31" / 18.57cm	12.63" / 32.08cm	N/A
E Size	Socket-to-Socket Length	4.98" / 12.65cm	9.88" / 25.10cm	N/A

 / Overview /

GDS^® Hub^™ With USB Type-C For Desktop

SKU Copied

SKU: RAM-GDS-HUB-TYPEC-02-A

UPC Copied

UPC: 793442015830







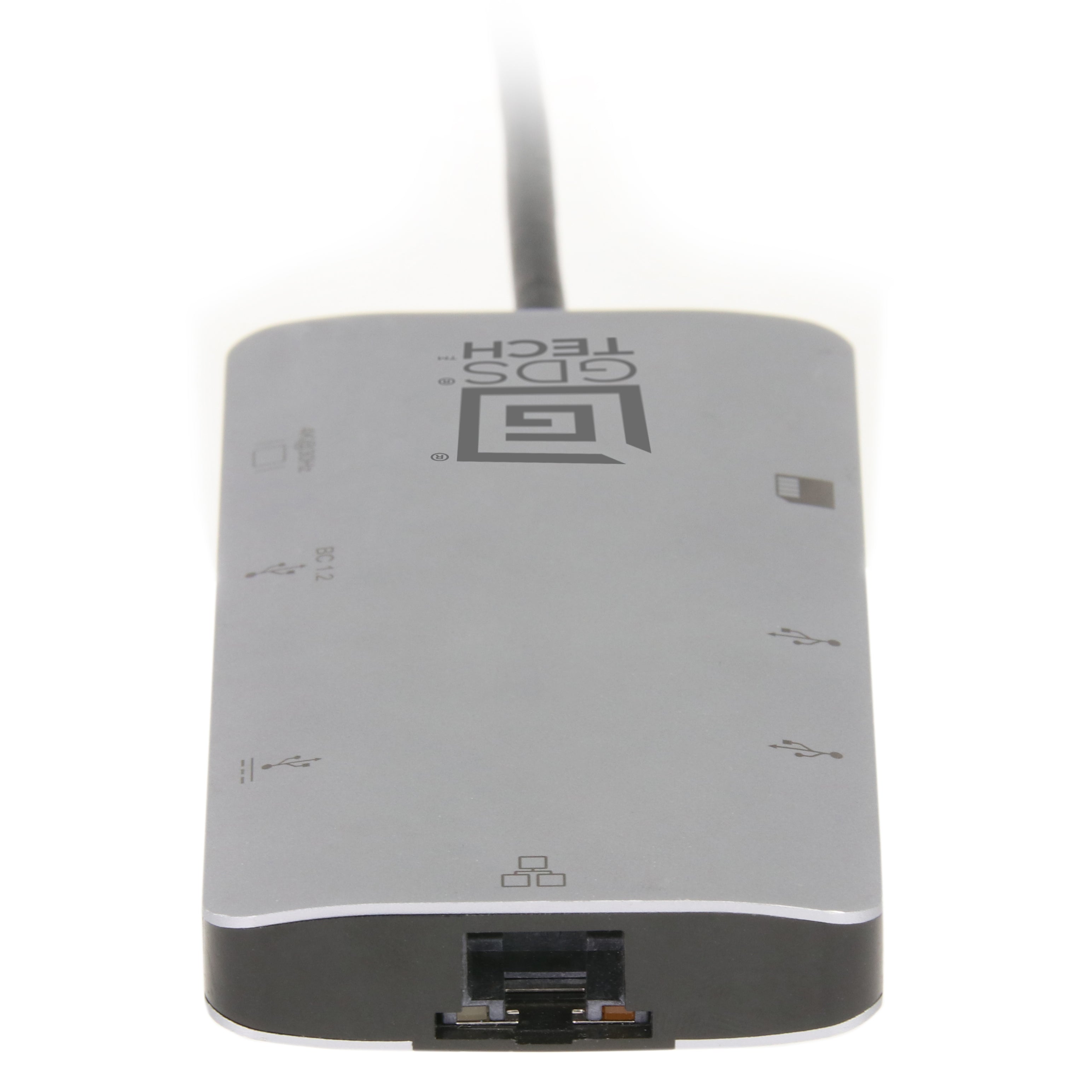

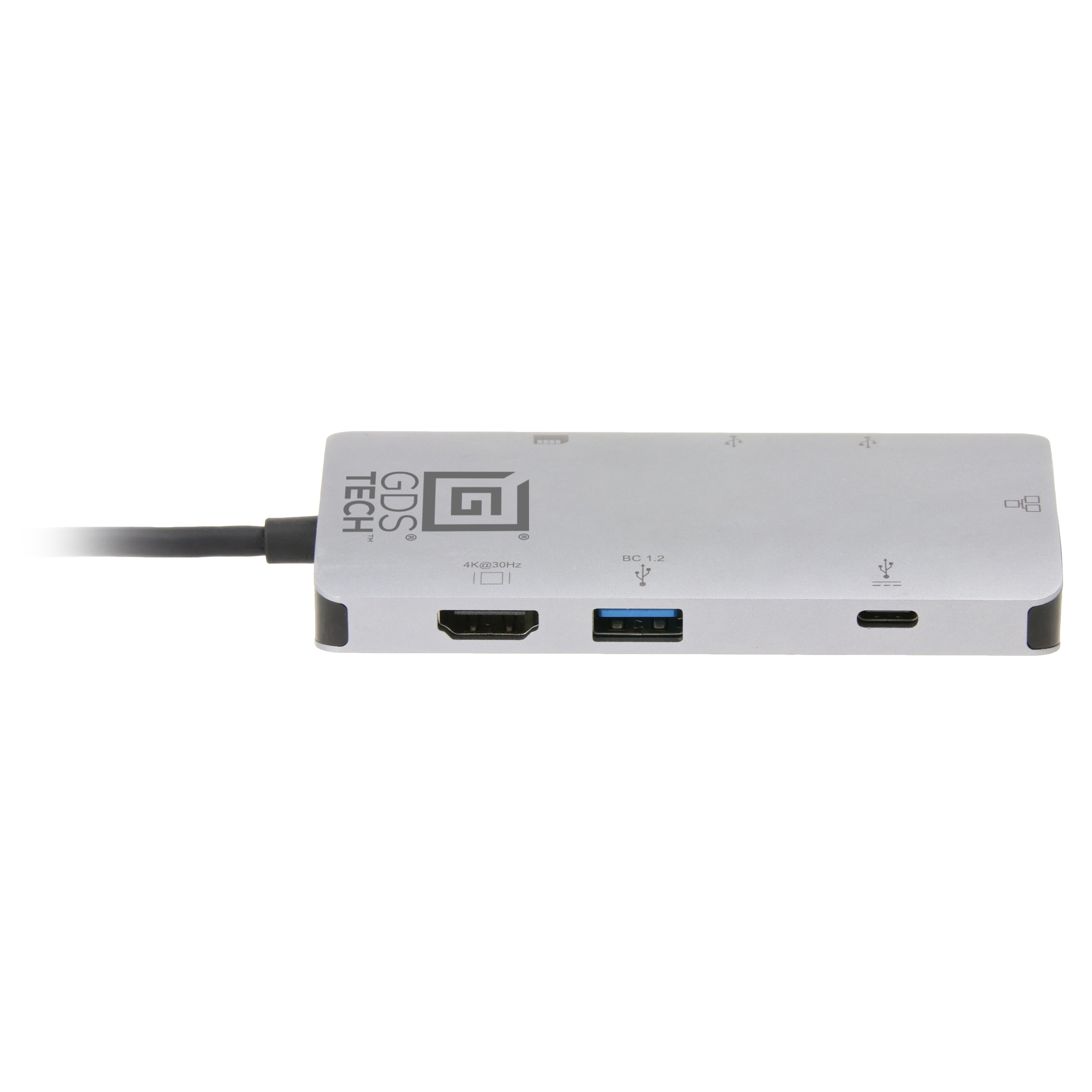

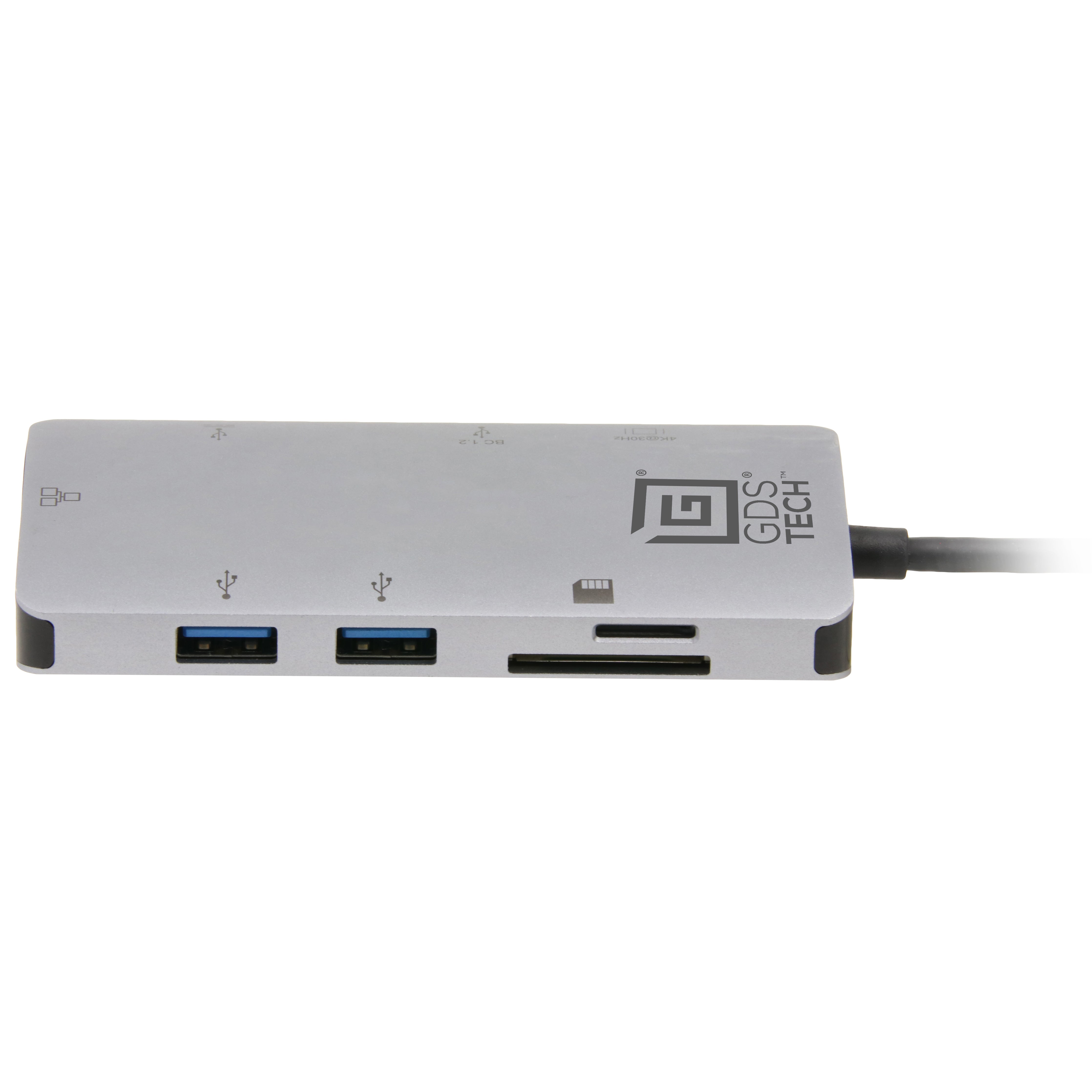

GDS^® Hub^™ With USB Type-C For Desktop

Copy SKU
RAM-GDS-HUB-TYPEC-02-A SKU: RAM-GDS-HUB-TYPEC-02-A

Copy UPC
793442015830 | UPC: 793442015830

Overview

Ideal for nearly any office environment, this universal USB Type-C hub allows for multiple inputs and outputs to a wide variety of devices. Start by plugging your phone or tablet into the hub, and then connect accessories and peripherals such as a mouse, keyboard, SD card, or an HDMI screen output adapter. The USB Type-C pigtail connector is compatible with most Type-C phones and tablets, while the HDMI output supports both the Samsung DeX and screen mirroring. With the integrated SD card slot, increase memory capacity and access additional content. The GDS^® Hub^™ is compatible with any Type-C Power Delivery power supply including GDS^® Charge^™ accessories (see compatibility). Always Protected. Always Connected.^®

Features

Easily connect accessories and peripherals to your device using a variety of inputs and ouputs
Includes USB Type-A ports, micro SD card slot, and more
HDMI output supports Samsung DeX and screen mirroring for compatible devices
USB Type-C pigtail connector supports most Type-C phones and tablets
Backed by a 3-year warranty

Tags: Accessories, Components, GDS Hub, GDS Tech, RAM-GDS-HUB-TYPEC-02-A

Information

Packaging Type

Retail Box

Transfer Speed

USB 3.0 super speed (5Gbps), downward compatible with USB 2.0

Operating Temperature

-10°C to +70°C

Storage Temperature

0°C to +45°C

Ports

(4) USB Type A Ports - One supports BC 1.2 with power up to 7.5W (5V/1.5A)
(1) RJ45 Port - Supports 10/100/1000Mbps bandwidth
(1) HDMI Port - Resolution up to 4Kx2K@30Hz
(1) USB Type-C Port - Supports data and PD charging 100W (20V/5A)
(1) Micro SD Card Slot - Supports Secure Digital v3.0 UHS-I (Ultra High Speed)?SDR12 (12.5Mbyte/s)/SDR25(25Mbyte/s)/SDR50(50Mbyte/s)/DDR50(50Mbyte/s)/SDR104(104Mbyte/s)

Regulatory

FCC, CE, WEEE and RoHS Compliant

Warranty

3 year warranty

Weight

0.13 kg (0.29 lbs)

Additional Information

This hub requires a Type-C Power Delivery power supply, such as the compatible GDS^® Charge^™ accessories. Power supplies that do not support power delivery will either not charge or will charge slower.
