The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

GDS® Uni-Conn™ Locking Thin-Case™ Vehicle Kit for Samsung Tab Active5

SKU Copied
SKU: RAM-GDS-SAM93TCD-U4-V21C-SWT1
UPC Copied
UPC: 793442034763

GDS® Uni-Conn™ Locking Thin-Case™ Vehicle Kit for Samsung Tab Active5
Copy SKU
SKU: RAM-GDS-SAM93TCD-U4-V21C-SWT1
Copy UPC
| UPC: 793442034763

C SIZE
MEDIUM ARM
Size Guide

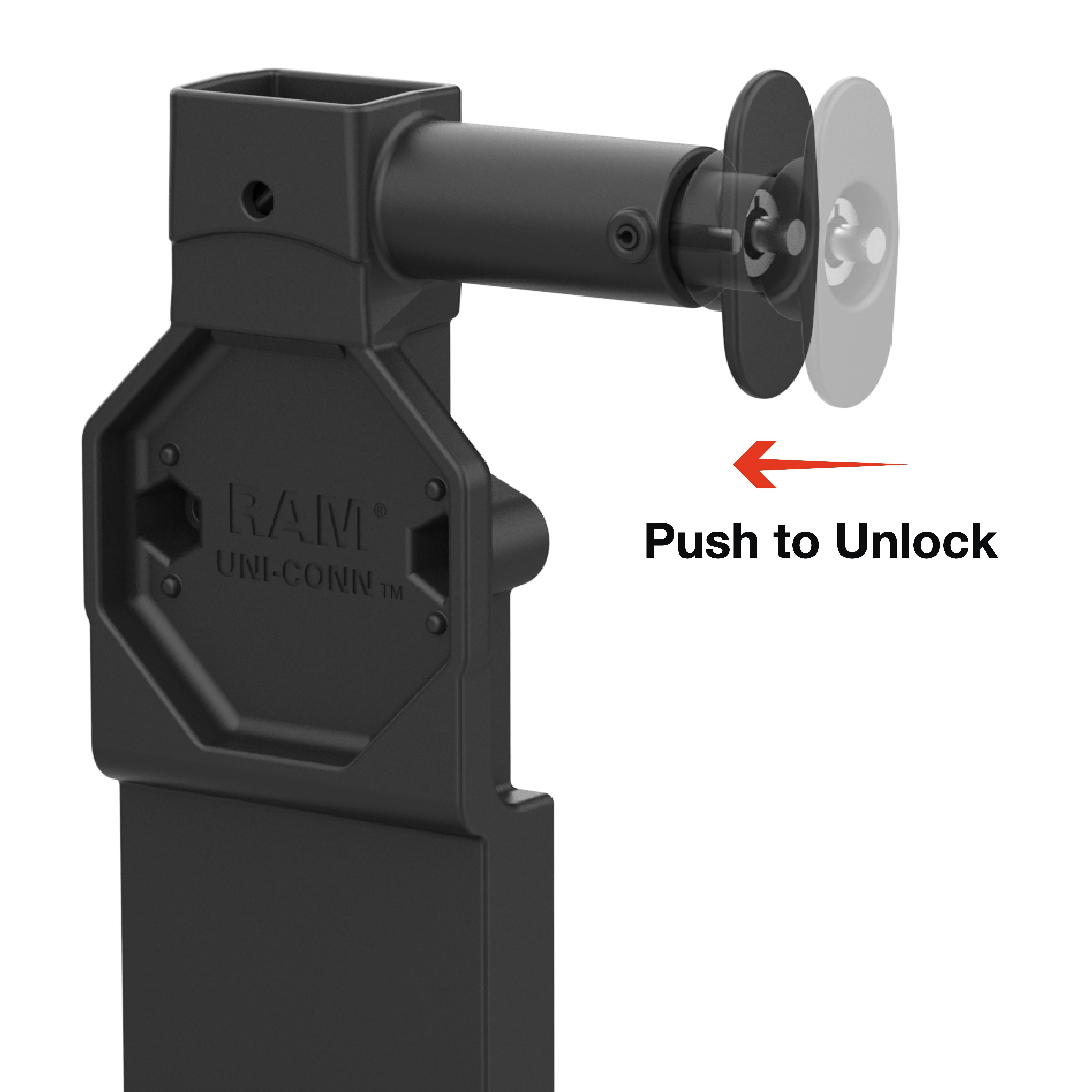

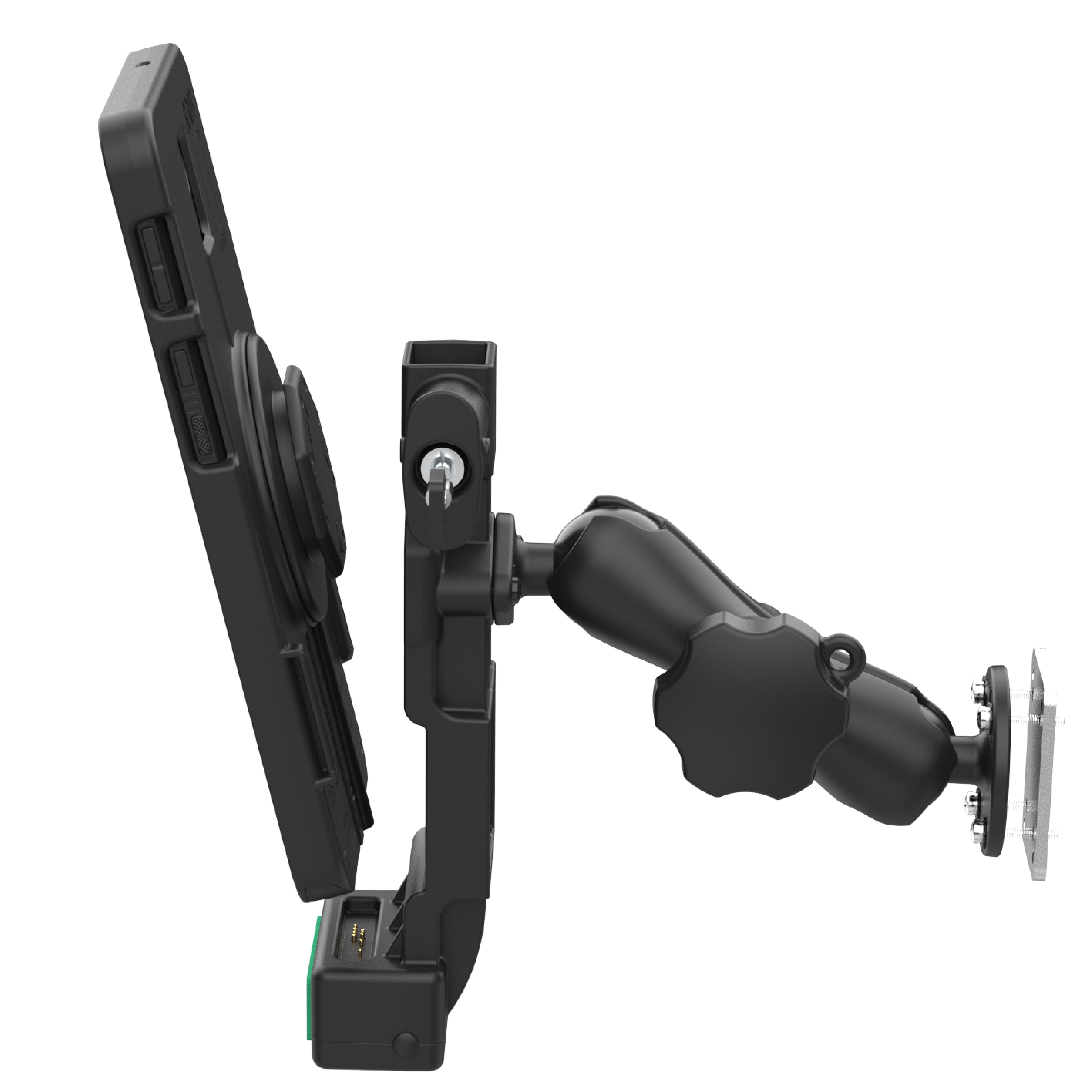

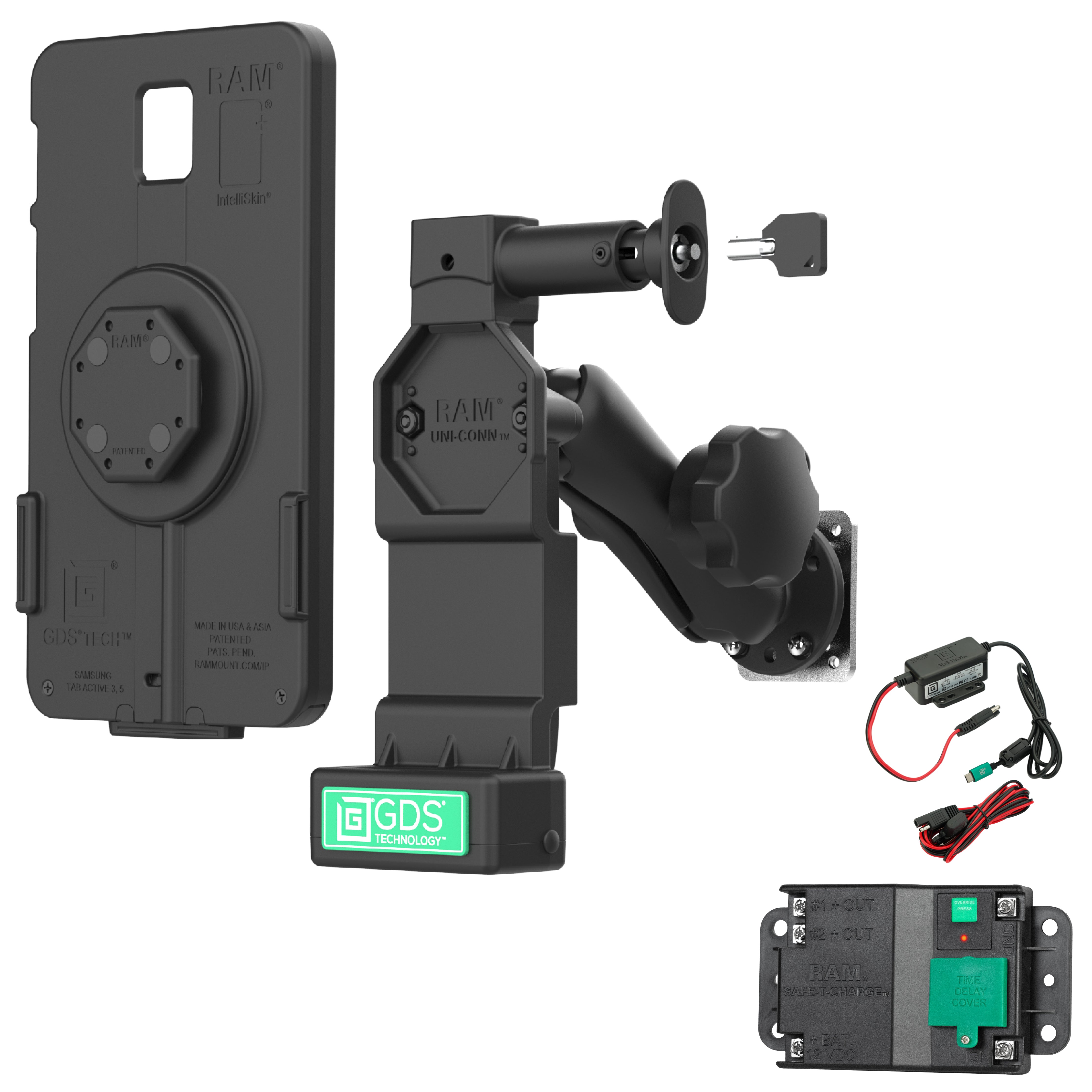

The GDS Uni-Conn Locking Thin-Case Vehicle Kit for Samsung Tab Active5 (RAM-GDS-SAM93TCD-U4-V21C-SWT1) is a comprehensive kit of everything needed to deploy the Tab A11+ in your fleet. It contains one GDS Uni-Conn locking dock with release button, Uni-Conn adapter, IntelliSkin Thin-Case for the Tab Active5, hardwire charger, RAM Safe-T-Charge Battery Protection System, and double ball mount with backing plate and locking knob. The dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked, and also includes an RJ45 port for peripheral support. It features an easy docking and undocking process, simply place the IntelliSkin-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a quick-release button frees the tablet. The GDS Uni-Conn is backed by a 3-year warranty. Always Protected. Always Connected. One Dock to Connect Them All

Features

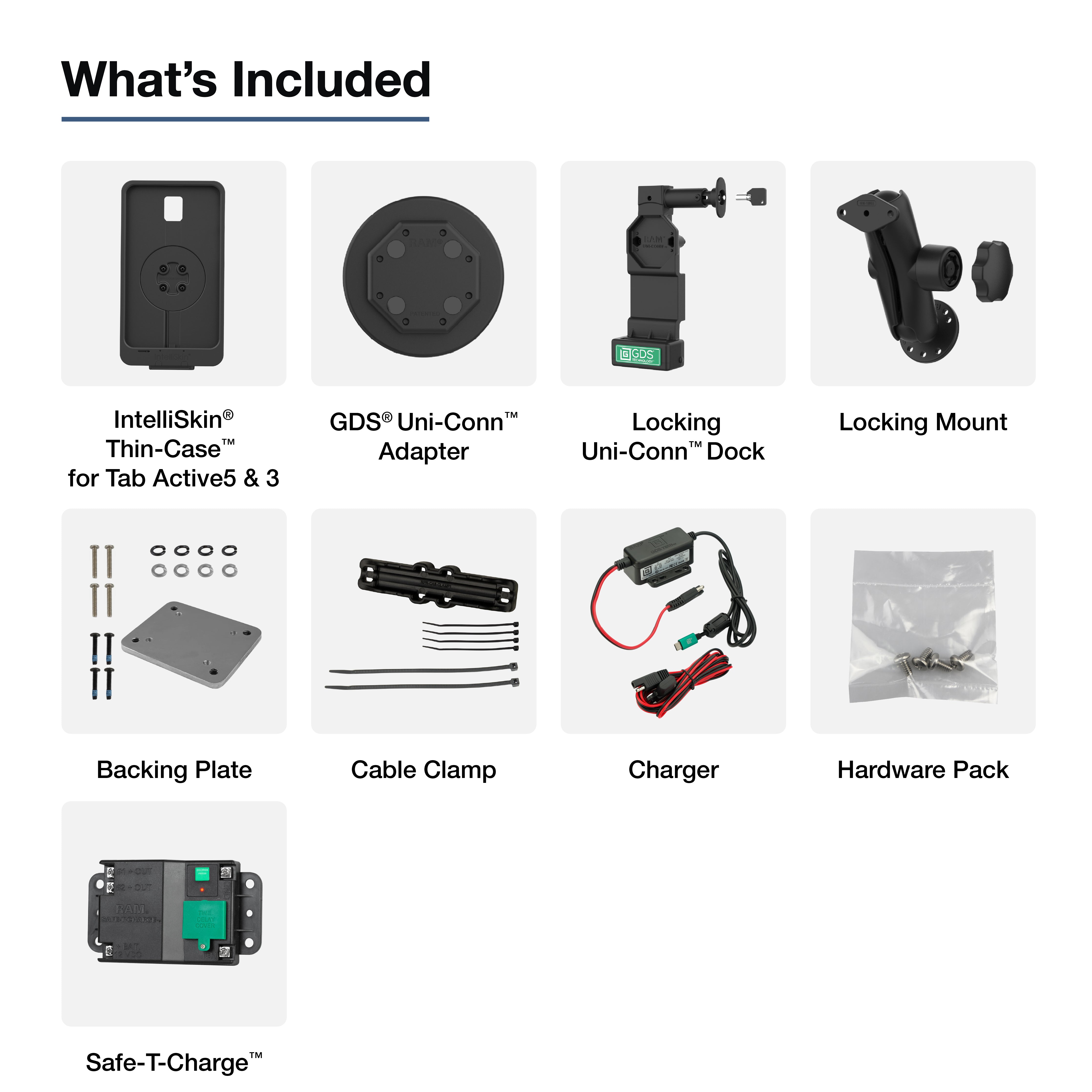

  • Bundle includes the GDS® Uni-Conn™ locking dock with release button, Uni-Conn™ adapter, IntelliSkin® Thin-Case™ for the Tab Active5, 10-30V hardwire charger with USB-C male connector, RAM® Safe-T-Charge™ Battery Protection System, and double ball mount with backing plate and locking knob
  • Dock features GDS® Technology™ for charging capabilities via pogo pin connectors; uses USB-C female cable to connect to power and includes RJ45 connection for peripheral support

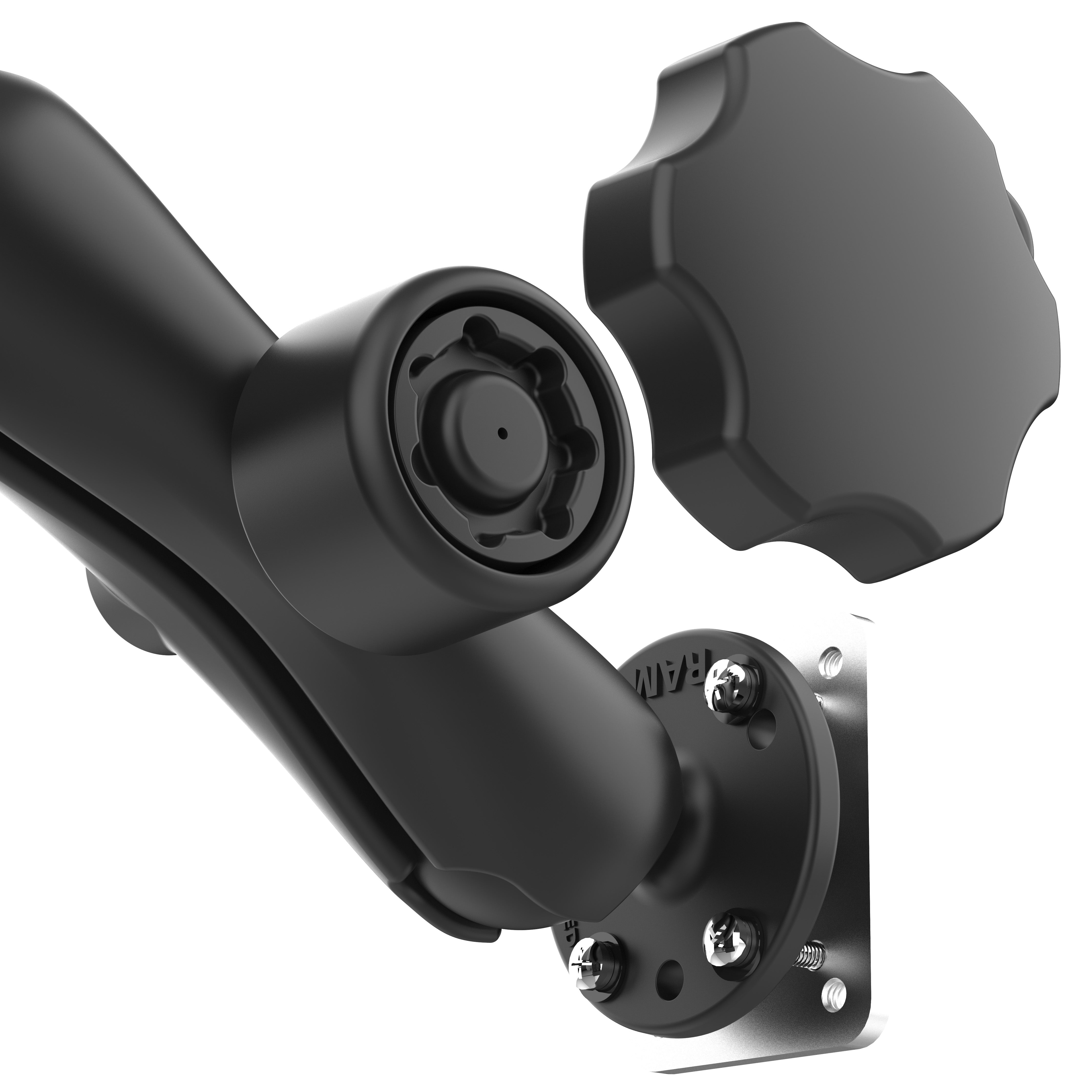

  • Uni-Conn™ dock's key-lock and locking knob on arm provide additional theft deterrence

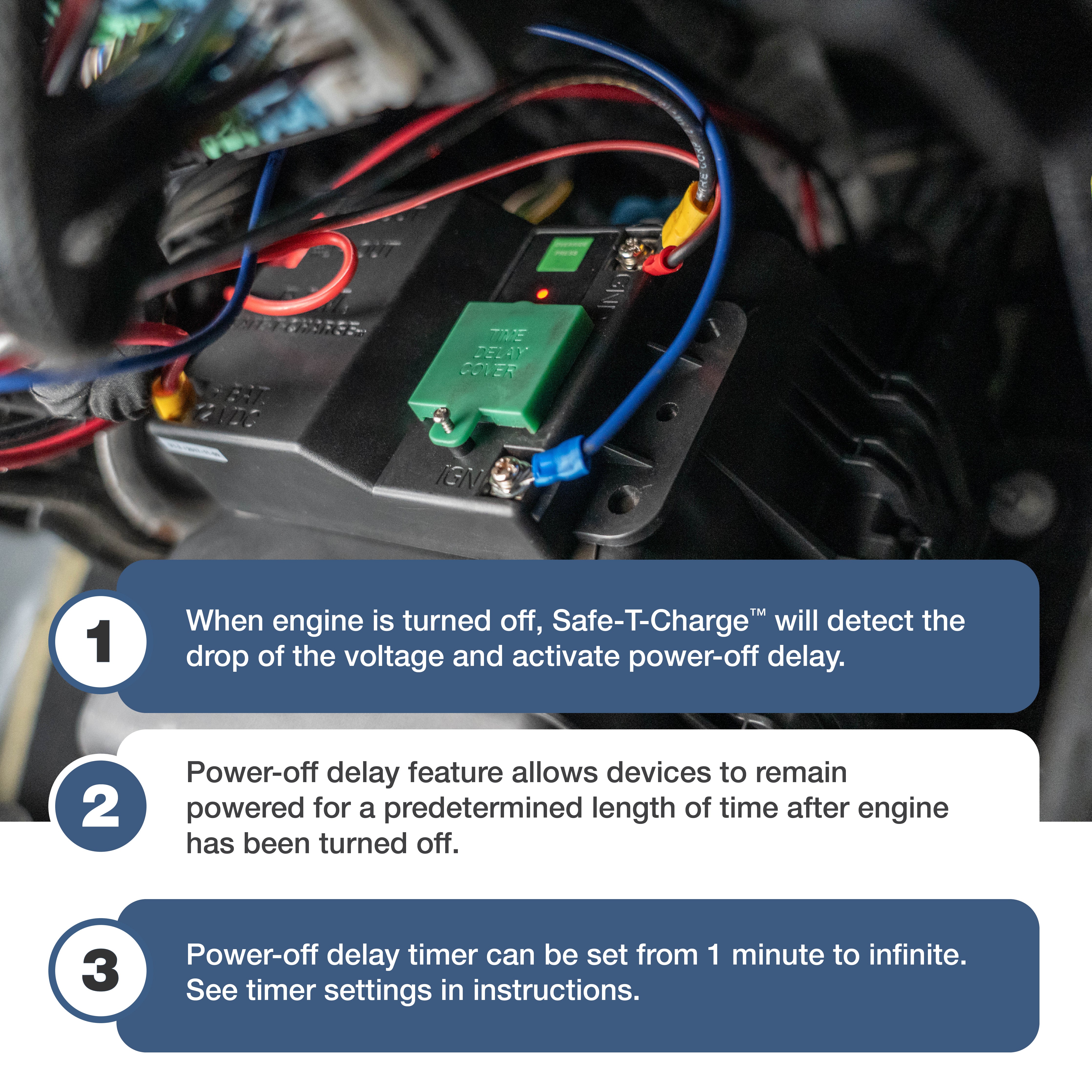

  • Included RAM® Safe-T-Charge™ features automatic battery protection, cutting accessory power based on ignition state or battery voltage to prevent battery depletion
  • Backed by a 3-year warranty

Information

Resources

Compatible Devices

Information

Product Weight
1.61 kg (3.55 lbs)
Hardware Included
Assembly Hardware
Socket To Socket Length
11.84cm (4.66")
Ball Size
C Size ( 3.81cm (1.5") )
Weight Capacity
Standard Use: 1.81 kg (4 lbs) Heavy-Duty Use: 1.36 kg (3 lbs)
Materials
Marine-grade aluminumHigh strength composite
Packaging Type
Poly Bag
Input Voltage
10-30VDC
Output Voltage
5-9VDC*
Output Current
2.5A max
Operating Temperature
-10°C to +70°C
Storage Temperature
-40°C to +70°C
Regulatory
Over Voltage ProtectionShort Circuit ProtectionReverse Polarity ProtectionRoHS ComplianceWEEE ComplianceSAE J-1113-5 Load Dump (Transient Voltage)Moisture ResistantFCC, CE, UKCA, IC
Certifications
E-Mark CertificationRCM CertificationIEC/UL 62368-1

Resources

INSTRUCTIONS

Compatible Devices

Add to Enquiry

Components

RAM Mounts
Copy SKU
RAM-234-VCP1U
RAM® Safe-T-Charge™ Battery Protection System
RAM Mounts
Copy SKU
RAM-GDS-DOCKL-U4CP-RJ45AU
GDS® Uni-Conn™ Locking Dock + USB-A & RJ45 with Release Button
RAM Mounts
Copy SKU
RAP-S-KNOB5U
RAM® Pin-Lock™ Security Knob for C Size Socket Arms
RAM Mounts
Copy SKU
RAM-GDS-CHARGE-V21CU
GDS® Modular 10-30V Power Delivery (25W) Male USB-C Hardwire Charger
RAM Mounts
Copy SKU
RAM-GDS-SKIN-SAM93-TCD
IntelliSkin® Thin-Case™ for Tab Active5 & 3
RAM Mounts
Copy SKU
RAM-GDS-U1U
GDS® Uni-Conn™ Adapter for IntelliSkin®
RAM Mounts
Copy SKU
RAM-138-225B2U
RAM® Dashboard Mount with Backing Plate & Diamond Plate - C Size Medium
