The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

GDS® USB Type-C 3.1 Vehicle Dock Cup for IntelliSkin® Next Gen Tablets

SKU Copied
SKU: RAM-GDS-DOCK-V9BCU
UPC Copied
UPC: 793442009501
05 19 230938ram Gds Dock V9bcu1jpg
05 19 230938ram Gds Dock V9bcu2jpg
05 19 230938ram Gds Dock V9bcu3jpg

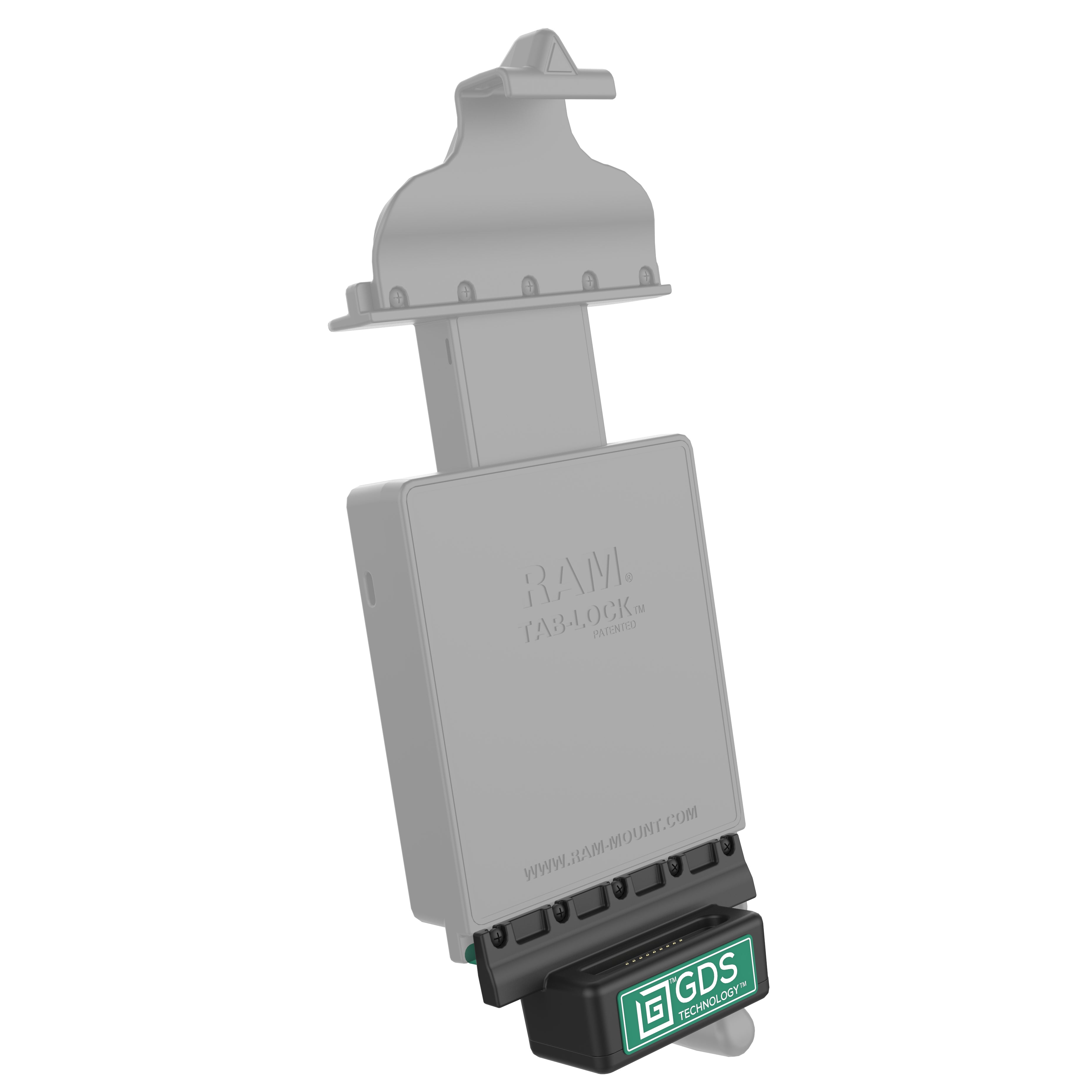

GDS® USB Type-C 3.1 Vehicle Dock Cup for IntelliSkin® Next Gen Tablets
Copy SKU
SKU: RAM-GDS-DOCK-V9BCU
Copy UPC
| UPC: 793442009501

Overview
This GDS® vehicle dock bottom cup is designed specifically to support IntelliSkin® Next Generation-enabled devices, and features 18 pogo pins and a USB Type-C pigtail. When paired with the proper top cup, it can be used to upgrade your existing GDS® vehicle dock. Always Protected. Always Connected.®

Features
  • Upgrade your existing GDS® vehicle dock to enable data and charging capabilities for devices using IntelliSkin® Next Generation sleeves
  • Supports USB Type-C tablets
  • Part of the GDS® Ecosystem to keep devices protected, connected, and charged in nearly any application
  • Backed by a 3-year warranty

Information

Resources

Information

Materials

High strength composite

Packaging Type

Poly Bag

Output Voltage

5V - 20V @ 3A

Power Output

60W

Input Connector

USB Type-C

Transfer Speed

5Gbps

Warranty

3 year warranty

Weight

0.11 kg (0.24 lbs)
