The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® 11mm Bolt Head Adapter Ball Base

SKU Copied
SKU: RAM-B-252U
UPC Copied
UPC: 793442102523
01 29 230219ram B 252u1jpg
01 29 230219ram B 252u2jpg

RAM® 11mm Bolt Head Adapter Ball Base
Copy SKU
SKU: RAM-B-252U
Copy UPC
| UPC: 793442102523

B SIZE
Size Guide
Overview

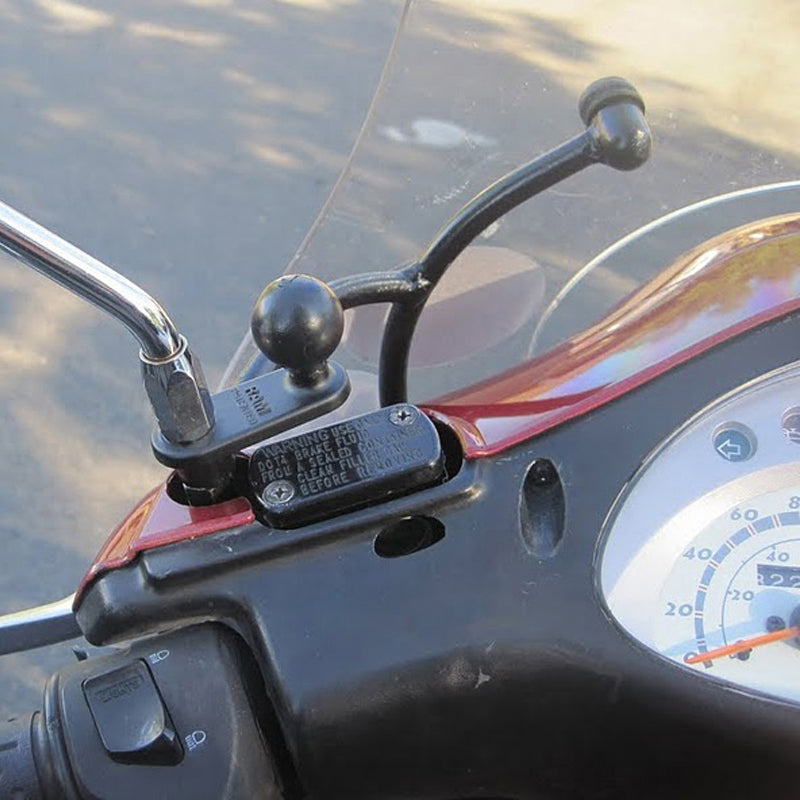

The RAM-B-252U marine-grade aluminum ball base consists of a 2.54cm (1") rubber ball and 5.72 cm (2.25") X 2.22 cm (0.875") base with 11mm hole. This part is often used on motorcycles by attaching to the mirror frame. The main brand of bike for the RAM-B-252U is BMW. This part fits well on many handlebar pinchbolts with a washer (base is 5mm thick).

Features
  • Features an 11mm hole designed to attach to the mirror frame of motorcycles
  • Included B size 2.54cm (1") RAM® rubber ball allows for connection to any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
  • Backed by a lifetime warranty

Information

Resources

Information

Ball Size

B Size (1")

Weight Capacity

Standard Use: 0.91 kg (2 lbs)
Heavy-Duty Use: 0.45 kg (1 lbs)

Materials

Marine-grade aluminum

Packaging Type

Poly Bag

Weight

0.04 kg (0.08 lbs)
