World-Class Mounting Systems

Size Guide

Ball Sizes
Arm Sizes
X
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Adhesive Rail Mount for Tough-Bar™ - Medium Arm

SKU Copied
SKU: RAP-B-378-231U
UPC Copied
UPC: 793442035814

RAM® Adhesive Rail Mount for Tough-Bar™ - Medium Arm
Copy SKU
SKU: RAP-B-378-231U
Copy UPC
| UPC: 793442035814

B SIZE
MEDIUM ARM
Size Guide

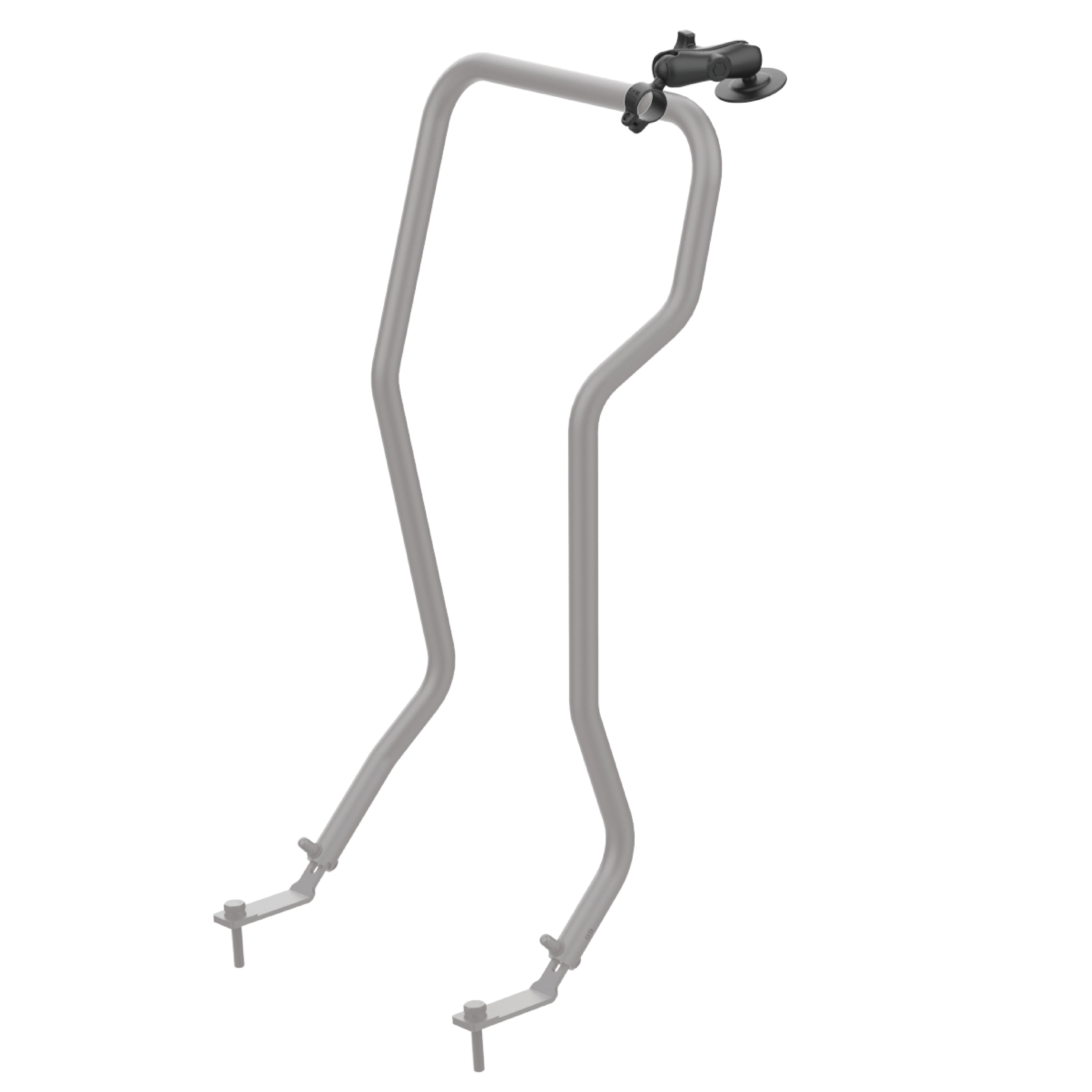

The RAM Adhesive Rail Mount for Tough-Bar - Medium Arm (RAP-B-378-231U) is a no-drill, non-permanent mounting attachment designed to secure the RAM Tough-Bar to a vehicle dashboard. This kit contains one RAM Composite Ball Base for 2.54cm (1") Rails, one B-size medium-length composite socket arm, and one RAM Flex Adhesive Ball Base. The flexible adhesive base conforms to slight curves and uneven surfaces for a secure fit, while the double ball and socket design provides near-infinite adjustability for optimal placement of the Tough-Bar. Ideal for temporary installations or vehicles where drilling is not an option, this mounting solution delivers a clean and versatile way to add a Tough-Bar to your setup. For specific vehicle compatibility, please refer to the specific Tough-Bar product listing for your vehicle.

Features
  • Securely mounts the RAM® Tough-Bar™ to a vehicle dashboard without drilling or permanent modification
  • Flex adhesive ball base provides a strong mounting surface in a wide variety of use cases, such as a vehicle dash
  • B-size double ball and socket system allows for near-infinite positioning and easy adjustments
  • Includes a RAM® Composite Ball Base specifically engineered to attach to RAM® Tough-Bar™ rails
  • Backed by a lifetime warranty

Information

Information

Product Weight
0.15 kg (0.32 lbs)
Hardware Included
(2) 6.35cm (2.5") Double Adhesive Pad(2) Alcohol Prep Pad
Clamp Range
2.54cm (1") diameter
Socket To Socket Length
7.62cm (3")
Ball Size
B Size (1")
Weight Capacity
Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)
Materials
High strength composite
Packaging Type
Poly Bag
Add to Enquiry

Components

RAM Mounts
Copy SKU
RAP-B-378U
RAM® Flex Adhesive Ball Base
RAM Mounts
Copy SKU
RAP-B-231U
RAM® Composite Ball Base for 1" Rails
RAM Mounts
Copy SKU
RAP-B-201U
RAM® Composite Double Socket Arm - B Size Medium
