The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Ball Base for Crown Work Assist® - C Size

SKU Copied
SKU: RAM-202U-CRO1
UPC Copied
UPC: 793442943553
01 28 232257ram 202u Cro11jpg
01 28 232257ram 202u Cro12jpg

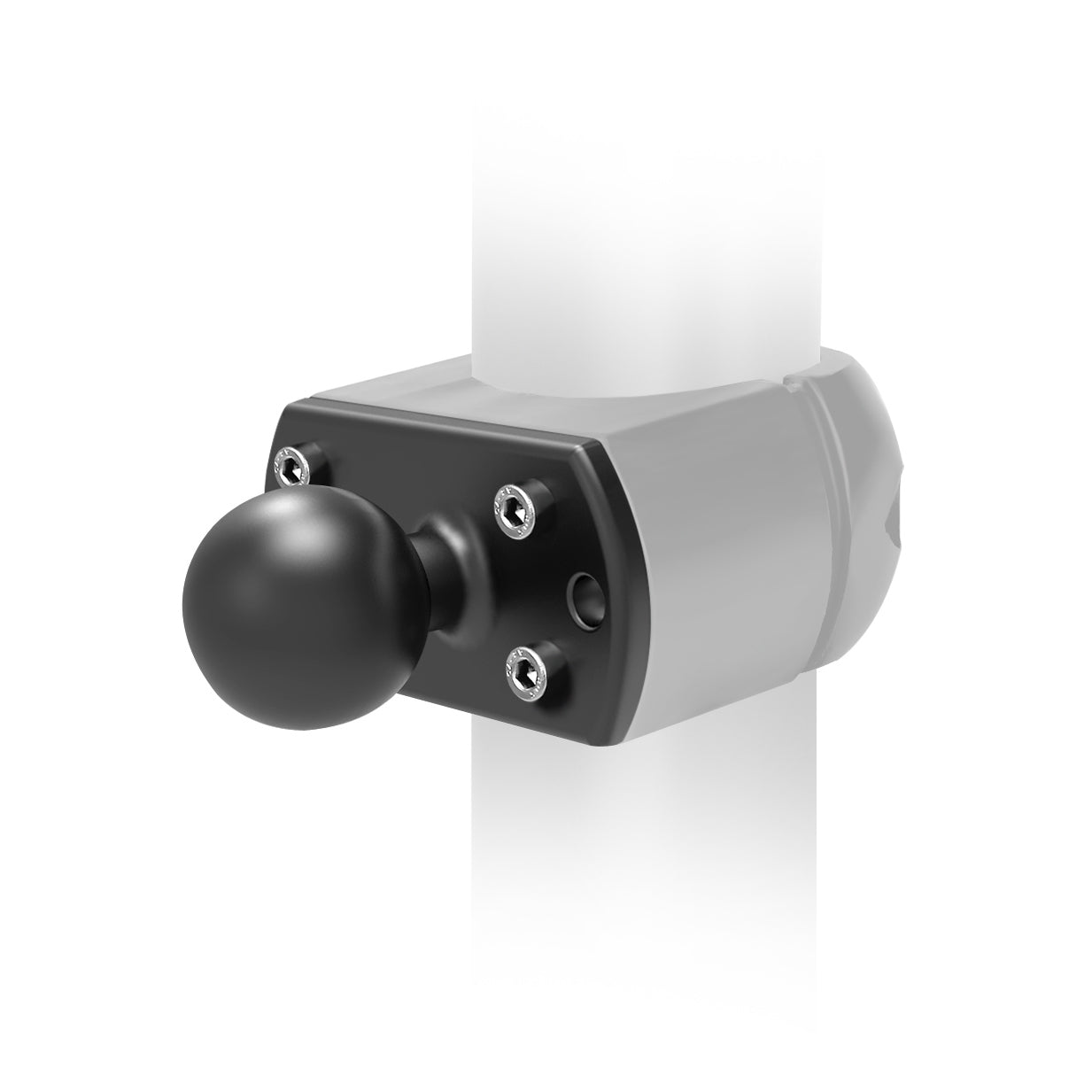

RAM® Ball Base for Crown Work Assist® - C Size
Copy SKU
SKU: RAM-202U-CRO1
Copy UPC
| UPC: 793442943553

Overview
The Crown ball base contain mounting holes aligned to work with Crown Work Assist® clamp accessories. The addition of the RAM mounting system allows you to position your accessories for the best access and prevent damage due to shock and vibration.

Information

Resources

Information

Hole Pattern

See Drawing

Ball Size

C Size ( 3.81cm (1.5") )

Weight Capacity

Standard Use: 1.81 kg (4 lbs)
Heavy-Duty Use: 1.36 kg (3 lbs)

Materials

Marine-grade aluminum

Packaging Type

Poly Bag

Weight

0.12 kg (0.27 lbs)

Additional Information
Crown Work Assist® Clamp not included with purchase.
