The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Finger-Grip™ Universal Mount with Medium Torque™ Base

SKU Copied
SKU: RAM-B-408-75-1-UN4U
UPC Copied
UPC: 793442034251

RAM® Finger-Grip™ Universal Mount with Medium Torque™ Base
Copy SKU
SKU: RAM-B-408-75-1-UN4U
Copy UPC
| UPC: 793442034251

B SIZE
MEDIUM ARM
Size Guide

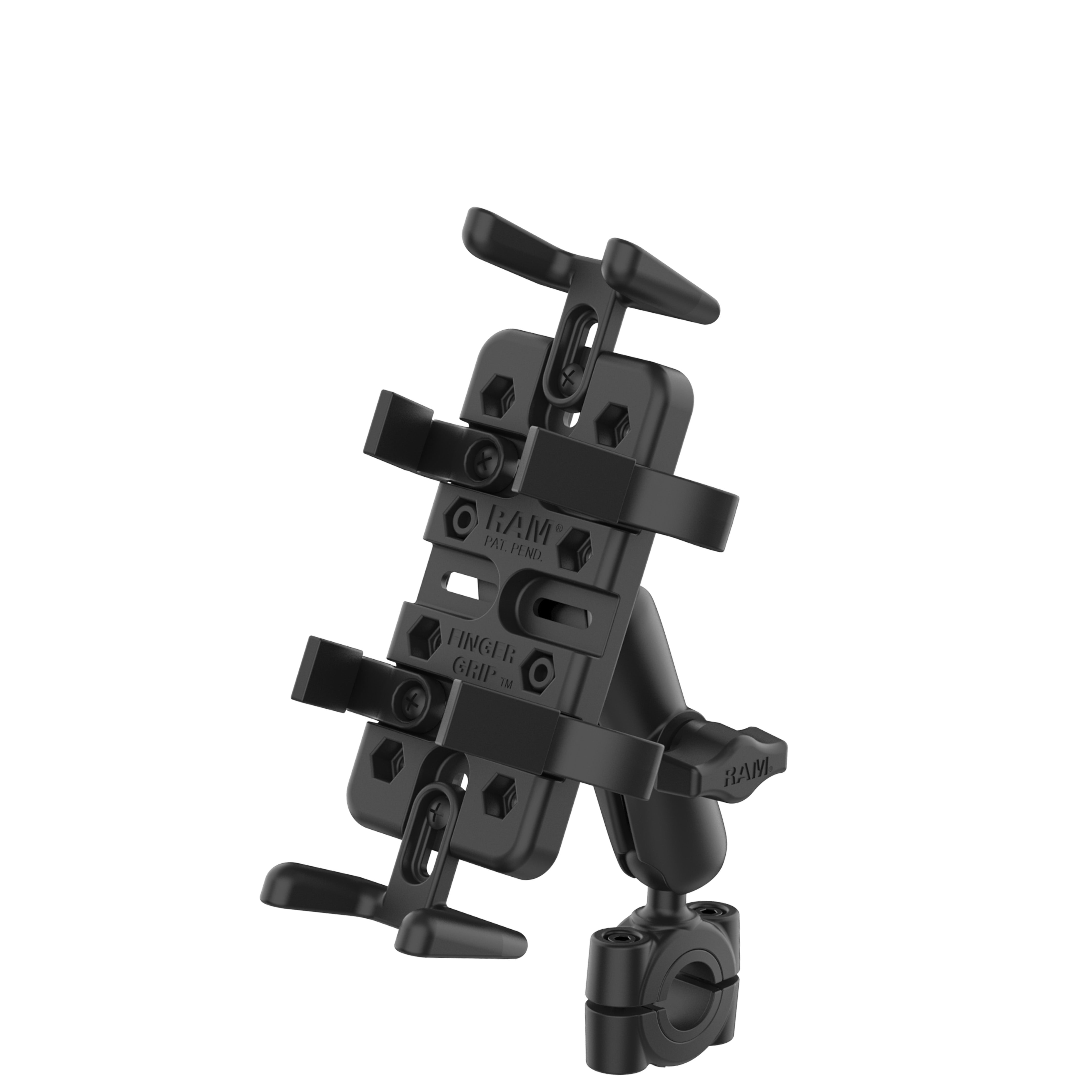

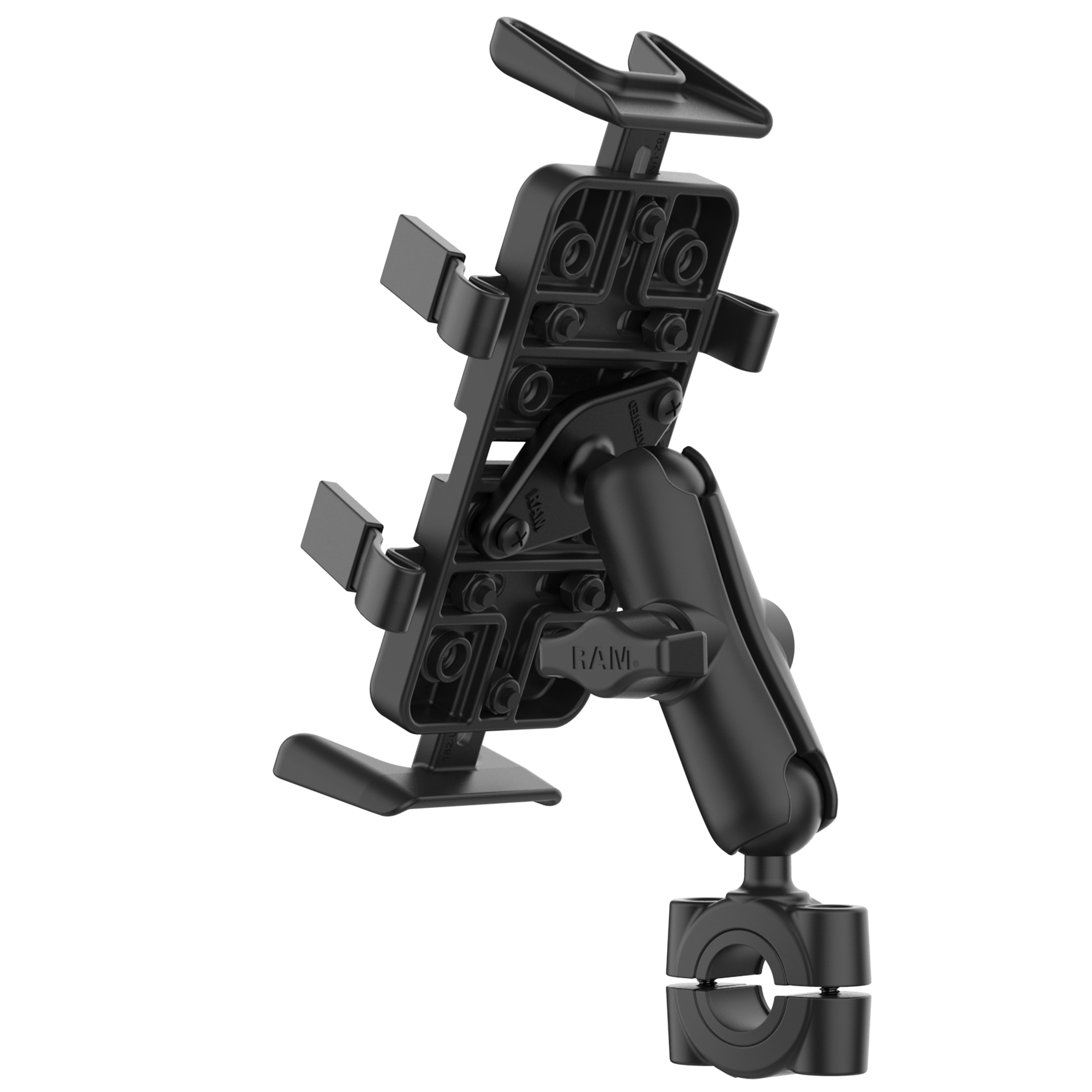

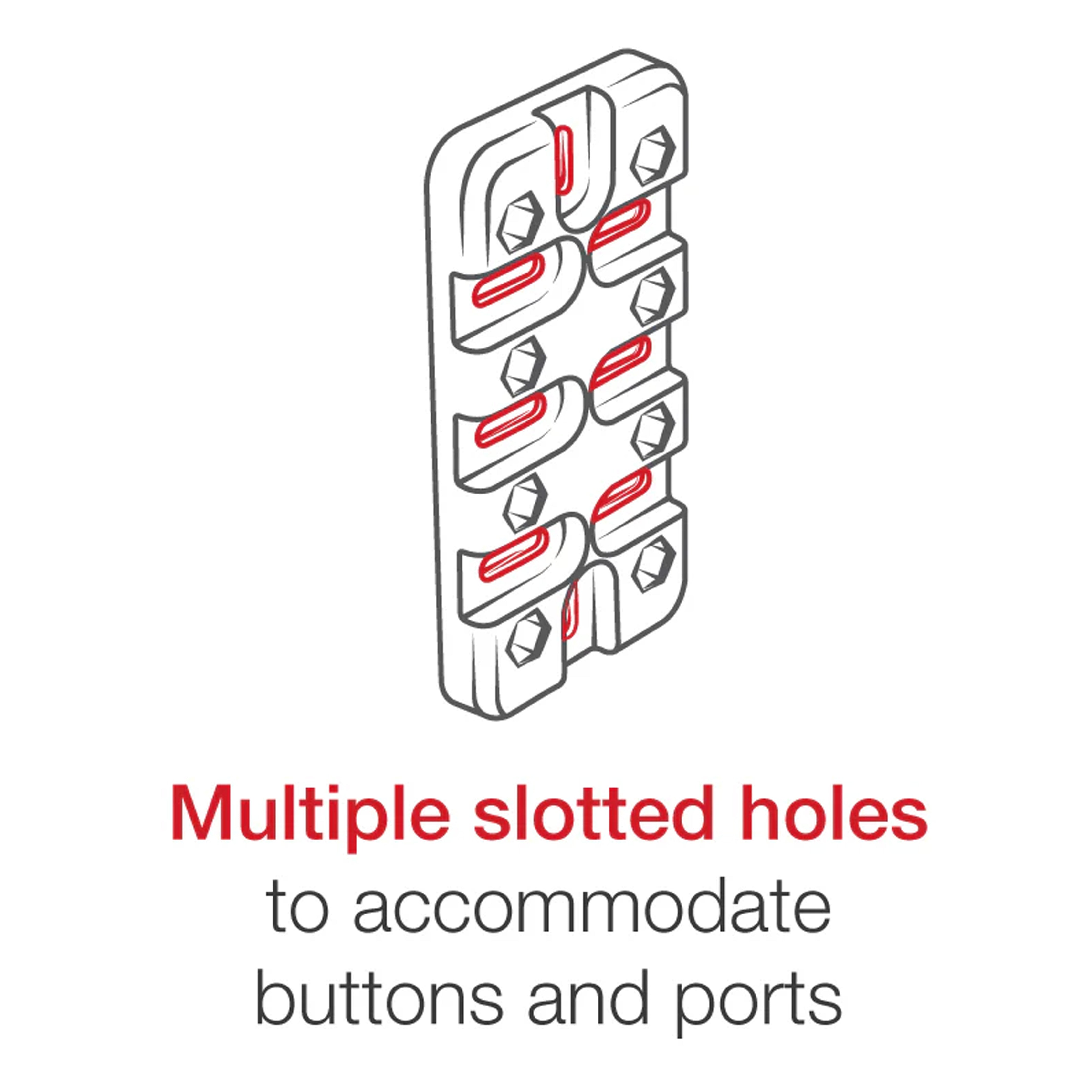

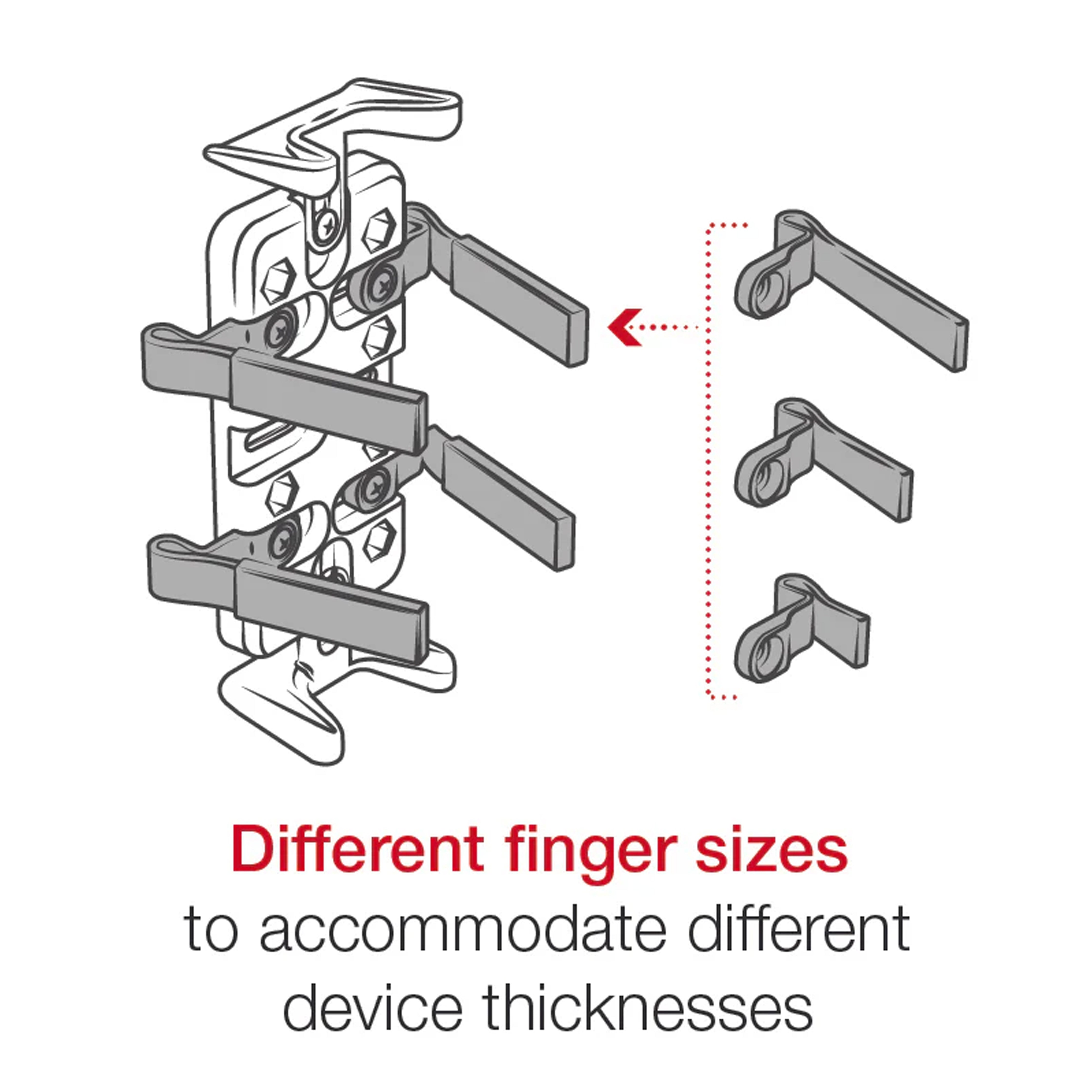

The RAM Finger-Grip Universal Mount with Medium Torque Base (RAM-B-408-75-1-UN4U) is a versatile, rail-mounted kit designed to securely hold a wide range of handheld devices. The Finger-Grip device holder features three sets of four flexible, rubber-coated finger arms in different lengths, allowing you to customize the grip to your devices exact size. These fingers mount to a backing plate with multiple slotted holes, enabling precise positioning for a firm, secure hold. Once configured, your device can be easily inserted and removed while remaining stable, even in rough conditions. Optional top and bottom supports are included for added security when needed. Paired with the Torque base, this kit is compatible with rails 3/4 to 1 in diameter. Sizing inserts are included to provide a tight fit while also protecting the mounting surface. The RAM Torque mounting base also includes nylon-insert lock nuts to prevent loosening in high vibration environments. The RAM double socket arm and ball-and-socket system provide nearly infinite adjustability, allowing you to achieve the perfect viewing angle every time. It is important to verify the dimensions of your handheld device with its case, sleeve, or skin when determining the overall size.

Features

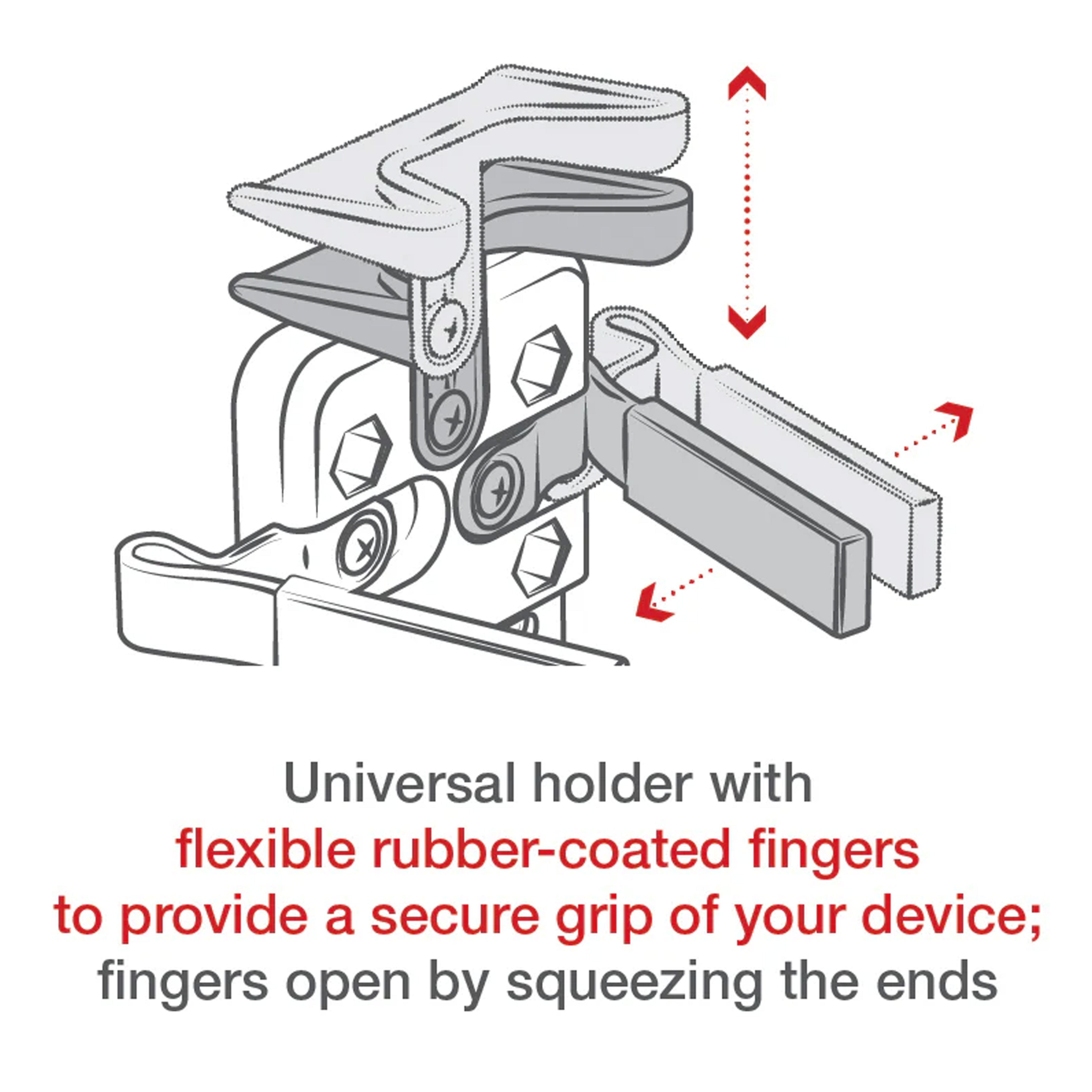

  • Universal holder with flexible rubber-coated fingers to provide a secure grip of your device; fingers open by squeezing the ends
  • Includes medium Torque™ base that accommodates rails 3/10.16cm (4") to 2.54cm (1") in diameter and a medium length B size RAM® double socket arm
  • Double ball and socket technology allows for near-infinite adjustability of your RAM® mounting system
  • Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Information

Resources

Compatible Devices

Information

Product Weight
0.52 kg (1.14 lbs)

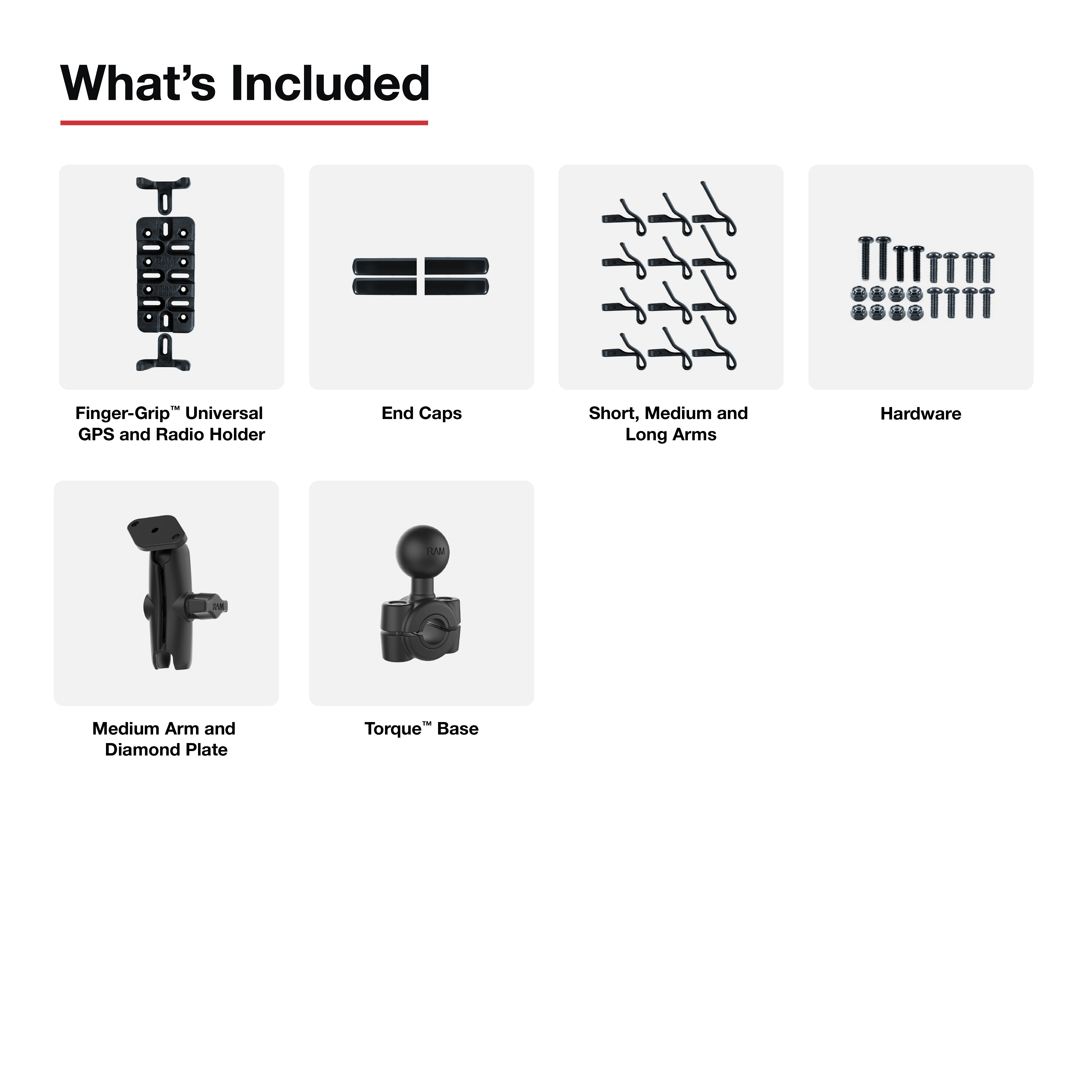

Hardware Included
Assembly Hardware(2) #10-24 x 2.54cm (1") Socket Head Cap Screws(2) #10-24 Nylock Nuts(2) 1.91cm (0.75") Composite Bushings(2) 2.29cm (0.9") Composite Bushings(1) 88.9mm Rubber Strip(1) 12.70 cm (5")/81.28 cm (32") Hex Key Wrench
Holder Dimensions
Height Range: 18.42cm (7.25") max (using optional supports)Width Range: 3.18cm (1.25") - 8.89cm (3.5") Max Depth: 3.81cm (1.5")
Clamp Range
1.91cm (0.75") - 2.54cm (1") diameter
Socket To Socket Length
7.62cm (3")
Ball Size
B Size (1")
Weight Capacity
Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)
Materials
Marine-grade aluminumHigh strength compositeStainless steel
Packaging Type
Poly Bag

Resources

INSTRUCTIONS

Compatible Devices

Add to Enquiry

Components

RAM Mounts
Copy SKU
RAM-B-103-238U
RAM® Double Socket Arm with Diamond Plate - B Size Medium
RAM Mounts
Copy SKU
RAM-B-408-75-1U
RAM® Torque™ Medium Rail Base - B Size
RAM Mounts
Copy SKU
RAM-HOL-UN4U
RAM® Finger-Grip™ Universal GPS and Radio Holder


Complete Your Solution

Accessories

RAM Mounts
Copy SKU
RAM-B-230U
RAM® Double Ball Adapter - B Size
RAM Mounts
Copy SKU
RAM-B-273U
RAM® Add-A-Ball™ Accessory Ball for B Size Socket Arms
RAM Mounts
Copy SKU
RAP-462NPT
RAM® Vibe-Safe™ with NPT Adapter for 2-Hole Holders
RAM Mounts
Copy SKU
RAP-B-351-4RU
RAM® Rotating Ball Adapter for Phone and Handheld Holders - B Size
