Size Guide

Ball Sizes

Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

B Size

Holds 2 lbs / 0.91 KG

1" Ball

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs / 1.81 KG

1.5" Ball

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs / 2.72 KG

2.25" Ball

Monitors, Large Fishfinders

E Size

Holds 15 lbs / 6.8 KG

3.38" Ball

Heavy Monitors

Ball Sizes		Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42" / 6.1468cm	3.73" / 9.47cm	6.00" / 15.24cm
B Size	Socket-to-Socket Length	1.75" / 4.45cm	3.00" / 7.62cm	5.31" / 13.49cm
C Size	Overall Length	3.56" / 9.04cm	5.69" / 14.45cm	9.13" / 23.19cm
C Size	Socket-to-Socket Length	2.50" / 6.35cm	4.66" / 11.84cm	8.00" / 20.32cm
D Size	Overall Length	5.10" / 12.95cm	8.44" / 21.44	12.98" / 32.97
D Size	Socket-to-Socket Length	3.60" / 9.14cm	6.88" / 17.48cm	11.41" / 28.98cm
E Size	Overall Length	7.31" / 18.57cm	12.63" / 32.08cm	N/A
E Size	Socket-to-Socket Length	4.98" / 12.65cm	9.88" / 25.10cm	N/A

 / Overview /

RAM® Heavy Duty C-Clamp Base with Swivel Ratchet Arm & Ball - C Size

SKU Copied

SKU: RAM-CC1-411D-114-PA-BGU

UPC Copied

UPC: 793442036132







RAM® Heavy Duty C-Clamp Base with Swivel Ratchet Arm & Ball - C Size

Copy SKU
RAM-CC1-411D-114-PA-BGU SKU: RAM-CC1-411D-114-PA-BGU

Copy UPC
793442036132 | UPC: 793442036132

C SIZE

Size Guide

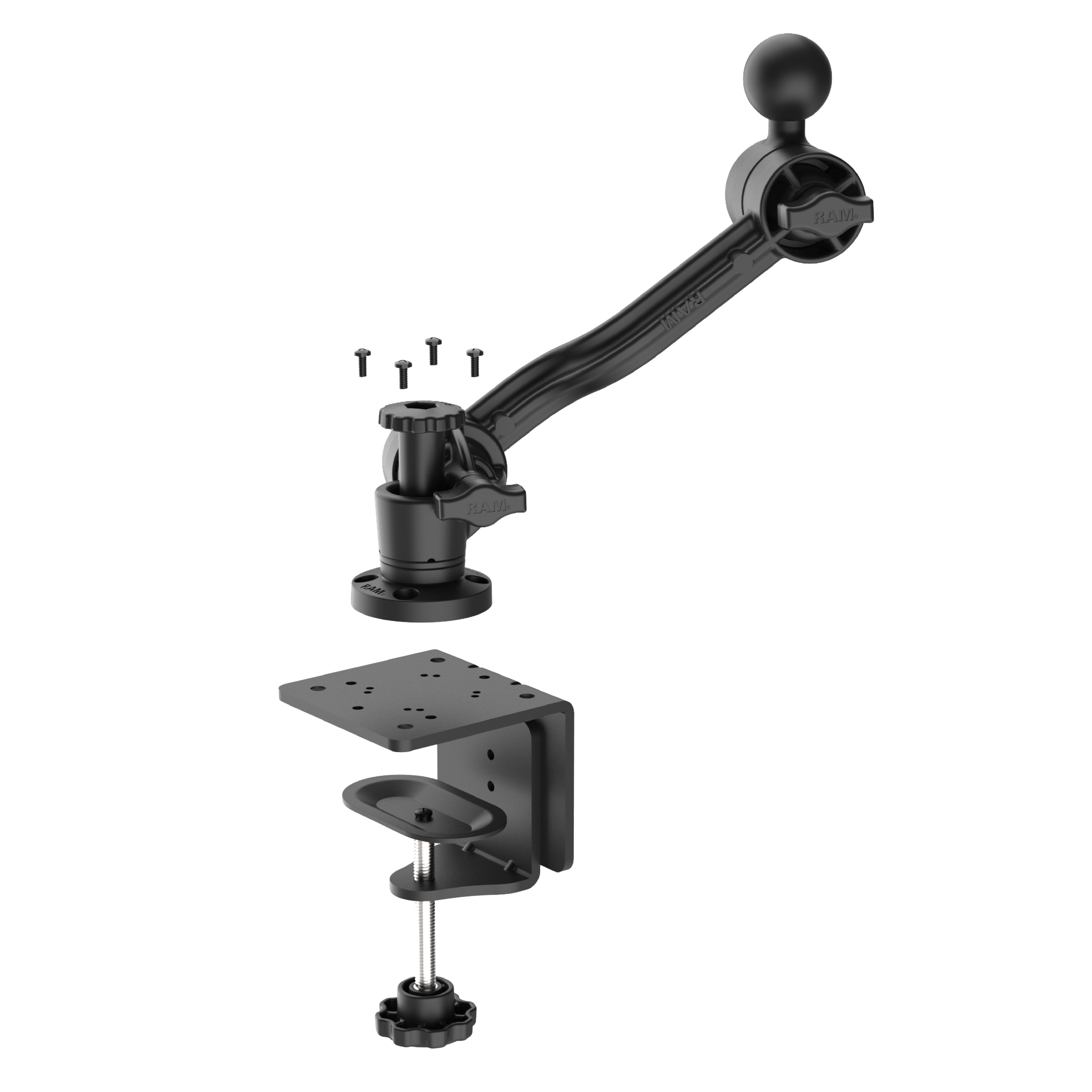

The RAM Heavy Duty C-Clamp Base with Swivel Ratchet Arm & Ball - C Size (RAM-CC1-411D-114-PA-BGU) is a rugged, highly adjustable mounting solution designed for flexible, non-permanent device installation across a wide variety of workspaces. Ideal for desks, tables, carts, and mobile workstations, the heavy-duty clamp securely attaches to surfaces ranging from 0.00cm (0") to 10.16cm (4") thick with no minimum edge depth required. The included Swivel Ratchet Arm provides both height adjustment and rotational positioning, with knobs on either end to secure the arm at the desired height. Loosening the lower knob enables smooth swivel movement for additional positioning flexibility. Topped with a C size RAM ball, this mount integrates seamlessly with existing RAM components and leverages the RAM ball and socket system for secure, customizable device placement.

Features

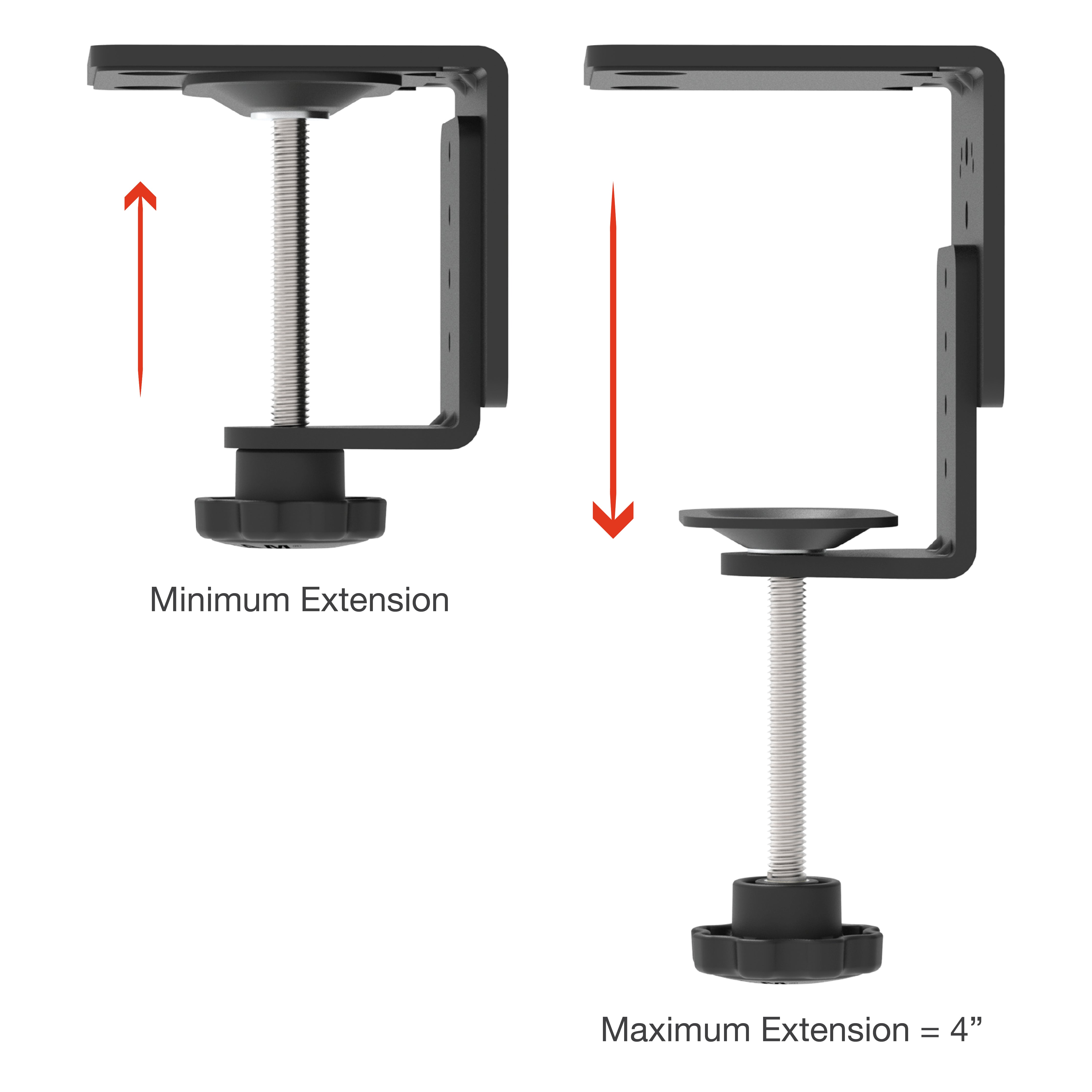

Clamp secures to surfaces 0–10.16cm (4") thick

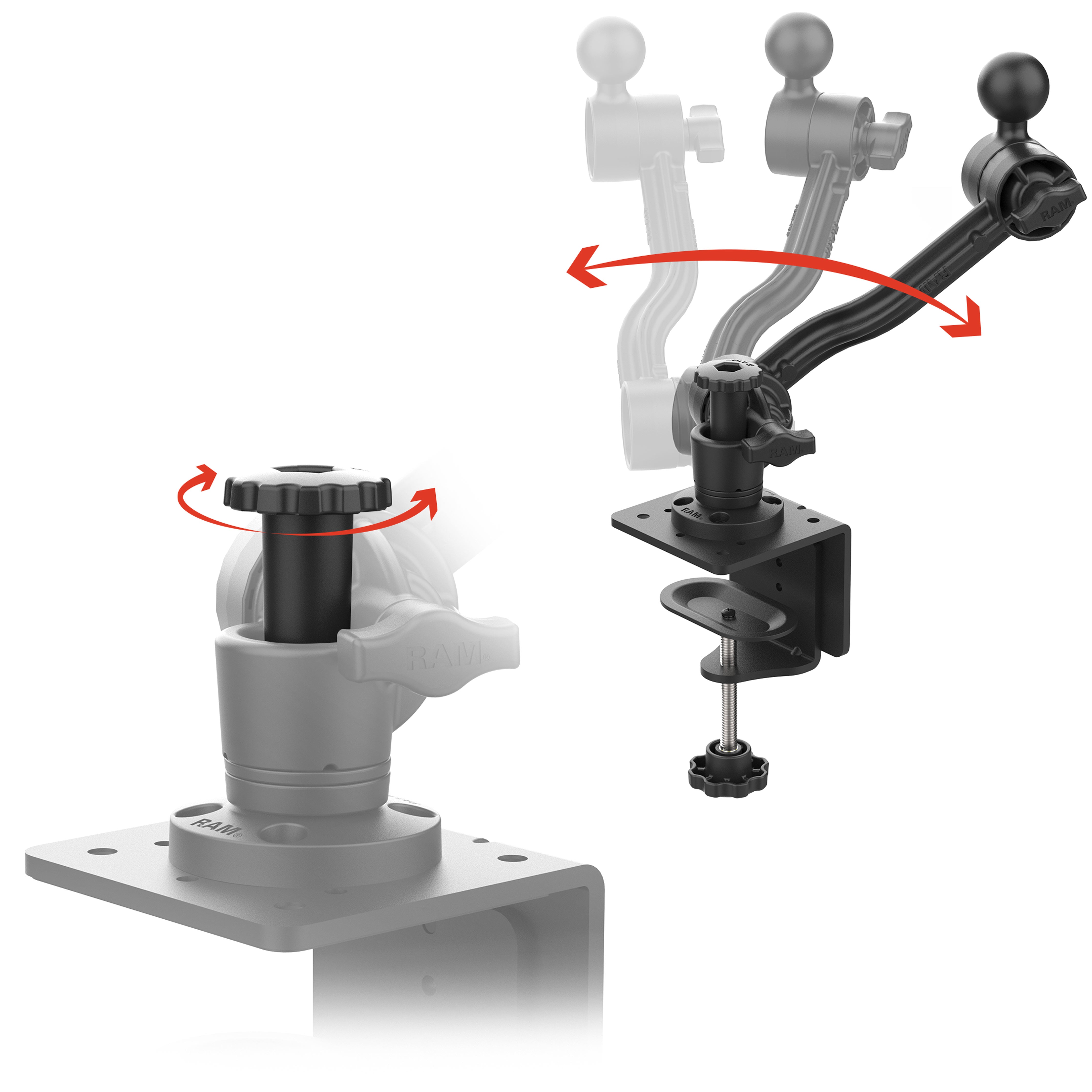

Swivel Ratchet Arm provides adjustable height positioning, as well as an integrated swivel functionality
Features a C size RAM® ball for compatibility with a wide range of RAM® socket arms, device holders, and mounting accessories
Non-permanent mounting solution delivers a stable, professional-grade installation without drilling
Backed by a lifetime warranty
