The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Quick-Grip™ Pro Phone Mount with Small Tough-Claw™ Base - Medium

SKU Copied
SKU: RAM-B-400-PD5U
UPC Copied
UPC: 793442034145
How To Assemble A Ram Quick Grip Pro

RAM® Quick-Grip™ Pro Phone Mount with Small Tough-Claw™ Base - Medium
Copy SKU
SKU: RAM-B-400-PD5U
Copy UPC
| UPC: 793442034145

B SIZE
MEDIUM ARM
Size Guide

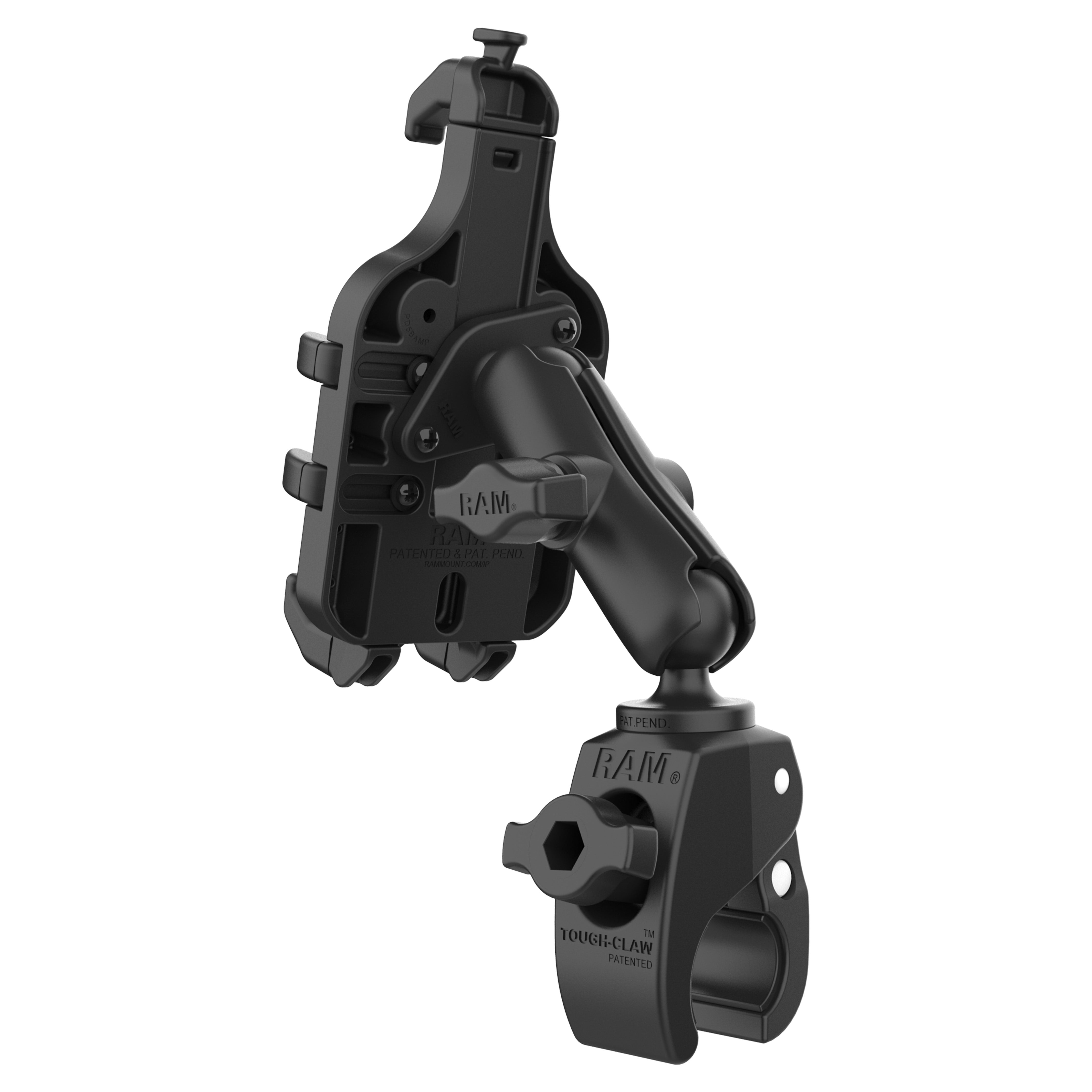

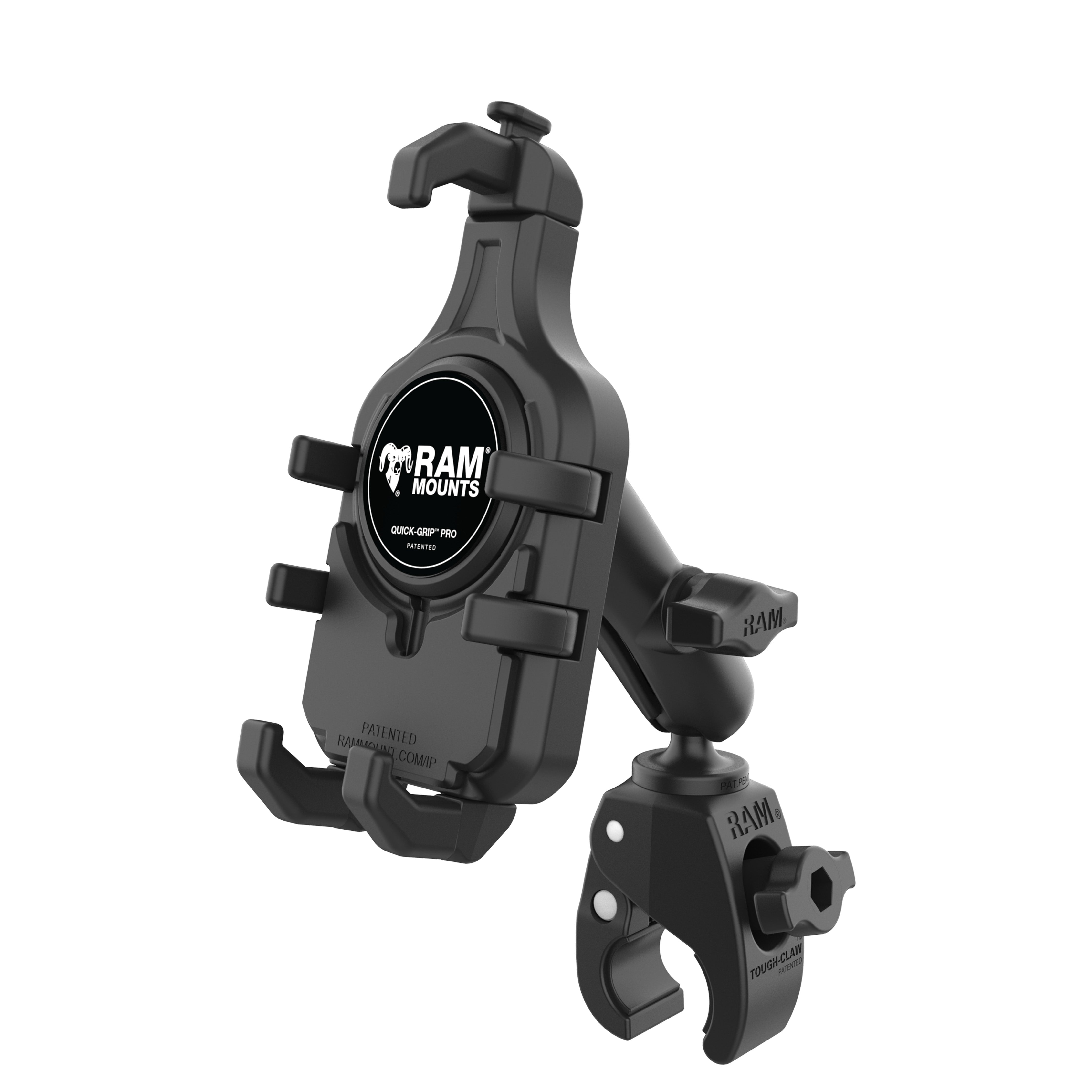

The RAM Quick-Grip Pro Phone Mount with Small Tough-Claw Base - Medium (RAM-B-400-PD5U) is a kit that secures quickly to rails and features the next evolution in the RAM Quick-Grip phone holder series. The phone holder is re-designed with a new, sleek look and integrated rubber side arms to provide a secure, no-slip hold on your phone. It features an integrated cavity compatible with the RAM Qi2 Wireless Charger or the Apple MagSafe puck, allowing you to turn the phone holder into a wireless charging solution. Not interested in charging? No problem! The included anti-slip cover ensures a flush fit when nothing is installed. The RAM Quick-Grip Pro features a spring-loaded design that allows easy one-handed insertion and removal of your phone. The adjustable side arms ensure that your phone will remain secured in the holder without blocking any ports or buttons. The RAM Tough-Claw is the perfect mounting base for toolless installation and removal on round, square, and odd-shaped rails and bars, ranging from 1.59cm (00.625") to 2.90cm (1.14") in outer diameter. The RAM ball and socket system allows for articulation at both ends of the double socket arm creating almost infinite adjustment and perfect viewing angles. RAM recommends installing the provided device tether when this holder is used in a vehicle with an open cockpit. It is important to verify the dimensions of your handheld device with its case, sleeve, or skin when determining the overall size.

Features

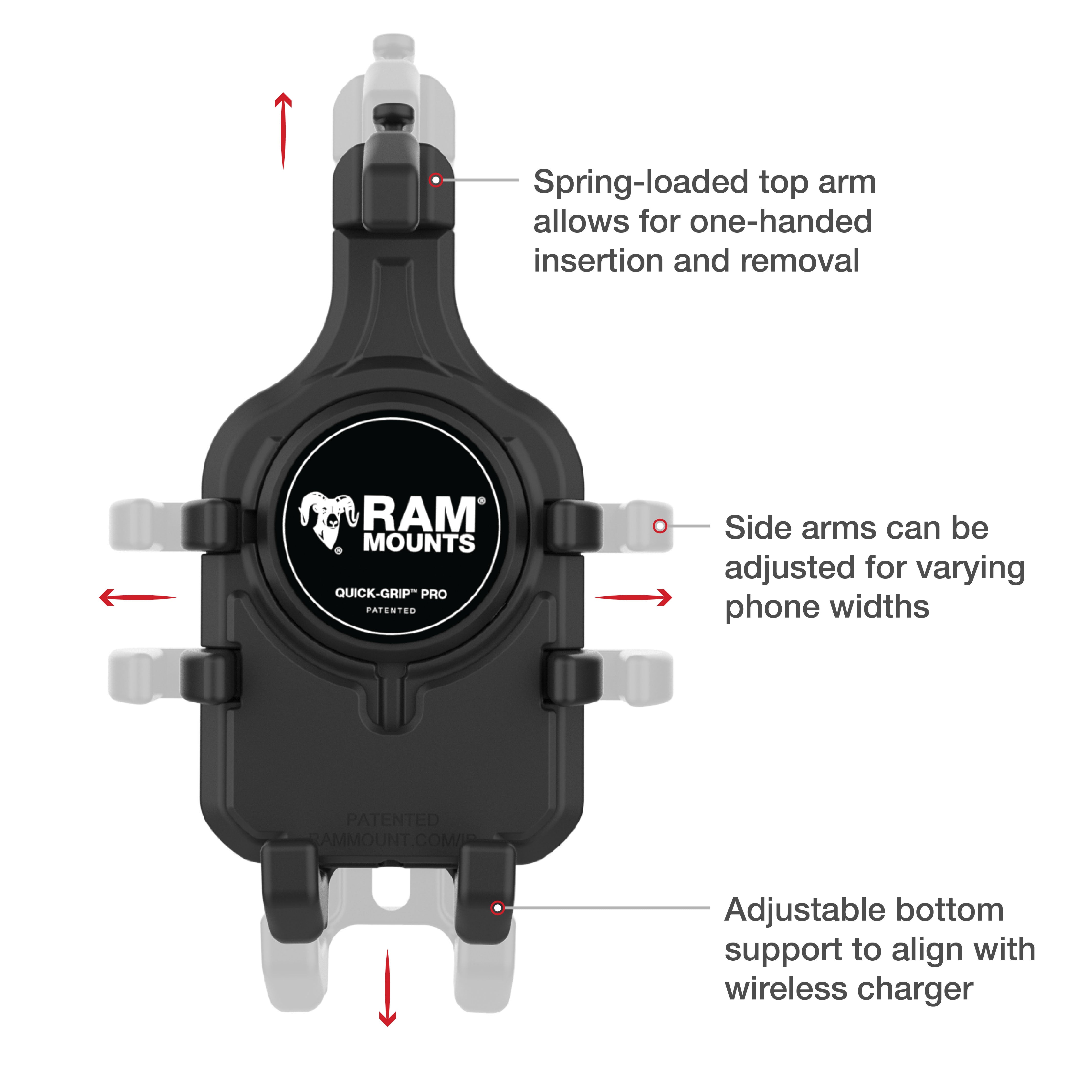

  • Spring-loaded holder features adjustable side supports overmolded with a soft rubber that provide a secure hold for a variety of phones; easily insert and remove your phone with one hand
  • Small Tough-Claw™ base accommodates round, square, and odd-shaped rails and bars from 1.59cm (00.625") to 2.90cm (1.14") in outer diameter; rubber pads provide stable gripping and protection of mounting surface

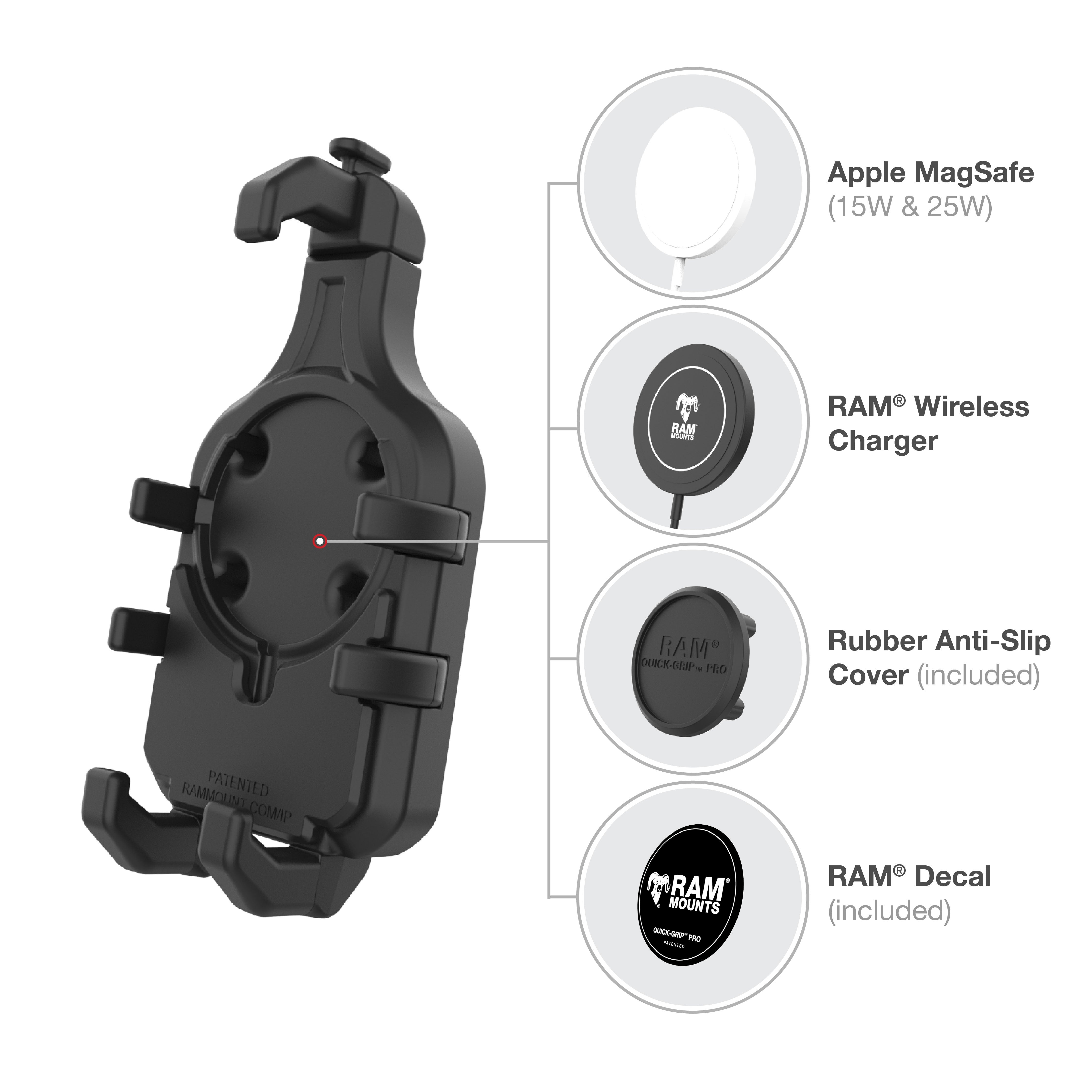

  • Center cavity compatible with RAM® Qi2 Wireless Charger and Apple MagSafe puck; non-slip cover and puck adhesive included
  • Comes with optional device tether for open cockpit environments
  • Backed by a lifetime warranty

Information

Resources

Compatible Devices

Information

Product Weight
0.56 kg (1.23 lbs)

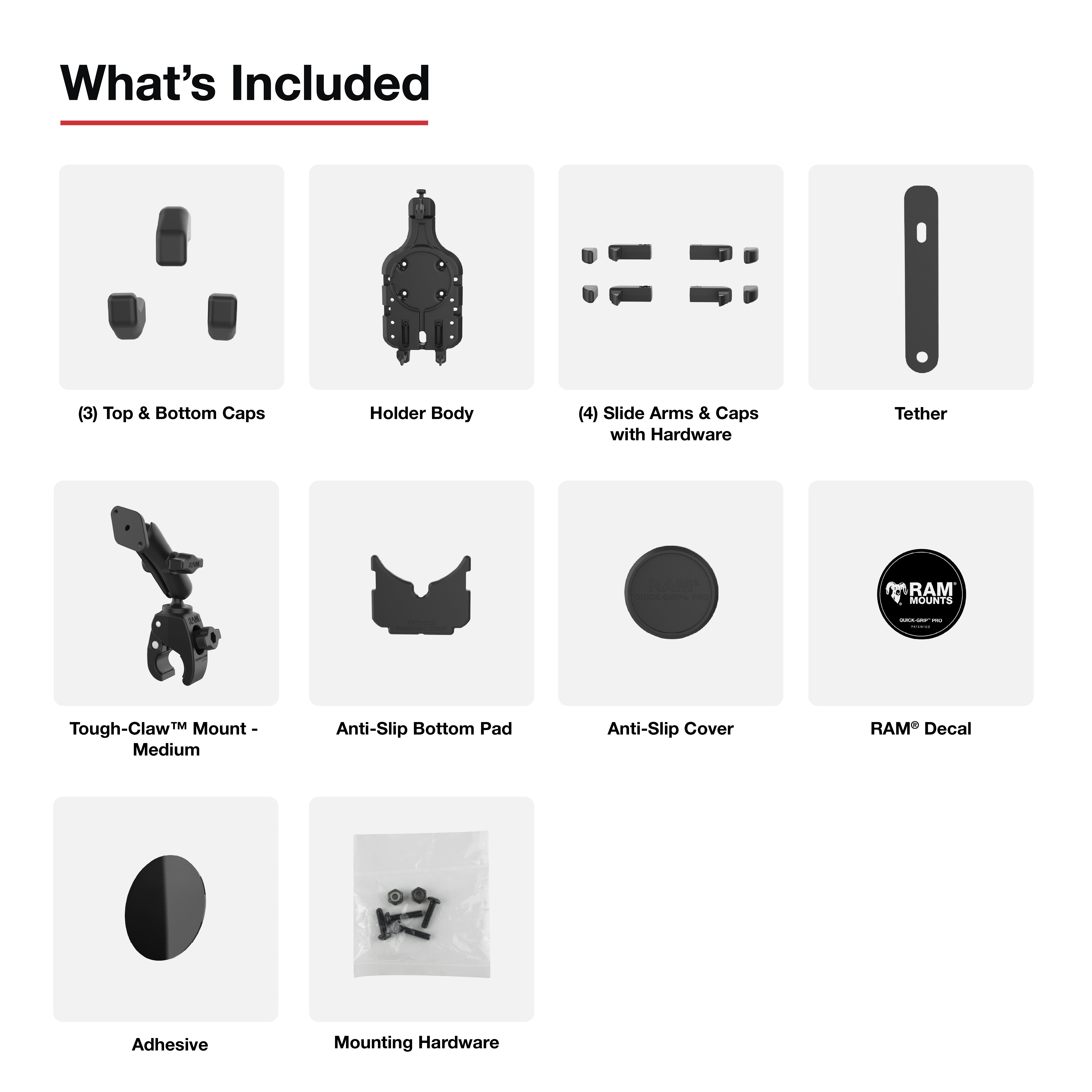

Hardware Included
Assembly Hardware
Holder Dimensions
Height Range: 13.97cm (5.5") - 19.69cm (7.75") Width Range: 6.67cm (2.625") - 9.53cm (3.75") Max Depth: 1.70cm (0.67")
Clamp Range
1.59cm (0.625") - 2.90cm (1.14") diameter
Socket To Socket Length
7.62cm (3")
Ball Size
B Size (1")
Weight Capacity
Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)
Materials
Marine-grade aluminumHigh strength composite
Packaging Type
Poly Bag

Resources

INSTRUCTIONS

Compatible Devices

Add to Enquiry

Components

RAM Mounts
Copy SKU
RAM-B-201U
RAM® Double Socket Arm - B Size Medium
RAM Mounts
Copy SKU
RAP-B-400U
RAM® Tough-Claw™ Small Clamp Base with Ball
RAM Mounts
Copy SKU
RAM-HOL-PD5BU
RAM® Quick-Grip™ Pro Phone Holder with Ball


Complete Your Solution

Accessories

RAM Mounts
Copy SKU
RAM-B-230U
RAM® Double Ball Adapter - B Size
RAM Mounts
Copy SKU
RAM-B-273U
RAM® Add-A-Ball™ Accessory Ball for B Size Socket Arms
RAM Mounts
Copy SKU
RAP-462NPT
RAM® Vibe-Safe™ with NPT Adapter for 2-Hole Holders
RAM Mounts
Copy SKU
RAP-B-351-4RU
RAM® Rotating Ball Adapter for Phone and Handheld Holders - B Size
