World-Class Mounting Systems

Size Guide

Ball Sizes

Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

B Size

Holds 2 lbs / 0.91 KG

1" Ball

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs / 1.81 KG

1.5" Ball

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs / 2.72 KG

2.25" Ball

Monitors, Large Fishfinders

E Size

Holds 15 lbs / 6.8 KG

3.38" Ball

Heavy Monitors

Ball Sizes		Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42" / 6.1468cm	3.73" / 9.47cm	6.00" / 15.24cm
B Size	Socket-to-Socket Length	1.75" / 4.45cm	3.00" / 7.62cm	5.31" / 13.49cm
C Size	Overall Length	3.56" / 9.04cm	5.69" / 14.45cm	9.13" / 23.19cm
C Size	Socket-to-Socket Length	2.50" / 6.35cm	4.66" / 11.84cm	8.00" / 20.32cm
D Size	Overall Length	5.10" / 12.95cm	8.44" / 21.44	12.98" / 32.97
D Size	Socket-to-Socket Length	3.60" / 9.14cm	6.88" / 17.48cm	11.41" / 28.98cm
E Size	Overall Length	7.31" / 18.57cm	12.63" / 32.08cm	N/A
E Size	Socket-to-Socket Length	4.98" / 12.65cm	9.88" / 25.10cm	N/A

 / Overview /

RAM^® Tough-Wedge^™ Base with Ball

SKU Copied

SKU: RAM-B-407U

UPC Copied

UPC: 793442949043







RAM^® Tough-Wedge^™ Base with Ball

Copy SKU
RAM-B-407U SKU: RAM-B-407U

Copy UPC
793442949043 | UPC: 793442949043

Overview

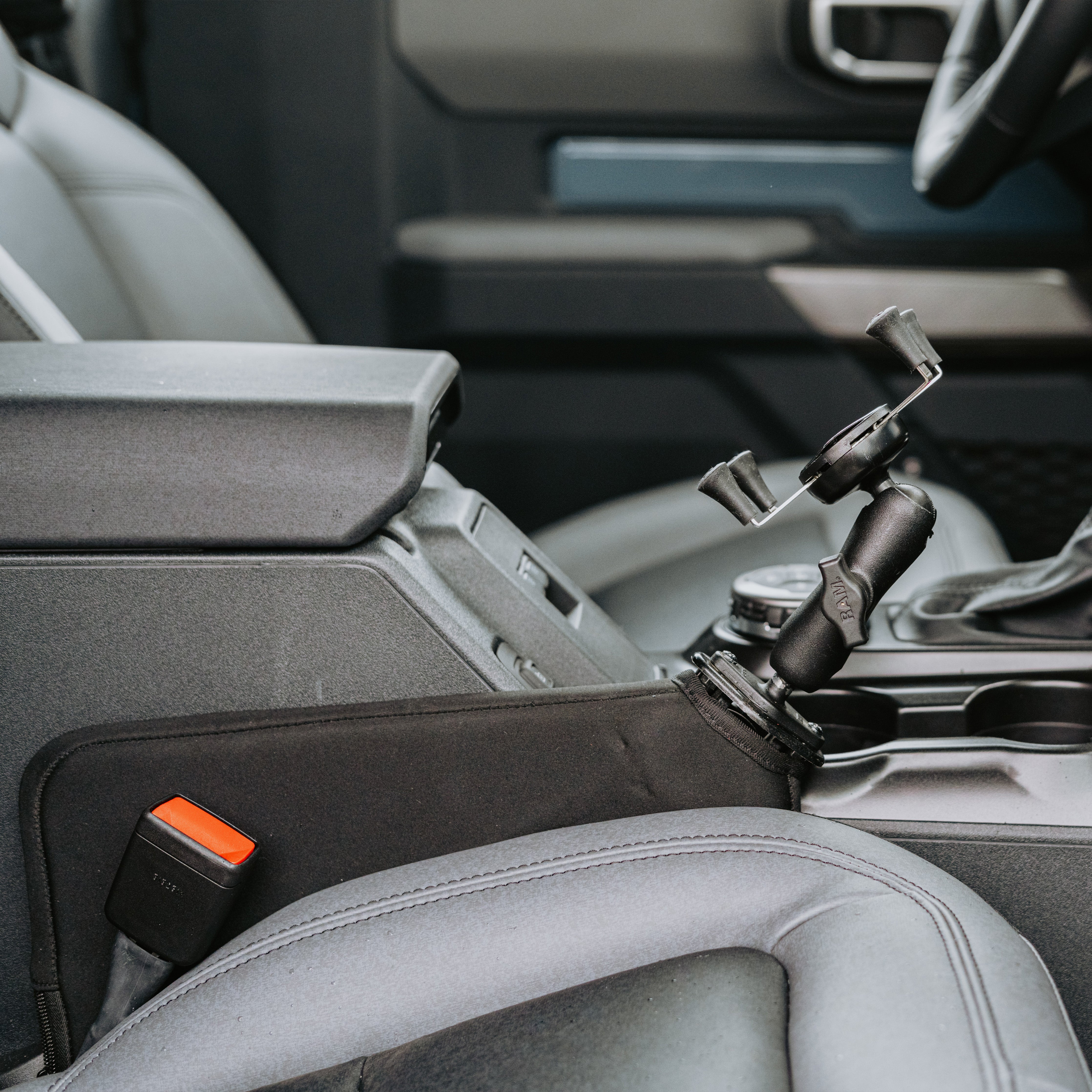

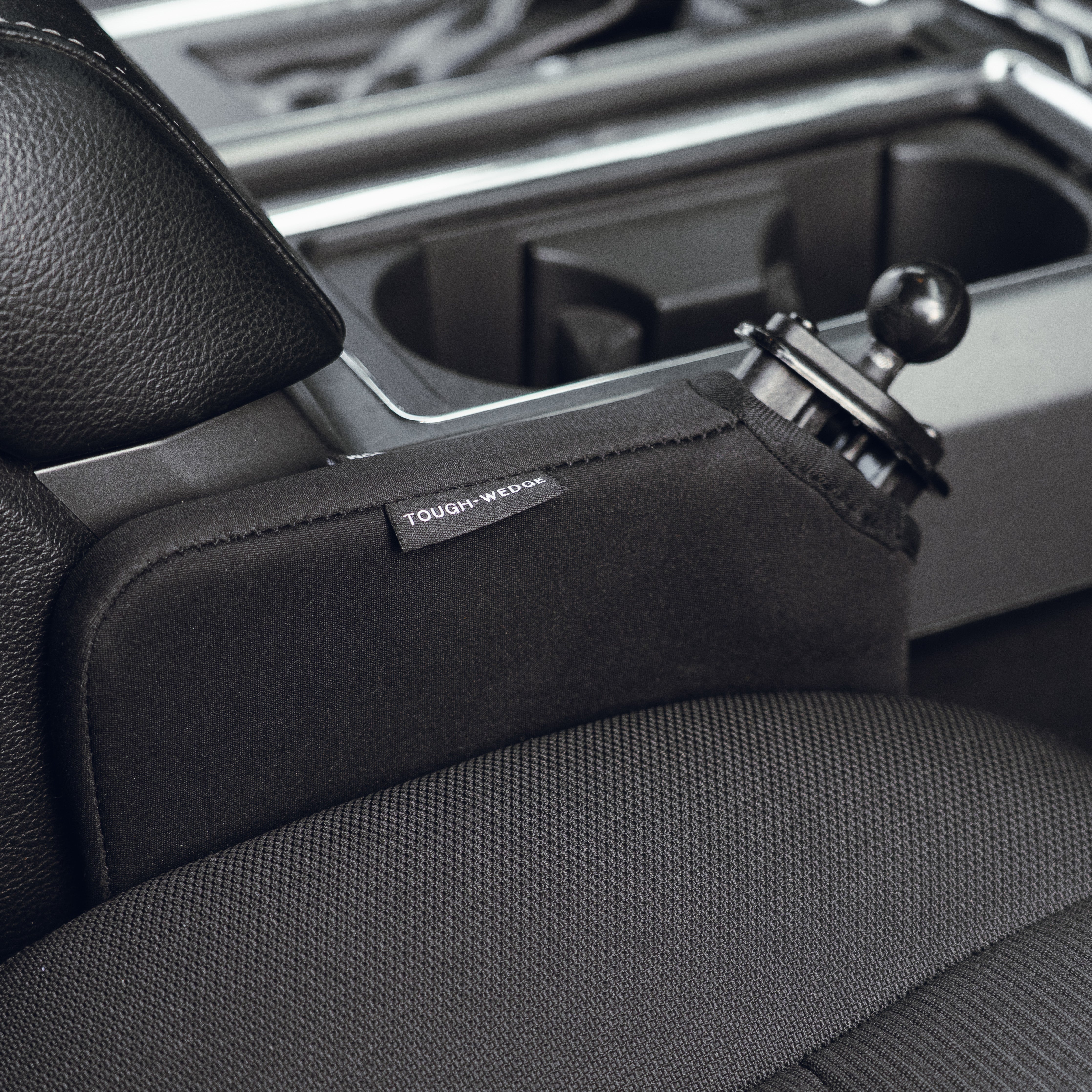

The Tough-Wedge^™ is a seat wedge mount that fits in the gap between the vehicle seat and center console; allowing easy access and operation of your mobile device. The Tough-Wedge^™ can also be used for back-seat applications, inserted into the pockets located on the back of the front seats. For capturing video on the go, place the Tough-Wedge^™ in your backpack with a RAM camera mount. The included diamond adapter contains the industry standard AMPS hole pattern that allows attachment to a variety of RAM mounts. Hardware included to attach the Tough-Wedge^™ to the mount. The 2.54cm (1") diamond ball base is compatible with all RAM-B size single and double socket arms.
