World-Class Mounting Systems

Size Guide

Ball Sizes

Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

B Size

Holds 2 lbs / 0.91 KG

1" Ball

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs / 1.81 KG

1.5" Ball

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs / 2.72 KG

2.25" Ball

Monitors, Large Fishfinders

E Size

Holds 15 lbs / 6.8 KG

3.38" Ball

Heavy Monitors

Ball Sizes		Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42" / 6.1468cm	3.73" / 9.47cm	6.00" / 15.24cm
B Size	Socket-to-Socket Length	1.75" / 4.45cm	3.00" / 7.62cm	5.31" / 13.49cm
C Size	Overall Length	3.56" / 9.04cm	5.69" / 14.45cm	9.13" / 23.19cm
C Size	Socket-to-Socket Length	2.50" / 6.35cm	4.66" / 11.84cm	8.00" / 20.32cm
D Size	Overall Length	5.10" / 12.95cm	8.44" / 21.44	12.98" / 32.97
D Size	Socket-to-Socket Length	3.60" / 9.14cm	6.88" / 17.48cm	11.41" / 28.98cm
E Size	Overall Length	7.31" / 18.57cm	12.63" / 32.08cm	N/A
E Size	Socket-to-Socket Length	4.98" / 12.65cm	9.88" / 25.10cm	N/A

 / Overview /

RAM^® Track Ball™ Quick Release Base - B Size

SKU Copied

SKU: RAP-B-383U

UPC Copied

UPC: 793442939914







RAM^® Track Ball™ Quick Release Base - B Size

Copy SKU
RAP-B-383U SKU: RAP-B-383U

Copy UPC
793442939914 | UPC: 793442939914

B SIZE

Size Guide

Overview

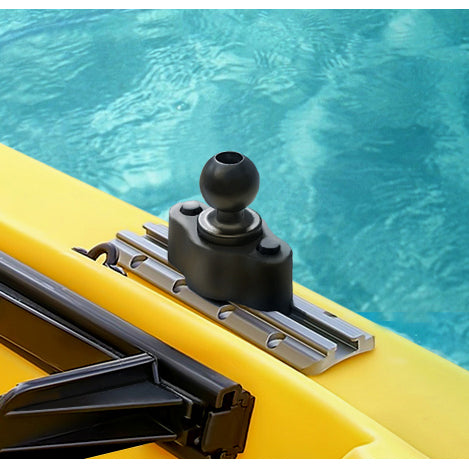

For the serious kayak angler, the RAM Quick Release Track Base is a universal mounting solution for a wide variety of kayak products including RAM fishing rod holders, camera and transducer deployment arms. Designed to accommodate all kayak tracks, as well as common track systems, engage and fasten the base to your existing track system or many other's including SlideTrax and the common T-Track. With a quick turn of the ball the base will slide along the track, giving you ultimate flexibility in repositioning your rod holder. A necessity for the all fishing enthusiasts, the RAM Quick Release Track Base is certain to create more mounting options on whatever you choose to take to the water.
