World-Class Mounting Systems

Size Guide

Ball Sizes

Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

B Size

Holds 2 lbs / 0.91 KG

1" Ball

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs / 1.81 KG

1.5" Ball

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs / 2.72 KG

2.25" Ball

Monitors, Large Fishfinders

E Size

Holds 15 lbs / 6.8 KG

3.38" Ball

Heavy Monitors

Ball Sizes		Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42" / 6.1468cm	3.73" / 9.47cm	6.00" / 15.24cm
B Size	Socket-to-Socket Length	1.75" / 4.45cm	3.00" / 7.62cm	5.31" / 13.49cm
C Size	Overall Length	3.56" / 9.04cm	5.69" / 14.45cm	9.13" / 23.19cm
C Size	Socket-to-Socket Length	2.50" / 6.35cm	4.66" / 11.84cm	8.00" / 20.32cm
D Size	Overall Length	5.10" / 12.95cm	8.44" / 21.44	12.98" / 32.97
D Size	Socket-to-Socket Length	3.60" / 9.14cm	6.88" / 17.48cm	11.41" / 28.98cm
E Size	Overall Length	7.31" / 18.57cm	12.63" / 32.08cm	N/A
E Size	Socket-to-Socket Length	4.98" / 12.65cm	9.88" / 25.10cm	N/A

 / Overview /

9" Modular Aluminum Black RAM^® Tough-Track™

SKU Copied

SKU: RAM-TRACK-EXA-9BU

UPC Copied

UPC: 793442009136







9" Modular Aluminum Black RAM^® Tough-Track™

Copy SKU
RAM-TRACK-EXA-9BU SKU: RAM-TRACK-EXA-9BU

Copy UPC
793442009136 | UPC: 793442009136

Overview

With the RAM^® Tough-Track^™, flat surface mounting possibilities are nearly endless for ATVs, cars, combines, motorboats, tractors, trucks, and more. The black anodized aluminum version of the RAM^® Tough-Track^™ can be drilled to any flat surface and is designed for use with #8 screws for easy installation – hardware not included. Made to be a dependable and rugged mounting solution, the anodized aluminum provides a smooth slide across the track and anti-corrosion protection. The RAM-TRACK-EXA-9BU features 22.86cm (9") of usable track length (aluminum portion), while the included top-loading end caps add about 3.81cm (1.5") in length to each end (7.62cm (3") of additional length). Using the end caps allows for two installation options: either use both top-loading end caps to create insertion points on both ends of the track, or use one top-loading end cap and close the opposite end with the included flush end cap. This RAM^® Tough-Track^™ is compatible with the RAM^® Center Loader and 90 Degree Connector, as well as a wide variety of RAM^® track bases to attach devices like action cameras, fishing rods, phones, and tablets.

Features

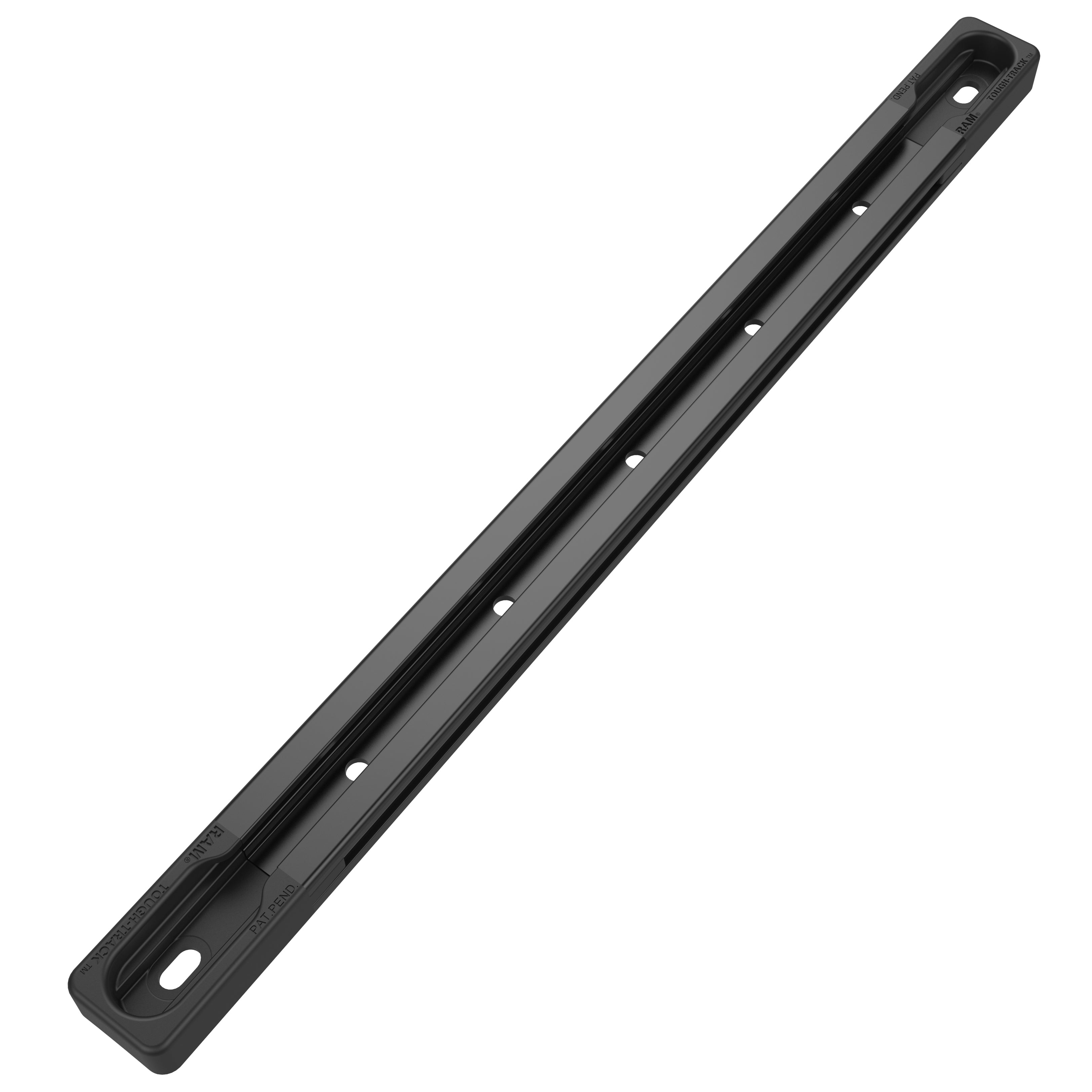

22.86cm (9") of usable aluminum track for track mounts: overall length of 30.48cm (12")

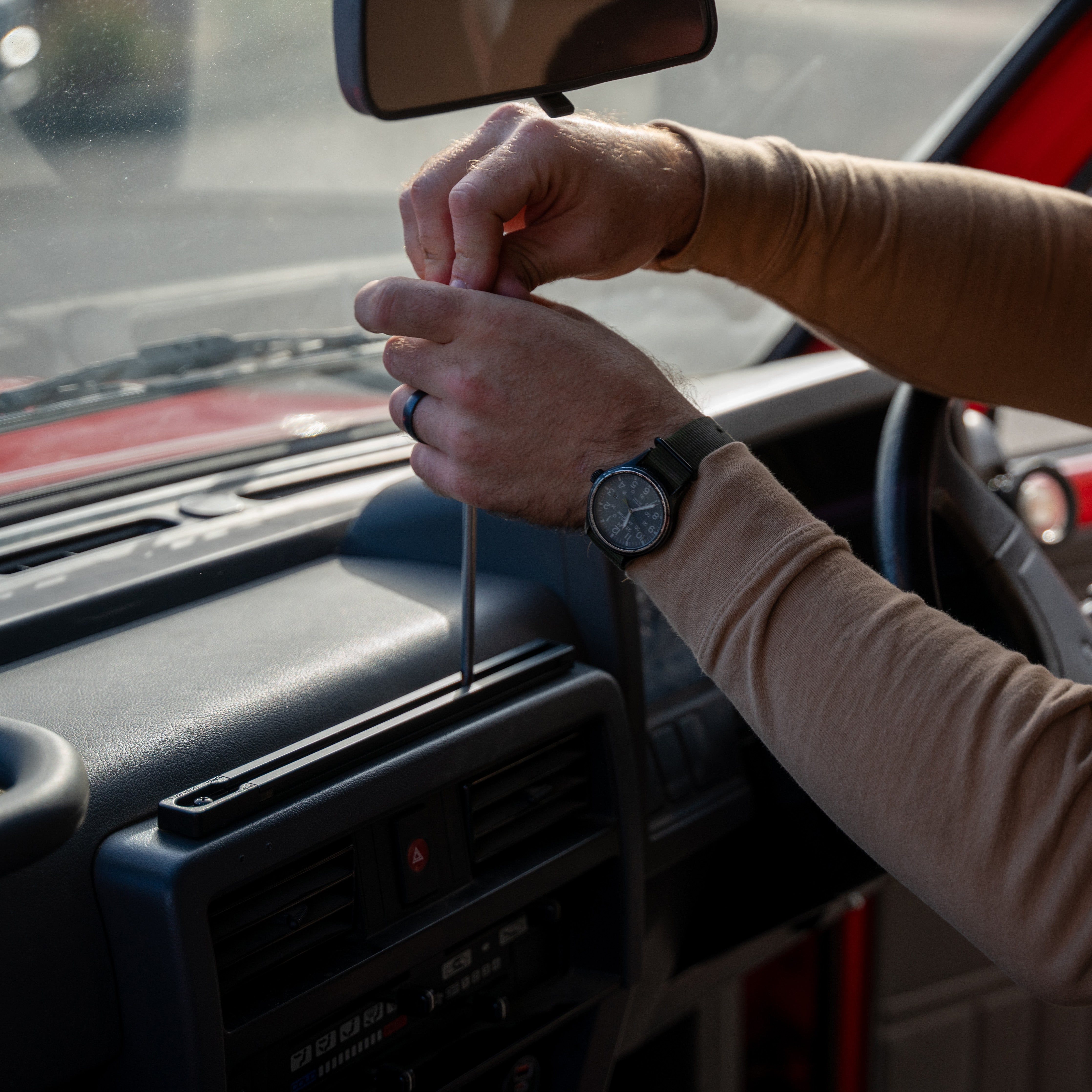

RAM^® Tough-Track^™ can be drilled to any flat surface and is designed for use with #8 screws for easy installation – hardware not included
Modular top-loading end caps allow for additional track extensions and 90-degree connectors

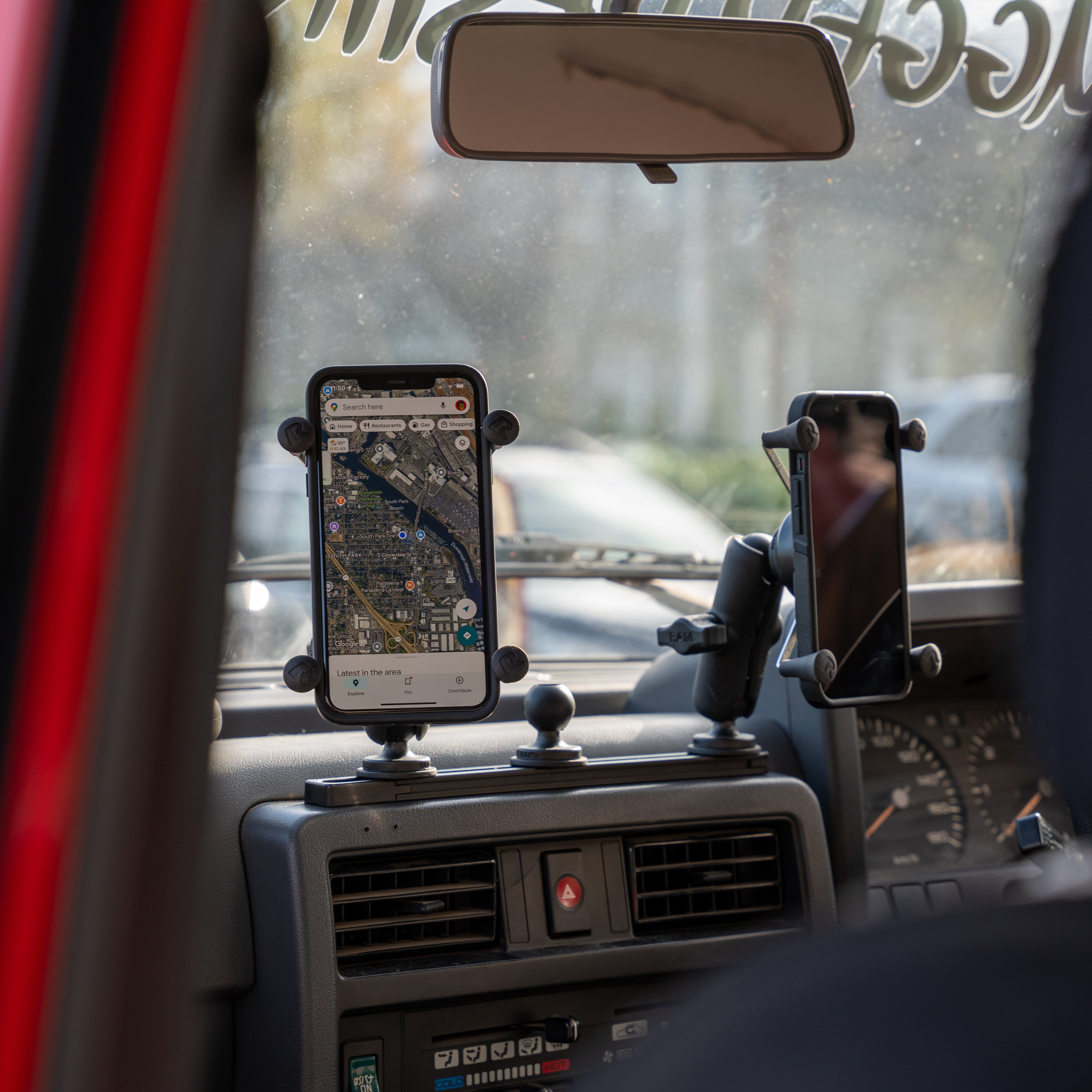

Compatible with B and C size RAM^® track bases to attach action camera mounts, fishing rods, phone mounts and tablet mounts
Backed by a lifetime warranty
