The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Trolling Motor Stabilizer with Strap Hose Clamp - Long

SKU Copied
SKU: RAM-108-DU
UPC Copied
UPC: 793442001468

RAM® Trolling Motor Stabilizer with Strap Hose Clamp - Long
Copy SKU
SKU: RAM-108-DU
Copy UPC
| UPC: 793442001468

C SIZE
LONG ARM
Size Guide

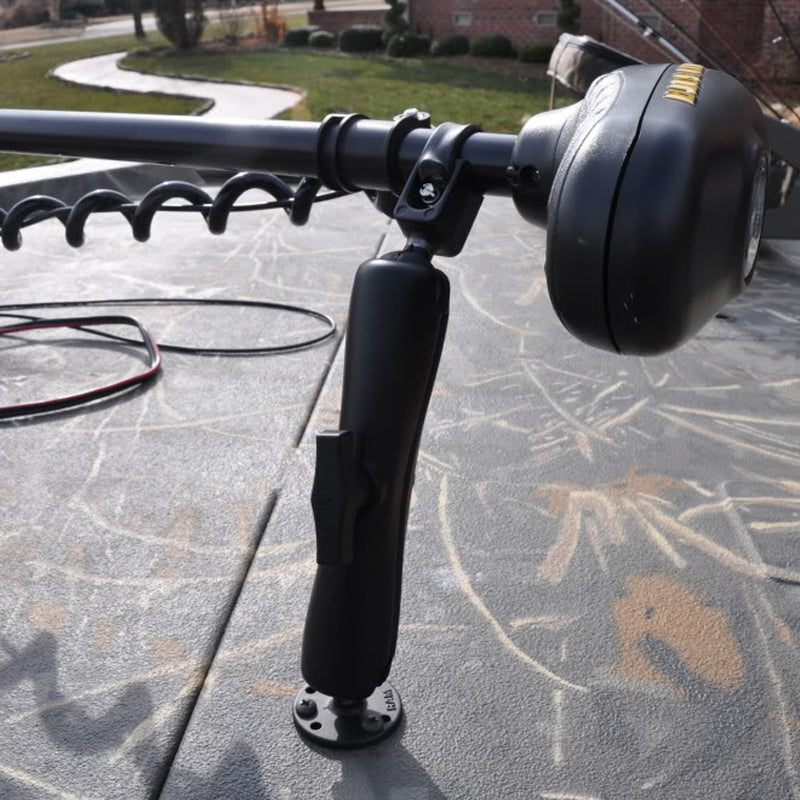

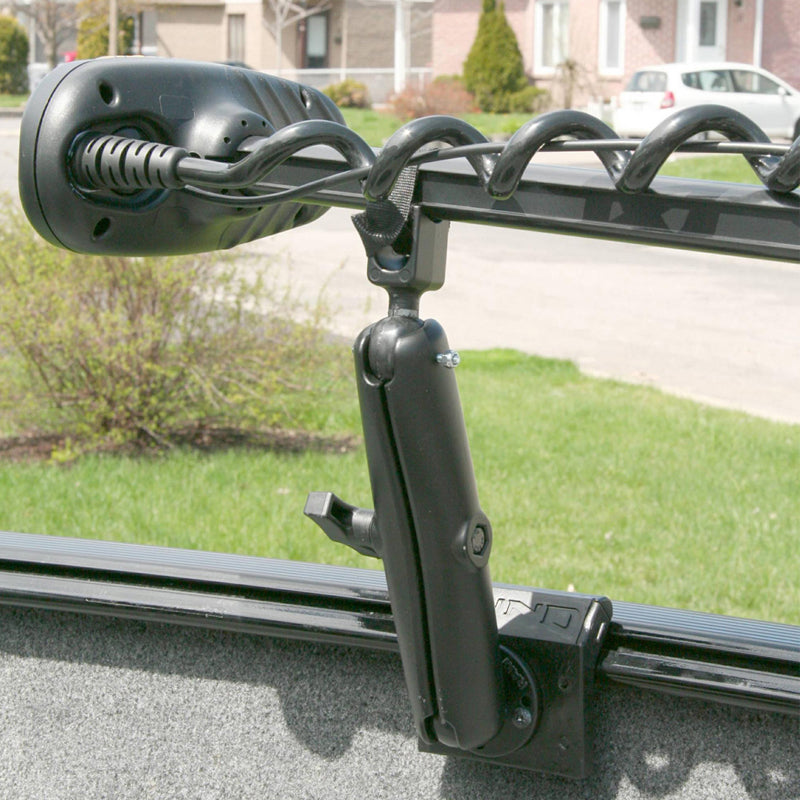

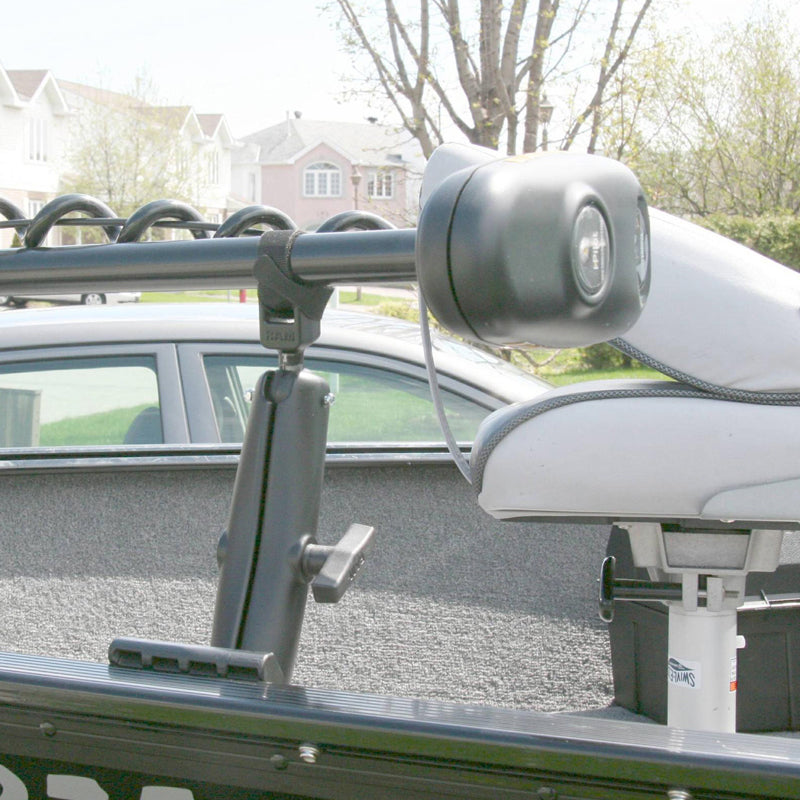

The RAM Trolling Motor Stabilizer with Strap Hose Clamp (RAM-108-D) installs directly to your boat to prevent the shaft of trolling motors from bouncing. This kit is made of C size components, including strap hose clamp base, long-length double socket arm, and 6.35cm (2.5") diameter round base. The round base is pre-drilled with the universal 4-hole AMPS pattern and has an integrated rubber ball for use in the RAM ball and socket ecosystem. The clamp base fits trolling motor shafts from 1.27cm (0.5") to 5.08cm (2") in diameter and effectively eliminates vibration. This solution helps protect the shaft, mount, and motor head from damage and is ideal for anglers running bow-mounted trolling motors.

Features
  • Trolling motor stabilizer mount protects the trolling motor and mounting surface from damage; strap hose clamp compatible with rails from 2.54cm (1") to 5.33cm (2.1") in diameter
  • Includes long length C size double socket arm, and 6.35cm (2.5") round plate with C size 3.81cm (1.5") rubber ball
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Information

Resources

Information

Product Weight
0.98 kg (2.17 lbs)
Hardware Included
(1) #20 Worm Drive Strap Clamp(1) #28 Worm Drive Strap Clamp(1) 15.24cm (6") Rubber Strip
Product Dimensions
Overall Height: 31.75cm (12.5")
Clamp Range
2.54cm (1") - 5.33cm (2.1") diameter
Socket To Socket Length
20.32cm (8")
Hole Pattern
4-Hole AMPS: 3.00 cm (1.181") X 3.80 cm (1.496") 3-Hole 120-Degree: 4.60cm (1.812") Diameter
Ball Size
C Size ( 3.81cm (1.5") )
Weight Capacity
Standard Use: 1.81 kg (4 lbs) Heavy-Duty Use: 1.36 kg (3 lbs)
Materials
Marine-grade aluminum
Packaging Type
Poly Bag

Resources

DOCUMENTS
Add to Enquiry

Components

RAM Mounts
Copy SKU
RAM-108BU
RAM® Strap Hose Clamp Base
RAM Mounts
Copy SKU
RAM-201U-D
RAM® Double Socket Arm - C Size Long
RAM Mounts
Copy SKU
RAM-202U
RAM® Round Plate with Ball - C Size


Complete Your Solution

Locking Knobs

RAM Mounts
Copy SKU
RAM-KNOB5LU
RAM® Key Lock Knob with Brass Insert for C Size Socket Arms
RAM Mounts
Copy SKU
RAM-KNOB5LSU
RAM® Key Lock Knob with Steel Insert for C Size Socket Arms
RAM Mounts
Copy SKU
RAP-S-KNOB5U
RAM® Pin-Lock™ Security Knob for C Size Socket Arms
