The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Tube™ Rod Holder with Round Plate

SKU Copied
SKU: RAP-119U
UPC Copied
UPC: 793442935480

RAM® Tube™ Rod Holder with Round Plate
Copy SKU
SKU: RAP-119U
Copy UPC
| UPC: 793442935480

C SIZE
Size Guide

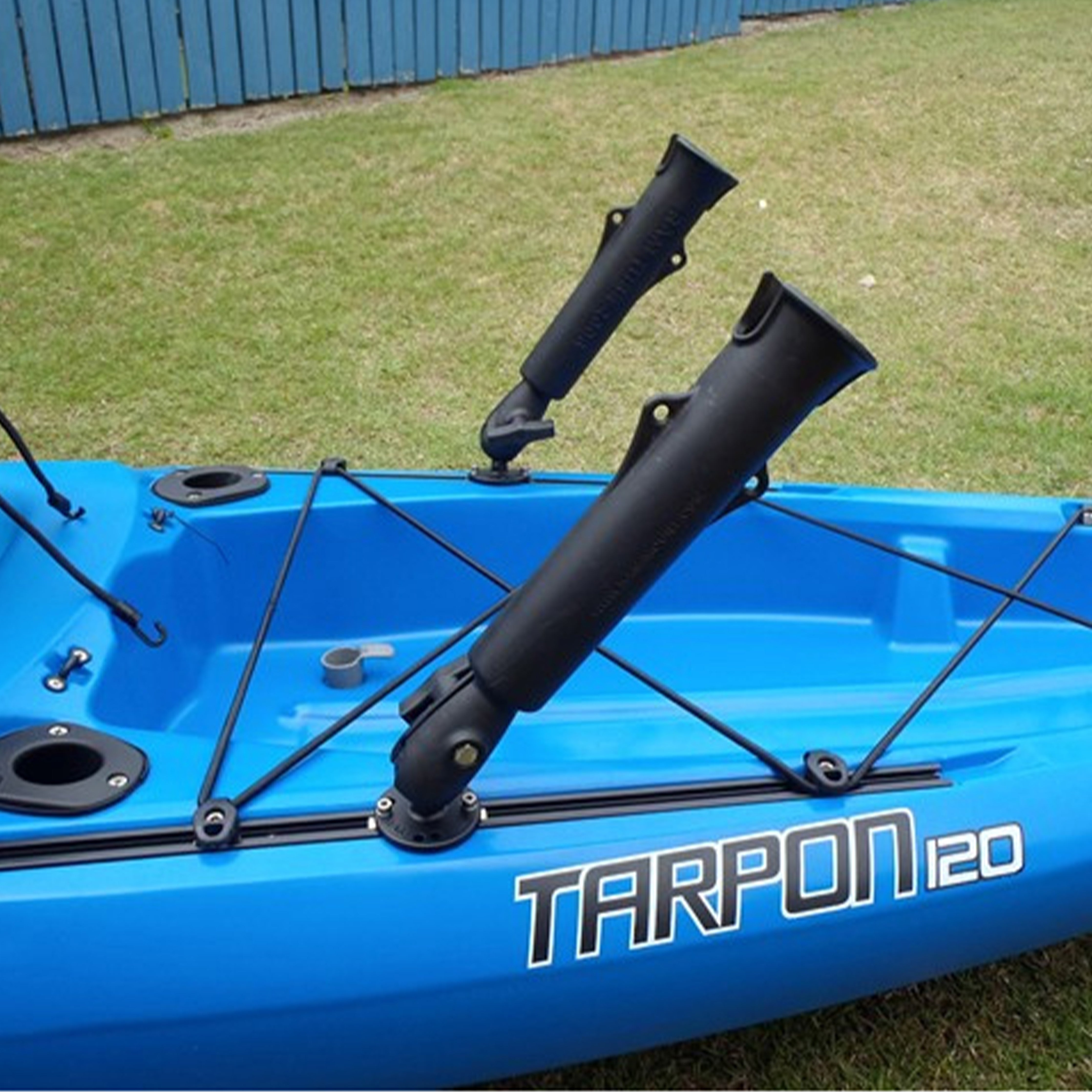

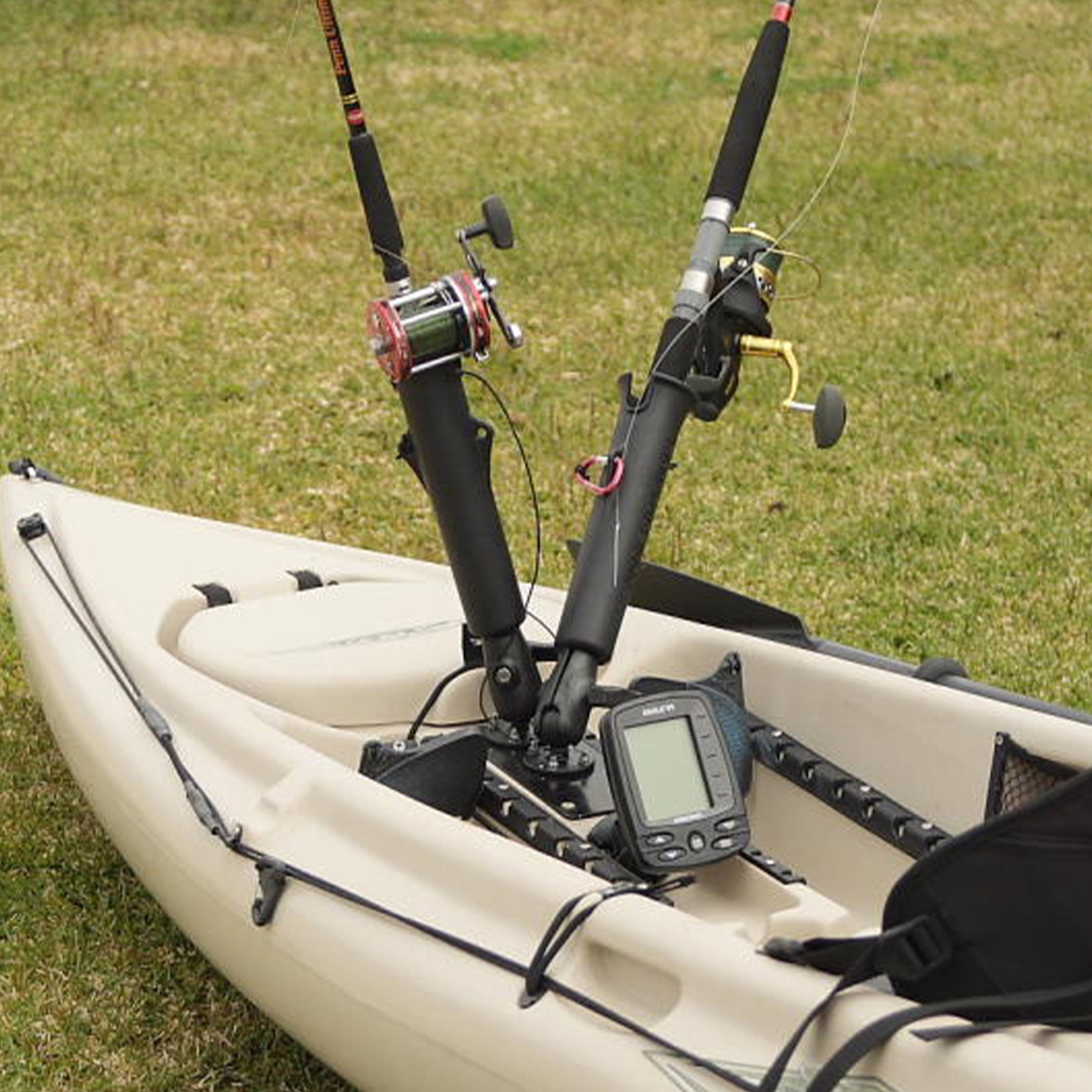

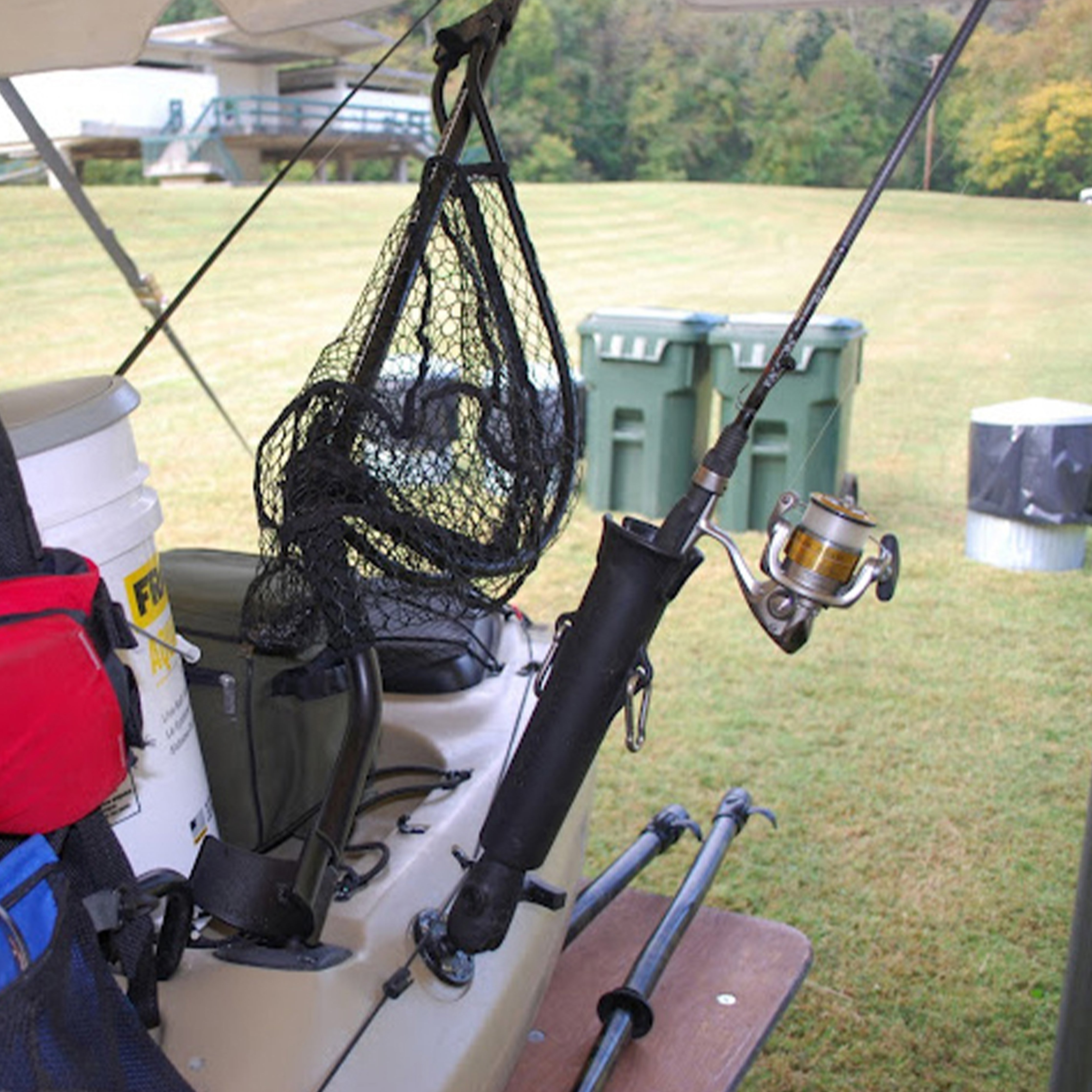

The RAM Tube Rod Holder with Round Plate (RAP-119U) offers an easy, reliable way to store fishing rods or nets when theyre not in use. An internal flange along the lip of the tube prevents rods from spinning, while an integrated arm at the bottom connects to the included C size 6.35cm (2.5") diameter ball base. This allows the holder to be securely drilled down to the vessels surface. With the ball-and-socket connection, the Tube rotates a full 360 degrees and tilts forward or backward for optimal positioning. Loading your rod is simplejust drop the rod butt directly into the Tube for fast stowing and retrieval. Drainage holes at the bottom help keep water from pooling inside. Versatile and user-friendly, this solution is ideal for kayaks, tournament boats, and a wide range of fishing setups.

Information

Resources

Information

Product Weight
0.47 kg (1.03 lbs)
Tube Dimensions
Inside Diameter: 4.83cm (1.9") Inside Length: 25.40cm (10")
Hole Pattern
4-Hole AMPS: 3.00 cm (1.181") X 3.80 cm (1.496") 3-Hole 120-Degree: 4.60cm (1.812") Diameter
Ball Size
C Size ( 3.81cm (1.5") )
Weight Capacity
Standard Use: 1.81 kg (4 lbs) Heavy-Duty Use: 1.36 kg (3 lbs)
Materials
High strength composite
Packaging Type
Poly Bag

Resources

DOCUMENTS
Add to Enquiry

Components

RAM Mounts
Copy SKU
RAM-202U
RAM® Round Plate with Ball - C Size
RAM Mounts
Copy SKU
RAP-119NBU
RAM® Tube™ Rod Holder with Single Socket Arm
