The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Vent-Temp™ with Front Dock Connection for Rectangular Vents

SKU Copied
SKU: RAM-VENT2-RCT-50U
UPC Copied
UPC: 793442015564
04 22 240759ram Vent2 Rct 50u1jpg
04 22 240759ram Vent2 Rct 50u2jpg
04 22 240759ram Vent2 Rct 50u3jpg
04 22 240759ram Vent2 Rct 50u4jpg

RAM® Vent-Temp™ with Front Dock Connection for Rectangular Vents
Copy SKU
SKU: RAM-VENT2-RCT-50U
Copy UPC
| UPC: 793442015564

Overview

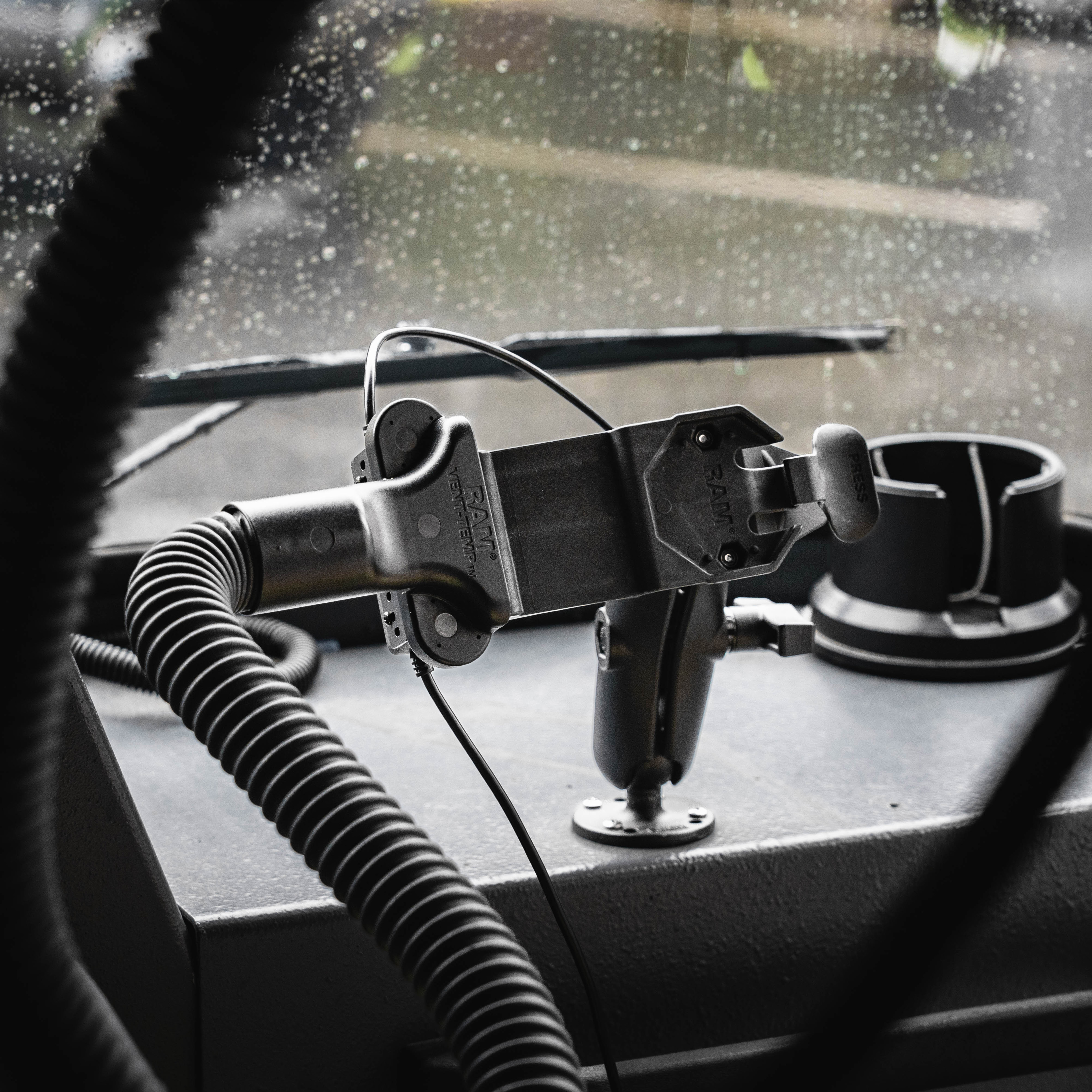

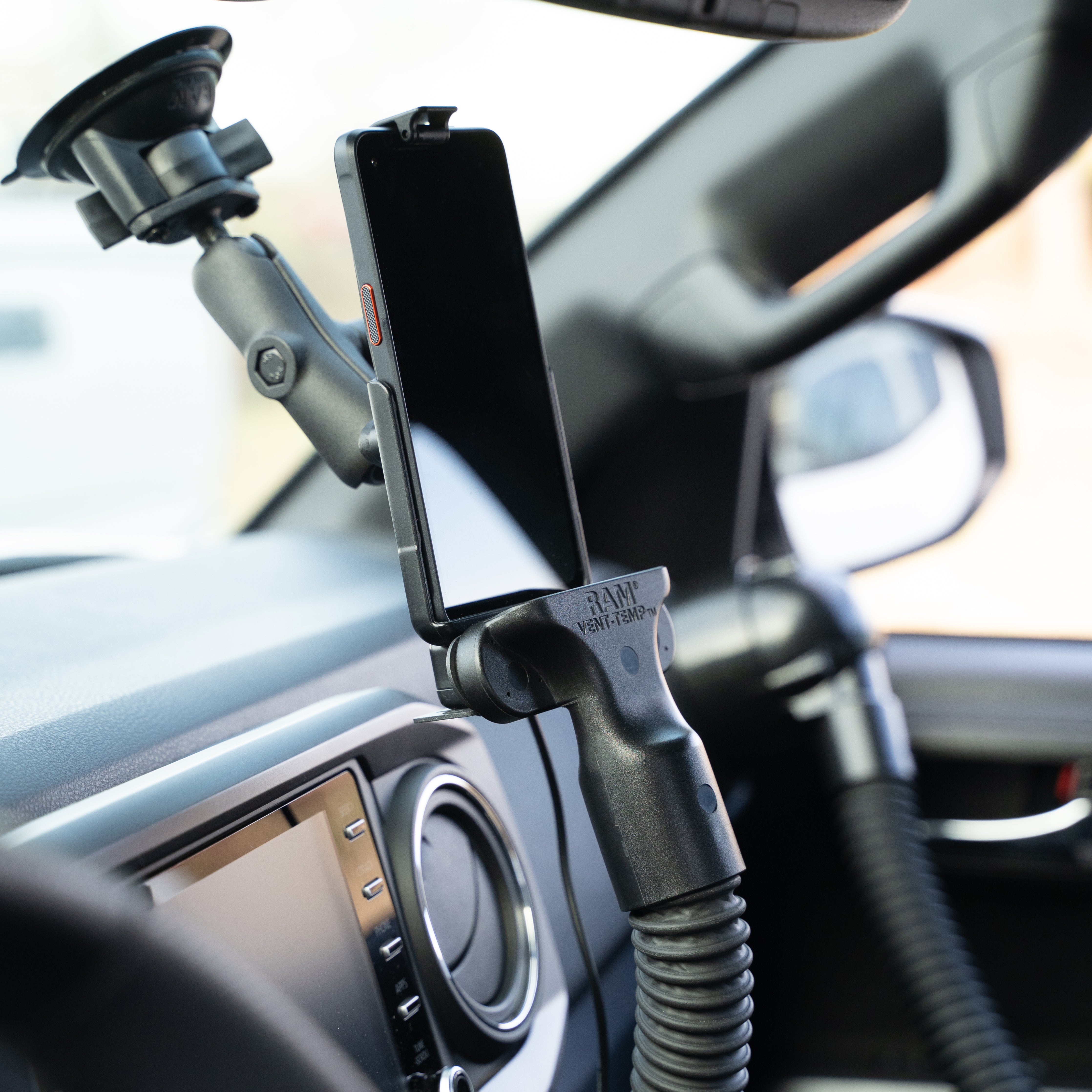

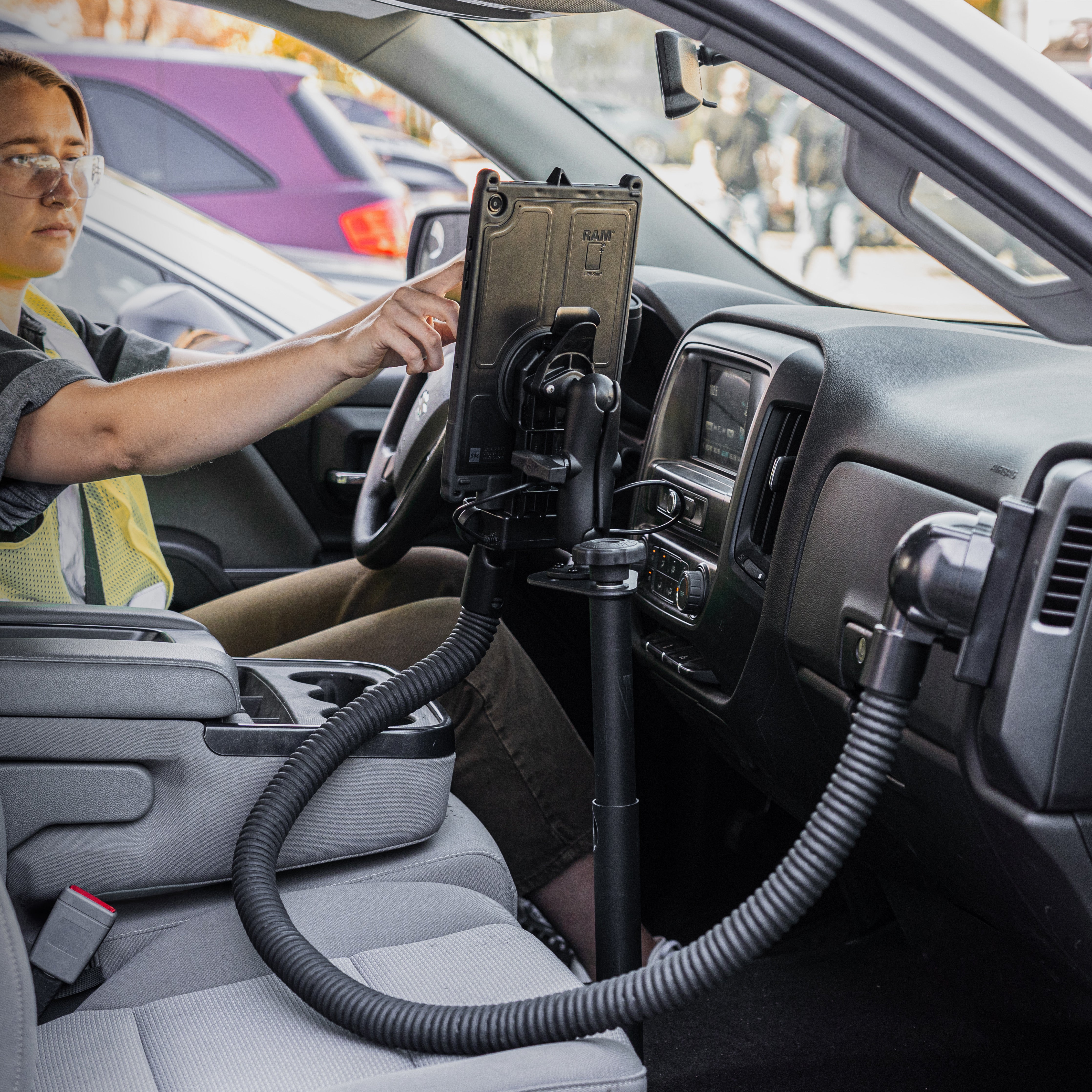

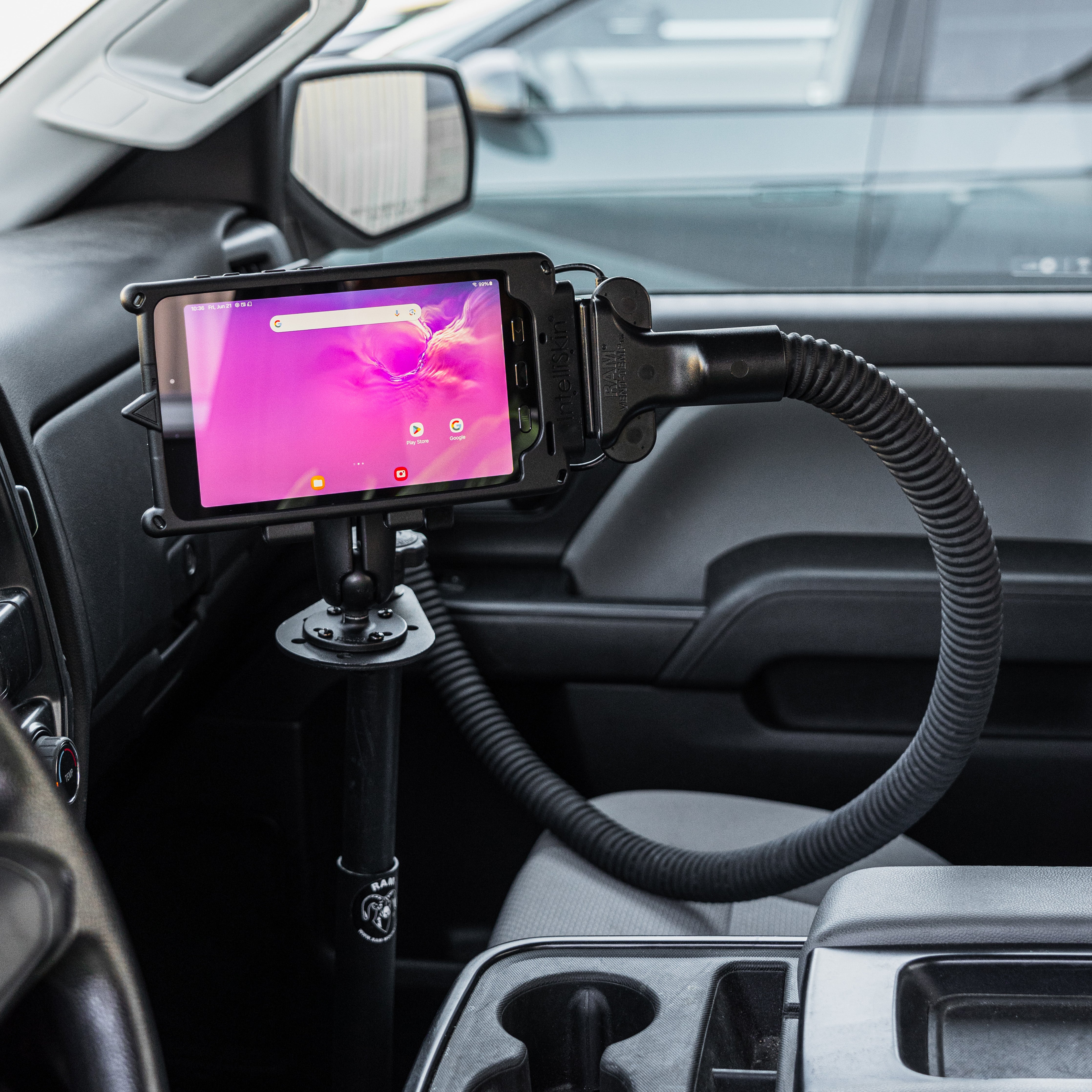

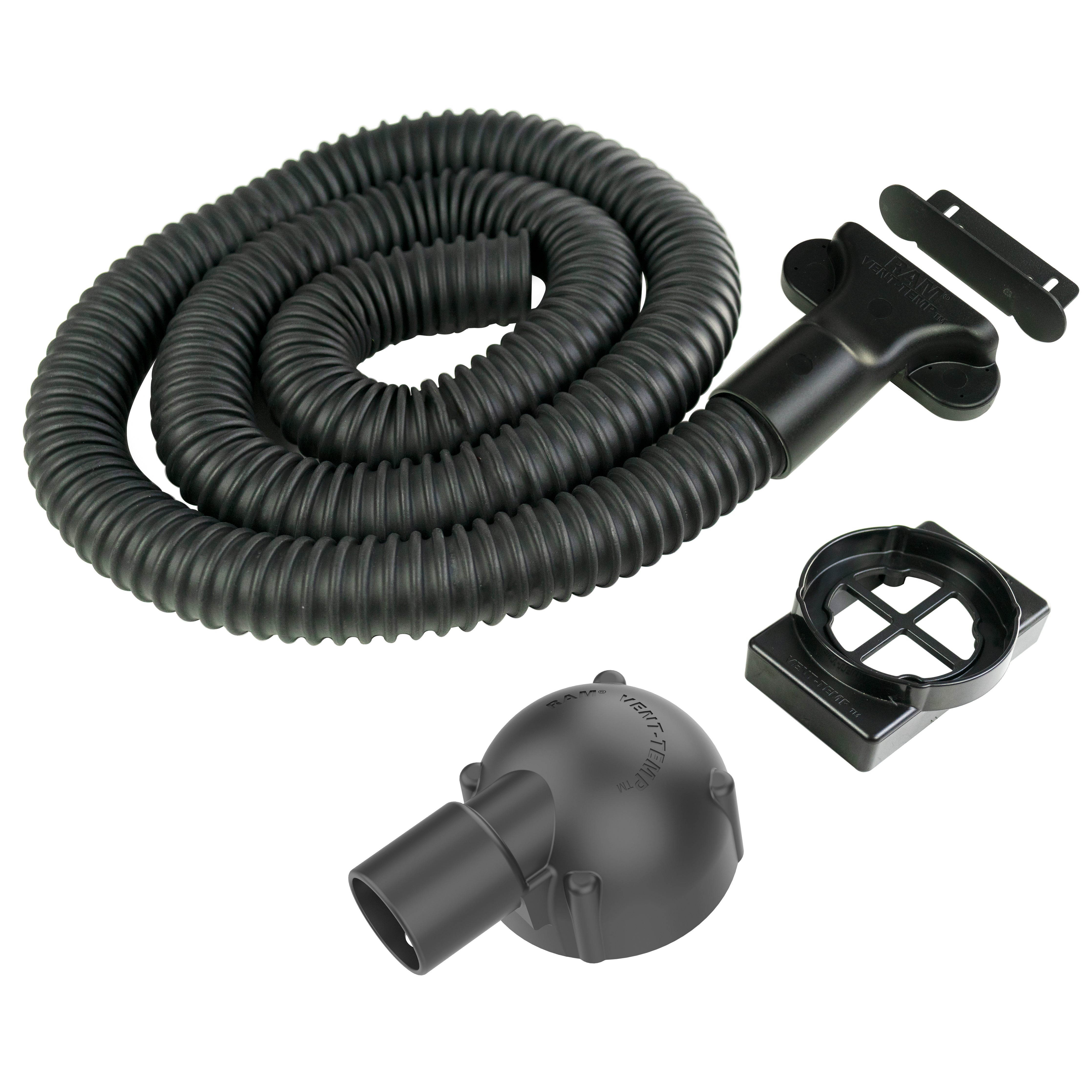

This RAM® Vent-Temp temperature module accessory (RAM-VENT2-RCT-50U) installs to the front of any RAM® or GDS® dock and attaches to rectangular A/C vents using included zip ties. This version of the RAM® Vent-Temp directs air produced by your vehicle's A/C system to either cool, or heat up the front of the docked phone or tablet. This is ideal for environments where the tablet needs to be cooled off or heated up to maintain operating temperatures during critical work functions, or to defrost the front of the device to keep your touchscreen operable. When installed correctly and vent cover is attached to a rectangular air vent, both the hose adapter and front dock attachment feature integrated magnets for easy break-away when the RAM® Vent-Temp is not needed, or gets caught on something that could tug on the hose. The 127.00cm (50") included flexible hose can be cut to the desired length of reach from vent to dock.

Features
  • Temperature regulating accessory designed to install on the bottom of RAM® and GDS® docks with airflow pointed towards the front of a docked tablet
  • Directs cold or hot air from the vehicle's A/C system towards the front of the docked tablet using a 127.00cm (50") -long flexible hose attachment; hose can be cut for desired length
  • Both ends of the hose attachment include integrated magnetic adapters allowing for quick-disconnect from the dock and from the vent adapter
  • Includes rectangular vent adapter covering a surface area of 6.91 cm (2.72") X 12.12 cm (4.77")
  • Backed by a lifetime warranty

Information

Resources

Information

Hardware Included

(3) Zip Ties
(2) #4-40 x 7,62 cm (3")/10,16 cm (4") Screws
(2) #4-40 x 17,78 cm (7")/20,32 cm (8") Screws
(2) #4-40 x 2.54cm (1") Screws
(2) #4-40 x 1 2,54 cm (1")/10,16 cm (4") Screws

Hole Pattern

Dock Connection: 2-Hole 3.73cm (1.47") , 2-Hole 5.08cm (2") , 2-Hole 6.50cm (2.56")

Plate Size

Vent Connector: 6.91 cm (2.72") X 12.12 cm (4.77")

Materials

Powder coated steel
High strength composite

Packaging Type

Poly Bag

Weight

0.53 kg (1.17 lbs)

Additional Information
This product does not actively regulate the temperature of the air flowing over the device. Please take care in maintaining a proper operating temperature for your device.

This product is not compatible with GDS® Docks for Zebra Handheld PC's.

Resources

Instructions
