World-Class Mounting Systems

Size Guide

Ball Sizes
Arm Sizes
X
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Quick-Grip™ Pro XL with Ball & Qi2 15W Wireless Charger

SKU Copied
SKU: RAM-HOL-PD7B-W2MU
UPC Copied
UPC: 793442026744

RAM® Quick-Grip™ Pro XL with Ball & Qi2 15W Wireless Charger
Copy SKU
SKU: RAM-HOL-PD7B-W2MU
Copy UPC
| UPC: 793442026744

B SIZE
Size Guide

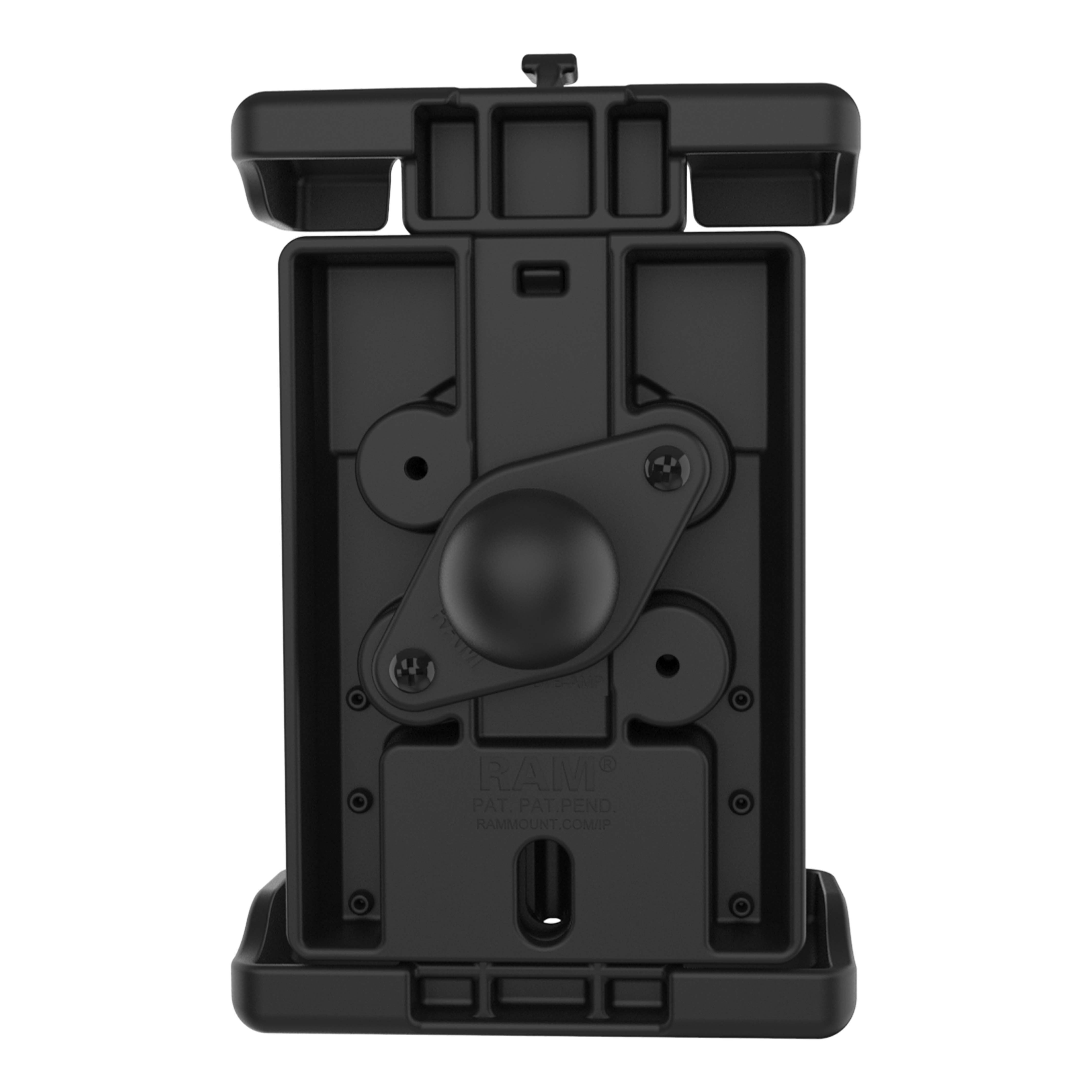

The RAM Quick-Grip Pro XL with Ball & Qi2 15W Wireless Charger (RAM-HOL-PD7B-W2MU) is the next evolution of the RAM Quick-Grip series, re-designed to be the most rugged universal phone holder that fits a wide range of phones and handheld devices. This phone holder comes with the RAM Qi2 wireless charger and features an integrated cavity to secure it in place. This phone holder comes with an anti-slip cover ensuring a flush fit when the wireless charging puck is not installed. The RAM Quick-Grip Pro XL features a spring-loaded design that allows easy one-handed insertion and removal of your device. Large and small shims are included to provide a snug, secure fit for large and small phones without a case. Complete the solution by building your mountthis holder is RAM Compatible and includes a B size diamond ball to be installed on the 2-hole AMPS pattern. RAM recommends installing the provided device tether when this holder is used in a vehicle with an open cockpit. It is important to verify the dimensions of your handheld device with its case, sleeve, or skin when determining the overall size.

Features

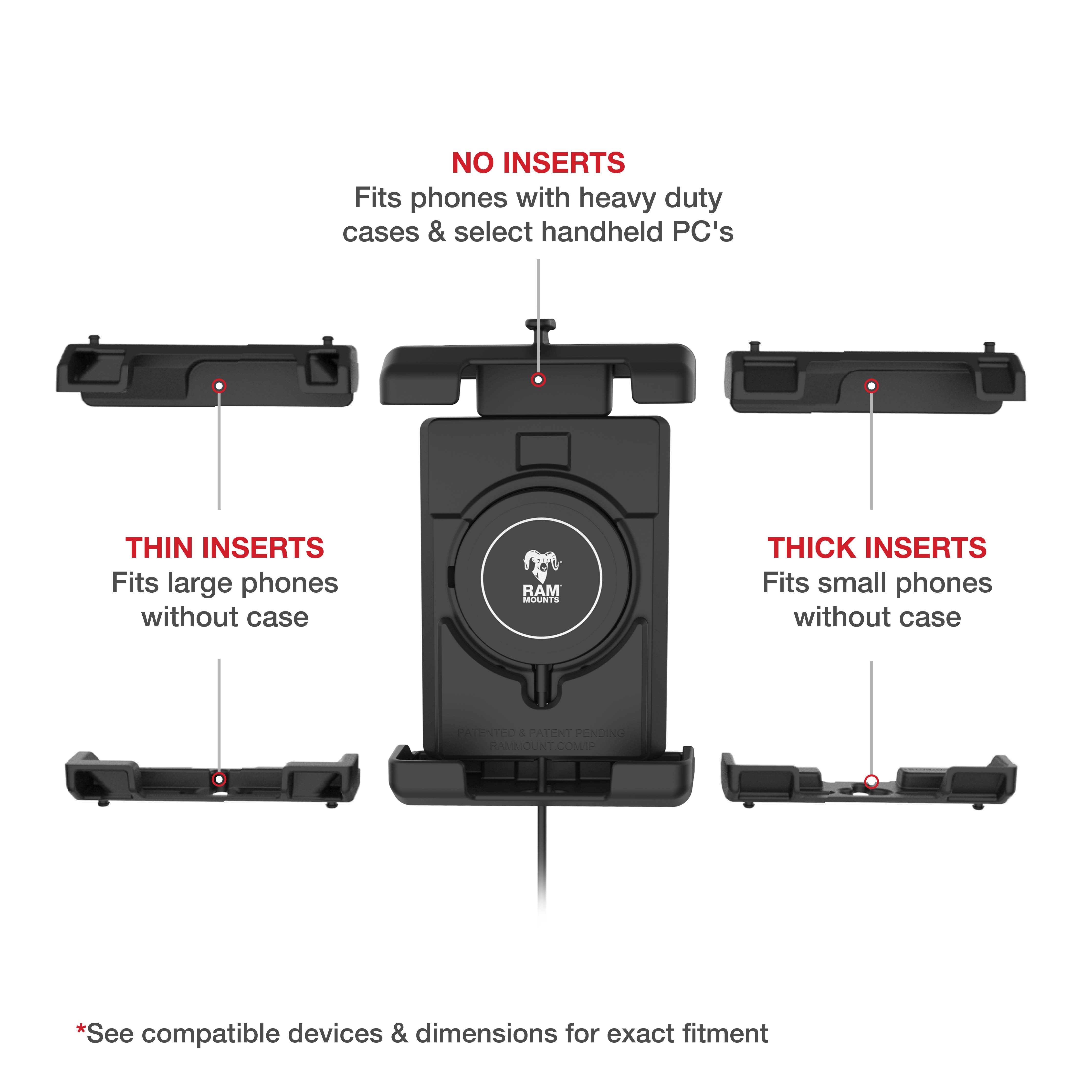

  • Spring-loaded holder provides a secure hold for phones and handheld devices; easily insert and remove your phone with one hand

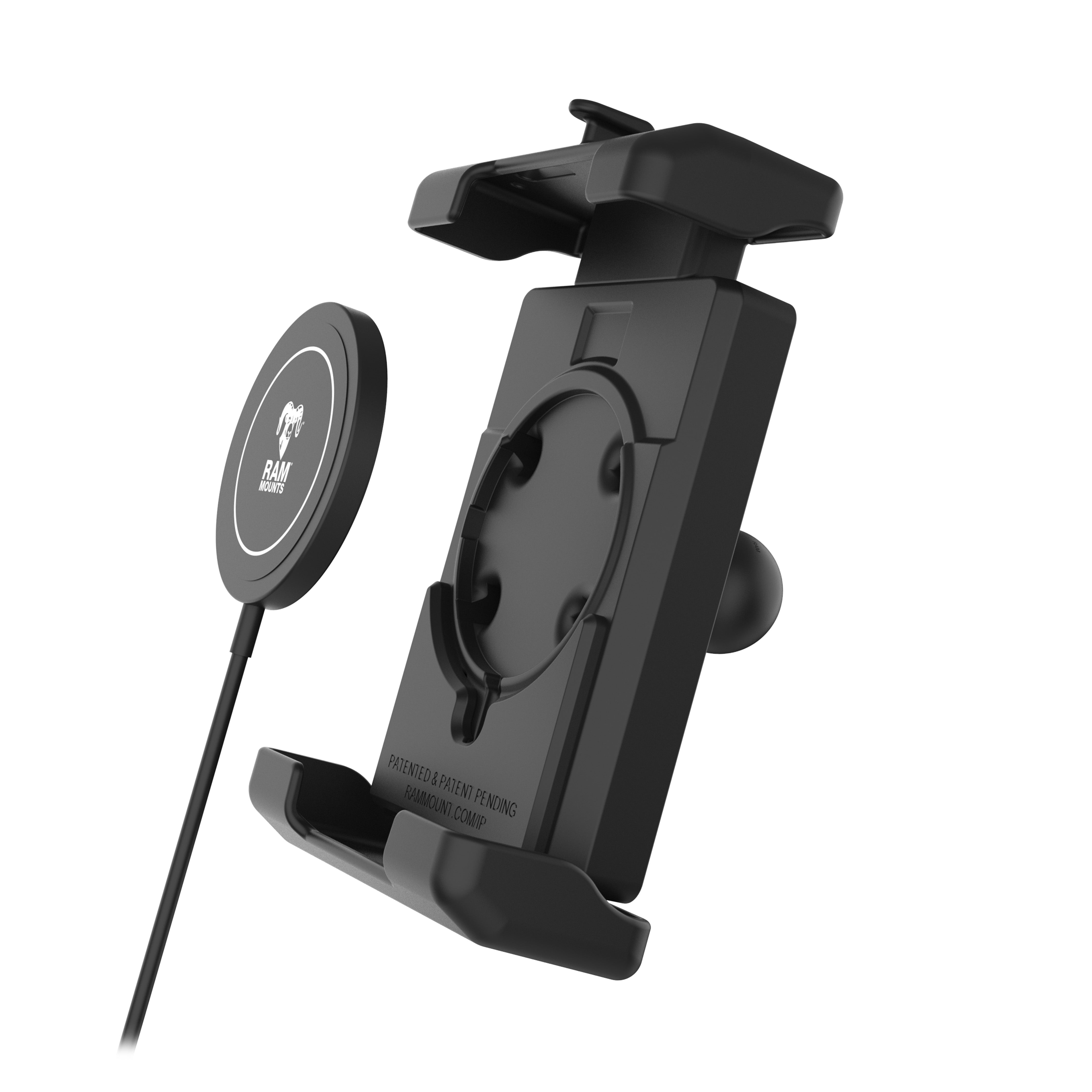

  • Includes RAM® Qi2 wireless charger that fits seamlessly in the integrated center cavity
  • Comes with an optional device tether for open cockpit environments
  • Made of high-strength composite for durability and reliability in the most demanding environments
  • Mounting components backed by a lifetime warranty; electronics backed by a 3-year warranty
Tags: 8 Sirocco, 9 PureView, Apple, B Size 1" (Holds 2 lbs), Blackberry, Eluga X1 Pro, Evolve X, G6 Plus, G7 ThinQ, G8 ThinQ, G8S ThinQ, Galaxy Note 10, Galaxy Note 10 Plus, Galaxy Note 20, Galaxy Note 20 Ultra, Galaxy Note 8, Galaxy Note 9, Galaxy S10, Galaxy S10 5G, Galaxy S10 Plus, Galaxy S10e, Galaxy S20 5G, Galaxy S20 FE 5G, Galaxy S20 Plus 5G, Galaxy S20 Ultra 5G, Galaxy S21 5G, Galaxy S21 Plus 5G, Galaxy S21 Ultra 5G, Galaxy S22 5G, Galaxy S22 Plus 5G, Galaxy S22 Ultra 5G, Galaxy S23, Galaxy S23 Plus, Galaxy S23 Ultra, Galaxy S24, Galaxy S24 Plus, Galaxy S24 Ultra, Galaxy S25, Galaxy S25 Plus, Galaxy S25 Ultra, Galaxy S8, Galaxy S8 Active, Galaxy S8 Plus, Galaxy S9, Galaxy S9 Plus, Google, Holders, Huawei, iPhone 11, iPhone 11 Pro, iPhone 11 Pro Max, iPhone 12, iPhone 12 Pro, iPhone 12 Pro Max, iPhone 13, iPhone 13 Pro, iPhone 13 Pro Max, iPhone 14, iPhone 14 Plus, iPhone 14 Pro, iPhone 14 Pro Max, iPhone 15, iPhone 15 Plus, iPhone 15 Pro, iPhone 15 Pro Max, iPhone 16, iPhone 16 Plus, iPhone 16 Pro, iPhone 16 Pro Max, iPhone 16e, iPhone 17, iPhone 17 Pro, iPhone 17 Pro Max, iPhone 8, iPhone 8 Plus, iPhone Air, iPhone SE, iPhone X, iPhone Xr, iPhone Xs, iPhone Xs Max, Mate 20 Pro, Mi 9, Mi 9 Explorer, Mi Mix 2S, Mi Mix 3, Nokia, P30 Pro, Panasonic, Phone, Phone 2, Pixel 3, Pixel 3 XL, Pixel 4, Pixel 4 XL, Pixel 5, Pixel 6, Pixel 6 Pro, Pixel 7, Pixel 7 Pro, Pixel 8, Pixel 8 Pro, Quick-Grip™ Pro XL, RAM-HOL-PD7B-W2MU, Razer, Samsung, Sony, Supports Device With Case, V30, V35 ThinQ, V40 ThinQ, V50 ThinQ, Xiaomi, Xperia XZ2, Xperia XZ3

Information

Resources

Compatible Devices

Information

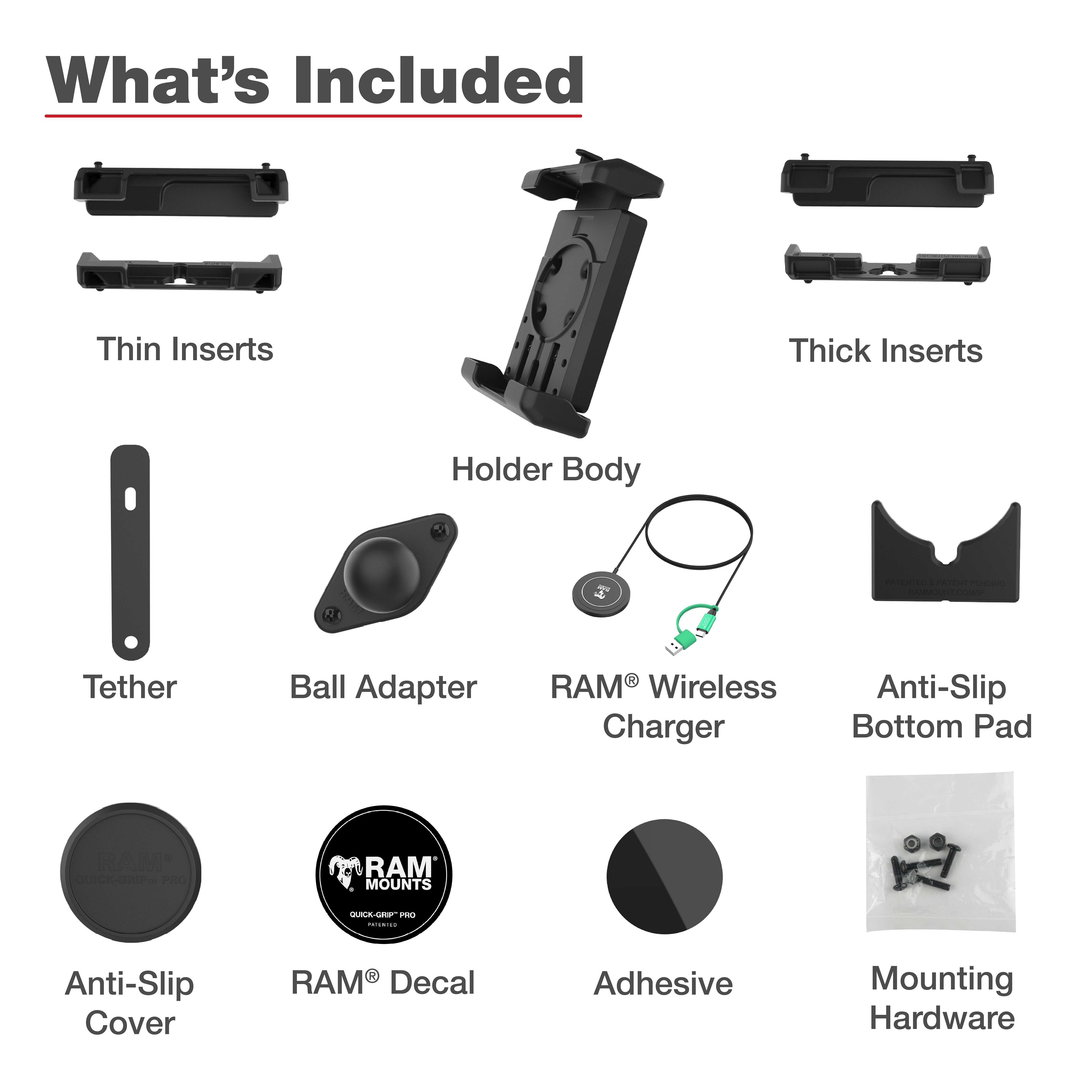

Hardware Included
Assembly Hardware
Holder Dimensions
Height Range: 13.65cm (5.375") - 17.78cm (7") Width Range: 6.99cm (2.75") - 8.89cm (3.5") Max Depth: 1.91cm (0.75")
Ball Size
B Size (1")
Weight Capacity
Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)
Materials
High strength composite
Packaging Type
Poly Bag
Power Specifications
Operating Frequency: 360KHZStand-by Consumption ~ 0.008A / 8mA @5VDC80% Wireless Power Transfer Efficiency or GreaterSupports USB 2.0 BC1.2 Power Supply (5V)Supports Qualcomm QC 2.0, QC 2.0, USB PD 2.0
Input Voltage
USB 5V @ 3AQC2.0 9V @ 2.22AUSB PD 2.0 5-15V @ 2A
Power Output
BPP - 5WEPP - 7.5WMPP - 15W
Output Connector
USB Type-C Male with USB-A Adapter
Output Cable Length
1 Meter
Operating Temperature
0°C to +40°C
Storage Temperature
-20°C to +80°C
Regulatory
Over Current ProtectionShort Cirtcuit ProtectionOver Temperature ProtectionRoHS ComplianceWEEE Compliance
Certifications
IP67SAE J1455FCC CertificationCE CertificationE-Mark CertificationRCM Certification

Resources

INSTRUCTIONS

Compatible Devices

Add to Enquiry

Components

RAM Mounts
Copy SKU
RAM-B-238U
RAM® Diamond Ball Base - B Size
RAM Mounts
Copy SKU
RAM-HOL-PD7U
RAM® Quick-Grip™ Pro XL Phone Holder
RAM Mounts
Copy SKU
RAM-GDS-CHARGE-W2M
RAM® Qi2 15W Wireless Charger
