World-Class Mounting Systems

Size Guide

Ball Sizes
Arm Sizes
X
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Tab-Tite™ Holder for 9"-10.5" Tablets with Cases and Retention Arm

SKU Copied
SKU: RAM-HOL-TAB20-B-201-A-ALA1-KRU
UPC Copied
UPC: 793442123160

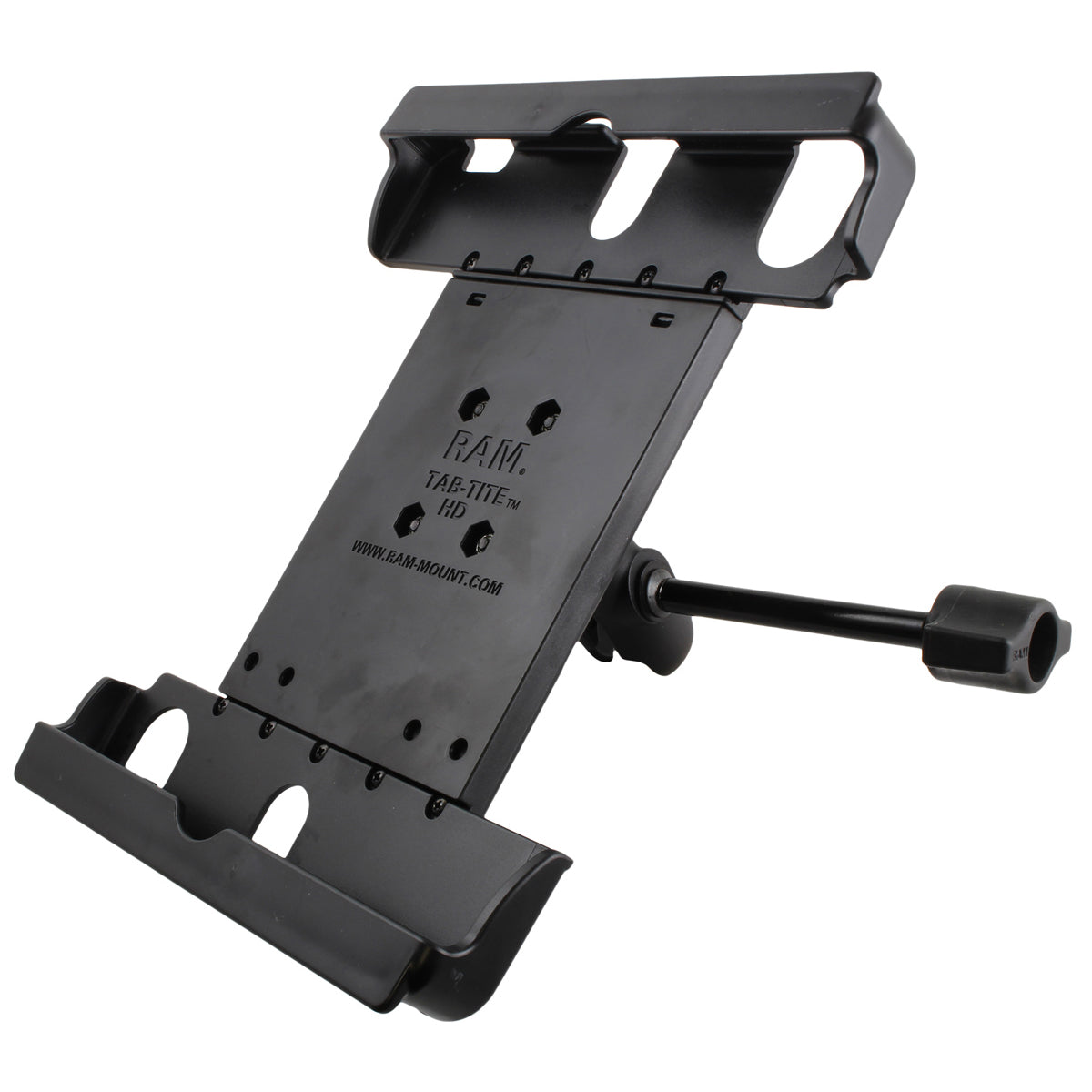

RAM® Tab-Tite™ Holder for 9"-10.5" Tablets with Cases and Retention Arm
Copy SKU
SKU: RAM-HOL-TAB20-B-201-A-ALA1-KRU
Copy UPC
| UPC: 793442123160

SHORT ARM
Size Guide
Get the most out of your tablet with the RAM Tab-Tite spring loaded, quick release cradle. With interchangeable cup ends, you can fit the cradle to your tablet for a near custom fit. This spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. Perfect for stationary or on the go applications, this new RAM product is just what you need to get the most out of your tablet. Connected to the RAM Tab-Tite is a round plate with 2.54cm (1") ball, connected to a short length double socket arm with retension knob. The open socket on the opposite end of the socket arm can clamp onto any RAM 2.54cm (1") ball components to complete your solutions, with infinite adjustability and the freedom to mount your tablet virtually anywhere. The Tab-Tite cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

Features
  • Spring-loaded holder secures large tablets with cases; interchangeable end cups allow you to modify the holder when upgrading devices
  • Ball and socket technology allows for near-infinite adjustability
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Information

Resources

Compatible Devices

Information

Product Weight
0.49 kg (1.08 lbs)
Hardware Included
Assembly Hardware
Holder Dimensions
Height Range: 24.13cm (9.5") - 30.80cm (12.125") Width Range: 16.64cm (6.55") - 18.87cm (7.43") Depth Range: 0.76cm (0.3") - 2.22cm (0.875")
Socket To Socket Length
4.45cm (1.75")
Ball Size
B Size (1")
Weight Capacity
Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)
Materials
High strength composite
Packaging Type
Poly Bag

Resources

INSTRUCTIONS

Compatible Devices
